User Manual for your Baumatic

PCC1220SS

100 cm Multi-function twin cavity cooking

theatre

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 24/04/09

Contents

Environmental note 4

Important safety information 5 – 9

Specifications 9 – 12

Thermostat control knob (main oven) 11

Oven function selector knob (main oven) 11

Oven function and thermostat control knob (secondary oven) 11

Ovenprogrammer/timer 11

Oven programmer/timer display 12

Setting and using the oven programmer/timer 12 - 16

Selecting manual operation mode 12

Setting the time of day 12

Setting the minute minder function 13

Setting the duration function 14

Setting the end cook function 15

Setting the start and end time function 16

Selecting a cooking function and temperature 17 - 23

Selecting manual operation mode 17

Before first use 17

Selecting a main oven function 18 - 19

Thermostat control knob (main oven) 19

Selecting an oven function and temperature (secondary oven) 19

Ovenoperatinglight 20

Thecoolingfan 20

Using and assembling the rotisserie 21

Cooking guidelines 22

Warnings 22 – 23

Usingthehobtop 23

Automatic electric ignition 23

Energysavingtips 24

Cleaning and maintenance 24 - 29

Cleaning the hob burners 25

Maintaining the cast iron pan stands 26

Replacing the oven bulb 26

Removing the oven door for cleaning 27

Removing the inner door glass for cleaning 28 - 29

Installation 29 - 39

Positioning 30-31

Gasconnection 32

Ventilation requirements 32 - 33

Gas Safety (Installation and Use) Regulations 33

Gasconnection 34

Gas adjustment (Conversion to LPG) 35 - 36

Minimum flow adjustment for hob gas taps 36

Fittingastabilitychain 37

Electricalconnection 38

Connecting the main supply cable 38 - 39

Replacing the mains supply cable 39

My appliance isn’t working correctly 40 – 41

Contact details 42

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

all packaging material with due regard for the

environment.

oPlease discard

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If yo

are unsure of any of the information contained in t u

his

ooklet, please contact the Baumatic Advice Line.

tic household use and for

ient temperature of the

n at

20 mm to the appliance, will be

rmation given in the installation instructions

hat this

f Baumatic Ltd.

uarantee. The foregoing does not

affect your statutory rights.

Service

Engineers or their authorised service agent.

General Information

oThis appliance is designed for domes

the cooking of domestic foodstuffs.

oIMPORTANT: The adjacent furniture and all materials used

the installation must be able to withstand a minimum

temperature of 85°C above the amb

room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouratio

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, or by placing adjacent

cabinet materials closer than

the liability of the owner.

oFor use in leisure accommodation vehicles, please refer to

the appropriate info

for this appliance.

oIMPORTANT: Baumatic Ltd. DO NOT recommend t

appliance is installed on any type of marine vessel.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement o

will invalidate any warranty or liability claim.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of G

oRepairs may only be carried out by Baumatic

arning and safety instructions

iance

become hot during use and retain heat after operation.

hild Safety

ny time. During and after use, all

surfaces will become hot.

se ensure that they are kept under close supervision

at all times.

eneral Safety

oThis appliance complies with all current European safety

legislation. Baumatic do wish to emphasise that this compl

does not remove the fact that the appliance surfaces will

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowe

to touch the appliance at a

oIf it is necessary for younger family members to be in the

kitchen, plea

Make sure that you understand the controls before using the

appliance.

Check that all of the controls on the appliance are turned off

after use.

when opening the oven door, this will allow

eat to disperse.

Always stand back

Take care when removing items from the oven, as the contents

may be hot.

Always keep the oven doors closed when the oven is not in use.

Always follow the basic principles of food handling and hygiene;

this will prevent the possibility of bacterial growth.

Always keep ventilation slots clear of obstructions.

Keep fingers away from the hinge areas when closing the door,

otherwise you may trap them.

Oven gloves should be used when placing food in the oven ca

and when removing it. Care should be taken to avo vity

id direct

contact with any of the elements in the appliance.

T LEAVE THE APPLIANCE UNATTENDED WHILST IN

USE.

oDO NO

oDo not place heavy objects on the oven door or lean on the

oven door when it is open, as this can cause damage to the oven

door hinges. Nobody should be allowed to sit or stand on any

part of the cooker.

oDo not store chemicals, food stuffs, pressurised containers in or

on the cooker or in cabinets immediately above or next to the

cooker.

oDo not heat up unopened food containers, as pressure can build

up which may cause the container to burst.

oDo not place flammable or plastic items on or near the hob

burners, these types of materials should also not be placed in

the oven or the compartment below the oven.

oDo not leave heated oil or fat unattended, as this is a fire risk.

You should not fill a deep fat frying pan more than one third full

of fat or oil; you should also not use a lid.

oDo not allow fat or oil to build up in the oven trays, grill pan or

oven base.

oDo not place pans or baking trays directly on the base of the

oven cavity, or line it with aluminium foil.

oDo not grill food containing fat without using the grill trivet. The

grill trivet should never be covered with aluminium foil.

oDo not place hot enamel parts in water, leave them to cool first.

oDo not allow vinegar, coffee, milk, saltwater, lemon, tomato

juice or any liquid with high sugar content to remain in contact

with the enamel parts of the appliance. Spillages should be

wiped up immediately.

oDo not allow electrical fittings or cables to come into contact

with areas on the appliance that get hot.

oDo not use the appliance to heat the room it is located in or to

dry clothing. No clothing should be placed over or near to the

hob burners or oven door.

oDo not install the appliance next to curtains or soft furnishings.

oDo not attempt to lift or move cooking appliances by using the

oven door or handle, as this may cause damage to the appliance

or result in injury to the person lifting the appliance.

Cleaning

oCleaning of the oven should be carried out on a regular basis.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the

mains before following the cleaning procedure.

oIMPORTANT: Care must be taken when cleaning between

the door glasses, and inside the inner frame as some of

the edges maybe sharp due to the manufacturing process.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions. Please see

the specific section of this booklet that refers to

installation.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

oHeat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is going to be used for

prolonged periods of time, then additional ventilation may be

required.

oPlease consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity

This appliance complies with the following European Directives:

-73/23/EEC regarding “low voltage”

-89/336/EEC regarding “electromagnetic disturbances”

-90/396/EEC regarding “gas appliances”

-89/109/EEC regarding “materials in contact with food”.

oThe above directives comply with 93/68/EEC regarding CE

marking.

oThe manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

Specifications

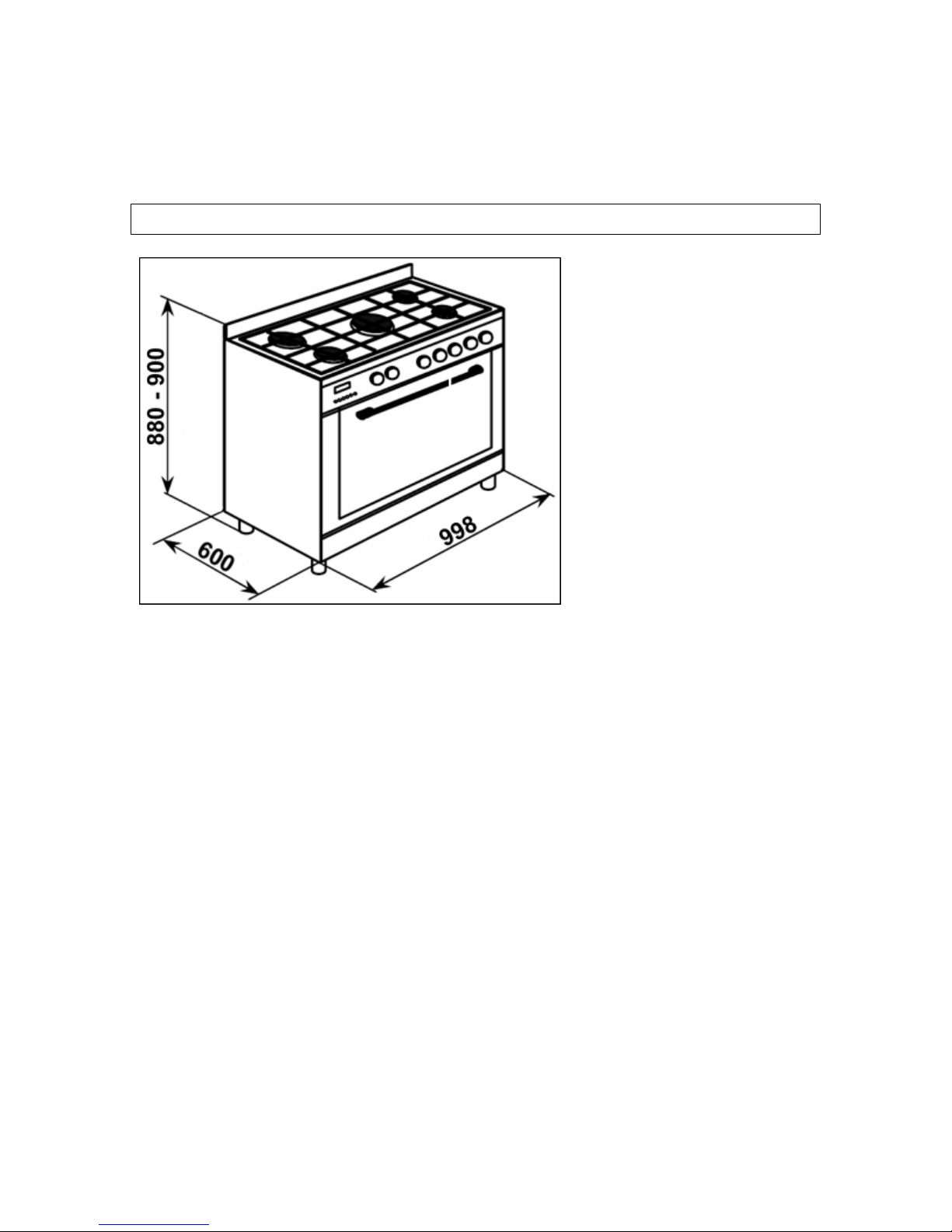

Product dimensions:

Height: 880 - 900 mm

Width: 998 mm

Depth: 600 mm

Product specifications:

o5 burner gas hob:

o1 x 3.60 kW wok burner

o1 x 3.00 kW rapid burner

o2 x 1.75 kW semi-rapid burners

o1 x 1.00 kW auxiliary burner

oHeavy duty cast iron pan stands

oAutomatic ignition

o8 function main oven

o5 function secondary oven

oOven energy efficiency class: B

oMain oven capacity: 61 litres

oSecondary oven capacity: 37 litres

oStorage compartment capacity: 35 litres

oLED fully programmable timer

oCooling fan

oThermostatically controlled grills

oDouble glazed removable door (secondary oven)

oTriple glazed removable door (main oven)

oAdjustable feet

oRotisserie skewer with removable handle

Standard accessories:

oWok stand

oRemovable side racks

o2 x Safety shelves

oEnamelled baking tray

oTrivet

oLPG conversion jets

Optional extras:

oBPS1 Pizza stone

oBTGRID Double-sided griddle plate

Electrical details

Rated Voltage: 230 Vac 50 Hz

Supply Connection: 16 A (double pole switched fused

outlet with 3mm contact gap)

Max Rated Inputs: 3.58 kW

Mains Supply Lead: 3 core x 1.5 mm²

Oven Light Bulb: E14 15 W/300°C screw type pigmy

Gas details

Gas Connection Type: 1/2” BSP

Gas Type (Natural Gas): 20 mbar

Gas Type (LPG): See table on page 35 for this

information.

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate for your oven can be

located by opening the door of the storage compartment.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

Otros manuales para PCC1220SS

Tabla de contenidos

Otros manuales de Estufa de Baumatic

Baumatic

Baumatic BCG600SS Manual de usuario

Baumatic

Baumatic Cooker Manual de usuario

Baumatic

Baumatic BAF90EG Manual de usuario

Baumatic

Baumatic BCG625-SS Manual de usuario

Baumatic

Baumatic BCC2220SS Manual de usuario

Baumatic

Baumatic PROFESSIONAL Series Manual de usuario

Baumatic

Baumatic BAU95EE Manual de usuario

Baumatic

Baumatic BCE520SL Manual de usuario

Baumatic

Baumatic BC190.2SS Manual de usuario

Baumatic

Baumatic BCG520SL Manual de usuario

Baumatic

Baumatic BT3600 Instrucciones de funcionamiento

Baumatic

Baumatic BCE625-SS Manual de usuario

Baumatic

Baumatic PROFESSIONAL Series Manual de usuario

Baumatic

Baumatic PCC1220SS Manual de usuario

Baumatic

Baumatic BCG900SS Manual de usuario

Baumatic

Baumatic BAF54GG Manual de usuario

Baumatic

Baumatic BC391.3TCSS 90cm Manual de usuario

Baumatic

Baumatic PCG9110SS Manual de usuario

Baumatic

Baumatic BT2001SS Manual de usuario

Baumatic

Baumatic BT2395SS Instrucciones de funcionamiento

Baumatic

Baumatic BCE905SS Manual de usuario

Baumatic

Baumatic BCD1205SS 120cm Manual de usuario

Baumatic

Baumatic BT2760SS Manual de usuario

Baumatic

Baumatic PCG7110SS Manual de usuario

Manuales populares de Estufa de otras marcas

Modena

Modena FC 7645 SGM Manual del propietario

Electrolux

Electrolux Insight EKG6049 Manual de usuario

Stanley

Stanley Donard 60 Manual de usuario

Bartscher

Bartscher 201TC Manual de usuario

Parkinson Cowan

Parkinson Cowan 50 GR/BU Manual de usuario

Siemens

Siemens HK9P00020U Manual de usuario

Creda

Creda S150E Guía

Creda

Creda HB48309 Manual de usuario

Bosch

Bosch HCE743220F Manual de usuario

Tricity Bendix

Tricity Bendix SE545P Manual de usuario

NEFF

NEFF E1461A2/01 Manual de usuario

Zanussi

Zanussi ZCM 700 X Manual de usuario

Smeg

Smeg SNL61MA9 Manual de usuario

RiverGrille

RiverGrille TF2002501-RG Manual de usuario

Vollrath

Vollrath 69504F Manual de usuario

Tricity Bendix

Tricity Bendix CSIE500 Manual de usuario

AEG

AEG Competence 5731 V Manual de usuario

Euromaid

Euromaid ES60 Manual de usuario
