Baumatic BCG6100SS Manual de usuario

KirThat

BCG6100SS

60cm

Slot-in gas oven

cooker

User Manual for your Baumatic

BCG6100SS

60 cm Slot-in gas oven cooker

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 17/06/08

Contents

Environmental note 4

Important safety information 5 – 9

Specifications 9 – 10

Controlpanel 11

Using your gas cooking theatre 12–17

Beforefirstuse 12

Switching the gas oven on 12–13

Switching the gas grill on 13–14

Usingtheminuteminder 14

Theovenlight 14

Cookingguidelines 15

Warnings 15

Usingthehobtop 16

Electricignition 16

Energysavingtips 17

Cleaning and maintenance 18–20

Cleaning the hob burners 19

Replacing the oven bulb 19

Removing the oven doors for cleaning 20

Installation 21–34

Positioning 21–23

Gas connection 23–24

Ventilationrequirements 24

Gas Safety (Installation and Use) Regulations 25

Gas connection 25–26

Gas adjustment (Conversion to LPG for the hob top) 27

Minimum flow adjustment for hob gas taps 28

Gas adjustment (Conversion to LPG for the oven and grill) 29–30

Minimum flow adjustment for the oven and grill burners 30

Fitting a stability chain 31

Electricalconnection 32

Connecting the mains supply cable 33

Replacing the mains supply cable 33–34

My appliance isn’t working correctly 34–35

Contactdetails 36

Environmental note

oBaumatic uses are environmentally

friendly and can be recycled.

oall packaging material with due regard for the

environment.

The packaging materials that

Please discard

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If yo

are unsure of any of the information contained i

booklet, pleas

n this

e contact the Baumatic Technical

ent.

otic household use and for

oin

ient temperature of the

on at

20 mm to the appliance, will be

ormation given in the installation instructions

ohat this

f Baumatic Ltd.

uarantee. The foregoing does not

affect your statutory rights.

oService

Engineers or their authorised service agent.

Departm

G neral Information

This appliance is designed for domes

the cooking of domestic foodstuffs.

IMPORTANT: The adjacent furniture and all materials used

the installation must be able to withstand a minimum

temperature of 85°C above the amb

room it is located in, whilst in use.

Certain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouratio

temperatures below the guidelines given above.

Any damage caused by the appliance being installed in

contravention of this temperature limit, or by placing adjacent

cabinet materials closer than

the liability of the owner.

For use in leisure accommodation vehicles, please refer to

the appropriate info

for this appliance.

IMPORTANT: Baumatic Ltd. DO NOT recommend t

appliance is installed on any type of marine vessel.

The use of this appliance for any other purpose or in any other

environment without the express agreement o

will invalidate any warranty or liability claim.

Your new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of G

Repairs may only be carried out by Baumatic

arning and safety instructions

oiance

become hot during use and retain heat after operation.

hild Safety

ny time. During and after use, all

surfaces will become hot.

ose ensure that they are kept under close supervision

at all times.

eneral Safety

This appliance complies with all current European safety

legislation. Baumatic do wish to emphasise that this compl

does not remove the fact that the appliance surfaces will

Baumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowe

to touch the appliance at a

If it is necessary for younger family members to be in the

kitchen, plea

hat you understand the controls before using the

appliance.

Make sure t

all of the controls on the appliance are turned off

after use.

Check that

when opening the oven door, this will allow

eat to disperse.

Always stand back

en removing items from the oven, as the contents

may be hot.

Take care wh

Always keep the oven doors closed when the oven is not in use.

nd hygiene;

this will prevent the possibility of bacterial growth.

Always follow the basic principles of food handling a

Always keep ventilation slots clear of obstructions.

ge areas when closing the door,

otherwise you may trap them.

Keep fingers away from the hin

vity

en to avoid direct

contact with the inside of the appliance.

oT LEAVE THE APPLIANCE UNATTENDED WHILST IN

USE.

Oven gloves should be used when placing food in the oven ca

and when removing it. Care should be tak

DO NO

oDo not place heavy objects on the oven door or lean on the

oven door when it is open, as this can cause damage to the oven

door hinges. Nobody should be allowed to sit or stand on any

part of the cooker.

oDo not store chemicals, food stuffs, pressurised containers in or

on the cooker or in cabinets immediately above or next to the

cooker.

oDo not heat up unopened food containers, as pressure can build

up which may cause the container to burst.

oDo not place flammable or plastic items on or near the hob

burners, these types of materials should also not be placed in

the oven or the compartment below the oven.

oDo not leave heated oil or fat unattended, as this is a fire risk.

You should not fill a deep fat frying pan more than one third full

of fat or oil; you should also not use a lid.

oDo not allow fat or oil to build up in the oven trays, grill pan or

oven base.

oDo not place pans or baking trays directly on the base of the

oven cavity, or line it with aluminium foil.

oDo not grill food containing fat without using the grill trivet. The

grill trivet should never be covered with aluminium foil.

oDo not place hot enamel parts in water, leave them to cool first.

oDo not allow vinegar, coffee, milk, saltwater, lemon, tomato

juice or any liquid with high sugar content to remain in contact

with the enamel parts of the appliance. Spillages should be

wiped up immediately.

oDo not allow electrical fittings or cables to come into contact

with areas on the appliance that get hot.

oDo not use the appliance to heat the room it is located in or to

dry clothing. No clothing should be placed over or near to the

hob burners or oven door.

oDo not install the appliance next to curtains or soft furnishings.

oDo not attempt to lift or move cooking appliances by using the

oven door or handle, as this may cause damage to the appliance

or result in injury to the person lifting the appliance.

Cleaning

oCleaning of the oven should be carried out on a regular basis.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the

mains before following the cleaning procedure.

oIMPORTANT: Care must be taken when cleaning between

the door glasses, and inside the inner frame as some of

the edges maybe sharp due to the manufacturing process.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions. Please see

the specific section of this booklet that refers to

installation.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

oHeat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is going to be used for

prolonged periods of time, then additional ventilation may be

required.

oPlease consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity

This appliance complies with the following European Directives:

-73/23/EEC regarding “low voltage”

-89/336/EEC regarding “electromagnetic disturbances”

-90/396/EEC regarding “gas appliances”

-89/109/EEC regarding “materials in contact with food”.

oThe above directives comply with 93/68/EEC regarding CE

marking.

oThe manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

Specifications

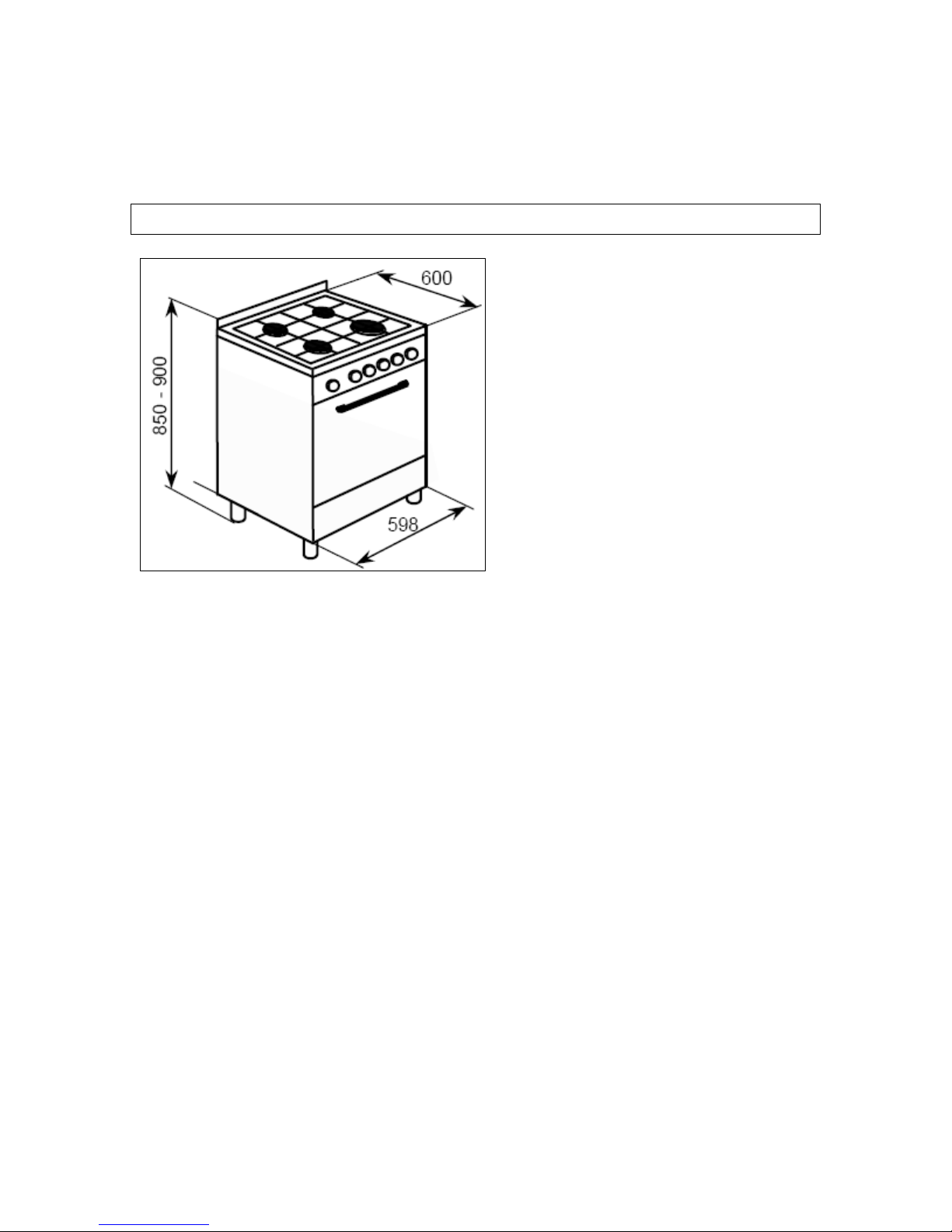

Product dimensions:

Height: 850 - 900 mm

Width: 598 mm

Depth: 600 mm

Product specifications:

o4 burner gas hob:

o1 x 3.00 kW rapid burner

o2 x 1.75 kW semi-rapid burners

o1 x 1.00 kW auxiliary burner

oEnamelled pan stands

oPush button electric ignition

oMain oven: gas oven with grill

oMain oven capacity: 65 litres

oStorage compartment capacity: 15 litres

oMinute minder

oFlame failure safety device in the oven and grill

oDouble glazed removable door

oAdjustable feet
