Baumatic BC391.2TCSS Manual de usuario

BC391.2TCSS

90cm Single

cavity dual fuel

range cooker with flame

failure

User Manual for your Baumatic

BC391.2TCSS

90 cm Single cavity dual fuel range cooker

with flame failure

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 27/10/11

Contents

Environmental note 4

Important safety information 5 – 9

Specifications 9 – 12

Controlpanel 11-12

Usingyourrangecooker 12–20

Beforefirstuse 12

Selecting a cooking function and temperature 13-14

Usingtheminuteminder 14

Cookingguidelines 15

Warnings 15-16

Shelflevels 16

Cookingtable 17

Usingthegrill 18

Usingthehobtop 18

Automatic ignition with flame failure safety device 19

Energysavingtips 19-20

Cleaning and maintenance 20-24

Cleaning the hob burners 21

Maintaining the cast iron pan stands 21

Replacing the oven bulb 22

Removing the oven doors for cleaning 23

Removing the inner door glass for cleaning 24

Installation 25-36

Positioning 25-27

Gas connection 27

Ventilationrequirements 28

Gas Safety (Installation and Use) Regulations 29

Gas connection 29-30

Gas adjustment (Conversion to LPG for the hob top) 30-32

Minimum flow adjustment for hob gas taps 32

Electricalconnection 33

Connecting the mains supply cable 34

Replacing the mains supply cable 34-35

My appliance isn’t working correctly 35-37

Baumatic consumables 38

Contactdetails 39

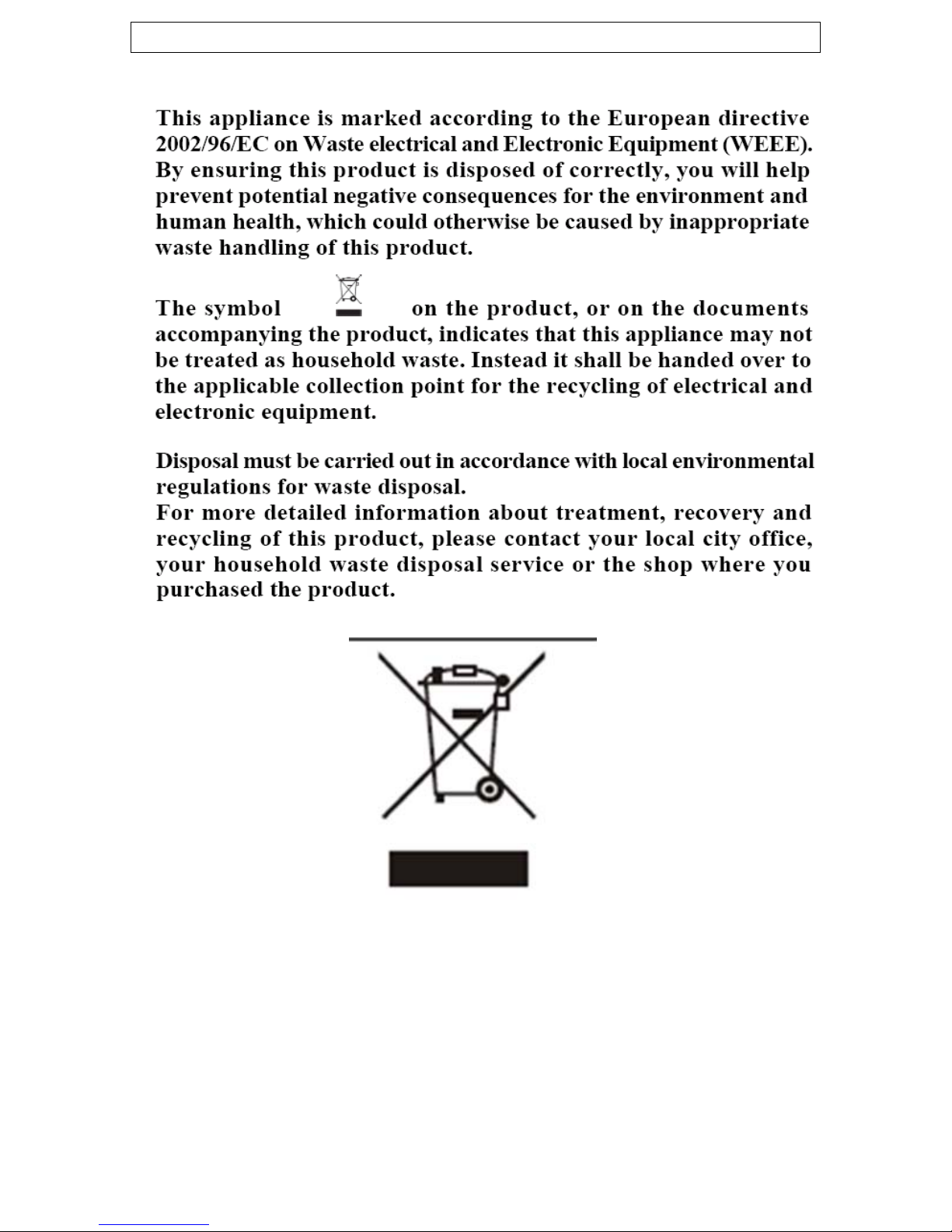

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Advice Line.

General Information

oThis appliance is designed for domestic household use and for

the cooking of domestic foodstuffs.

oIMPORTANT: The adjacent furniture and all materials used in

the installation must be able to withstand a minimum

temperature of 85°C above the ambient temperature of the

room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouration at

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, or by placing adjacent

cabinet materials closer than 20 mm to the appliance, will be

the liability of the owner.

oIMPORTANT: Baumatic Ltd. DO NOT recommend that this

appliance is installed on any type of marine vessel.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement of Baumatic Ltd.

will invalidate any warranty or liability claim.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of Guarantee. The foregoing does not

affect your statutory rights.

oRepairs may only be carried out by Baumatic service

engineers or their authorised service agent.

Warning and safety instructions

oThis appliance complies with all current European safety

legislation. Baumatic do wish to emphasise that this compliance

does not remove the fact that the appliance surfaces will

become hot during use and retain heat after operation.

Child Safety

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the appliance at any time.During and after use, all

surfaces will become hot.

oIf it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

General Safety

oMake sure that you understand the controls before using the

appliance.

oCheck that all of the controls on the appliance are turned off

after use.

oAlways stand back when opening the oven door, this will allow

heat to disperse.

oTake care when removing items from the oven, as the contents

may be hot.

oAlways keep the oven doors closed when the oven is not in use.

oAlways follow the basic principles of food handling and hygiene;

this will prevent the possibility of bacterial growth.

oAlways keep ventilation slots clear of obstructions.

oKeep fingers away from the hinge areas when closing the door,

otherwise you may trap them.

oOven gloves should be used when placing food in the oven cavity

and when removing it. Care should be taken to avoid direct

contact with the inside of the appliance.

oDO NOT LEAVE THE APPLIANCE UNATTENDED WHILST IN

USE.

oDo not place heavy objects on the oven door or lean on the

oven door when it is open, as this can cause damage to the oven

door hinges. Nobody should be allowed to sit or stand on any

part of the cooker.

oDo not store chemicals, food stuffs, pressurised containers in or

on the cooker or in cabinets immediately above or next to the

cooker.

oDo not heat up unopened food containers, as pressure can build

up which may cause the container to burst.

oDo not place flammable or plastic items on or near the hob

burners, these types of materials should also not be placed in

the oven or the compartment below the oven.

oDo not leave heated oil or fat unattended, as this is a fire risk.

You should not fill a deep fat frying pan more than one third full

of fat or oil; you should also not use a lid.

oDo not allow fat or oil to build up in the oven trays, grill pan or

oven base.

oDo not place pans or baking trays directly on the base of the

oven cavity, or line it with aluminium foil.

oDo not grill food containing fat without using a grill trivet. The

grill trivet should never be covered with aluminium foil.

oDo not place hot enamel parts in water, leave them to cool first.

oDo not allow vinegar, coffee, milk, saltwater, lemon, tomato

juice or any liquid with high sugar content to remain in contact

with the enamel parts of the appliance. Spillages should be

wiped up immediately.

oDo not allow electrical fittings or cables to come into contact

with areas on the appliance that get hot.

oDo not use the appliance to heat the room it is located in or to

dry clothing. No clothing should be placed over or near to the

hob burners or oven door.

oDo not install the appliance next to curtains or soft furnishings.

oDo not attempt to lift or move cooking appliances by using the

oven door or handle, as this may cause damage to the appliance

or result in injury to the person lifting the appliance.

Cleaning

oCleaning of the oven should be carried out on a regular basis.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the

mains before following the cleaning procedure.

oIMPORTANT: Care must be taken when cleaning between

the door glasses, and inside the inner frame as some of

the edges maybe sharp due to the manufacturing process.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions. Please see

the specific section of this booklet that refers to

installation.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

oHeat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is going to be used for

prolonged periods of time, then additional ventilation may be

required.

oPlease consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity

This appliance complies with the following European Directives:

-73/23/EEC regarding “low voltage”

-89/336/EEC regarding “electromagnetic disturbances”

-90/396/EEC regarding “gas appliances”

-89/109/EEC regarding “materials in contact with food”.

oThe above directives comply with 93/68/EEC regarding CE

marking.

oThe manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

Specifications

Product dimensions:

Height: 853 - 923 mm

Width: 895 mm

Depth: 605 mm

Product specifications:

o5 burner gas hob:

o1 x 3.50 kW wok burner

o1 x 3.00 kW rapid burner

o2 x 1.75 kW semi-rapid burners

o1 x 1.00 kW auxiliary burner

oHeavy duty cast iron pan stands

oAutomatic ignition

oFlame failure safety device on each burner

o3 function fan oven:

oOven net / gross capacity: 92 / 110 litres

oEnergy efficiency class: C

oMinute minder

oOven light

oDouble glazed removable door

oRemovable inner door glass

oAdjustable feet

Standard accessories:

oRemovable side racks

oEnamelled baking tray

oSafety shelf

oLPG conversion jets

Optional extras:

oBPS2 Pizza stone

oBTGRID Double-sided griddle plate

oWOK1E Enamelled wok stand

Electrical details

Rated Voltage: 230 Vac 50 Hz

Supply Connection: 13 A (double pole switched fused

outlet with 3mm contact gap)

Max Rated Inputs: 3.00 kW

Mains Supply Lead: 3 core x 2.5 mm² (not supplied)

Oven Light Bulb: 15 W/300°C screw type pygmy

Gas details

Gas Connection Type: 1/2” BSP

Gas Type (Natural Gas): 20 mbar

Gas Type (LPG): See table on page 31 for this

information.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Estufa de Baumatic

Baumatic

Baumatic FNO 605 BK Manual de usuario

Baumatic

Baumatic B187SS-B Manual de usuario

Baumatic

Baumatic BT2320 Instrucciones de funcionamiento

Baumatic

Baumatic PCC9220BL/SS Manual de usuario

Baumatic

Baumatic PCC1220SS Manual de usuario

Baumatic

Baumatic BT3500SS Manual de usuario

Baumatic

Baumatic PCC1220SS Manual de usuario

Baumatic

Baumatic BT2740SS Manual de usuario

Baumatic

Baumatic BCE1025SS Manual de usuario

Baumatic

Baumatic BAF90EG-2 Manual de usuario

Baumatic

Baumatic BC392.2SS Manual de usuario

Baumatic

Baumatic Cooker Manual de usuario

Baumatic

Baumatic BC391.3TCSS 90cm Manual de usuario

Baumatic

Baumatic BT2395SS Instrucciones de funcionamiento

Baumatic

Baumatic BT3600 Instrucciones de funcionamiento

Baumatic

Baumatic BCG925SS Manual de usuario

Baumatic

Baumatic BCG600SS Manual de usuario

Baumatic

Baumatic PCC9220BL Manual de usuario

Baumatic

Baumatic BC192.2TCSS Manual de usuario

Baumatic

Baumatic BT2320 Instrucciones de funcionamiento

Baumatic

Baumatic BT2100SS Manual de usuario

Baumatic

Baumatic PCC7100SS Manual de usuario

Baumatic

Baumatic PCE9220SS Manual de usuario

Baumatic

Baumatic BCC2220SS Manual de usuario

Manuales populares de Estufa de otras marcas

Modena

Modena FC 7645 SGM Manual del propietario

Electrolux

Electrolux Insight EKG6049 Manual de usuario

Stanley

Stanley Donard 60 Manual de usuario

Bartscher

Bartscher 201TC Manual de usuario

Parkinson Cowan

Parkinson Cowan 50 GR/BU Manual de usuario

Siemens

Siemens HK9P00020U Manual de usuario

Creda

Creda S150E Guía

Creda

Creda HB48309 Manual de usuario

Bosch

Bosch HCE743220F Manual de usuario

Tricity Bendix

Tricity Bendix SE545P Manual de usuario

NEFF

NEFF E1461A2/01 Manual de usuario

Zanussi

Zanussi ZCM 700 X Manual de usuario

Smeg

Smeg SNL61MA9 Manual de usuario

RiverGrille

RiverGrille TF2002501-RG Manual de usuario

Vollrath

Vollrath 69504F Manual de usuario

Tricity Bendix

Tricity Bendix CSIE500 Manual de usuario

AEG

AEG Competence 5731 V Manual de usuario

Euromaid

Euromaid ES60 Manual de usuario
