BATHSELECT BS9645 Manual de usuario

Plumbers Tape Tape Measure Adjustable Wrench

Screwdriver

Drill

Hex Wrench

Level

Pencil or Marker

Thread Sealant

*not included

POSSIBLE TOOLS REQUIRED*

Please read installation instructions below. All plumbing should be

installed in accordance with applicable building codes and regulations.

Unpack and inspect the items for any shipping damages. If you ﬁnd

damages, do not install.

All products must be installed by a professional and certiﬁed plumber

otherwise warranty may be voided.

PRIOR TO INSTALLATION

OIL RUBBED BRONZE WALL MOUNT RAIN WATERFALL

SHOWER HEAD WITH HAND SHOWER INSTALLATION

INSTRUCTIONS

Product code: BS9645

Customer Service: 800-500-9895

bathselect.com

Open the top cover and drill according to the

marked position.

1. Mark by the position of the four holes.

2. Take care to avoid wires and pipes to prevent

damage.

3. Be sure to conﬁrm that the four holes are on the

same horizontal line.

Two inlet ﬁttings are connected to the pipe joint

of the wall; then the nut, expansion screw, and

inlet pipe are connected.

Reinstall the top cover.

Shower Head Installation Instructions

Step 1:

Step 3:

Step 2:

Product shown is only for installation display purpose

Customer Service: 800-500-9895

bathselect.com

Hand Shower Installations Instruction

0.19” (4.8mm) Max

1. SUPPLY ELBOW INSTALLATION

Apply plumber tape to threaded ends of 1/2" (13 mm)

iron pipe nipple (not supplied) and thread into

shower riser elbow so that nipple extends past the

ﬁnished wall no more than 0.19" (4.8 mm) and no less

than 1/16" (1.6 mm). Place the supplied installation

gasket (1) behind the elbow (2). Screw the supply

elbow onto the nipple making sure that the supply

elbow outlet is in a downward facing position.

Minimum diameter for hole is 1" (25 mm) with a

maximum of 1 1/2" (38 mm).

CAUTION: To avoid damage to the supply elbow or

hose ﬁnish during installation, wrap with a cloth or

tape and use only a smooth-jawed wrench.

DO NOT OVERTIGHTEN CONNECTIONS.

3. WALL BAR INSTALLATION

Note: Hole size will be determined by your use of just the screw or

anchor and screw for installation. Drill hole for mounting of bottom

post. Start with a smaller drill bit size, 1/8" is recommended, and drill

hole. If you hit a wall stud, go to next step. If you do not hit a wall stud,

change to a drill bit size suitable for the anchors, 1/4" is recommended,

and re-drill hole.

Anchors are for use on drywall or tile. For ﬁberglass, acrylic and ﬂat

plastic surfaces, use toggle bolts (not included).

Before drilling top mounting hole, it is recommended that you place

the assembled slide bar and post assembly (1) on its side next to the

hole locations you have marked. Make sure posts are pressed fully onto

bar. Align center of bottom post with bottom hole that was just drilled

and make sure center of top post aligns with mark for top hole. If not,

re-mark top hole location. If it aligns, drill top hole in location as

marked.

2. Mark the place for drilling the hole for the lower

post. Mark using a level, in a vertical line from the

lower hole, the placement of the upper post hole.

Distance approximately 25.7" (653 mm).

Step 1: Step 2:

Step 3:

Customer Service: 800-500-9895

bathselect.com

5. Slide the slide mechanism (1) and elbow (2)

onto the wall bar (3). Slide wall bar over bracket

tabs (4) and secure the wall bar unit with screws

(5) provided. Install caps (6) into ends of wallbar.

Lower elbow (7) & screw (8) was pre-installed

prior to shipping, tighten screw (9) if you ﬁnd it

is sliding inside bar.

6. INSTALLATION OF THE SHOWER SET

Connect the shower hose to the wall outlet (1)

and the hand held piece (2), ensuring that the

internal gaskets (3) are present in the shower

hose nuts. Normal 1/2” rubber gaskets can be

used.

Place the conical nut of the hose (4) that is

connected to the hand held piece, in the slide

bar holder (5) and turn it to desired position.

To slide the mechanism up or down, push in on

the button (6) of the mechanism and slide it on

the bar.

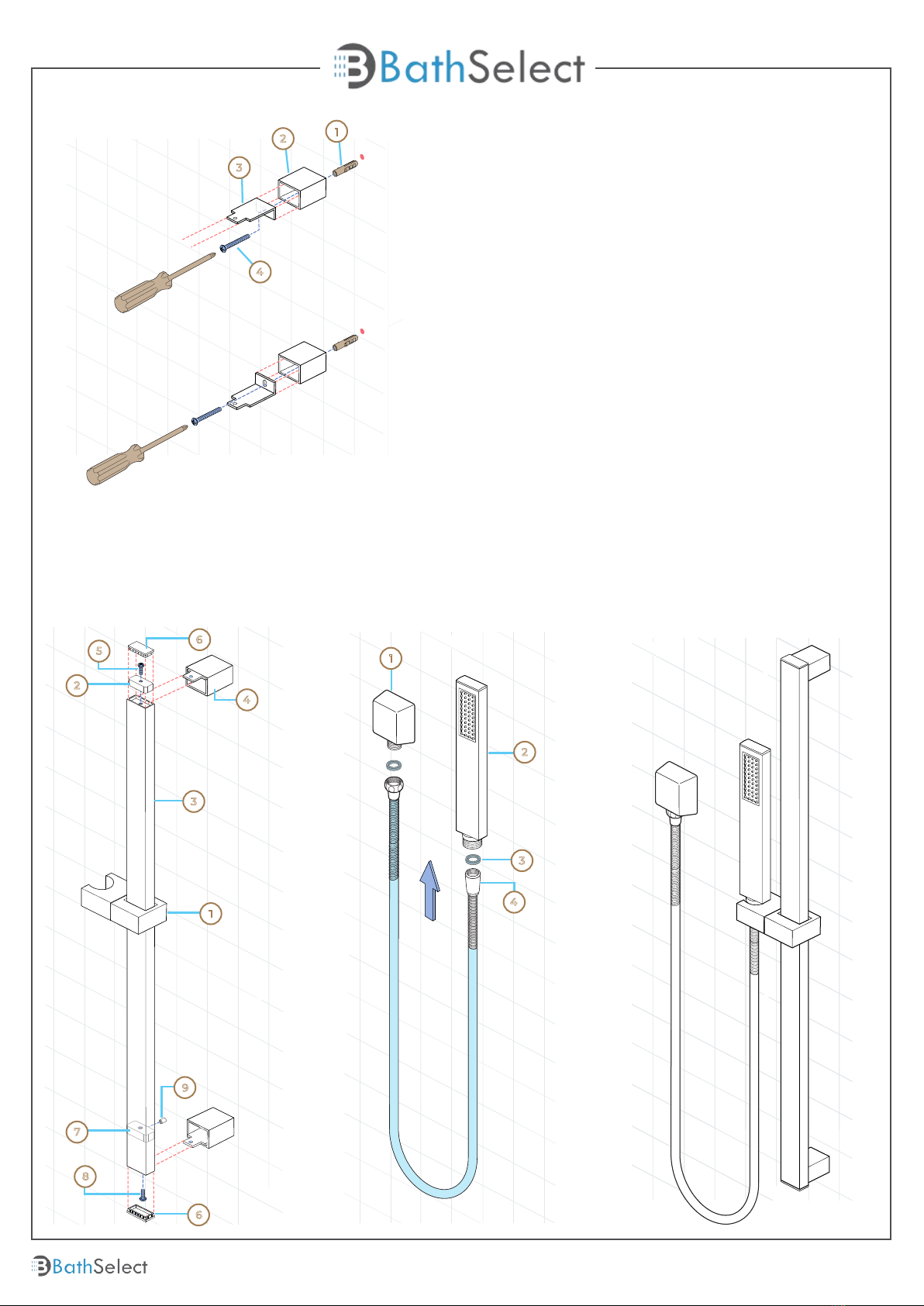

4. Insert anchors (1) into drilled holes. Slide

covers (2) over brackets (3), and insert screws (4)

into bracket/cover assembly. Secure assembly

to wall with screws.

Step 4:

Step 5: Step 6: Completed

Customer Service: 800-500-9895

bathselect.com

Mixer Installations Instructions

Step 2

Step 1

Step 3 ( Connection)

Hot water

Cold water

Rough-in Body

Anchor

Positioning

Bar

Tapping Screw 1

Tapping Screw 2

Plate

Cover

Button

Screw 1

Diverter

Handle

Temp.

Handle

On/Off

Handle

Hex Wrench

Hot Water In Cold Water In

Function 1

Function 2

Function 3

Customer Service: 800-500-9895

bathselect.com

1. The product can be cleaned with warm water, a mild soap and a clean soft cloth.

2. Clean progressively and gently.

3. It is not required to use any abrasive cleaning pads, wire wool or cloths to clean the

product.

4. Avoid a vigorous cleaning action, as this could contribute to denaturing and dulling

5.Abrasive or strong cleaning products containing ammonia, bleaches, alcohol, dyes,

acids (hydrochloric, formic, phosphorus, chlorine or acetic) will be not be affected.

6. If using a spray cleaner, apply the cleaning agent onto a soft cloth, never directly spray

onto the product as the cleaner may enter gaps and openings and cause damage. Do

not allow the cleaner to remain on the product for a period of time. After cleaning, rinse

thoroughly with clean water.

Acid

General Information

Care & Cleaning

Customer Service: 800-500-9895

bathselect.com

All products manufactured and supplied by BathSelect are safe and comply to legislative

requirements. Providing they are installed correctly and receive regular maintenance in

accordance with these instructions your user experience will not be affected.
