BasIP SP-03F Manual de usuario

USER MANUALSP-03FIP AUDIO HANDS-FREE

SP-03FEquipped with buttons to quickly call the concierge, open the lock, control the Do Not Disturb mode, and adjust the volume.IP audio hands-free with support for SIP, P2P and internal BAS-IP protocol.Also, the SP-03F has a three-color light indicator of the status and operating modes of the device.Full User ManualAppearanceDevice descriptionwiki.bas-ip.comAnswer call / Handup.Open the lock.LED status indicator.Microphone.Loudspeaker.DND mode.Concierge button.Volume DOWN.Volume UP.123456789---------Main featuresNumber of VoIP accounts supported: 1.Supported network protocol type: IPv4.Network connection: 1 PoE port IEEE 802.3af.Power supply: 1 +12 Volt connection port and PoE IEEE 802.3af port.Wi-Fi: 2.4GHz (IEEE 802.11n)Supported codec type: G.711µ / G.711a.Additional function: Doorbell.Audio transmission method: Full Duplex.Number of control keys: 6.Conﬁguration and programming method: WEB-interface.Colors: White, black.Overall dimensions: 183 × 105 × 28 mm.Installation Type: Wall mounted.IP AUDIO HANDS-FREE213456789

Completness check of the productBefore installing the monitor, be sure to check that it is complete and allcomponents are available.The kit includes: Device Manual Wall mounting bracket A set of wires with connectors for connecting alarm loopsand home automationResistors for alarm loops Installation screws 1 pc1 pc1 pc1 pc4 pcs2 pcsAfter verifying the device's completeness, you can switch to the connection.To connect monitor you will need: Electrical connectionAn Ethernet UTP CAT5 or higher cable connected to a networkswitch / router. Cable length recommendationsThe maximum length of the UTP CAT5 cable segment should not exceed 100 meters,according to the IEEE 802.3 standard. Power supply at +12 Volts DC if there isn't PoE.Wires must be brought for the connection of alarm loops and homeautomation (optional).The connection scheme of all components+-+12 Volts DCPowerLAN (PoE)123456+UGNDAL1AL2AL3AL4RS 4851234+12VGND485+485-Siren/Alarm LoopsEAN: 5060514914953 (BLACK)EAN: 5060514914960 (WHITE)

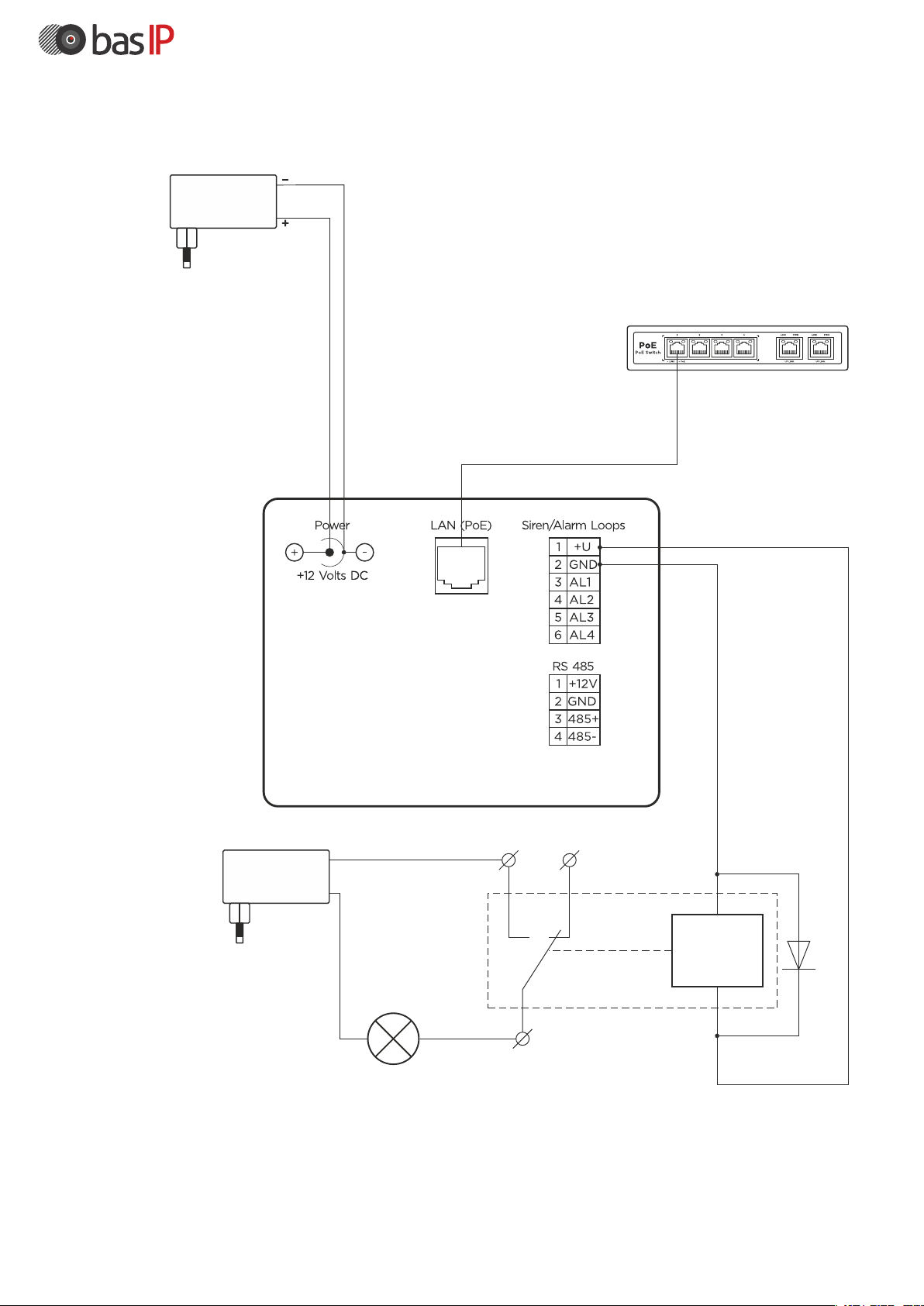

Power supplyfor external loadPowerful external load witha current consumptionof more than 0.35AVDScheme for connecting external controlled devices or connectinga powerful external load to the siren output usingan external additional relayK1K1.1External relay 12 Volt,current consumptionless than 0.35APower supply12V, 2ASwitch

+12V485+485-Expansion moduleSH-16Bell buttonnormal+12 VButtons SH-45TSH-46TSH-47TLock+12 VButton SH-45SwitchPower supply12V, 2AEAN: 5060514914953 (BLACK)EAN: 5060514914960 (WHITE)

0,35ASiren12V

SensorSensorSensor1.11.22.2 kOhmSensorSensorSensorSensorSensorSensorSensorSensorSensor2.13.14.12.23.24.22.2 kOhm2.2 kOhm2.2 kOhm1.n2.n3.n4.n

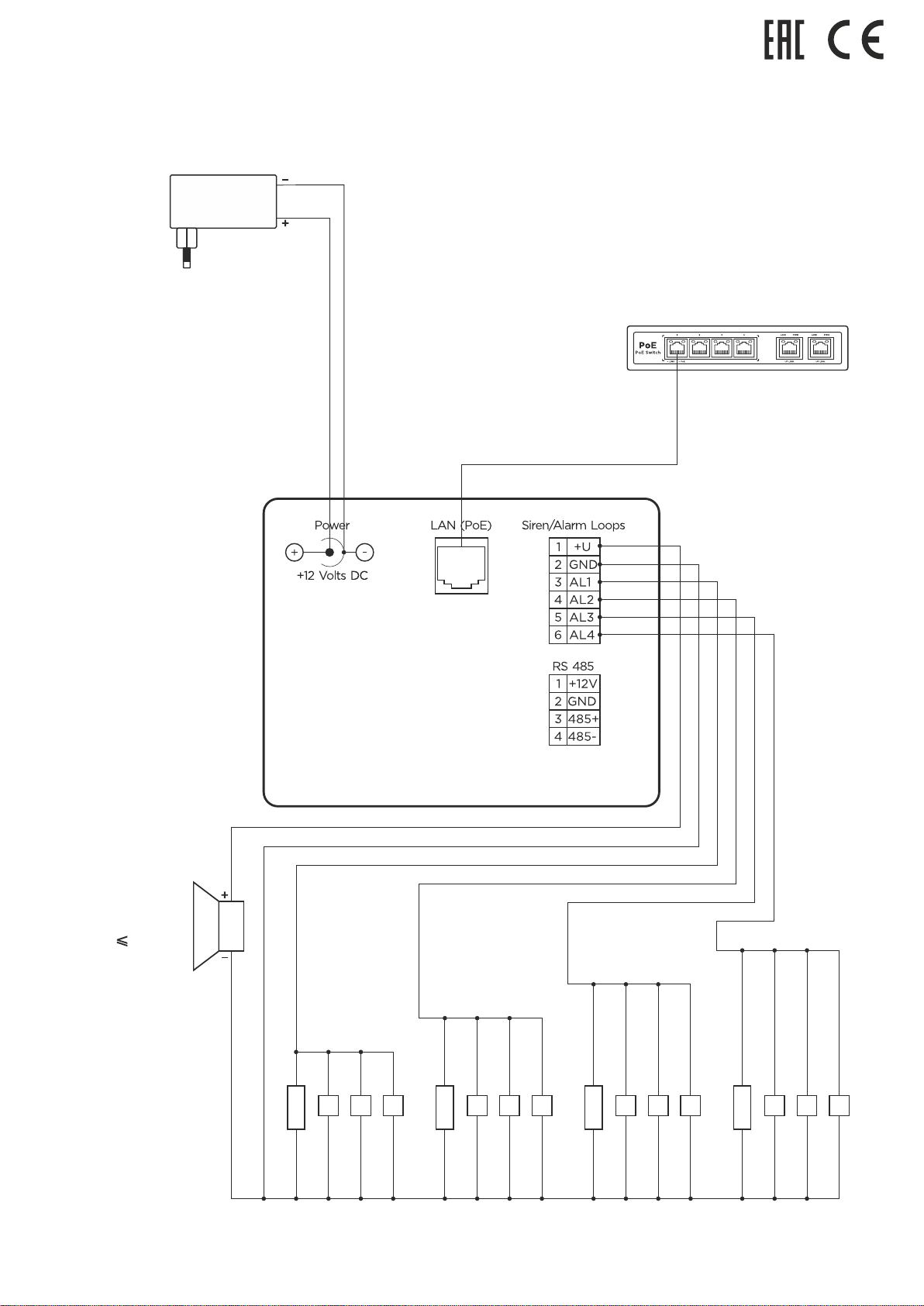

Power supply12V, 2ASwitchWiring diagram for security alarm sensors with NC - normally closed contact types

0,35A

SensorSensorSensor1.11.21.n2.2 kOhm2.13.14.12.23.24.22.n3.n4.n

Wiring diagram for security alarm sensors with NO - normally open contact typesSiren12VSwitchPower supply12V, 2A

SensorSensorSensor2.2 kOhmSensorSensorSensor2.2 kOhmSensorSensorSensor2.2 kOhm

EAN: 5060514914953 (BLACK)EAN: 5060514914960 (WHITE)

Mechanical mountinga cross-head screwdriver.The bracket is ﬁxed in the socket by using the supplied screws and Before installing the monitor, you must provide a hole or recess in the wall with a diameter of 68 mm for a standard mounting box for a 65x45 mm outlet. This is necessary for switching wires and mounting the monitor.The device is mounted on the bracket from top to bottom.DeviceBracketMounting boxScrewsDevice

65 mm

45 mm150-160 cm

105 mm

183 mm

28 mm86 mm

117 mm106 mm

60 mm

WarrantyThe warranty card numberModel nameSerial numberSeller nameWith following stated terms of warranty is familiar, functional test wasperformed in my presence: Customer signatureWarranty conditionsThe warranty period of the product — 36 (thirty-six) months fromthe date of sale.Transportation of product must be in its original packaging or supplied oneby the seller.The product is accepted in warranty repair only with a properly ﬁlled warrantycard and the presence of intact stickers or labels.The product is accepted for examination in accordance with the casesprovided by law, only in the original packaging, in a full complete set,appearance corresponding to the new equipment and presence of all relevantproperly ﬁlled documents.This warranty is in addition to the constitutional and other consumer rightsand in no way restrict them. Terms of warrantyThe warranty card must indicate the name of the model, serial number,purchase date, name of the seller, seller company stamp andthe customer’s signature. Delivery to the warranty repair is carried out by the buyer himself.Warranty repairs carried out only during the warranty period speciﬁedin the warranty card.The service center is committed to do everything possible to carry outthe repair warranty products, up to 24 working days. The period spenton the restoration of product functionality is added to the warranty period.EAN: 5060514914953 (BLACK)EAN: 5060514914960 (WHITE)
