USER MANUAL
ENTRANCE PANEL
AA-07BD
AA-07BD
AA-07BD SILVER multi apartment panel is an excellent solution for office
buildings, apartment complexes and cottage communities.
A distinctive feature of this panel is a color TFT screen with backlight, as well
as a high-resolution IP camera with wide viewing angles.
Full User Manual
Appearance
Device description
wiki.bas-ip.com
ENTRANCE PANEL
Main features
• Panel type: Multi-apartment.
• Display: 4.3’’ TFT, color with backlight.
• Keypad: Backlight mechanical buttons.
• Camera: 1/4”.
• Resolution: 2 Мp.
• Сamera angle: 110° (horizontal).
• Output video: Half HD (1280 × 720), H.264 Main Profile.
• Night backlight: 6 LEDs.
• Light sensitivity: 0,01 LuX.
• Protection class: IP65.
• IK-Code: IK07.
• Working temperature: -40 — +65 °С.
• Power consumption: 6,5 W, in standby — 3,6 W.
• Power supply: +12 V DC.
• Body: Aluminum.
• Colors: Silver.
• Dimensions for installation: 141 × 351 × 60 mm.
• Size of the panel: 155 × 375 × 55 mm.
• Installation: Flush, surface with BR-AA7 bracket.
123
456
7 8 9
0
*#T
4.3’’ Display.
Keypad.
Reader.
Backlight.
Loudspeaker.
Camera.
1
2
3
4
5
6
-
-
-
-
-
-
1
3
2
4
5
6
Completeness check of the product
Before installation of the outdoor panel, it is necessary to check that
it is complete and all components are available.
Outdoor panel kit includes:
Outdoor panel
Manual
Flush mount bracket
Set of wires with connectors for connection of power supply,
lock, and additional modules
A set of cups
Set of screws with a wrench
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
After verifying the device's completeness, you can switch to the outdoor panel
connection.
For connection you will need:
Electrical connection
An Ethernet UTP CAT5 or higher cable connected to a PoE network switch
or regular switch/router.
Cable length recommendations
The maximum length of the UTP CAT5 cable segment should not exceed 100 meters,
according to the IEEE 802.3 standard.
Power supply at +12 V, 2 amps.
Wires must be connected to connect the door sensor, the exit button
and the two locks control module (optional).
EAN: 5060514914328 (SILVER)
Connection scheme of electromechanical lock
using third party power supply
+12V
DC
Electromechanical
lock
-+
LAN (PoE)
123
+12V 485+
RS485 / Exit Button / Door Sensor
4 5
GND EXIT485-
6
DS
7 8
DINFIN
123
+12V NC
Supply / Relay Outputs
4 5
GND NOCOM
123
+5V WD0
Wiegand Out
4
GND WD1
SH-42
(optional)
SH-45
Door Sensor
Exit Button
GND
+12V
+12V
DC
-+
Connection scheme of electromagnetic lock
using third-party power supply
+12V
DC
Electromagnetic Lock -+
LAN (PoE)
123
+12V 485+
RS485 / Exit Button / Door Sensor
4 5
GND EXIT485-
6
DS
7 8
DINFIN
123
+12V NC
Supply / Relay Outputs
4 5
GND NOCOM
123
+5V WD0
Wiegand Out
4
GND WD1
SH-42
(optional)
SH-45
Door Sensor
Exit Button
GND
+12V
+12V
DC
-+
Mechanical mounting
Do not intentionally close it. Also it is necessary to make a drain for water
Before installation of the outdoor panel it is necessary to provide a hole
Attention: the hole at the bottom is designed to drain the water.
and the local network.
It is also necessary to provide supply of a power cable, additional modules
at the bottom of the niche which will serve to divert water out.
or a recess into a wall with dimensions 143×353x61 mm (for flush mount)
dimensions of the bracket (mounting box) = 141×351×60 mm.
Outdoor Panel Flush Bracket
Niche ScrewsOutdoorPanel
143 mm
353 mm
110-130 cm
155 mm
375 mm
55 mm
123
456
7 8 9
0
*#T
123
456
789
0
*#T
Flush Bracket
141 mm
351 mm
239 mm
EAN: 5060514914328 (SILVER)
Warranty
The warranty card number
Model name
Serial number
Seller name
With following stated terms of warranty is familiar, functional test was
performed in my presence:
Customer signature
Warranty conditions
The warranty period of the product — 36 (thirty-six) months from
the date of sale.
Transportation of product must be in its original packaging or supplied one
by the seller.
The product is accepted in warranty repair only with a properly filled warranty
card and the presence of intact stickers or labels.
The product is accepted for examination in accordance with the cases
provided by law, only in the original packaging, in a full complete set,
appearance corresponding to the new equipment and presence of all relevant
properly filled documents.
This warranty is in addition to the constitutional and other consumer rights
and in no way restrict them.
Terms of warranty
The warranty card must indicate the name of the model, serial number,
purchase date, name of the seller, seller company stamp and
the customer’s signature.
Delivery to the warranty repair is carried out by the buyer himself.
Warranty repairs carried out only during the warranty period specified
in the warranty card.
The service center is committed to do everything possible to carry out
the repair warranty products, up to 24 working days. The period spent
on the restoration of product functionality is added to the warranty period.

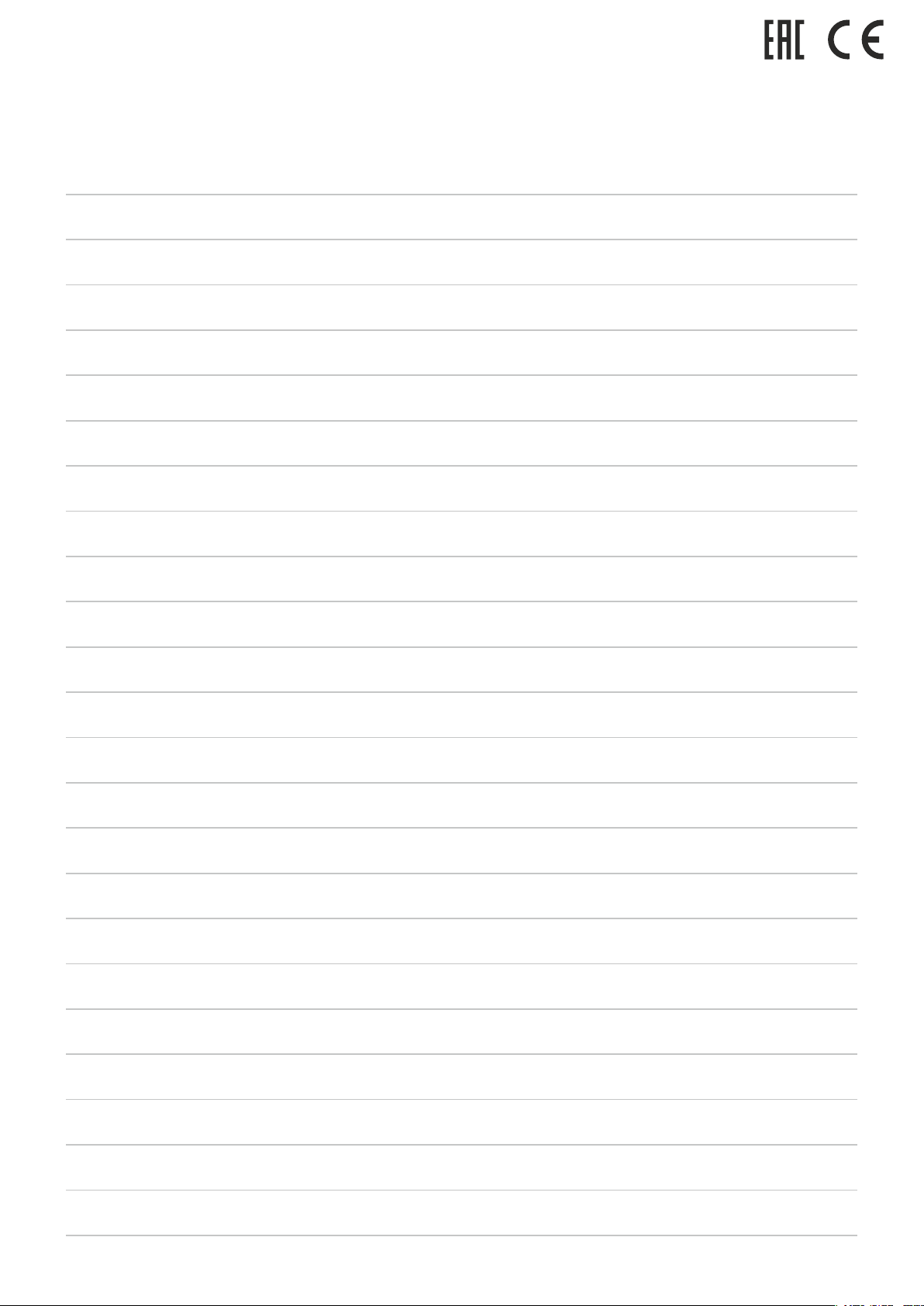

Notes
EAN: 5060514914328 (SILVER)
www.bas-ip.com
