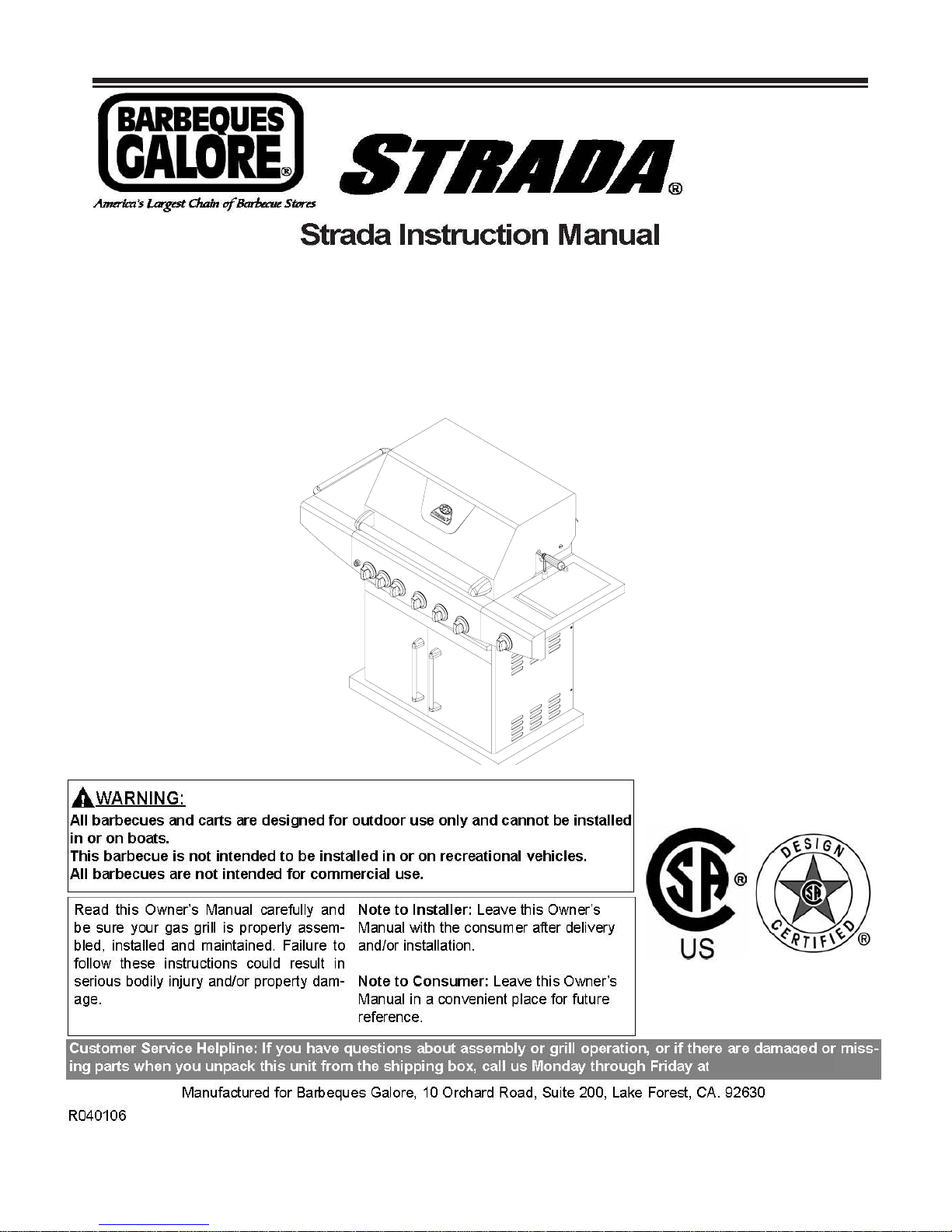

Barbeques Galore Strada STRD5RS Manual de usuario

Model STRD5RS 5 Burner w/ Rear Rotisserie Burner

Note: We highly recommend you always cover this barbecue when it is not in use which will prolong the life of the

barbecue and protect it from the elements.

1-800-913-8999.

WARNING

Do not try to light this appliance without first reading the “LIGHTING INSTRUCTIONS”

section in this manual.

MESSAGE TO OUR CONSUMERS

Thank you for selecting our stainless steel gas grill.

Because this appliance contains features which may not be found on other grills, we

recommend that you read this entire booklet before your first use. Keep it in a handy

place as it has answers to questions that may occur during future use.

Read this booklet carefully and be sure your gas grill is properly assembled, installed and

maintained. Failure to follow these instructions could result in serious bodily injury and/or

property damage. This gas grill is intended for outdoor use only and is not intended to be

installed in or on recreational vehicles or boats.

NOTE TO INSTALLER: Leave these instructions with the consumer after installation.

NOTE TO CONSUMER: Retain for future reference.

IMPORTANCE

Danger

I f you smell gas:

1 Shut off gas to the appliance.

2 Extinguish any open flame.

3 Open lid

4 If odor continues, keep away from the appliance

and immediately call you gas supplier or your fire

department.

Warning

1.Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other

appliance.

2.An LP cylinder not connected for use shall not be

stored in the vicinity of this or any other appliance.

WARNING

Combustion byproducts produced when using this

product contain chemicals known to the State

of California to cause cancer, birth defects, or

other reproductive harm.

WARNING

Failure to comply with these instructions could result

in a fire or explosion that could cause serious bodily

injury, death, or property damage.

WARNING

Your grill will get very hot. Never lean over the cooking area while using your grill. Do not touch cooking

surfaces, grill housing, Lid or any other grill parts while the grill is in operation, or until the gas grill has

cooled down after use. Keep any electrical supply cord and the fuel supply hose away from any heated

surface.

J25Y06P-1

TABLE OF CONTENTS

SECTION ONE

Table of Contents & Importance--------------

Precautions----------------------------------------1-2

Placement of the Grill--------------------------- 3

SECTION TWO

Assembly Instructions------------------------4-13

To Match Light The Grill-----------------------14

Gas Hook Up-----------------------------------15-16

Installer Final Check List------------------------16

Leak Testing------------ -----------------------17-18

SECTION THREE

Operating Instruction--------------------------19-20

Grill Lighting Instruction-----------------------20-23

Lighting Illustration-----------------------------24

SECTION FOUR

Care & Maintenance-------------------25-26

SECTION FIVE

Trouble Shooting-------------------------27-28

Exploded View----------------------------29

Part List-------------------------------------30-31

Operating Parts & Grilling Hints---------32

SECTION SIX

Grill Cooking Chart----------------------33-35

SECTION SEVEN

Grill Recipe Suggestions--------------36-38

SECTION EIGHT

Limited Warranty------------------------39

J25Y06P-1

PRECAUTIONS

WARNING

Do not try to light this appliance without

first reading the “LIGHTING

INSTRUCTIONS” section in this manual.

TESTED IN ACCORDANCE WITH ANS

Z21.58a •CSA 1.6a-2006 STANDARD FOR

OUTDOOR COOKING GAS APPLIANCES.

THIS GRILL IS FOR OUTDOOR USE ONLY.

Check your local building codes for the

proper method of installation. In the

absence of local codes, this unit should be

installed in accordance with the National

Fuel Gas Code ANSI Z223.1/NFPA 54,

OR CSA B149.1 Natural Gas and

Propane Installation Code, and the

National Electrical Code, ANSI/NFPA 70,

or Propane storage and handling code,

B149.2.

CALIFORNIA PROPOSITION 65-WARNING

The burning of gas fuel generates some by-

products, which are on the list of

substances, which are known by the State

of California to cause cancer or

reproductive harm. California law requires

businesses to warn customers of potential

exposure to such substances. To minimize

exposure to these substances, always

operate this unit according to the use and

care manual, ensuring you provide good

ventilation when cooking with gas.

SAFETY PRACTICES TO AVOID PERSONAL

INJURY

When properly cared for, your stainless

steel grill will give safe, reliable service for

many years. However, extreme care must

be used since the grill produces intense

heat and that can increase accident

potential. When using this appliance basic

safety practices must be followed, including

he following:

Read this Care and Use Manual carefully

and completely before using your grill to

reduce the risk of fire, burn hazard or other

injury.

Do not repair or replace any part of the grill

unless specifically recommended in this

manual. All other service should be referred

to a qualified technician.

CHILDREN SHOULD NOT BE LEFT

ALONE OR UNATTENDED IN AN AREA

WHERE THE GRILL IS BEING USED.

NEVER ALLOW THEM TO SIT, STAND

OR PLAY ON OR AROUND THE GRILL

AT ANY TIME.

1J25Y06P-1

PRECAUTIONS

Moist or damp potholders on hot surfaces

may cause burns from steam. Do not use a

towel or bulky cloth in place of potholders.

Do not let potholders touch hot portions of

the grill rack.

Grease is flammable. Let hot grease cool

before attempting to handle it. Avoid letting

excess grease deposits collect in the

grease tray at the bottom of the grill’s

firebox. Clean often.

DO NOT USE ALUMINUM FOIL TO LINE

THE GRILL RACKS OR GRILL BOTTOM.

This can severely upset combustion air flow

or trap excessive heat in the control area.

For proper lighting and performance of the

burners keep the burner ports clean. It is

necessary to clean them periodically for

optimum performance. The burners will

only operate in one position and must be

mounted correctly for safe operation.

Clean the grill with caution. Avoid steam

burns; do not use a wet sponge or cloth to

clean the grill while it is hot. Some cleaners

produce noxious fumes or can ignite if

applied to a hot surface.

INSECT WARNING!!! Spiders and insects

can nest in the burners of this and any

other grill, and cause the gas to flow

improperly. This is a very dangerous

condition which can cause a fire to occur

behind the valve panel, thereby damaging

the grill and making it unsafe to operate.

Inspect the grill twice a year.

Be sure all grill controls are turned off and

the grill is cool before using any type of

aerosol cleaner on or around the grill. The

chemical that produces the spraying action

could, in the presence of heat, ignite or

cause metal parts to corrode.

DO NOT STORE ITEMS OF INTEREST

TO CHILDREN AROUND OR BELOW

THE GRILL OR IN THE CART. NEVER

ALLOW CHILDREN TO CRAWL INSIDE

OF THE CART.

Never let clothing, pot holders or other

flammable materials come in contact with

or too close to any grate, burner or hot

surface until it has cooled. Fabric may

ignite and result in personal injury.

For personal safety, wear proper apparel.

Loose fitting garments or sleeves should

never be worn while using this appliance.

Some synthetic fabrics are highly

flammable and should not be worn while

cooking.

Only certain types of glass, heat-proof

glass ceramic, earthenware, or other

glazed utensils are suitable for grill use.

These types of materials may break with

sudden temperature changes. Use only on

low or medium heat settings according to

the manufacturer’s directions.

Do not heat unopened food containers as

a build-up of pressure may cause the

container to burst.

Use a covered hand when opening the

grill lid. Never lean over an open grill.

WHEN LIGHTING A BURNER, ALWAYS

PAY CLOSE ATTENTION TO WHAT

YOU ARE DOING. BE CERTAIN YOU

ARE TURNING THE IGNITER LABELED

FOR THE BURNER YOU INTEND ON

USING.

When using the grill, do not touch the grill

rack, burner grate or immediate

surroundings as these areas become

extremely hot and could cause burns. Use

only dry potholders. 2J25Y06P-1

PRECAUTIONS

Do not use the grill for cooking

excessively fatty meats or products which

promote flare-ups. Do not operate the grill

under unprotected combustible

construction. Use only in well ventilated

areas. Do not use in buildings, garages,

sheds, breezeways or other such

enclosed areas. THIS UNIT IS FOR

OUTDOOR USE ONLY.

Keep the area surrounding the grill free

from combustible materials, trash, or

combustible fluids and vapors such as

gasoline or charcoal lighter fluid. Please

check the surrounding area before use.

And keep a minimum of 24”(61cm)

clearance from combustible material. Do

not obstruct the flow of combustion and

ventilation air. Keep the ventilation

openings of the cylinder enclosure free

and clear from debris. This must be

checked before each use. If the unit is

stored indoors ensure that it is cool. If

propane is used, the cylinder must be

unhooked and the propane cylinder stored

outside in a well ventilated area, out of the

reach of children.

DO NOT USE BRIQUETTES OF ANY

KIND IN THE GRILL.

This stainless steel grill is designed for

optimum performance without the use of

briquettes. Do not place briquettes on the

flame tamer as this will block off the area

for the grill burners to vent. Adding

briquettes can damage ignition components

and knobs, and void the warranty.

Keep the back of the cart free and clear

from debris. Keep any electrical supply

cord, or the rotisserie motor cord away

from the heated areas of the grill.

Never use the grill in extremely windy

conditions. If located in a consistently windy

area (oceanfront, mountaintop, etc.) a

windbreak will be required (see below).

Always adhere to the specified clearance.

NEVER USE A DENTED OR RUSTY

PROPANE TANK.

PLACEMENT OF THE GRILL

CLEARANCE

To Non-Combustible Construction

A minimum of 24”(61cm) clearance from the

back of the grill to non-combustible

construction is required for the lid to open

fully.

DO NOT INSTALL THIS UNIT INTO

COMBUSTIBLE ENCLOSURES!

LOCATION

When determining a suitable location take

into account concerns such as exposure to

wind, proximity to traffic paths and keeping

any gas supply lines as short as possible.

Locate the grill only in a well-ventilated area.

Never locate the grill in a building, garage,

breezeway, shed or other such enclosed areas

without an approved ventilation system. During

heavy use, the grill will produce a lot of smoke.

Lock the wheels after the grill is placed in a

suitable position according to the sticker

located behind the right door. Keep any

electrical supply cord and the fuel supply hose

away from any heated surfaces. Storage of an

outdoor gas cooking appliance indoors is

permissible only if the cylinder is disconnected

and removed from the appliance.

This outdoor cooking gas appliance shall be

used only outdoor and shall not be used in a

building, garage or any other enclosed area.

This appliance is not intended to be installed

on or on recreational vehicles and/or boats

3J25Y06P-1

PLEASE READ THE INSTRUCTIONS CAREFULLY AND FOLLOW STEP

BY STEP.

TOOLS REQUIRED:

(1) PHILIPS HEAD SCREWDRIVER – NOT PROVIDED

J25Y06P-1

STEP 1:

¾The screws used to attach the Side Burner and Side shelves are already

installed in the Shelves and in the Side panels, so you will need to remove

them and then use them to secure the Shelves as shown in the figure below.

¾It is best to install all the screws first and then tighten them, to make sure

the shelves are correctly lined up with the Control panel.

SIDE SHELF & SIDE BURNER ASSEMBLY

6I21Y06P-1

QUICK CONNECTOR ASSEMBLY

STEP 2:

¾Push the Quick Disconnect fitting mounted on the manifold through the

access hole in the Right cart panel (See figure below).

¾Connect the Quick Disconnect fitting to the side burner fitting – it is

necessary to push the Slide Collar while inserting the Quick Disconnect to

the side burner fitting and then release the Slide Collar.

¾Pull firmly out on the quick disconnect to make sure that it is securely

locked into the side burner fitting.

7J25Y06P-1

STEP 3:

The screws used to attach the left side shelf handle are already screwed into

the handle (see figure below). Remove the screws from the left side shelf

handle, align the handle with the holes in the side shelf, and tighten up the

screw.

SIDE SHELF HANDLE ASSEMBLY

8J25Y06P-1

BATTERY ASSEMBLY

STEP 4:

¾To install the battery, remove the Electronic Ignition Cap and insert the

battery (Positive + facing outwards).

¾Replace the Cap and tighten by hand.

Tabla de contenidos

Otros manuales de Parrilla de Barbeques Galore

Barbeques Galore

Barbeques Galore ALFRESCO BG229SB-G Manual del operador

Barbeques Galore

Barbeques Galore Grand Turbo YN662AGLP Manual de usuario

Barbeques Galore

Barbeques Galore PROSMOKE KAMADO Manual de usuario

Barbeques Galore

Barbeques Galore B3812ALP Manual de usuario

Barbeques Galore

Barbeques Galore GBBK/GBBKR Manual de usuario

Barbeques Galore

Barbeques Galore Grand Turbo B3816ALP Manual de usuario

Barbeques Galore

Barbeques Galore G5CPBIQ Manual de usuario

Barbeques Galore

Barbeques Galore downunder G2DLK Manual de usuario

Barbeques Galore

Barbeques Galore Y0662LP Manual de usuario

Barbeques Galore

Barbeques Galore Turbo Charcoal BCH14A Manual de usuario

Barbeques Galore

Barbeques Galore Grand Endevator GE3BSSLP Manual de usuario

Barbeques Galore

Barbeques Galore KET57 Manual de usuario

Barbeques Galore

Barbeques Galore CDBL Manual de usuario

Barbeques Galore

Barbeques Galore STS2611ALP Manual de usuario

Barbeques Galore

Barbeques Galore Billabong Manual de usuario

Barbeques Galore

Barbeques Galore BEEFMASTER V Series Manual del operador

Barbeques Galore

Barbeques Galore DISCOVERER G4DISL Manual de usuario

Barbeques Galore

Barbeques Galore Ziegler & Brown TURBO BABERQUE Manual de usuario

Barbeques Galore

Barbeques Galore EDV27-BQ Manual de usuario

Barbeques Galore

Barbeques Galore KYQ-G41S-G Manual de lista de piezas

Barbeques Galore

Barbeques Galore MALIBU Guía de instalación

Barbeques Galore

Barbeques Galore Downunder G4DLK Manual de usuario

Barbeques Galore

Barbeques Galore Grand Turbo B4019LP Manual de usuario

Barbeques Galore

Barbeques Galore Turbo select G5STR Manual de usuario

Manuales populares de Parrilla de otras marcas

Orbegozo

Orbegozo GR 2300 Manual de usuario

bora

bora PT11 Manual de usuario

Klarstein

Klarstein 10031664 Manual de usuario

Garland

Garland MWE3W Manual de usuario

Char-Broil

Char-Broil 463722714 Manual de usuario

Nexgrill

Nexgrill 720-0830HK Manual de usuario

Kenmore

Kenmore 415.16123800 Manual de usuario

Camp Chef

Camp Chef PG24CLAU Manual de usuario

Tucker Barbecues

Tucker Barbecues GTR Series Instrucciones de montaje

Monogram

Monogram ZGG540NCP1SS Manual de usuario

Equipex

Equipex Sodir Savoy Manual de usuario

Gaggenau

Gaggenau VR 414 610 Manual de usuario

Miele

Miele KM 408-1 Manual de usuario

George Foreman

George Foreman GGR50B Manual de usuario

AOG

AOG T series Manual de usuario

Gorenje

Gorenje TG2000CB Manual de instrucciones

Weber

Weber Genesis Silver-B Permamount NG 051701 Manual de usuario

Glen

Glen SA 3037 Manual de usuario
