B&B Electronics McLIM TP-TX/FX Manual de usuario

P-

-T

International Headquarters

B&B Electronics Mfg. Co. Inc.

707 Dayton Road

Ottawa, IL 61350 USA

Phone (815) 433-5100 -- General Fax (815) 433-5105

Website: www.bb-elec.com

support@bb-elec.com

European Headquarters

B&B Electronics

Westlink Commercial Park

Oranmore, Co. Galway, Ireland

Phone +353 91-792444 -- Fax +353 91-792445

Website: www.bb-europe.com

techsupport@bb-elec.com

Table of Contents

FCC RADIO FREQUENCY INTERFERENCE STATEMENT.........4

WARRANTY ...............................................................................................4

ABOUT THE MCLIM................................................................................4

INSTALLING THE MCLIM ................................................ 6

LED OPERATION............................................................. 7

SPECIFICATIONS...................................................................................9

FIBER OPTIC CLEANING GUIDELINES ......................................10

ELECTROSTATIC DISCHARGE PRECAUTIONS ........................11

SAFETY CERTIFICATIONS................................................................12

FCC RADIO FREQUENCY INTERFERENCE

STATEMENT

This equipment has been tested and found to comply with the limits for a Class B computing device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which the user will be required to correct the interference at his own expense.

Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate

the equipment.

The use of non-shielded I/O cables may not guarantee compliance with FCC RFI limits. This digital apparatus does

not exceed the Class B limits for radio noise emission from digital apparatus set out in the Radio Interference

Regulation of the Canadian Department of Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils

numériques de classe B prescrites dans le Règlement sur le brouillage radioélectrique publié par le ministère des

Communications du Canada.

WARRANTY

Limited Lifetime Warranty

Effective for products of B&B Electronics Manufacturing Company shipped on or after

May 1, 2013, B&B Electronics Manufacturing Company warrants that each such product

shall be free from defects in material and workmanship for its lifetime. This limited

lifetime warranty is applicable solely to the original user and is not transferable.

This warranty is expressly conditioned upon proper storage, installation, connection,

operation and maintenance of products in accordance with their written specifications.

Pursuant to the warranty, within the warranty period, B&B Electronics Manufacturing

Company, at its option will:

1. Replace the product with a functional equivalent;

2. Repair the product; or

3. Provide a partial refund of purchase price based on a depreciated value.

Products of other manufacturers sold by B&B Electronics Manufacturing Company are

not subject to any warranty or indemnity offered by B&B Electronics Manufacturing

Company, but may be subject to the warranties of the other manufacturers.

Notwithstanding the foregoing, under no circumstances shall B&B Electronics

Manufacturing Company have any warranty obligations or any other liability for: (i) any

defects resulting from wear and tear, accident, improper use by the buyer or use by any

third party except in accordance with the written instructions or advice of the B&B

Electronics Manufacturing Company or the manufacturer of the products, including

without limitation surge and overvoltage conditions that exceed specified ratings, (ii)

any products which have been adjusted, modified or repaired by any party other than

B&B Electronics Manufacturing Company or (iii) any descriptions, illustrations, figures as

to performance, drawings and particulars of weights and dimensions contained in the

B&B Electronics Manufacturing Company’s catalogs, price lists, marketing materials or

elsewhere since they are merely intended to represent a general idea of the products

and do not form part of this price quote and do not constitute a warranty of any kind,

whether express or implied, as to any of the B&B Electronics Manufacturing Company’s

products.

THE REPAIR OR REPLACEMENT OF THE DEFECTIVE ITEMS IN ACCORDANCE WITH THE

EXPRESS WARRANTY SET FORTH ABOVE IS B&B ELECTRONIC MANUFACTURING

COMPANY’S SOLE OBLIGATION UNDER THIS WARRANTY. THE WARRANTY CONTAINED

IN THIS SECTION SHALL EXTEND TO THE ORIGINAL USER ONLY, IS IN LIEU OF ANY AND

ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND ALL SUCH WARRANTIES AND

INDEMNITIES ARE EXPRESSLY DISCLAIMED, INCLUDING WITHOUT LIMITATION (I) THE

IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND OF

MERCHANTABILITY AND (II) ANY WARRANTY THAT THE PRODUCTS ARE DO NOT

INFRINGE OR VIOLATE THE INTELLECTUAL PROPERTY RIGHTS OF ANY THIRD PARTY. IN

NO EVENT SHALL B&B ELECTRONICS MANUFACTURING COMPANY BE LIABLE FOR LOSS

OF BUSINESS, LOSS OF USE OR OF DATA INTERRUPTION OF BUSINESS, LOST PROFITS OR

GOODWILL OR OTHER SPECIAL, INCIDENTAL, EXEMPLARY OR CONSEQUENTIAL

DAMAGES. B&B ELECTRONIC MANUFACTURING COMPANY SHALL DISREGARD AND

NOT BE BOUND BY ANY REPRESENTATIONS, WARRANTIES OR INDEMNITIES MADE BY

ANY OTHER PERSON, INCLUDING WITHOUT LIMITATION EMPLOYEES, DISTRIBUTORS,

RESELLERS OR DEALERS OF B&B ELECTRONIC MANUFACTURING COMPANY WHICH ARE

INCONSISTENT WITH THE WARRANTY, SET FORTH ABOVE.

ABOUT THE MCLIM

Part Numbers: 855-12622-RX, 855-12622-TX

The above part numbers must be installed in pairs. As a pair,

the units provide secure data to be passed in one direction

only.

McLIM TP-TX/FX is an Auto Negotiating, switching media converter

which offers plug-and-play operation to convert 10 Mbps or 100 Mbps,

Half- or Full-Duplex twisted pair to 100Base-FX, Full-Duplex fiber.

McLIM TP-TX/FX protects against Broadcast storms, and allows jumbo

packets of up to 1916 bytes. The modules deployed as a pair, allow

transmission of data in one direction only.

McLIMs include one RJ-45 connector for the twisted pair port and

single-strand fiber over multi-mode with SC convertors.

INSTALLING THE MCLIM

You can install media conversion modules in any available slot in a

MediaConverter chassis. Media conversion modules are hot-

swappable.

Media conversion modules ship from the factory with brackets for

securing them to the MediaConverter chassis. To install a module,

simply unscrew the blank bracket covering the slot where you will

install the module. Slide the module into the chassis, via the card

guides, until the module is seated securely in the connector, screw in

the bracket supplied with the module, then connect the cables.

The modular MediaConverter series includes modules which can

convert copper to single-mode or multi-mode fiber at Fast Ethernet.

Modular MediaConverter chassis provide power to media converter

modules, and are available with one, four, eight or 12 slots for

installing the 10/100 McLIM, TP-TX/FX.

•

MediaConverter/1 and /4 are standalone chassis which include one

or four media conversion module slots, respectively, and a fixed,

internal 100/240 VAC power supply.

•

MediaConverter/8 is a 1U high, rack-mountable chassis that

includes eight media module slots and a fixed 100/240 VAC power

supply.

•

MediaConverter/12x is a rack-mountable chassis and includes 12

media conversion module slots and either a 100/240 VAC or -48

VDC power supply. MediaConverter/12x is 1U high and has the

power on the rear of the chassis with media conversion module

slots on the front.

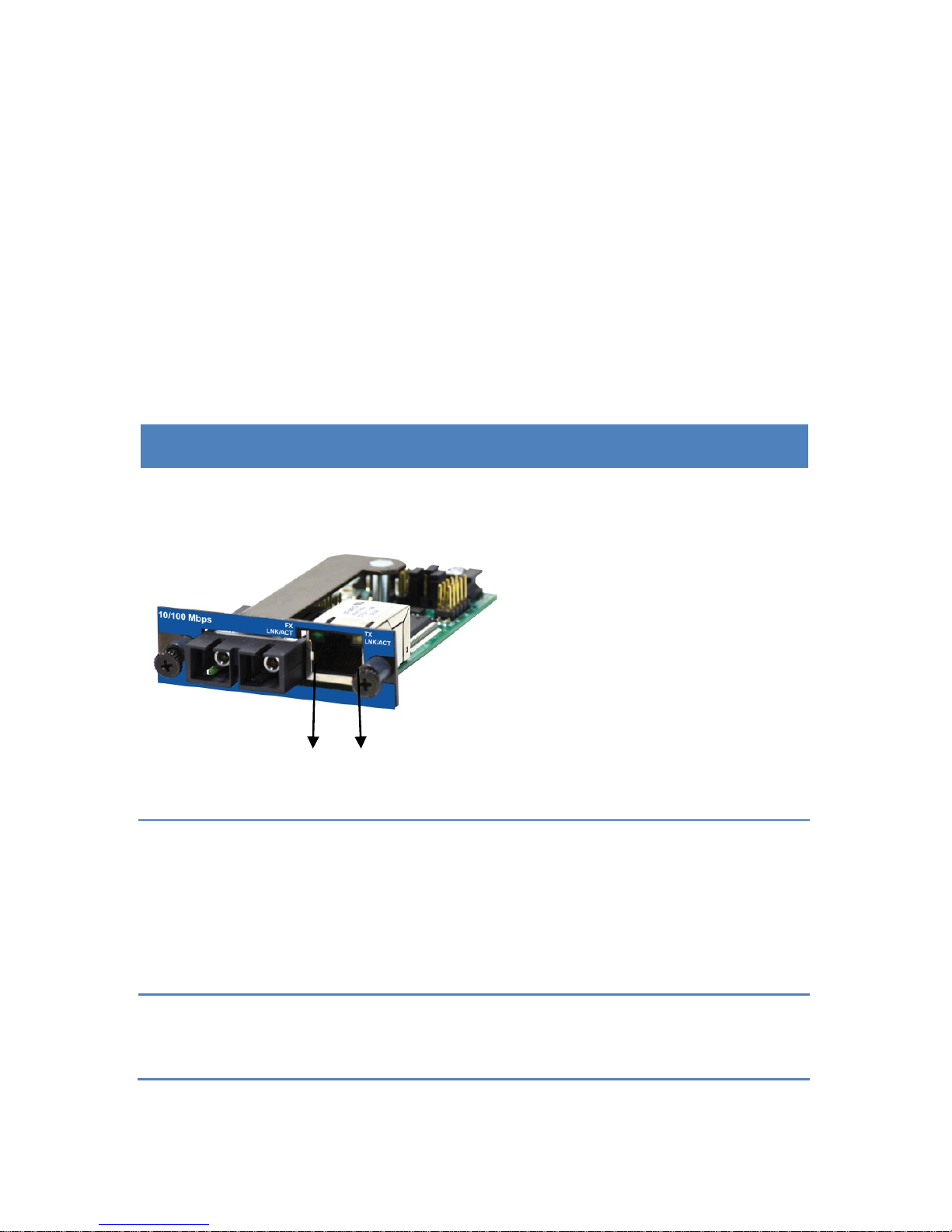

LED OPERATION

Each McLIM includes two LEDs, located on the RJ-45 connector.

LED functions are as follows for the TX Unit:

FX TX

FX LNK/ACT Glows green when a link is established on the FX (fiber)

port; blinks green when activity is detected on the fiber

port.

Although the copper and fiber ports may not be

physically connected, the FX (fiber) port will always

show a green LED, as the link is forced ON, to ensure

the connection.

TX LNK/ACT Glows green when a link is established on the TX

(copper) port; blinks green when activity is detected on

the copper port.

Each McLIM includes two LEDs, located on the RJ-45 connector.

LED functions are as follows for the RX Unit:

FX TX

FX LNK/ACT Glows green when a link is established on the FX (fiber)

port; blinks green when activity is detected on the fiber

port.

TX LNK/ACT Glows green when a link is established on the

TX(copper) port; blinks green when activity is detected

on the copper port.

SPECIFICATIONS

Ethernet Connections

•10/100 BaseT

•Auto Negotiation

•AutoCross

•Flow Control

•1916 MTU

•Full Line-Rate Forwarding

Operating Temperature

32° to 122°F (0° to +50°C); 5% to 90% (non-condensing), 0 to

10,000 ft. altitude

Storage Temperature

-13° to +158°F (-25° to +70°C); 5 to 90% (non-condensing)

Humidity

5% to 95% (non-condensing), 0 – 10,000 ft. altitude

Electrical

MediaConverter/1

AC Input Load: 100/240 100-240VAC ±10% , 50/60Hz, 0.1/0.05A

0.3A

Maximum Heat Generated: 51 BTU/hour

MediaConverter/4

AC Input Load: 100/240 100-240VAC ±10% , 50/60Hz, 0.1/0.05A

1.2A

Maximum Heat Generated: 67 BTU/hour

MediaConverter/8

AC Input Load: 100/240 100-240VAC ±10% , 50/60Hz, 0.5/0.2A 1.2A

Maximum Heat Generated: 137 BTU/hour

MediaConverter/12

AC Input Load: 100/240 100-240VAC ±10% , 50/60Hz, 0.5/0.2A 1.2A

DC Input Load: -48 ±10% VDC, 1A

Maximum Heat Generated: 137 BTU/hour for AC unit, 171 BTU/hour

for DC unit

Dimensions

MediaConverter/1 H=1.6” x W=4.8” x D=4.5” (4 x

12.1 x 11.5 cm)

MediaConverter/4 H=1.7” x W=9.1” x D=5” (4.4 x 23.1 x

12.6 cm)

MediaConverter/8 H=1.7” x W=17.4”x D=5” (4.4 x 44.2 x

12.8 cm)

MediaConverter/12 H=1.7” x W=19” x D=9” (4.4 x 48.3 x

22.9 cm)

FIBER OPTIC CLEANING GUIDELINES

Fiber Optic transmitters and receivers are extremely susceptible

to contamination by particles of dirt or dust, which can obstruct

the optic path and cause performance degradation. Good

system performance requires clean optics and connector

ferrules.

1. Use fiber patch cords (or connectors, if you terminate your

own fiber) only from a reputable supplier; low-quality

components can cause many hard-to-diagnose problems in

an installation.

2. Dust caps are installed at B&B Electronics to ensure factory-

clean optical devices. These protective caps should not be

removed until the moment of connecting the fiber cable to

the device. Should it be necessary to disconnect the fiber

device, reinstall the protective dust caps.

3. Store spare caps in a dust-free environment such as a

sealed plastic bag or box so that when reinstalled they do

not introduce any contamination to the optics.

4. If you suspect that the optics have been contaminated,

alternate between blasting with clean, dry, compressed air

and flushing with methanol to remove particles of dirt.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Convertidor de medios de B&B Electronics

B&B Electronics

B&B Electronics MES1A Manual de usuario

B&B Electronics

B&B Electronics 232SPS2 Manual de usuario

B&B Electronics

B&B Electronics U-linx USR602 Manual de usuario

B&B Electronics

B&B Electronics McPC-Gigabit Manual de usuario

B&B Electronics

B&B Electronics High Speed Asynchronous to Synchronous Converter... Manual de usuario

B&B Electronics

B&B Electronics ELinx EIR-G-SFP-T Manual de usuario

B&B Electronics

B&B Electronics 232CL9R Manual de usuario

B&B Electronics

B&B Electronics Parallel Port Input/Output Converter PPIO Manual de usuario

B&B Electronics

B&B Electronics ES1AE Manual de usuario

B&B Electronics

B&B Electronics Command Response Protocol HVD100A3 Manual de usuario

B&B Electronics

B&B Electronics 485DRCI-PH Manual de usuario

B&B Electronics

B&B Electronics USR604 Manual de usuario

B&B Electronics

B&B Electronics RS-232 Baud Rate Converter CE 232BRC Manual de usuario

B&B Electronics

B&B Electronics IE-Giga-MiniMc Manual de usuario

B&B Electronics

B&B Electronics BB-USR604 Manual de usuario

B&B Electronics

B&B Electronics Asynchronous to Synchronous Converter 2010 Manual de usuario

B&B Electronics

B&B Electronics USOPTL4 Manual de usuario

B&B Electronics

B&B Electronics MES1A Manual de usuario

B&B Electronics

B&B Electronics Giga-McBasic-II Manual de usuario

B&B Electronics

B&B Electronics 485LDRC9 Manual de usuario

B&B Electronics

B&B Electronics McBasic TP/FO Manual de usuario

B&B Electronics

B&B Electronics EIR*-S series Manual de usuario

B&B Electronics

B&B Electronics RS-232 to J1939 Converter CE 1939STB Manual de usuario

B&B Electronics

B&B Electronics RS-232 to Ethernet Converter ES1A Manual de usuario

Manuales populares de Convertidor de medios de otras marcas

SoundTraxx

SoundTraxx Blunami BLU-2200 Manual de usuario

SPROLINK

SPROLINK VA1 Manual de usuario

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manual de usuario

Nikon

Nikon AF-S TC-20E III Manual de usuario

Axis

Axis AXIS Q7406 Manual de usuario

Omega

Omega TAC80B-J Manual de usuario

Zoom

Zoom Thunderbolt TAC-2R Manual de usuario

OST

OST iConverter 10/100M Manual de usuario

Vertiv

Vertiv Netsure Manual de usuario

birddog

birddog MINI Manual de usuario

Roland

Roland GI-10 Manual de usuario

Wallenstein

Wallenstein WX310 Manual de usuario

Pace

Pace MSS 200-1 Manual de usuario

Solar Converters

Solar Converters EQ 12/24-50 Manual de usuario

CYP

CYP EL-7400V Manual de usuario

TIE

TIE MIDI 1i1o Manual de usuario

DCS

DCS Vivaldi Upsampler Manual de usuario

Westermo

Westermo MCW-211 SERIES Manual de usuario
