Badger Meter Europa GmbH

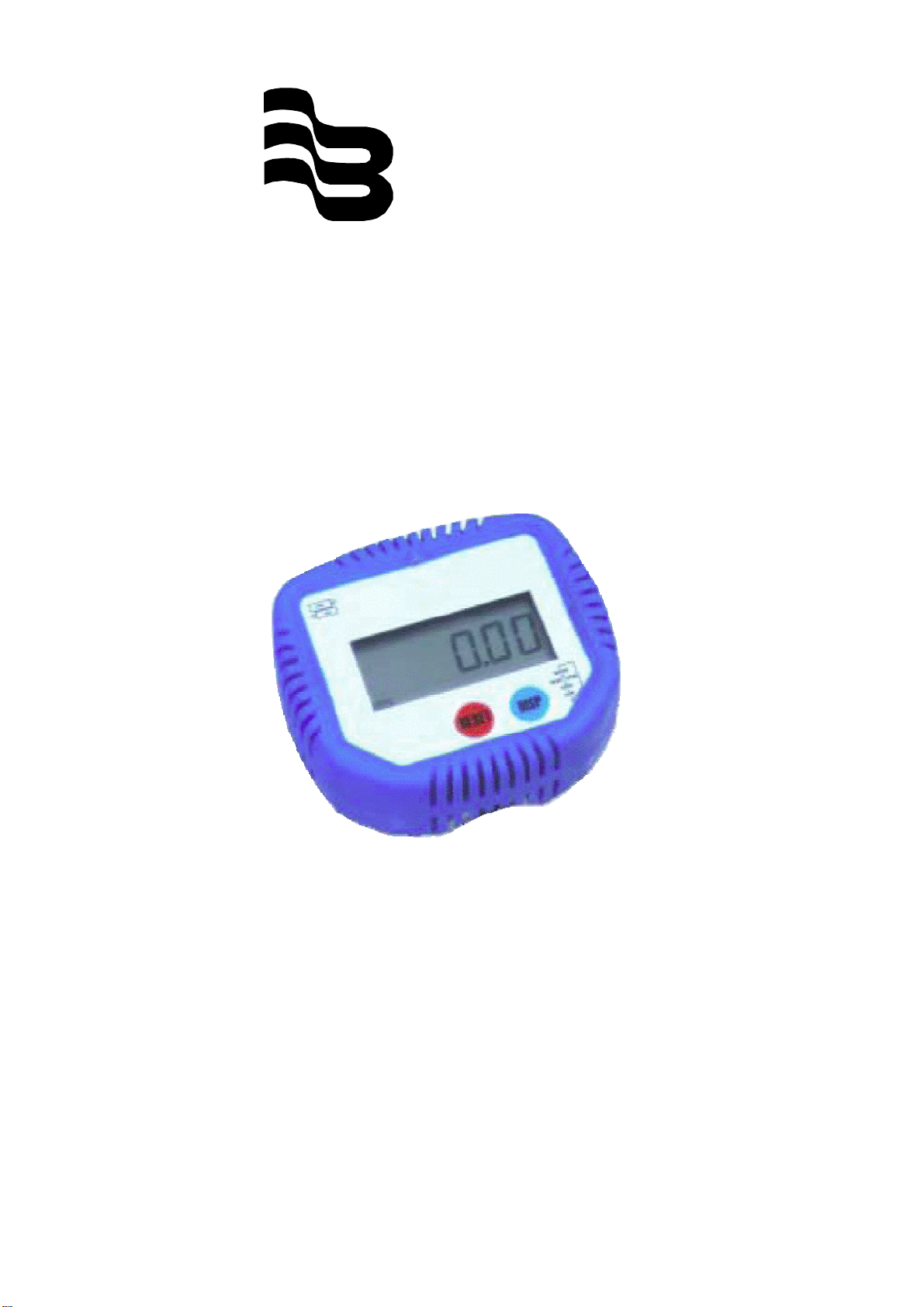

MN-MR100

Electronic register

SUPPLEMENTARY MANUAL

November 2005

IND_MNMR100_Bedienungsanleitung_0703_e.doc

TOC I

IND_MNMR100_Bedienungsanleitung_0703_e.doc

1. GENERAL INFORMATION.................................................................................... 1

2. Operation............................................................................................................... 1

2.1 Display button.............................................................................................................1

2.2 Reset button...............................................................................................................1

2.3 Flowrate......................................................................................................................1

2.4 Sleep mode................................................................................................................1

2.5 Battery replacement ...................................................................................................1

3. Register maintenance .......................................................................................... 2

3.1 To remove the register ...............................................................................................2

3.2 To replace the register ...............................................................................................2

3.3 To rotate the register..................................................................................................2

3.4 Parts list......................................................................................................................3

4. Electronic register................................................................................................ 3

4.1 Programming details ..................................................................................................3

4.2 Meter model ...............................................................................................................5

4.3 Totals..........................................................................................................................5

4.4 Flowrate......................................................................................................................6

4.5 Display........................................................................................................................8

4.6 Calibration..................................................................................................................9

4.7 Configuration..............................................................................................................9

4.8 Diagnostics...............................................................................................................10

5. Warranty.............................................................................................................. 11

Operation page 1/11

IND_MNMR100_Bedienungsanleitung_0703_e.doc

1. GENERAL INFORMATION

Please read and retain this instruction manual to assist you in the operation and maintenance

of this electronic register.

This manual assists you in operating and maintaining your new electronic LCD register. The

information contained will help you ensure many years of dependable performance and

trouble free operation. Please take a few moments to read through this manual before

operating your electronic register. If you experience problems with this product, refer to the

maintenance and trouble shooting sections of this manual. If you require further assistance

please contact your local distributor.

2. Operation

2.1 Display button

Each press of the DISP button will allow you to scroll through the meter options:

- Resettable batch total

- Resettable accumulative total

- Non resettable accumulative total

- Flowrate

2.2 Reset button

The RESET button allows you to reset the batch total or the resettable acumulative total

to zero. To reset either the batch total or resettable acumulative total. Press the DISP

button to scroll to either the batch or resettable total. When the required total is

displayed. Press reset to zero the totalizer.

2.3 Flowrate

This display option shows the flowrate of the fluid passing through the meter.

2.4 Sleep mode

If NO flow goes through the meter for 60 seconds the display will go into sleep mode

(blank). The display will automatically wake if the buttons are pressed or flow occurrs.

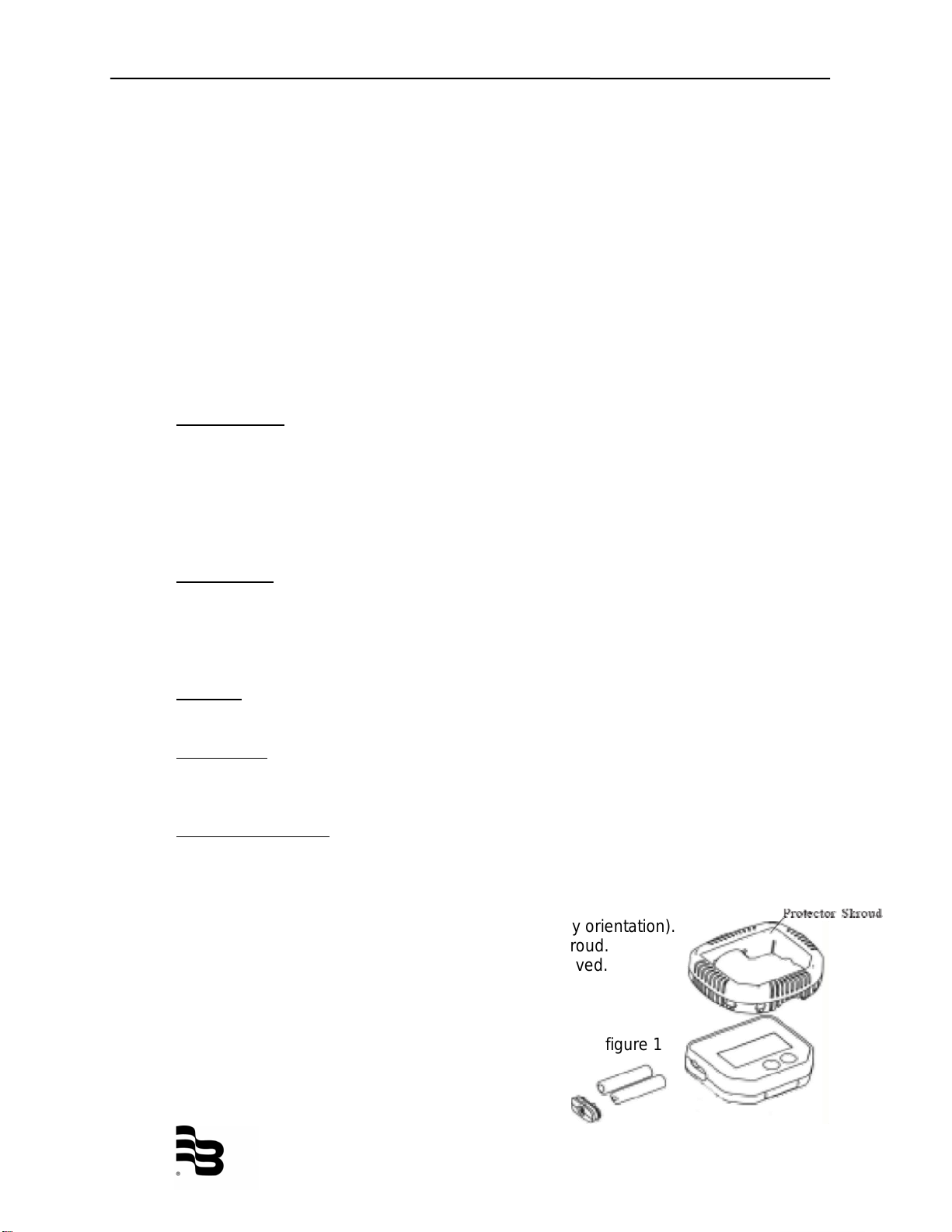

2.5 Battery replacement

Note: Replace the batteries as soon as the battery indicator on the LCD is displayed.

1. Remove the plastic protector shroud from the register assembly (figure 1).

2. Remove the battery cover.

3. Replace the 2 x (AAA) Alkaline batteries.

(Refer to the front of the register for correct battery orientation).

4. Replace the battery cover and re-fit the plastic shroud.

All data will be saved when the batteries are removed.

Note: Only use AAA Alkaline batteries!

figure 1

IND_MNMR100_Bedienungsanleitung_0703_e.doc

3. Register maintenance

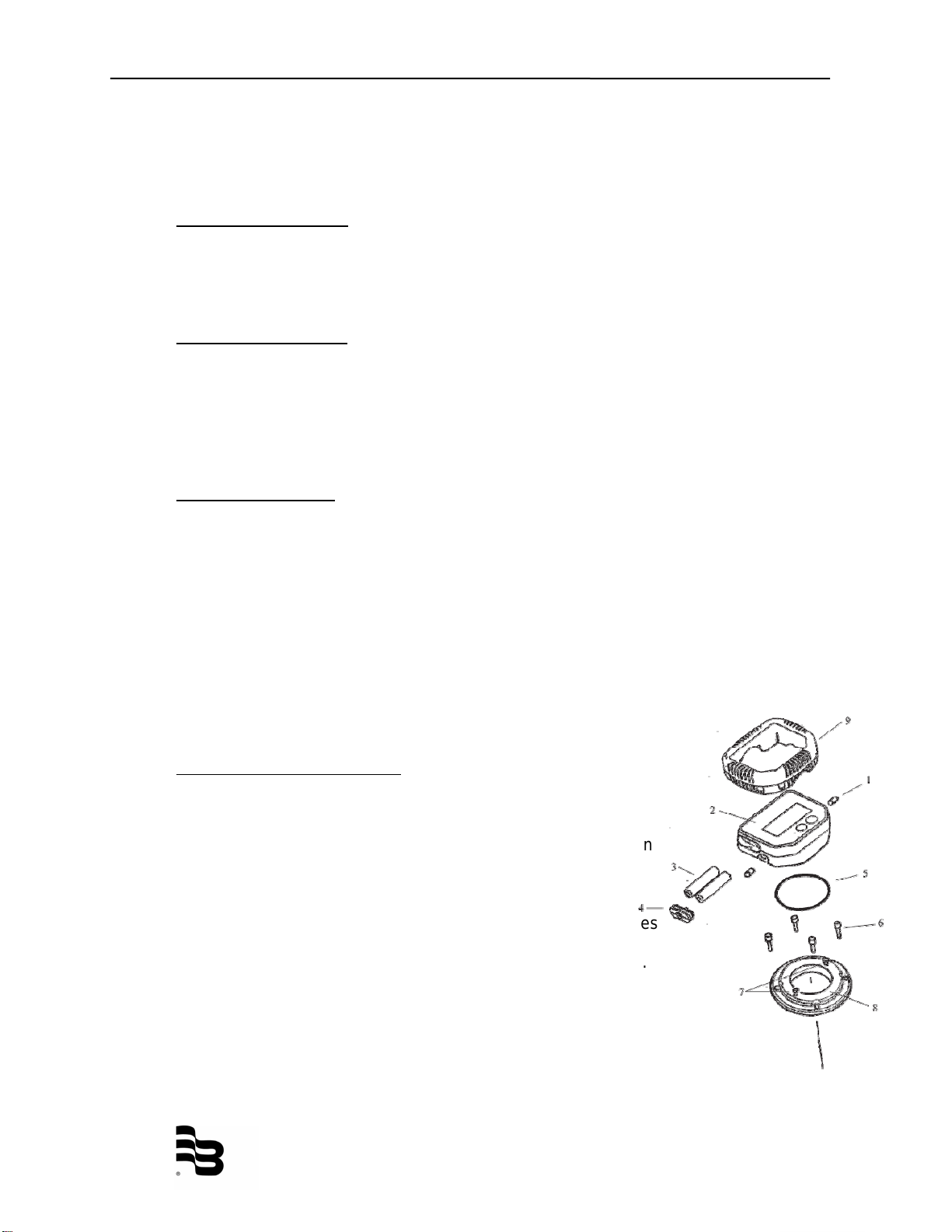

Refer to the exploded diagram (fig. 2) for a full parts breakdown and a list of available spare

parts.

3.1 To remove the register

Remove the protective boot (item 9). Loosen the two grub screws (item 1) using a 3mm

AF Hex key until the register can be lifted from the two bollards (item 7). Mark the

connections on the terminal block and gently unscrew the cable from the meter terminal

block. Place the register in a safe place to avoid damage to the LCD.

3.2 To replace the register

Clean the mating faces of the register and the meter. Connect the cable to the correct

terminals on the meter terminal block. Tighten the terminals and place the register onto

the bollards. Ensure the oring (item 5) is located correctly and is not damaged. While

applying a light downward pressure to the register tighten the two grub screws (item 1)

using a 3mm AF Hex key against the two bollards. Replace the protective boot (item 9)

and check the register operation.

3.3 To rotate the register

Remove the protective boot (item 9). Loosen the two grub screws (item 1) using a 3mm

AF Hex key until the register can be lifted from the two bollards (item 7). Mark the

connections on the terminal block and gently unscrew the cable from the meter terminal

block. Place the register in a safe place to avoid damage to the LCD. Remove the 2

bollards (item 7) using a flat bladed screw driver and replace them in the desired

location. Clean the mating faces of the register and the meter. Connect the cable to the

correct terminals on the meter terminal block. Tighten the terminals and place the

damaged. While applying a light downward pressure to the register tighten the two grub

screws (item 1) using a 3mm AF Hex key against the two bollards. Replace the

protective boot and check the register operation.

IMPORTANT INFORMATION

1. Do not expose the register to bright direct sunlight.

2. Do not expose the register to rain.

3. Replace the batteries as soon as the low battery element on

the LCD is displayed.

4. Do not clean the facia with solvents or abrasive cleaners.

5. Use only good quality AAA Alkaline batteries.

6. Do not exceed the maximum or minimum rated temperatures

stated in the register specifications.

7. Do not allow the register housing to be exposed to impacts.

figure 2

Electronic register page 3/11

IND_MNMR100_Bedienungsanleitung_0703_e.doc

3.4 Parts list

Order for replacement

Item Part n° N° off Part / Set Description

1 N411 2 N411s incl items 1,5 & 7 Grub screw

2 1 Meter register assy

3 IM066 2 IM066s Battery set

4 IM060A 1 IM060A s Battery cover set

5 BS133 1 O´ring

6 MS115 4 MS115s Bolts

7 MR017 1 Bollards

8 MR018 1 MR018s Adaptor plate ***

9 IM070 1 IM071BKS = (black) Protector boot set

9 IM070 1 IM071BUS = (blue) Protector boot set

9 IM070 1 IM071GRS = (green) Protector boot set

9 IM070 1 IM071RDS = (red) Protector boot set

*** Item 8 required for MN10 to MN100 models only.

4. Electronic register

4.1 Programming details

Note: As the decimal point does not float we recommend that a maximum of 2 decimal

places be used, see below for details.

The electronic module has been set up as follows:

a) Ensure the meter is awake before trying to enter the programming mode.

b) If the meter goes into sleep mode during programming, it will automatically

return to operating mode.

c) To access the programs and settings, hold down the RESET button for 5 seconds.

MEtr 1

d) To scroll through the setting options press the DISP button.

NOTE: Details for changing individual options.

For example to change the units setting on the batch total turn to item 2 - 21.

Electronic register page 4/11

IND_MNMR100_Bedienungsanleitung_0703_e.doc

1. METER MODEL

MEtr1 11 meter model

(N/A) Factory set

2. TOTALS

21 change batch total (units)

23 change resettable accumulative total (units)

totL2 24 change resettable accumulative total (decimal point)

25 change non-resettable accumulative total (units)

26 change non-reset accumulative total (decimal point)

22 change batch total (decimal point)

27 change “K” factor

3. FLOWRATE

31 change flowrate (units)

32 change flowrate (decimal point)

rATE3 33 change flowrate (time base setting)

34 set the amount of signal pulses to calculate flowrate

35 set minimum flow rate

4. DISPLAY

41 set sleep mode

42 set sleep time

diSP4 43 change display (wake up default setting )

44 change display (default time)

45 (N/A) turn back light on / off

46 (N/A) set back light time

5. CALIBRATION

CALI5 51 calibration adjustment

6. CONFIGURATION

CONF6 6 configuration details

7. DIAGNOSTICS

dIA7 71 diagnostic mode

Electronic register page 5/11

IND_MNMR100_Bedienungsanleitung_0703_e.doc

4.2 Meter model

11 meter model MEtr1

NOTE: The meter model is factory set and cannot be changed. To return the meter to

the operating mode press the RESET button for 5 seconds.

4.3 Totals

21 BATCH TOTAL = unit 21 (set units) totL2

a) Press and hold down RESET for 5 seconds until “MEtr1” appears.

b) Press the DISP button to reach “totL 2”.

c) Press RESET “unit 21” will appear.

d) Press and hold down RESET for 2 seconds (program will appear).

e) Press RESET to scroll through the settings (ltr, gal, qrt) to the desired units.

f) Press and hold down RESET until “program” disappears to accept setting.

g) Press “RESET” for five seconds to return the meter to the operating mode.

22 BATCH TOTAL = dEC 22 (set decimal point)

a) Press and hold down RESET for 5 seconds until “MEtr 1” appears.

b) Press the DISP button to reach “totL 2”.

c) Press RESET twice “ dEC 22” will appear.

d) Press and hold down RESET for 2 seconds (program will appear).

e) Press RESET to set the decimal point to 1st, 2nd, 3rd or no decimal place.

(e.g 11111.1 = 1 decimal place)

f) Press and hold down RESET until “program” disappears to accept setting.

g) Press RESET for five seconds to return the meter to the operating mode.

23 RESETTABLE ACCUM TOTAL = unit 23 (set units)

a) Press and hold down RESET for 5 seconds until “MEtr 1” appears.

b) Press the DISP button to reach “totL 2”.

c) Press RESET 3 times “unit 23” will appear.

d) Press and hold down RESET for 2 seconds (program will appear).

e) Press RESET to scroll through the settings (ltr, gal, qrt ) to the desired units.

f) Press and hold down RESET until “program” disappears to accept setting.

g) Press RESET for five seconds to return the meter to the operating mode.

24 RESETTABLE ACCUM TOTAL = dEC 24 (set decimal point)

a) Press and hold down RESET for 5 seconds until “MEtr 1” appears.

b) Press the DISP button to reach “totL 2”

c) Press RESET 4 times “dEC 24” will appear.

d) Press and hold down RESET for 2 seconds (program will appear)

e) Press RESET to set the decimal point to 1st, 2nd, 3rd or no decimal place.

(e.g. 11111.1 = 1 decimal place)

Electronic register page 6/11

IND_MNMR100_Bedienungsanleitung_0703_e.doc

f) Press and hold down RESET until “program” disappears to accept setting.

g) Press RESET for five seconds to return the meter to the operating mode.

25 NON-RESET ACCUM TOTAL = unit 25 (set units)

a) Press and hold down RESET for 5 seconds until “MEtr 1” appears.

b) Press the DISP button to reach “totL 2”.

c) Press RESET 5 times “unit 25” will appear.

d) Press and hold down RESET for 2 seconds (program will appear).

e) Press RESET to scroll through the settings (ltr, gal, qrt) to the desired units.

f) Press and hold down RESET until “program” disappears to accept setting.

g) Press RESET for five seconds to return the meter to the operating mode.

26 NON-RESET ACCUM TOTAL = dEC 26 (set decimal point)

a) Press and hold down RESET for 5 seconds until “MEtr 1” appears.

b) Press the DISP button to reach “totL 2”.

c) Press RESET 6 times “dEC 26” will appear.

d) Press and hold down RESET for 2 seconds (program will appear).

e) Press RESET to set the decimal point to 1st, 2nd, 3rd or no decimal place.

(e.g. 11111.1 = 1 decimal place).

f) Press and hold down RESET until “program” disappears to accept setting.

g) Press RESET for five seconds to return the meter to the operating mode.

27 “K” FACTOR = kFac 27

(setting will vary with meter type, refer to the calibration report or contact local

distributor for further details)

a) Press and hold down RESET for 5 seconds until “MEtr 1” appears.

b) Press the DISP button to reach “totL 2”.

c) Press RESET 7 times “kFac 27” will appear.

d) Press and hold down RESET for 2 seconds (program will appear).

e) To change the ‘K’ factor, press RESET (digit will flash), to change digit press

RESET.

Press DISP to scroll to the next number. Press RESET to change the value. To change

the decimal point, press DISP until it is in the required position. Press RESET to set the

decimal point.

f) Press and hold down RESET until “program” disappears to accept setting.

g) Press RESET for five seconds to return the meter to the operating mode.

4.4 Flowrate

31 UNIT = unit 31 (set units) rAtE3

a) Press and hold down RESET for 5 seconds until “MEtr 1” appears.

b) Press the DISP button twice to reach “rAtE 3”.

c) Press RESET “unit 31” will appear.

Electronic register page 7/11

IND_MNMR100_Bedienungsanleitung_0703_e.doc

d) Press and hold down RESET for 2 seconds (program will appear).

e) Press RESET to scroll through the settings (ltr, gal, qrt) to the desired units.

f) Press and hold down RESET until “program” disappears to accept setting.

g) Press RESET for five seconds to return the meter to the operating mode.

32 DECIMAL POINT = dEC 32. (decimal point setting)

a) Press and hold down RESET for 5 seconds until “MEtr 1” appears.

b) Press the DISP button twice to reach “rAtE 3”

c) Press RESET twice “dEC 32” will appear.

d) Press and hold down RESET for 2 seconds (program will appear)

e) Press RESET to set the decimal point to 1st, 2nd, 3rd or no decimal place.

(e.g. 11111.1 = 1 decimal place)

f) Press and hold down RESET until “program” disappears to accept setting.

g) Press RESET for five seconds to return the meter to the operating mode.

33 TIME = tiME 33 (rate time base)

a) Press and hold down RESET for 5 seconds until “MEtr 1” appears.

b) Press the DISP button twice to reach “rAtE 3”

c) Press RESET 3 times “tiME 33” will appear.

d) Press and hold down RESET for 2 seconds (program will appear)

e) Press RESET to set time base (seconds, minutes, hours)

f) Press and hold down RESET until “program” disappears to accept setting.

g) Press RESET for five seconds to return the meter to the operating mode.

34 NUMBER OF PULSES = nuM 34

(Number of pulses used to calculate flowrate)

Note: When there is fluctuating flowrate present increasing the number will give a

more accurate flowrate reading. (number range is 0 - 299)

a) Press and hold down RESET for 5 seconds until “MEtr 1” appears.

b) Press the DISP button twice to reach “rAtE 3”.

c) Press RESET 4 times “NUM 34” will appear.

d) Press and hold down RESET for 2 seconds (program will appear and the digit will

flash). To change press RESET.

e) Press DISP to go to the next digit. To change press RESET.

f) Press and hold down RESET until “program” disappears to accept setting.

g) Press RESET for five seconds to return the meter to the operating mode.

35 FLOW = Cut 35 (Set minimum measurable flowrate)

This value is the maximum time (sec) to measure the number of pulses set in nuM34.

a) Press and hold down RESET for 5 seconds until “MEtr 1” appears.

b) Press the DISP button twice to reach “rAtE 3”.

c) Press RESET 5 times “Cut 35” will appear.

d) Press and hold down RESET for 2 seconds (program will appear and the digit will

flash). To change press RESET.

Electronic register page 8/11

IND_MNMR100_Bedienungsanleitung_0703_e.doc

e) Press DISP to go to the next digit. To change press RESET.

Note : Total number 999.9.

f) Press and hold down RESET until “program” disappears to accept setting.

g) Press RESET for five seconds to return the meter to the operating mode.

4.5 Display

41 SLEEP MODE = SLP 41 (set sleep mode) diSP4

a) Press and hold down RESET for 5 seconds until “MEtr 1” appears.

b) Press the DISP button 3 times to reach “diSP 4”.

c) Press RESET “SLP41” will appear.

d) Press and hold down RESET for 2 seconds (program will appear)

e) Press RESET to select sleep setting (no sleep, sleep1, sleep2, shelf).

Note: sleep 1 = micro sleep but the LCD is awakef). Press and hold down RESET

until “program” disappears to accept setting.

g) Press RESET for five seconds to return the meter to the operating mode.

42 TIME = tiME 42

(set sleep time delay = works with sleep 2 only)

a) Press and hold down RESET for 5 seconds until “MEtr 1” appears.

b) Press the DISP button 3 times to reach “diSP 4”.

c) Press RESET twice “tiME 42” will appear.

d) Press and hold down RESET for 2 seconds (program will appear).

e) Press RESET to select sleep time (1-10 minutes).

f) Press and hold down RESET until “program” disappears to accept setting.

g) Press RESET for five seconds to return the meter to the operating mode.

43 UNIT = unit 43 (set sleep wake up default display)

a) Press and hold down RESET for 5 seconds until “MEtr 1” appears.

b) Press the DISP button 3 times to reach “diSP 4”.

c) Press RESET 3 times “unit 43” will appear.

d) Press and hold down RESET for 2 seconds (program will appear).

e) Press RESET to select required display (batch, reset total, total, rate).

f) Press and hold down RESET until “program” disappears to accept setting.

g) Press RESET for five seconds to return the meter to the operating mode.

44 TIME = tiME 44 (set time for sleep default)

Time for micro to sleep (sleep1).

a) Press and hold down RESET for 5 seconds until “MEtr 1” appears.

b) Press the DISP button 3 times to reach “diSP 4”.

c) Press RESET 4 times “tiME 44” will appear.

d) Press and hold down RESET for 2 seconds (program will appear).

e) Press RESET to select default time (5-20 seconds).

f) Press and hold down RESET until “program” disappears to accept setting.

g) Press RESET for five seconds to return the meter to the operating mode.

Tabla de contenidos

Otros manuales de Instrumento de medición de Badger Meter

Badger Meter

Badger Meter Oval Gear LM OG Series Manual de usuario

Badger Meter

Badger Meter ER-9 Manual de usuario

Badger Meter

Badger Meter iSonic 4000 Manual de usuario

Badger Meter

Badger Meter Impeller 228PV150U Series Manual de usuario

Badger Meter

Badger Meter Dynasonics DXN Series Manual de uso y cuidado

Badger Meter

Badger Meter ORION Mobile Read Guía de instalación

Badger Meter

Badger Meter Magnetoflow Mag Meter Manual de usuario

Badger Meter

Badger Meter Oval Gear EPM2-STD Manual de usuario

Badger Meter

Badger Meter M5000 Manual de usuario

Badger Meter

Badger Meter Impeller Data Industrial 228PV Series Manual de usuario

Badger Meter

Badger Meter iSonic 2000 Manual de usuario

Badger Meter

Badger Meter ModMAG M1000 Manual de usuario

Badger Meter

Badger Meter Impeller Data Industrial 3050 Series Manual de usuario

Badger Meter

Badger Meter ER-9 Manual de usuario

Badger Meter

Badger Meter MultySonic 8000 Manual de usuario

Badger Meter

Badger Meter Blancett B114-110 Manual de usuario

Badger Meter

Badger Meter LM OG-TAER Hoja de especificaciones

Badger Meter

Badger Meter BadgerTouch HREBT Manual de usuario

Badger Meter

Badger Meter 2100 Manual de usuario

Badger Meter

Badger Meter M-series Manual de usuario

Badger Meter

Badger Meter CORIOLIS RCT1000 Manual de usuario

Badger Meter

Badger Meter ER-10 Manual de usuario

Badger Meter

Badger Meter Orion AL Series Manual de usuario

Badger Meter

Badger Meter Preso Gemini Cone Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
