INTRODUCTION

Follow the instructions in this guide to assemble an EZ-View

Variable Area Flow Meter.

PRELIMINARY INSPECTION

When the meter arrives, it should have red caps in both ends, as

shown in Figure 1.

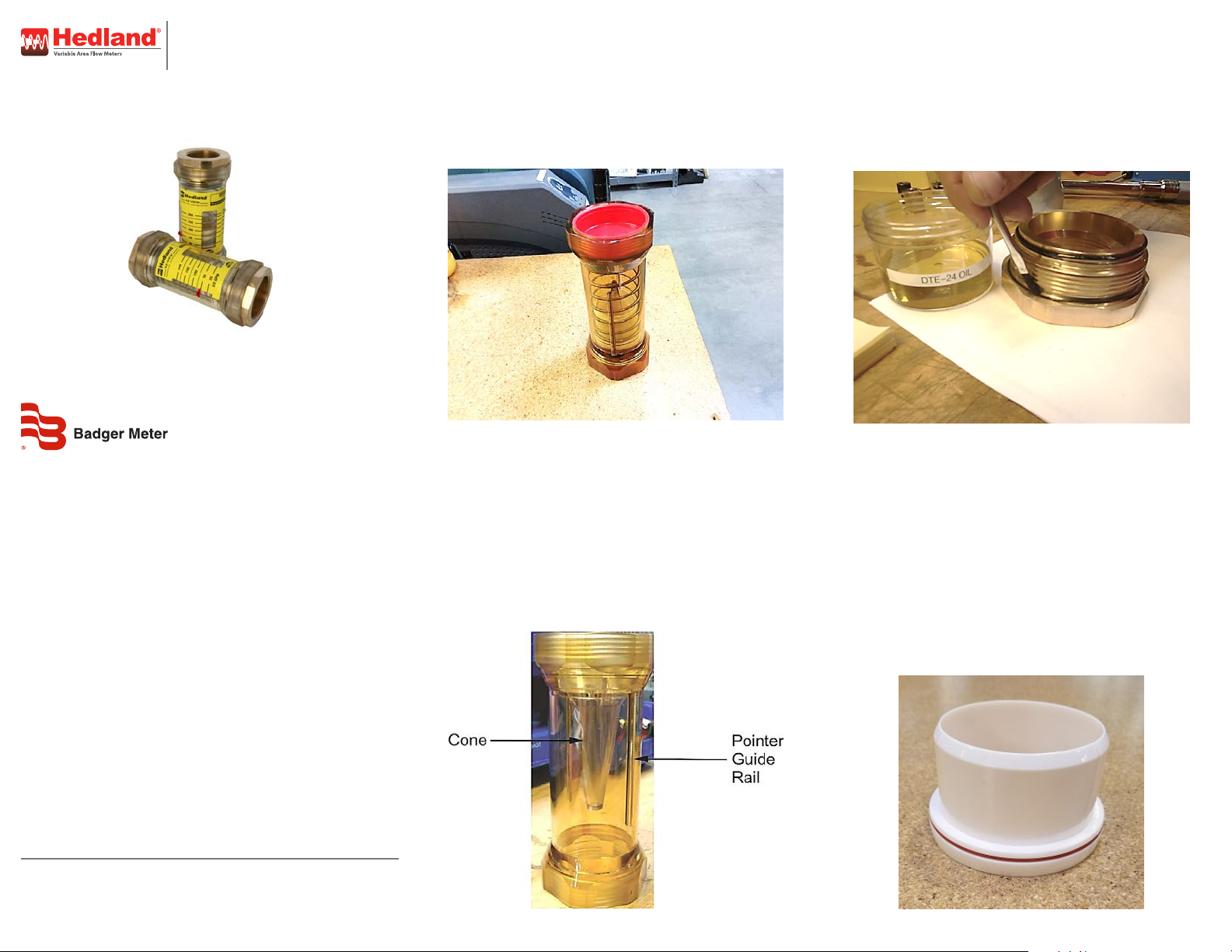

Figure 1: Red Caps

If the cone, piston and spring are not inside the meter, follow

all the instructions in this guide to install them and the

fittings. If the cone, piston and spring are already inside the

meter, simply install the fittings according to instructions in

“First Fitting” and “Spring Installation”.

CONE INSTALLATION

1. Stand the body on a table with the pointer guide rails toward

the top

NOT:NThe deeper, inside ledge should be facing up.

Figure 2: Cone Installation

2. Insert the cone into the body, making sure it rests ush on

the ledge.

FIRST FITTING

1. Place the o-rings in the o-ring grooves on both end caps.

NOT:NEach end connection/fitting uses two o-rings. The

o-rings will sit on the lip above the point where the

threads start.

Figure 3: Lubricate o-rings

2. Lubricate the o-rings with DTE-24 oil or equivalent.

3. By hand or with a wrench, screw one tting ush onto the

end of the body to secure the cone.

NOT:NIf at any time during the installation the fitting needs to

be unscrewed (even partially), unscrew the end cap all

the way and make sure that the o-ring is seated properly

on the end cap before putting the end cap back on.

4. Turn the body over so that the end with the assembled end

tting is on the table.

PISTON INSTALLATION

1. Locate the piston.

Figure 4: Piston

VAM-QG-03804-EN-01 (February 2019)

Variable Area Flow Meter

EZ-View® Fittings Assembly

Quick Guide

www.badgermeter.com

Hedland is a registered trademark of Badger Meter, Inc. Other trademarks appearing in this document are the

property of their respective entities. Due to continuous research, product improvements and enhancements,

Badger Meter reserves the right to change product or system specications without notice, except to the extent an

Control. Manage. Optimize.

DF | México | +52-55-5662-0882

Europe, Eastern Europe Branch Oce (for Poland, Latvia, Lithuania, Estonia, Ukraine, Belarus) | Badger Meter Europe | ul. Korfantego 6 |

44-193 Knurów | Poland | +48-32-236-8787

Europe, Middle East Branch Oce | Badger Meter Europe | PO Box 341442 | Dubai Silicon Oasis, Head Quarter Building, Wing C, Oce #C209 |

Dubai / UAE | +971-4-371 2503

Slovakia | Badger Meter Slovakia s.r.o. | Racianska 109/B | 831 02 Bratislava, Slovakia | +421-2-44 63 83 01

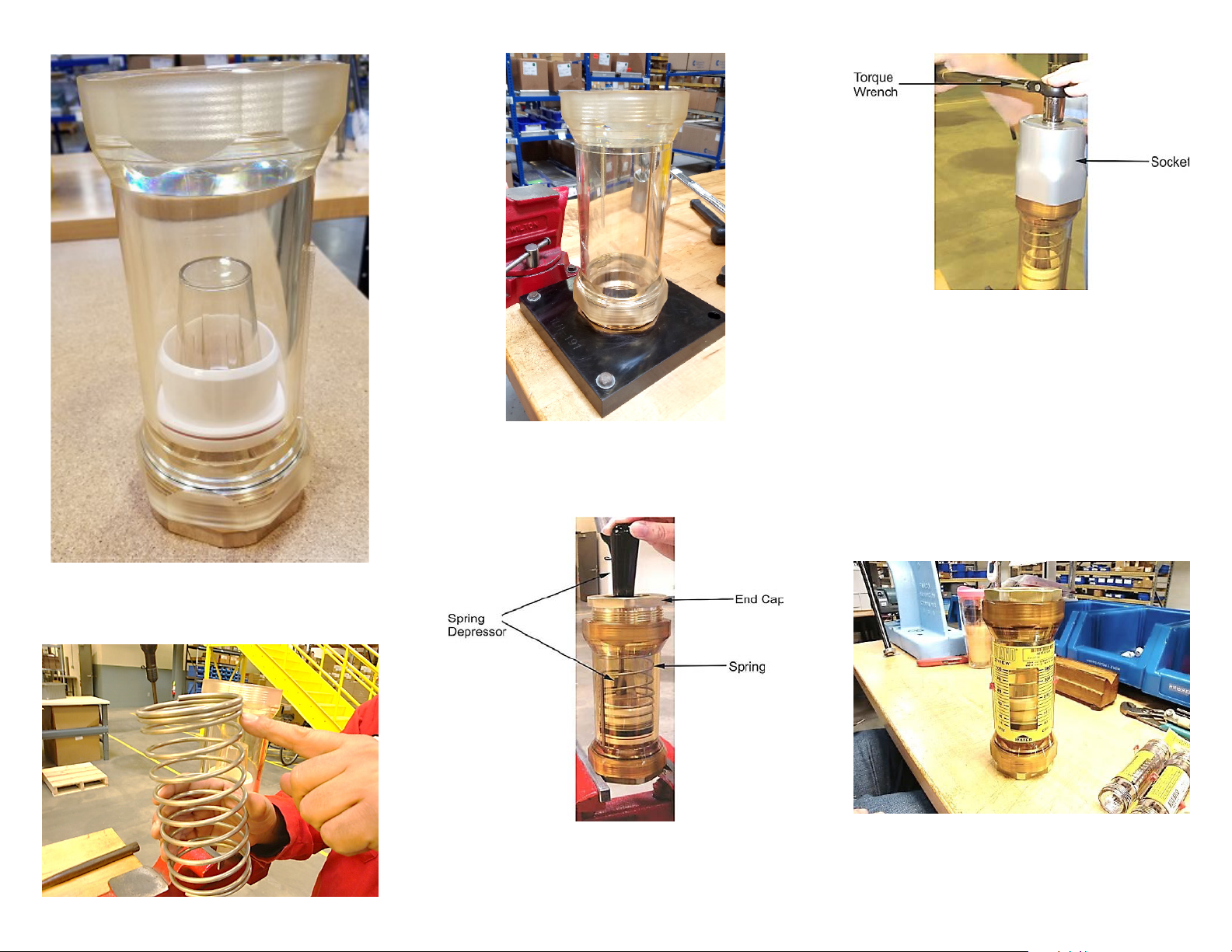

2. Place the piston inside the meter, over the cone as shown in

Figure 5.

Figure 5: Piston installed

SPRING INSTALLATION

1. Install the spring into the body with the double coils up.

Figure 6: Spring double coils

2. Secure the already fastened tting of the meter in a vice or

dedicated xture.

Figure 7: Meter in a dedicated xture

3. Place the second tting into the open end of the meter and

hand-thread for a few turns, making sure that it is at/level.

4. Once the tting is started, use a spring depressor to keep the

spring from hindering the tting from fully seating.

Figure 8: Spring depressor

5. Using appropriate torque wrench with locknut socket,

tighten the tting to 85…90 ft·lb.

Figure 9: Torque wrench

6. Flip the meter over in the vice and tighten the second tting

using the appropriate torque wrench.

NOT:NAfter installing the second fitting, visually inspect

both ends of the unit to make sure that the o-ring has

been properly installed and is properly seated. If it is

protruding out of the o-ring groove, remove the fitting,

remove and inspect the o-ring (replace with a new

o-ring if there are any nicks, cuts or scrapes) and reinstall

making sure that it is seated properly.

NOT:NAfter assembly of the meter, visually inspect both ends

of the meter for uniformed circumferential lines of

contact between the o-rings and meter body.

FULLY ASSEMBLED METER

Figure 10: Assembled meter
