Backyard Discovery 55010B Manual de usuario

Made in China

INS-55010B-TANGLEWOOD-ENG 1-7-22

Please visit www.backyarddiscovery.com

For the most up to date assembly manual, to register your set, or to order replacement parts

Para obtener instrucciones en español, visite www.backyarddiscovery.com

Model # 55010B

Tanglewood

MANUFACTURED BY:

Backyard Discovery

3305 Airport Drive, Pittsburg, KS 66762

800-856-4445

Swing Set

WARNING

Adult Assembly Required.

Not suitable for children under 36 months due to small parts.

FOR DOMESTIC USE ONLY. INTENDED FOR OUTDOOR USE.

Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476

J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 0800-567-8990

The assembly manual must be retained

since it contains important information

Safe Play Zone

SAFE PLAY HEIGHT: 15'-4 3/4" [4.7 m]

MAXIMUM FALL HEIGHT: 6'-4 1/2" [1.9 m]

General Information:

Your set has been designed and engineered for children only and for residential use only.

A maximum of 150 lbs. per child is recommended for play activities designed for individual use.

A maximum of 120 lbs. per child is recommended for play activities designed for multiple child use.

A maximum of 9 children is recommended for this swing set.

Ground Dimensions

11'-10" [3.6 m] x 14'-7" [4.4 m]

Safe Play Area

27'-8 1/2" [8.4 m] x 24'-11 1/2" [7.6 m] x 15'-4 3/4" [4.7 m]

SAFE PLAY AREA DIAGRAM

Place the set on level ground, not less than 6'-7" [2 m] from any structure or obstruction such as a

fence, garage, house, overhanging branches, laundry lines, or electrical wires.

While assembling unit, take time before and after each phase to make sure fort is level. If fort is not level, assembly will be difficult and

improper assembly may result. Extra care must be taken to insure the fort is square.

The safe play area refers to a zone extending 6'-7" (2 m) beyond the play product on all sides, including the space above the play product.

Owner's Manual - Basic Setup Dimensions & Assembly Notes

6'-4 1/2"

[1.9 m]

6'-9 3/4"

[2.1 m]

8'-9 3/4"

[2.7 m]

5'-4 1/2"

[1.6 m]

14'-3 3/4"

[4.4 m]

24'-11 1/2"

[7.6 m]

27'-8 1/2"

[8.4 m]

6'-7"

[2.0 m]

6'-7"

[2.0 m]

14'-7"

[4.4 m]

11'-10"

[3.6 m]

Wood Components (Not to Scale)

Owner's Manual - Parts Identification

SEAT BRACE - W104012

1 3/8"x2 3/8"x9 1/2" (36x60x240)

(x2)

SHELF BRACE - W4L16357

1 3/8"x2 3/8"x11 3/4" (36x60x300)

(x2)

STANDARD ANGLE BRACE - W4L16342

1 3/8"x2 3/8"x13" (36x60x330)

F71

(x4)

SWING BEAM MOUNT - W103983

1"x5 1/4"x37 1/2" (24x134x952)

(x1)

PORCH UPRIGHT - W4L16356

1 3/8"x3 3/8"x33 3/8" (36x86x848)

(x2)

GROUND BOARD - W103967

1"x5 1/4"x37 1/2" (24x134x952)

(x2)

GROUND BOARD - W103969

1"x5 1/4"x63 1/2" (24x134x1612)

(x2)

GROUND BOARD - W4L16338

1"x5 1/4"x81 1/2" (24x134x2070)

(x1)

FORT UPRIGHT - W4L16347

1 3/8"x3 3/8"x89 1/2" (36x86x2274)

(x1)

FORT UPRIGHT - W4L16346

1 3/8"x3 3/8"x89 1/2" (36x86x2274)

(x1)

FORT UPRIGHT - W4L16345

1 3/8"x3 3/8"x89 1/2" (36x86x2274)

(x1)

FORT UPRIGHT - W4L16344

1 3/8"x3 3/8"x89 1/2" (36x86x2274)

(x1)

STANDARD ANGLE BRACE - W4L16343

1 3/8"x2 3/8"x41 3/8" (36x60x1052)

(x1)

ANGLE BRACE - W4L14652

1 3/8"x3 3/8"x81" (36x86x2056)

E77

(x2)

END SUPPORT - W4L14651

1 1/2"x3 1/2"x46" (36x86x1168)

E50

(x1)

PICNIC UPRIGHT - W4L16842

1 3/8"x3 3/8"x56 1/8" (36x86x1426)

(x1)

PICNIC UPRIGHT - W4L16843

1 3/8"x3 3/8"x56 1/8" (36x86x1426)

(x1)

Wood Components (Not to Scale)

Owner's Manual - Parts Identification

ROOF SUPPORT - W104024

1"x3 3/8"x29 5/8" (24x86x752)

(x2)

ROOF SUPPORT - W104017

1"x3 3/8"x29 5/8" (24x86x752)

(x6)

LEMONADE ROOF SUPPORT - W104019

1"x3 3/8"x45 3/8" (24x86x1154)

H14

(x1)

SEAT SUPPORT - W104010

1"x3 3/8"x8 5/8" (24x86x218)

(x2)

SHELF BOARD - W104008

1"x3 3/8"x37 1/2" (24x86x952)

(x1)

SHELF BOARD - W104007

1"x3 3/8"x37 1/2" (24x86x952)

(x1)

SHELF BOARD - W104006

1"x3 3/8"x37 1/2" (24x86x952)

(x1)

SHELF SUPPORT - W104004

1"x3 3/8"x7 7/8" (24x86x200)

(x2)

DOUBLE ARCH BOARD - W103990

1"x3 3/8"x45 3/8" (24x86x1154)

H13

(x1)

ARCH BOARD - W103989

1"x3 3/8"x45 3/8" (24x86x1154)

H12

(x1)

WALL RAIL - W4L16845

5/8"x5 1/4"x37 1/2" (16x134x952)

K01

(x1)

SHORT WALL RAIL - W103982

5/8"x3 3/8"x8 1/4" (16x86x208)

(x2)

SHORT WALL RAIL - W4L16354

5/8"x3 3/8"x10" (16x86x254)

(x2)

FLOOR SUPPORT - W103980

1"x3 3/8"x40 3/8" (24x86x1024)

H10

(x1)

FLOOR RAIL - W103972

1"x3 3/8"x40 3/8" (24x86x1024)

(x1)

FLOOR SUPPORT - W4L16355

1"x3 3/8"x40 3/8" (24x86x1024)

H11

(x1)

FLOOR RAIL - W4L16341

1"x3 3/8"x40 3/8" (24x86x1024)

(x1)

FLOOR RAIL - W4L16349

1"x3 3/8"x49 7/8" (24x86x1268)

H15

(x2)

SUNBURST HALF MOON - W103694

5/8"x3 3/4"x10 3/8" (16x96x264)

K80

(x3)

WALL SLAT - W104002

5/8"x3 3/8"x9 1/2" (16x86x242)

(x4)

GROUND BOARD - W4L14653

1"x3 3/8"x79 1/2" (24x86x2018)

H80

(x1)

ROCK WALL RAIL - W4L16339

1 3/8"x3 3/8"x50 7/8" (36x86x1292)

H74

(x1)

ROCK WALL RAIL - W4L16337

1 3/8"x3 3/8"x50 7/8" (36x86x1292)

H73

(x1)

Wood Components (Not to Scale)

Owner's Manual - Parts Identification

UPRIGHT - W104014

5/8"x3 3/8"x50 7/8" (16x86x1292)

M22

(x1)

UPRIGHT W/TAG - W2A03451

5/8"x3 3/8"x50 7/8" (16x86x1292)

M25

(x1)

WALL RAIL - W104003

5/8"x3 3/8"x37 1/2" (16x86x952)

M12

(x1)

WALL SLAT - W103997

5/8"x3 3/8"x25 3/4" (16x86x654)

(x18)

WALL SLAT - W4L16353

5/8"x3 3/8"x27 1/2" (16x86x700)

M23

(x2)

WALL RAIL - W4L16350

5/8"x3 3/8"x37 1/2" (16x86x952)

M11

(x2)

WALL RAIL - W103993

5/8"x3 3/8"x18 3/8" (16x86x468)

(x1)

SHORT WALL RAIL - W4L16352

5/8"x3 3/8"x8 1/4" (16x86x208)

M19

(x2)

ARCH WALL RAIL - W103979

5/8"x3 3/8"x40 3/8" (16x86x1024)

M15

(x1)

ARCH WALL RAIL - W103978

5/8"x3 3/8"x40 3/8" (16x86x1024)

M14

(x1)

WALL RAIL - W103975

5/8"x3 3/8"x49 1/4" (16x86x1252)

M20

(x2)

WALL RAIL - W4L16348

5/8"x3 3/8"x48 5/8" (16x86x1236)

M18

(x2)

WALL RAIL - W103973

5/8"x3 3/8"x40 3/8" (16x86x1024)

M13

(x1)

WALL SLAT - W4L16351

5/8"x3 3/8"x40 5/8" (16x86x1032)

M24

(x2)

FLOOR BOARD - W4L16340

5/8"x3 3/8"x49 7/8" (16x86x1268)

M21

(x1)

ARCH WALL RAIL - W103987

5/8"x3 3/8"x37 1/2" (16x86x952)

M10

(x1)

WALL SLAT - W104028

5/8"x3 3/8"x27 1/2" (16x86x700)

(x1)

WALL SLAT - W103995

5/8"x3 3/8"x12 7/8" (16x86x326)

(x5)

WALL SLAT - W103998

5/8"x3 3/8"x40 5/8" (16x86x1032)

M16

(x2)

WALL SLAT - W103999

5/8"x3 3/8"x44 5/8" (16x86x1134)

M17

(x7)

WALL SLAT - W104001

5/8"x3 3/8"x25 5/8" (16x86x650)

(x4)

WALL SLAT - W104009

5/8"x3 3/8"x23 1/4" (16x86x590)

(x9)

ROCK BOARD - W4L16335

1"x3 3/8"x23 1/4" (24x86x592)

M71

(x7)

ATTACHMENT BOARD - W4L16334

1"x3 3/8"x23 1/4" (24x86x592)

M26

(x1)

ROCK WALL SLAT - W4L16336

1"x3 3/8"x23 1/4" (24x86x592)

M72

(x1)

Wood Components (Not to Scale)

Owner's Manual - Parts Identification

CENTER SLIDE BRACE - W100545

5/8"x3 3/8"x17 1/4" (16x86x438)

M78

(x2)

SLIDE BRACE - W100544

5/8"x3 3/8"x17 1/4" (16x86x438)

M77

(x1)

SWING BEAM SUPPORT - W4L14654

2"x3 3/8"x50 3/8" (50x86x1280)

W71

(x1)

SWING BEAM EXTENDED - W4L16844

2"x5 1/4"x89 1/2" (50x134x2274)

SB74

(x1)

SUNBURST SPOKE - W104026

5/8"x2 3/8"x7 3/4" (16x60x198)

N91

(x6)

VERTICAL SUNBURST SPOKE - W104027

5/8"x2 3/8"x11 5/8" (16x60x296)

N92

(x3)

OUTER FLOOR BOARD - W103991

5/8"x2 3/8"x30 5/8" (16x60x778)

(x2)

OUTER FLOOR BOARD - W103992

5/8"x2 3/8"x7 1/8" (16x60x180)

(x2)

WALL SLAT - W103996

5/8"x2 3/8"x25 3/4" (16x60x654)

(x2)

SEAT BOARD - W104011

1"x4 3/8"x37 1/2" (24x112x952)

(x1)

SEAT BOARD - W104013

1"x4 3/8"x37 1/2" (24x112x952)

(x1)

HORIZONTAL SUNBURST BOARD - W104025

5/8"x2 3/8"x38" (16x60x966)

(x3)

Wood Components (Not to Scale)

Owner's Manual - Parts Identification

ROOF PANEL - W104020

1 5/8"x15 5/8"x26 1/2" (42x396x672)

RP3

(x1)

ROOF PANEL - W104016

1 5/8"x15 5/8"x46" (42x396x1168)

RP2

(x2)

ROOF PANEL - W104021

1 5/8"x15 5/8"x46" (42x396x672)

RP4

(x1)

ROOF PANEL - W104022

1 5/8"x15 5/8"x46" (42x396x672)

RP5

(x1)

ROOF PANEL - W104023

1 5/8"x15 5/8"x46" (42x396x672)

RP6

(x1)

ROOF PANEL - W104015

1 5/8"x15 5/8"x46" (42x396x1168)

RP1

(x2)

FLOOR PANEL - W2A03452

1 1/4"x17"x49 7/8" (32x432x1268)

FP1

(x2)

Hardware Components

Owner's Manual - Parts Identification

BOLT WH

5/16x2

(x44)

H100012

WASHER LOCK EXT

8x19

(x145)

H100030

WASHER LOCK EXT

12x19

(x3)

H100031

WASHER LOCK EXT

6x15

(x14)

H100138

WASHER FLAT

8x27

(x15)

H100105 WASHER SAFETY

17x30

(x7)

H100103

WASHER SPLIT

5/16

(x4)

H100095

NUT LOCK

5/16

(x9)

H100110

BOLT WH

5/16x3/4

(x6)

H100222

BOLT WH

5/16x2 3/4

(x2)

H100015

BOLT WH

5/16x3 1/2

(x2)

H100018

BOLT WH

5/16x4 3/4

(x2)

H100505

BOLT WH

5/16x2 1/2

(x1)

H100014

BOLT WH

5/16x1 3/4

(x14)

H100011

BOLT WH

5/16x1 1/4

(x13)

H100009

BOLT WH

5/16x1

(x3)

H100008

BOLT WH

5/16x2 1/4

(x52)

H100013

BOLT WH

5/16x1/2

(x7)

H100115

BOLT WH

1/4x1

(x2)

H100137

BOLT HEX

5/16x2 3/4

(x2)

H100047

BOLT HEX

5/16x1 1/4

(x4)

H100042

BOLT FA

3/8x1 3/4

(x8)

H101105

Hardware Components

Owner's Manual - Parts Identification

SCREW PFH

8x1 1/8

(x250)

H100088

SCREW PFH

8x1 1/2

(x97)

H100086

LAG SCREW WH

5/16x2 1/2

(x28)

H100028

LAG SCREW WH

1/4x2

(x4)

H100146

LAG SCREW WH

1/4x2 1/2

(x6)

H100649

SCREW PFH

8x2

(x39)

H100111

SCREW PFH

8x1 3/4

(x52)

H100089

SCREW PFH

8x2 1/2"

(x30)

H100090

SCREW PFH

8x1 1/4

(x26)

H100087

SCREW PWH

8x1-1/4

(x9)

H100180

LAG SCREW WH

1/4x1 1/2

(x2)

H100145

SCREW PWH

8x5/8

(x7)

H100128

NUT BARREL WH

5/16x7/8

(x9)

H100005

NUT BARREL WH

5/16x1 1/2

(x1)

H100006

T-NUT

5/16

(x135)

H100074 T-NUT

3/8

(x8)

H100073 T-NUT

1/4

(x2)

H100072

T-30 TORX WRENCH

(x1)

H100114

T-30 TORX BIT

(x1)

H100147

T-40 TORX WRENCH

(x1)

A100041

MAGNETIC DRIVER

(x1)

H101100 T-40 TORX BIT

(x1)

A100042

SCREW SETTER

(x1)

H100764

LAG SCREW WH

5/16x2

(x12)

H100027

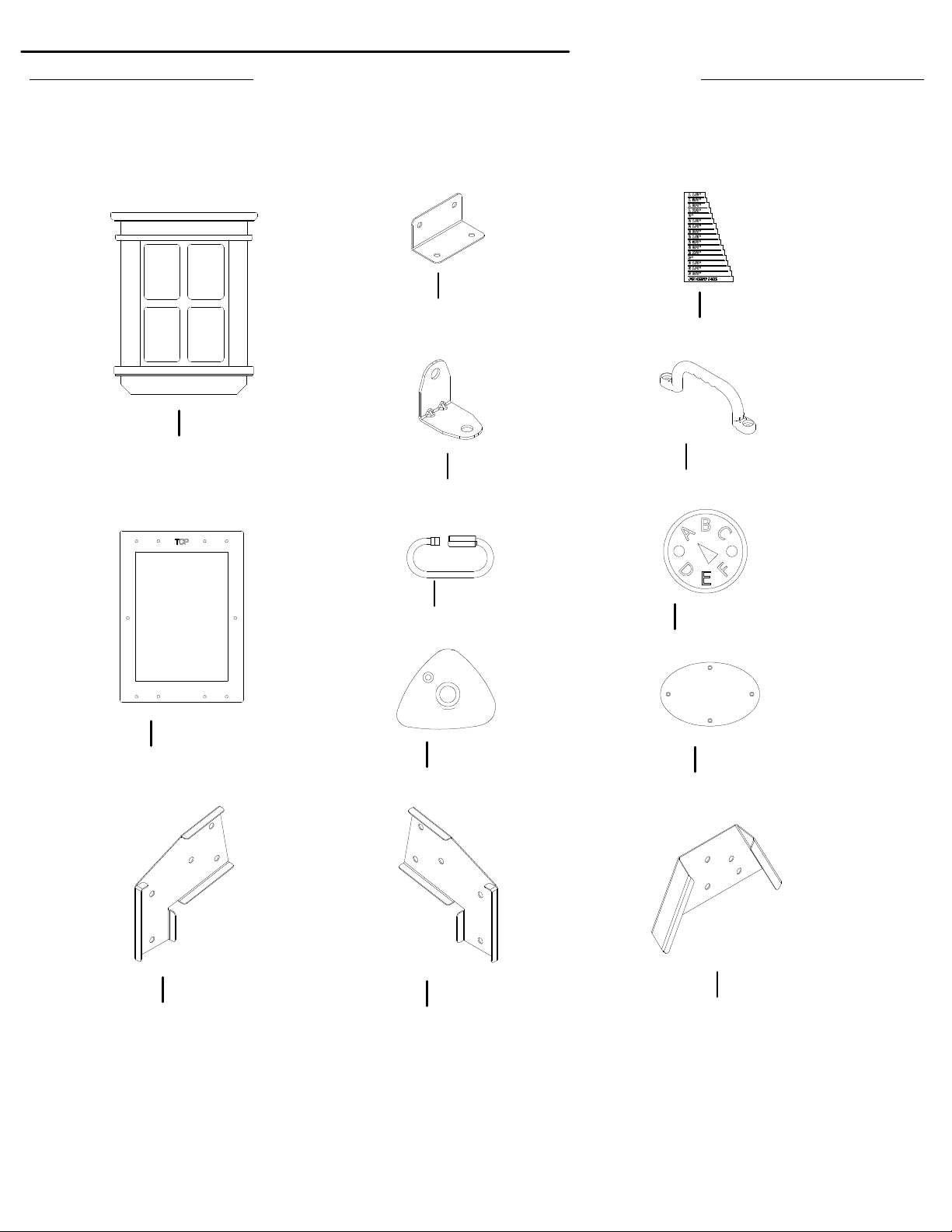

Accessory Components (Not to Scale)

Owner's Manual - Parts Identification

"A" REVISION TAG

(x1)

A100314

QUICK LINK

(x6)

A100069

PLASTIC

WINDOW

44x266x329

(x2)

A100320

L BRACKET

2.5x38x55x55

(x5)

A4M01046

SMALL PLASTIC

WINDOW INSIDE

TRIM

(x2)

A100364

CLIMBING ROCK

GREEN SMALL

(x7)

A100060

HAND GRIP

GREEN PLASTIC

(x2)

A100028

BYD ID TAG

(LARGE) AGES

3-10

(x1)

A100164

SWING BEAM

EXTENSION

BRACKET-LEFT

(x1)

A100325 SWING BEAM

EXTENSION

BRACKET-RIGHT

(x1)

A100326

L BRACKET

66x66x127

(x2)

A100140

A-FRAME

BRACKET

(x1)

A4M01169

PICKET PAL

(x1)

A6P00410

Este manual sirve para los siguientes modelos

Otros manuales de Columpio de Backyard Discovery

Backyard Discovery

Backyard Discovery 1606029 Manual de usuario

Backyard Discovery

Backyard Discovery Tanglewood Manual de uso y cuidado

Backyard Discovery

Backyard Discovery ATLANTIS Manual de usuario

Backyard Discovery

Backyard Discovery RIVERTON 2200098 Manual de uso y cuidado

Backyard Discovery

Backyard Discovery EAGLES NEST ELITE Manual de usuario

Backyard Discovery

Backyard Discovery SKYFORT WITH TUBE SLIDE Manual de uso y cuidado

Backyard Discovery

Backyard Discovery Mount Triumph Manual de uso y cuidado

Backyard Discovery

Backyard Discovery SHENANDOAH 65413B Manual de usuario

Backyard Discovery

Backyard Discovery Highlander 6010 Manual de usuario

Backyard Discovery

Backyard Discovery Heavy Duty Durango Wooden Swing Set Manual de usuario

Backyard Discovery

Backyard Discovery Tucson 65411 Manual de usuario

Backyard Discovery

Backyard Discovery HILLCREST Manual de usuario

Backyard Discovery

Backyard Discovery SKYFORT II 6113D Manual de usuario

Backyard Discovery

Backyard Discovery MONTICELLO 35015 Manual de usuario

Backyard Discovery

Backyard Discovery 35012 Manual de usuario

Backyard Discovery

Backyard Discovery Montpelier 30211 Manual de usuario

Backyard Discovery

Backyard Discovery MONTPELIER 30211F Manual de usuario

Backyard Discovery

Backyard Discovery BRIARCLIFF Manual de uso y cuidado

Backyard Discovery

Backyard Discovery Oxford 6111 Manual de usuario

Backyard Discovery

Backyard Discovery VISTA 54273 Manual de usuario

Backyard Discovery

Backyard Discovery SPRINGBORO 40014 Manual de usuario

Backyard Discovery

Backyard Discovery 55006 Manual de usuario

Backyard Discovery

Backyard Discovery BIG BRUTUS SWINGSET 1952050 Manual de uso y cuidado

Backyard Discovery

Backyard Discovery MALIBU Manual de uso y cuidado

Manuales populares de Columpio de otras marcas

Ledon

Ledon 1185 Manual de usuario

Backyard

Backyard LITTLE BRUTUS 2051171 Manual de uso y cuidado

Component Playgrounds

Component Playgrounds CP-PS24-8x10 Manual de usuario

Kettler

Kettler 0S01053-0000 Manual de usuario

Lemeks

Lemeks Palmako MV70-3121-4 Manual del instalador

Lifetime

Lifetime 90143 Manual de usuario

Belleze

Belleze 014-HG-14340 Manual de usuario

Elvox

Elvox RS07 Manual de usuario

gartenpirat

gartenpirat Premium 4.2 GP1305 Manual de usuario

Taizhou Taiyan Swing

Taizhou Taiyan Swing 805-447 Manual de usuario

KidKraft

KidKraft LAUREL F29715 Manual de usuario

Plum

Plum Roloway Manual de usuario

Component Playgrounds

Component Playgrounds AF30 Manual de usuario

OOGarden

OOGarden FOSSA Manual de usuario

Lakeland Mills

Lakeland Mills CF1128 Manual de usuario

LifeSpan Kids

LifeSpan Kids AMBER PE83 Manual de usuario

SPORTSPOWER

SPORTSPOWER MSC- 4132 Instrucciones de instalación

Huck

Huck Honeycomb nest Manual de usuario
