B-Tech BT8385-FTC Manual de usuario

www.btechavmounts.com

B-TECH AV mounts

BT8385-FTC

FLOOR-TO-CEILING MOUNTING KIT

Use with a bt8385 column

PARTS LIST

ITEM

DESCRIPTION QTY

COLLAR

EXTENSION BAR

HEX KEY

END CAP

Installation Instructions

INSTALLATION SAFETY INSTRUCTIONS

B-Tech AV Mounts, it’s distributors and dealers are not responsible for damage or injury caused by improper installation,

improper use, modications, installations over the specied weight capacity and/or failure to observe these safety

instructions. In such cases, any warranty will expire.

It is recommended that this product should only be installed by a qualied professional / installer.

B-Tech AV Mounts does not claim any liability for any diculties that may arise from the interpretation contained

in these instructions. Failure to mount this product correctly may lead to serious injury and/or death.

Please check carefully to make sure there are no missing or defective parts - defective parts must never be used.

In the event of missing and/or defective parts, or technical questions, please contact an authorised dealer.

Pay careful attention to where this product is located, some locations are not suitable for installation.

For indoor use only.

It is recommended that periodic inspections of the product are made as frequently as possible to ensure that safety is maintained.

Please keep these instructions for future reference.

CAUTION:

This product is intended for use only with the

maximum weights indicated. Use with equipment heavier than the

maximum indicated may result in instability causing possible injury.

REAR SLOT

BT8385-190

BT8385-RTC

REAR SLOT

Ensure nuts

slide into slots

50mm

TOP

INSERT COLLARS TO TOP OF COLUMN

Insert both items C1 into the rear slots of the column (Note: Ensure nuts slide into the slots).

Set item C1 50mm apart and from the top of the column.

FIX END CAP TO COLUMN

Attach item 3 to the top of the column using the M6 x 12mm

screws supplied with the column (BT8385-190).

M6 x 12mm

SCREW

Note: Insert

Rail Mounting

Plate (BT8385-RTC)

to Column

(BT8385-190) before

attaching End Cap.

COLUMN

See back page on how to combine columns

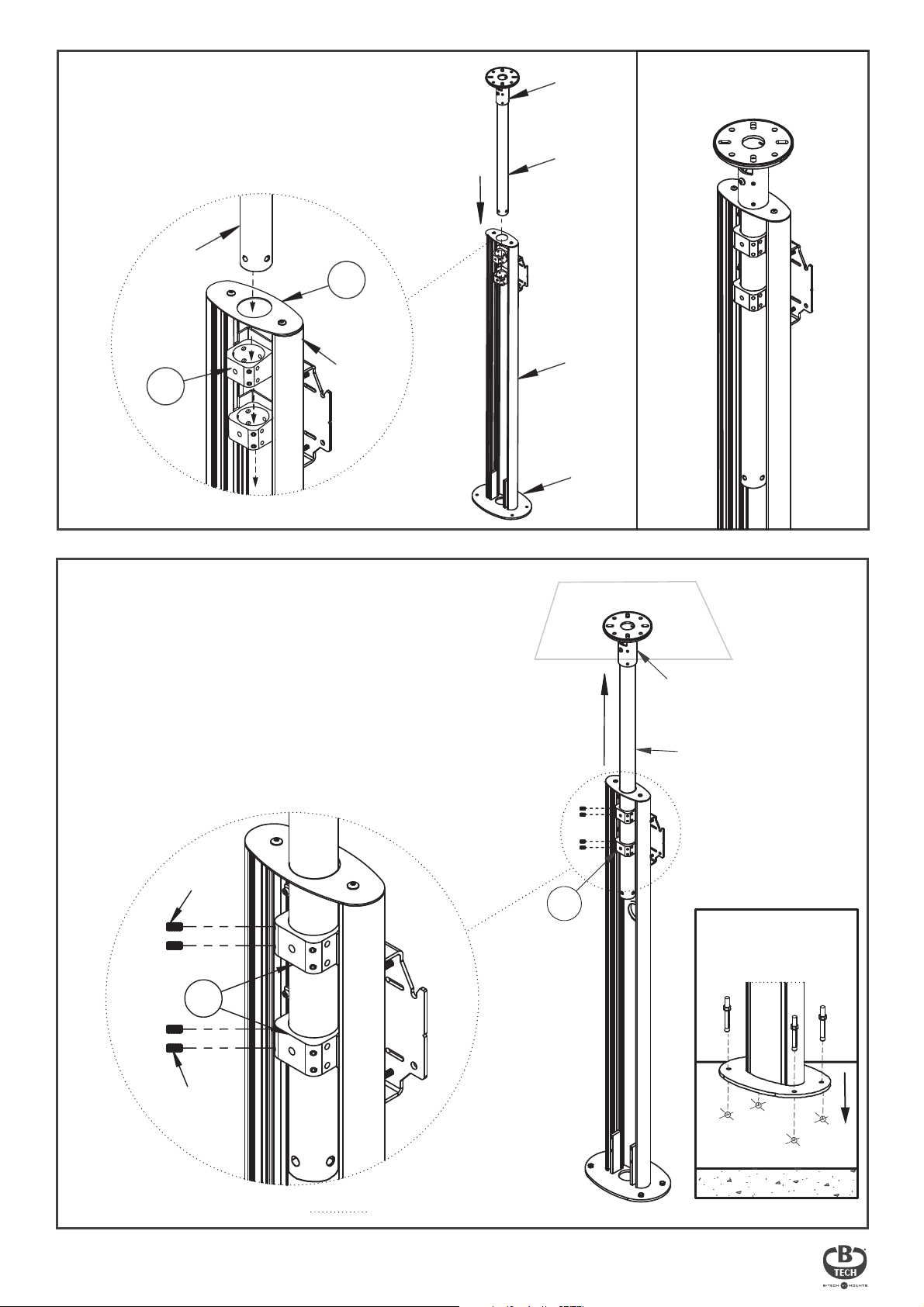

INSERT POLE INTO COLUMN

Insert the Ø50mm pole into the column

through items 1 & 3.

BT8385-190

BT8385-BDB

BT7850

BT7822

COLUMN

POLE

Pole inserted into column

Note: Keep loose, do not x.

CEILING

GRUB SCREWS

Extend pole

ceiling

POLE

CEILING MOUNT

GRUB SCREWS

FLOOR

FIX TO STAND TO FLOOR & CEILING

Bolt the base to the ground and then extend the

pole and ceiling mount to the ceiling.

Secure pole in place using the grub screws on item 1,

then x ithe ceiling plate to the ceiling.

Note: Bolt stand to

the oor before xing

ceiling mount

www.btechavmounts.com

B-TECH AV mounts

AMA-BT8385-FTC-V1-0520-110 MADE IN VIETNAM

BT8385-FTC

FLOOR-TO-CEILING MOUNTING KIT

B-Tech AV Mounts is a division of B-Tech International Design & Manufacturing Ltd.

B-Tech AV Mounts, the B-Tech logo and Mode-AL are registered trade marks.

All other brands and product names are trademarks of their respective owners.

Photographs are for illustrative purposes only. E&OE.

CONTACT:

[email protected]

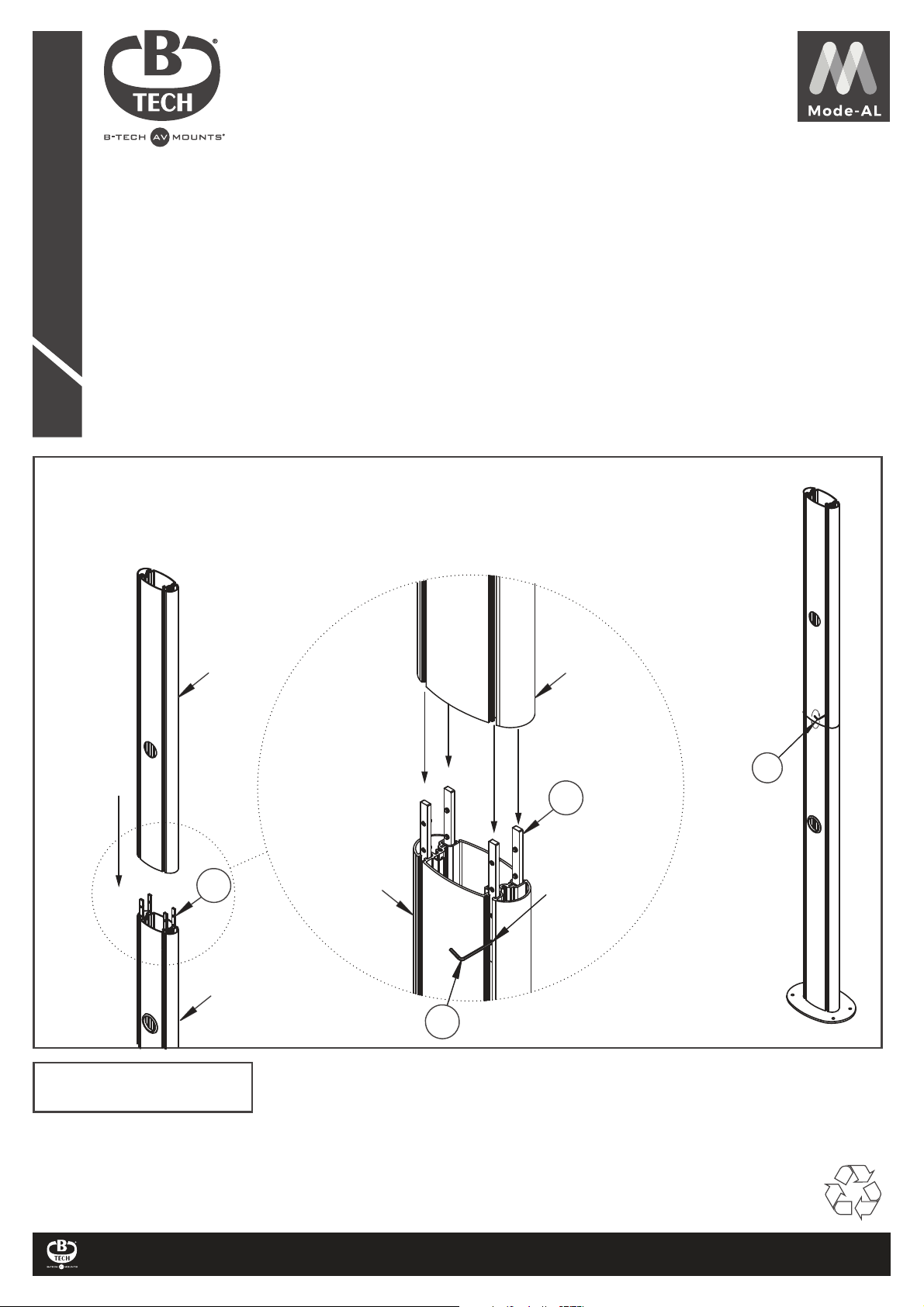

OPTIONAL EXTENDING THE COLUMNS

i. Fix 4 x item 2 into the top of a column, tighten the bottom 2 grub screws on each item 2.

ii. Slide another column on top, attaching to item 2 and tighten the remaining grub screws on item 2.

REAR

GRUB

SCREW

COMBINING COLUMNS

COLUMN
