B-Tech AVIBALL BT885 Manual de instrucciones

BT885

AVIBALL™PROJECTOR WALL MOUNT

INSTALLATION GUIDE & PARTS LIST

This Pack Contains 1 Mount

B-TECH AUDIO VIDEO MOUNTS

www.btechavmounts.com

CONTENTS

INSTALLATION TOOLS REQUIRED

FEATURES

Crosshead

screwdriver Drill 10mm (7/16") masonry bit

or 6mm (1/4") wood bit Pencil Stud finder

(optional)

Installation Safety Notes.....................................................................................................................2

Parts List.............................................................................................................................................4

Installation Instructions.......................................................................................................................6

Product Dimensions..........................................................................................................................11

B-Tech Contact Details.....................................................................................................................12

PLEASE KEEP THIS FOR FUTURE REFERENCE

13mm (1/2") spanner

or socket

REG. DESIGN NO: 3016251

PATENT NO: 2437850B

●Universal mount for LCD/DLP projectors up to 15kg (33lbs)

●Hand wheels for easy adjustment of projector:

110mm (4.3”) – 360mm (14.1”) from wall

●Features +/-37° tilt, +/-37° roll and 360° swivel

●Unique “Carousel” mounting plate for universal compatibility

●Quick release and simple hook-on installation

●All mounting hardware and fixings included

BT885

PARTS LIST

Suitable for loads

up to

15kg (33lbs)

Interface

Assembly

912

PLEASE KEEP THIS FOR FUTURE REFERENCE

18 19

REF

PART NAME QTY

1WALL ARM 1

2‘U’ BRACKET WITH AVIBALL 1

3CAROUSEL 1

4SHORT LEG 4

5LONG LEG 4

6END CAP 1

7WALL ARM COVER PLATE 2

8CAROUSEL COVER PLATE 2

9M8 HANDWHEEL 2

10 M8 x 80mm CUP SQUARE SCREW 2

11 M6 HANDWHEEL 4

12 M5 x 6mm GRUB SCREW 1

13 M8 METAL WASHE

14 M8 SPRING WASHER 1

15 M8 x 23mm HEX SCREW 1

16 M6 DOME NUT 4

17 M6 x 11mm SPACER (FOR PART 16) 4

18 2.5mm HEX KEY (FOR PART 12) 1

19 5mm HEX KEY (FOR PART 15) 1

20 13mm/10mm SPANNER (FOR PART 2) 1

INTERFACE KIT

AM2.5 X 12mm SCREW 4

BM3 X 12mm SCREW 4

CM4 X 12mm SCREW 4

DM5 X 12mm SCREW 4

EM6 X 12mm SCREW 4

FM3 METAL WASHER (FOR PARTS A & B) 4

GM5 METAL WASHER (FOR PARTS C & D) 4

HM6 METAL WASHER (FOR PART E) 4

IM6 X 3mm METAL SPACER 4

JM6 X 6mm METAL SPACER 4

FIXING KIT

A1 M8 x 50mm COACH SCREW 4

A2 M8 METAL WASHER (FOR PART A1) 4

A3 No. 10 WALL PLUG (FOR PART A1) 4

A1 A2 A3

INSTALLATION INSTRUCTIONS

1Fix wall arm to concrete or stud wall.

i. Concrete / brick wall.

ii. Wood / stud wall.

A3 A2 A1

A2 A1

2Attach interface assembly to projector.

i. Attach legs to projector.

ii. Attach the 'U' bracket to carousel and secure with part 12, then place on legs.

iii. Attach the carousel to the legs.

Using quick release hand wheels or using secure dome nuts and spacers.

12 3

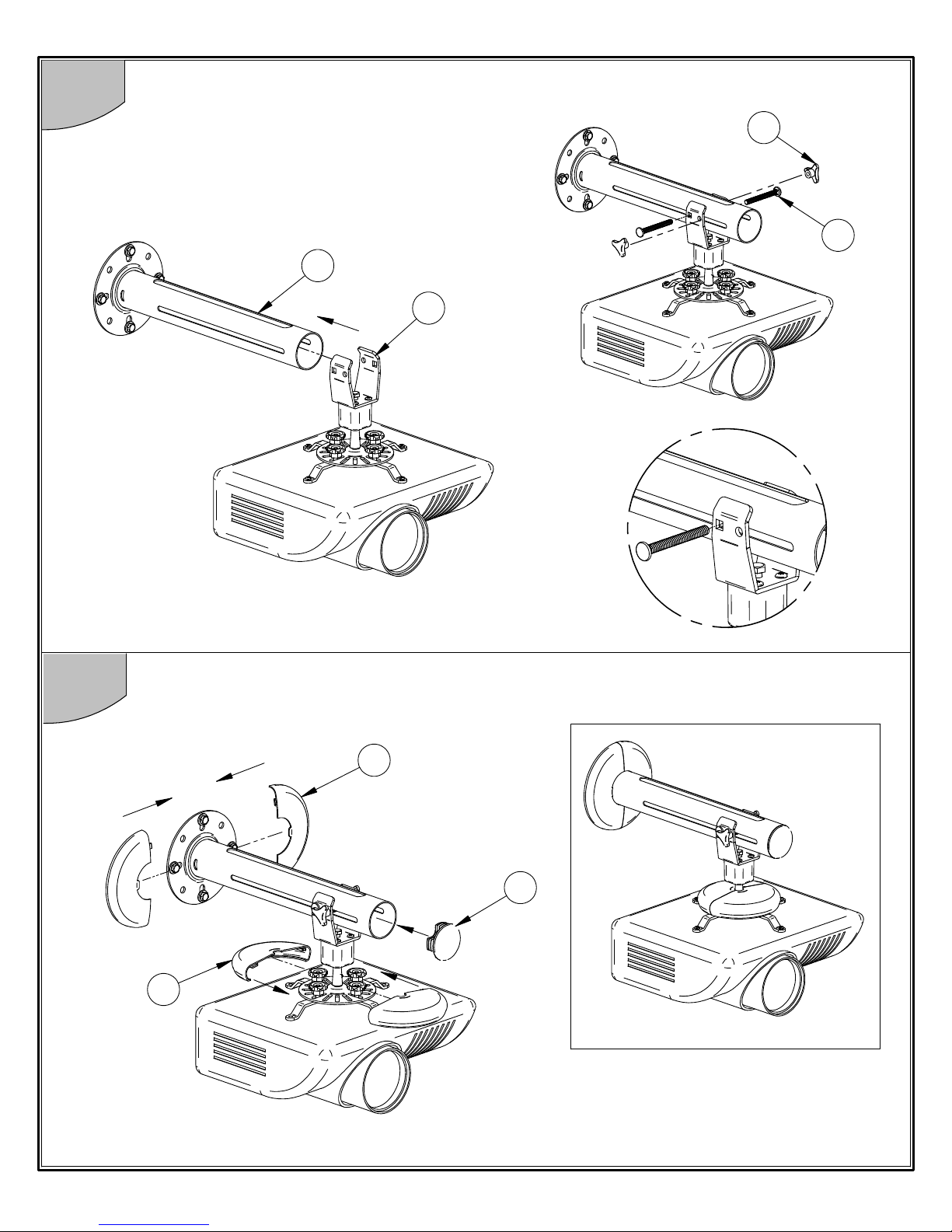

4Slide on the cover plates and the end cap.

Guide the projector on to the wall arm, then fix in place.

Align projector to desired position.

360°

Cable management.

CABLE

+/-37°

BT885

PRODUCT DIMENSIONS

THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO

LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.

O150mm

5.9"

120mm

4.7"

13.5mm

0.5"

WALL PLATE

100mm

3.9"

127mm

10.5mm

0.4"

O60mm

(2.4")

O10.5mm

0.4"

340mm

13.4"MAX

340mm

13.4"MAX

INTERFACE PLATE

400mm

15.7"

158mm

6.2"

165mm

6.5"

360mm

14.2"MAX 110mm

4.3"MIN

244mm

9.6"
