B-Tech BT8385-130 Manual de usuario

www.btechavmounts.com

B-TECH AV mounts

BT8385-130

1.3m Column

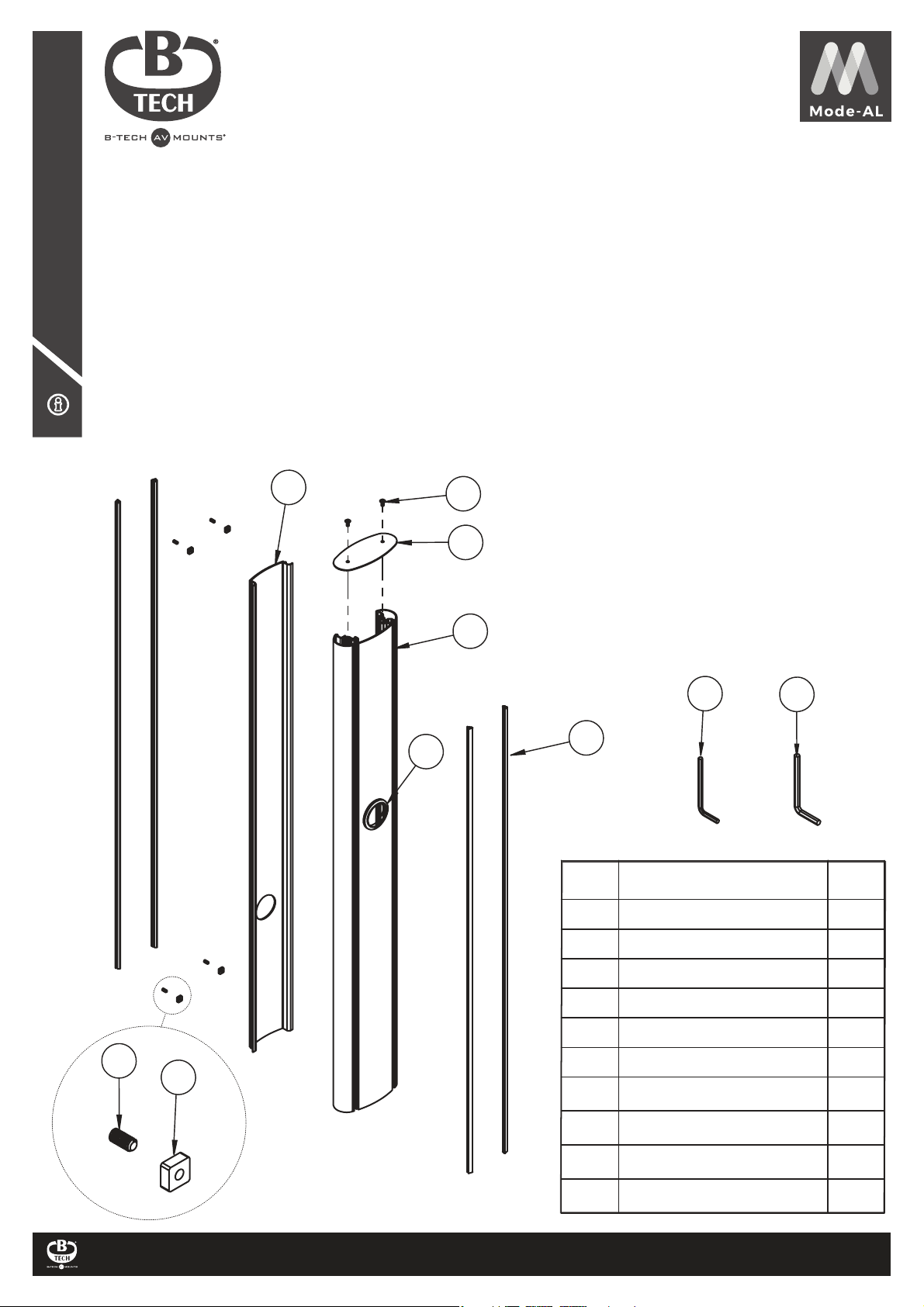

PARTS LIST

ITEM DESCRIPTION QTY

1.3M COLUMN

COLUMN REAR COVER

METAL END CAP

M6 x 12mm HEX SCREW

COVER STRIP

RUBBER RING

4AF HEX KEY

3AF HEX KEY

SQUARE NUT

M6 x 12mm GRUB SCREW

Installation Instructions

INSTALLATION SAFETY INSTRUCTIONS

B-Tech AV Mounts, it’s distributors and dealers are not responsible for damage or injury caused by improper installation,

improper use, modications, installations over the specied weight capacity and/or failure to observe these safety

instructions. In such cases, any warranty will expire.

It is recommended that this product should only be installed by a qualied professional / installer.

B-Tech AV Mounts does not claim any liability for any diculties that may arise from the interpretation contained

in these instructions. Failure to mount this product correctly may lead to serious injury and/or death.

Please check carefully to make sure there are no missing or defective parts - defective parts must never be used.

In the event of missing and/or defective parts, or technical questions, please contact an authorised dealer.

Pay careful attention to where this product is located, some locations are not suitable for installation.

For indoor use only.

It is recommended that periodic inspections of the product are made as frequently as possible to ensure that safety is maintained.

Please keep these instructions for future reference.

CAUTION:

This product is intended for use only with the

maximum weights indicated. Use with equipment heavier than the

maximum indicated may result in instability causing possible injury.

REAR

FRONT

TOP

BOTTOM

FIX REAR COVER TO COLUMN (OPTIONAL)

Place item 2 into the back of item 1.

Use items 5 & 6 at the top and bottom of the column slot to secure rear cover.

TOP

ATTACH END CAP

Fix item 3 onto the top of item 1 using item 4.

ATTACH COVER STRIPS

After display has been mounted to installation

cut item 8 down to size and insert into the front

and back of item 1.

www.btechavmounts.com

B-TECH AV mounts

AMA-BT8385-130-V1-1119-104 MADE IN VIETNAM

BT8385-130

1.3M COLUMN

PRODUCT DIMENSIONS

B-Tech AV Mounts is a division of B-Tech International Design & Manufacturing Ltd.

B-Tech AV Mounts, the B-Tech logo and Mode-AL are registered trade marks.

All other brands and product names are trademarks of their respective owners.

Photographs are for illustrative purposes only. E&OE.

CONTACT:

[email protected]

1302mm

3mm

180mm

798mm

90mm

60.8mm

FRONT VIEW

83.4mm

SIDE VIEW

TOP VIEW

360mm

90mm

REAR VIEW

87.4mm

112mm

79.5mm
