Aztech DSL5028EN Instrucciones de uso

MODEL

DSL5028EN(1T1R)

The following items are included in your DSL5028EN(1T1R)

package.

Step 1 : Package Contents

Step 2 : Setting Up Your Hardware

Connect the microlter to the telephone outlet.

Using a telephone cable, connect your modem router to the

microlter.

Using an Ethernet cable, connect your modem router to the

desktop using each devices’ Ethernet port.

Connect the power adapter to your modem router.

Switch ON your modem router.

This Easy Start Guide will help you set up your DSL5028EN(1T1R) modem router and connect it to the Internet. Before proceeding with the

installation, please prepare your internet account settings given by your Internet Service Provider (ISP). This device’s User Manual, which

provides a more advanced guide to this product, can be downloaded from this link : www.aztech.com/support/bayan5028/um

DSL5028EN(1T1R)

Power Adapter

DSL Microlter Ethernet Cable Telephone Cable

Easy Start Guide Leave Behind Card

Hardware Setup

Diagram

Power Adapter

Desktop / PC

DSL Microﬁlter

DSL5028EN(1T1R)

Step 3: Setting Up Your Internet Connection

Once you complete the hardware setup, proceed to the steps below in

establishing a connection with your Internet Service Provider.

Launch any web browser and input http://192.168.1.1 on the

address bar then press Enter. You will be redirected to the

username and bayanDSLWIFI as its password then click Login.

STEP 1

Package Contents

STEP 2

Setting Up Your

Hardware

STEP 3

Setting Up Your

Internet Connection

Click the Wizard menu, then click Next to start the step by step

guide in setting up your Internet Connection.

Select the Timezone and NTP Server that you would like to set on

your modem router then click Next to proceed.

Correctly Input the WAN Connection type provided by your Internet

Service Provider then click Next to continue.

On the next page, you may congure your wireless settings such

as the Wireless SSID and Wireless Password then click Next.

NOTE: The default SSID and Password can be found on the device

label located underneath your modem router.

Double-check the congured settings. Once done, click the Apply

button for the settings to take effect.

TROUBLESHOOTING TIPS

Having internet problems? Just follow the troubleshooting steps

below to continue having that high-speed connection that you need!

START DO YOU HAVE

INTERNET CONNECTION?

Congratulations! Enjoy your

surﬁng experience!

Check for Power.

ON/OFF Button should be ON.

Reinsert both ends of Power Adapter.

Check if power outlet is working.

Are the LED lights OFF?

Wait for 2-3 minutes.

Reinsert telephone jack cable at both

ends (if needed).

Are there any red LED lights?

Sorry, it’s time to ask for

help. Please contact our

Bayantel Customer Care.

Go back to START. Are you connected

wirelessly?

Did you reboot the

modem already?

Did you reset the

modem already?

Power OFF and

ON the modem.

Go back to START.

Disable/Enable Wireless on

client and modem.

Move client closer to modem.

Connect to correct SSID.

Enter the correct Username

and Password.

Did you restart your client?

Reinsert both ends of

the Ethernet cable to

different ports.

Did you restart your

client?

Power OFF and ON the client

(e.g. mobile or PC).

Go back to START.

Press the Reset button

for 10 seconds.

Go back to START.

POWER IS OFF POWER IS ON YESPOWER IS ON

YES

YES NO

B B

Tabla de contenidos

Otros manuales de Módem de Aztech

Aztech

Aztech DSL600E(C) Manual de usuario

Aztech

Aztech HW550-3G Instrucciones de uso

Aztech

Aztech 305E Manual de usuario

Aztech

Aztech DSL Turbo 900 Package Manual de usuario

Aztech

Aztech DSL Turbo 900 Package Manual de usuario

Aztech

Aztech DSL Turbo 900 Package Manual de usuario

Aztech

Aztech DSL705EU Manual

Aztech

Aztech 100U Hoja de información del producto

Aztech

Aztech MDP3858U Series Manual de usuario

Aztech

Aztech HomePlug AV with Simple Connect Button Manual de usuario

Aztech

Aztech MR2800-W Manual de usuario

Aztech

Aztech ADSL USB Modem Hoja de información del producto

Aztech

Aztech MDP3880-U Manual de usuario

Aztech

Aztech MDP3880SP-U Manual de usuario

Aztech

Aztech DSL Turbo 900 Package Manual de usuario

Aztech

Aztech MR8800-U Manual de usuario

Aztech

Aztech MDP7800 Manual de usuario

Aztech

Aztech MDP3880SP-U Manual de usuario

Aztech

Aztech DSL700P Manual de usuario

Aztech

Aztech DSL 1015EN L Guía

Aztech

Aztech MSP3880W Series Manual de usuario

Aztech

Aztech ADSL USB Modem Instrucciones de uso

Aztech

Aztech UM9800-U Manual de usuario

Aztech

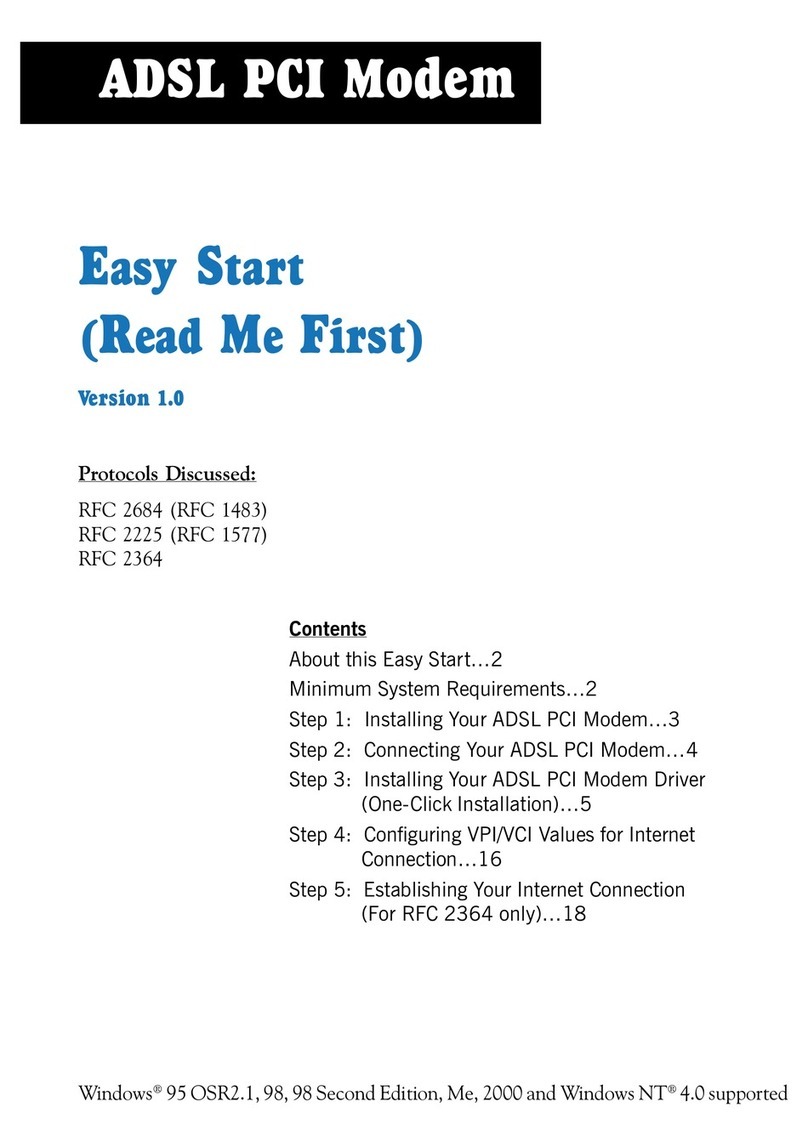

Aztech ADSL PCI Modem Hoja de información del producto
