Axor Massaud Manual

INSTALLATION

ZH ⁄ 用户手册  ⁄  组装说明  02

EN ⁄ Instructions for use ⁄ Assembly instructions 03

Lesezeichen

中文  02

English 03

AXOR Massaud

18450007

安装 (参见第页 04)

安全技巧

 装配时为避免挤压和切割受伤，必须戴上手套。

 本产品只允许作为洗浴、卫生和洁身之用。

 不得让儿童和肢体、精神和⁄或意识有障碍的成人

在不受监管的情况下使用淋浴系统。受酒精或毒

品影响的人员不得使用淋浴系统。

 必须避免让身体敏感部位 (如眼睛) 接触到莲蓬头

喷水。必须保持莲蓬头与人头之间有足够的距

离。

 该产品不得作扶柄使用。必须安装单独的扶柄。

 冷热水管间过大的压力差必须予以平衡。

安装提示

⁄ 安装前必须检查产品是否受到运输损害。 安装后

将不认可运输损害或表面损伤。

⁄ 管道和阀门必须根据通用标准进行安装、冲洗和

检查。

⁄ 请遵守当地国家现行的安装规定。

⁄ 必须装上花洒所附带的滤网密封垫，以过滤管道

里的杂质污物。杂质污物会影响花洒的功能和⁄或

损坏花洒的功能部件，由此而产生的产品损坏不

属于汉斯格雅的保修范围。

技术参数

工作压强：  最大 1 MPa

推荐工作压强：  0,1 - 0,5 MPa

测试压强：  1,6 MPa

 (1 MPa = 10 bar = 147 PSI)

热水温度：  最大 60°C

热力消毒: 70°C ⁄ 4 分钟

该产品专为饮用水设计！

符号说明

请勿使用含有乙酸的硅胶！

调节 (参见第页 05)

热水温度调节。如果使用即热式喷头，则不

建议安装热水阀门。

热水和冷水连接头已调换 (参见第页 02)

大小 (参见第页 06)

流量示意图 (参见第页 08)

备用零件 (参见第页 12 )

选装附件 (不在供货范围内)

⁄ 加长件 60 mm #97686000 (参见第页 12 )

清洗 (参见第页 09)

操作 (参见第页 08)

问题原因补救

 ⁄龙头出水量小 ⁄ 花洒滤网有垃圾堵塞 ⁄ 清洗花洒和软管间的过滤网

 ⁄龙头不灵活 ⁄ 阀芯损坏，结垢 ⁄ 更换阀芯

 ⁄龙头滴水 ⁄ 阀芯损坏 ⁄ 更换阀芯

 ⁄水从龙头出水嘴流出 ⁄ O形环损坏 ⁄ 更换O形环

 ⁄燃气热水器不工作 ⁄ 花洒滤网有垃圾堵塞 ⁄ 清洗花洒和软管间的过滤网

⁄ 手持花洒的流量限制器没有去除 ⁄ 去除流量限制器

 ⁄热水温度过低 ⁄ 温度限制器设置错误 ⁄ 设置温度限制器

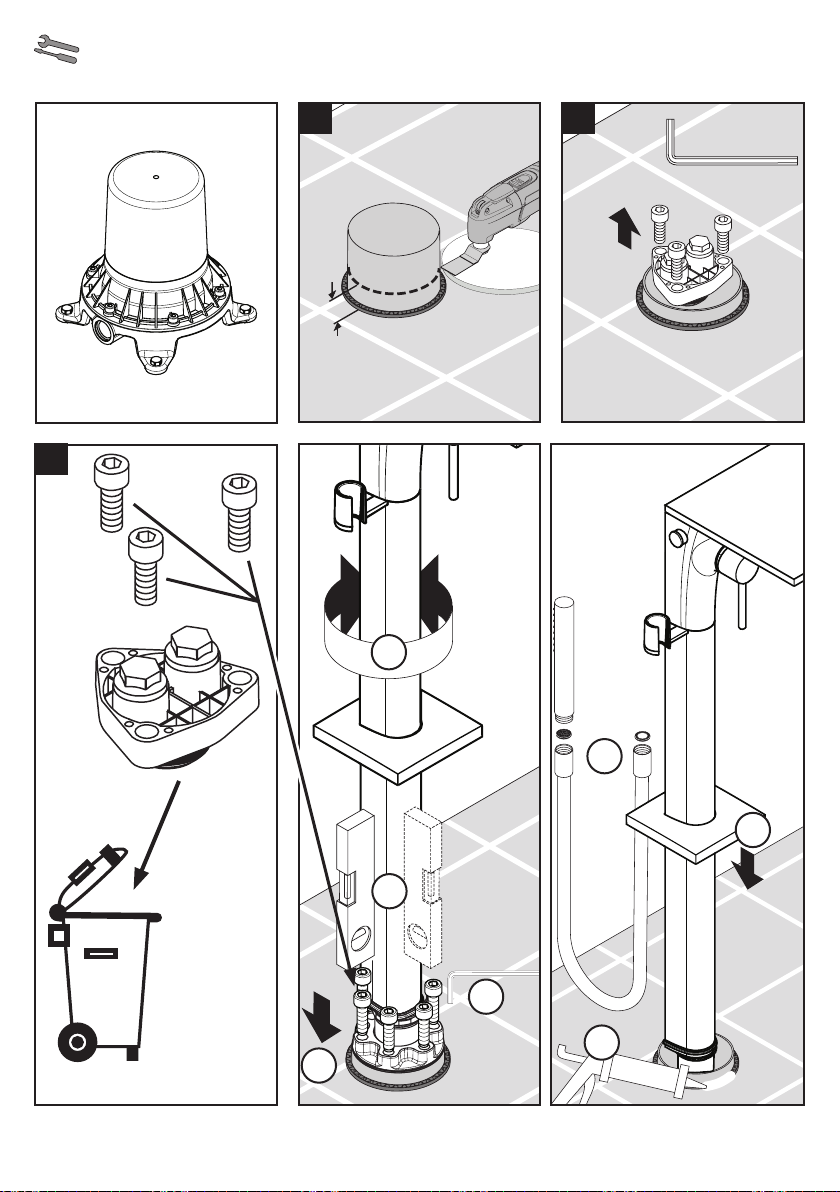

ASSEMBLY (see page 04 )

SAFETY NOTES

Gloves should be worn during installation to prevent

crushing and cutting injuries.

The product may only be used for bathing, hygienic

and body cleaning purposes.

Children as well as adults with physical, mental and⁄or

sensoric impairments must not use this product without

proper supervision. Persons under the inﬂuence of

alcohol or drugs are prohibited from using this product.

Do not allow the streams of the shower touch sensitive

body parts (such as your eyes). An adequate distance

must be kept between the shower and you.

The product may not be used as a holding handle. A

separate handle must be installed.

The hot and cold supplies must be of equal pressures.

INSTALLATION INSTRUCTIONS

⁄ Prior to installation, inspect the product for transport

damages. After it has been installed, no transport or

surface damage will be honoured.

⁄ The pipes and the ﬁxture must be installed, ﬂushed and

tested as per the applicable standards.

⁄ The plumbing codes applicable in the respective

countries must be observed.

⁄ The mesh washer must be insert to protect the shower

against incoming dirt by pipework. Incoming dirt leads

to defects or⁄and can damage parts of the shower;

such caused faults voids all liability and guarantee

claims.

TECHNICAL DATA

Operating pressure: max. 1 MPa

Recommended operating pressure: 0,1 - 0,5 MPa

Test pressure: 1,6 MPa

(1 MPa = 10 bar = 147 PSI)

Hot water temperature: max. 60°C

Thermal disinfection: 70°C ⁄ 4 min

The product is exclusively designed for drinking water!

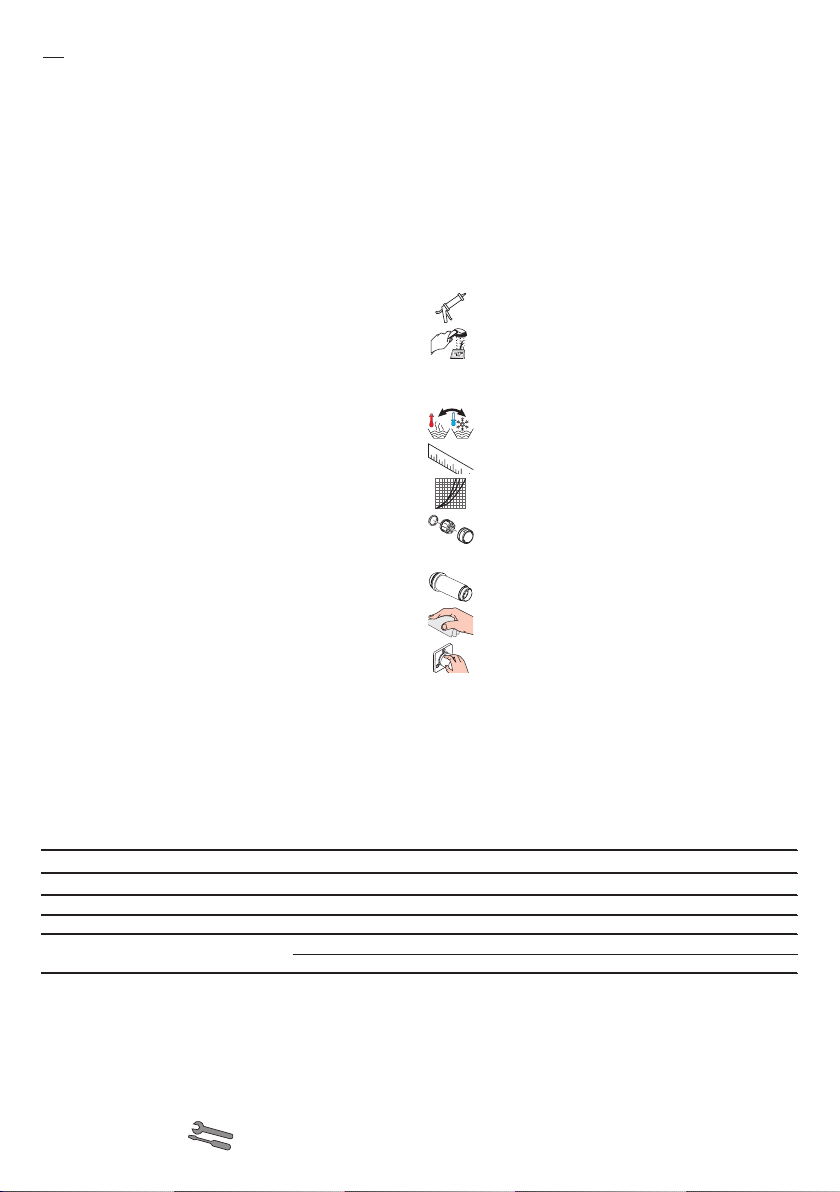

SYMBOL DESCRIPTION

Do not use silicone containing acetic acid!

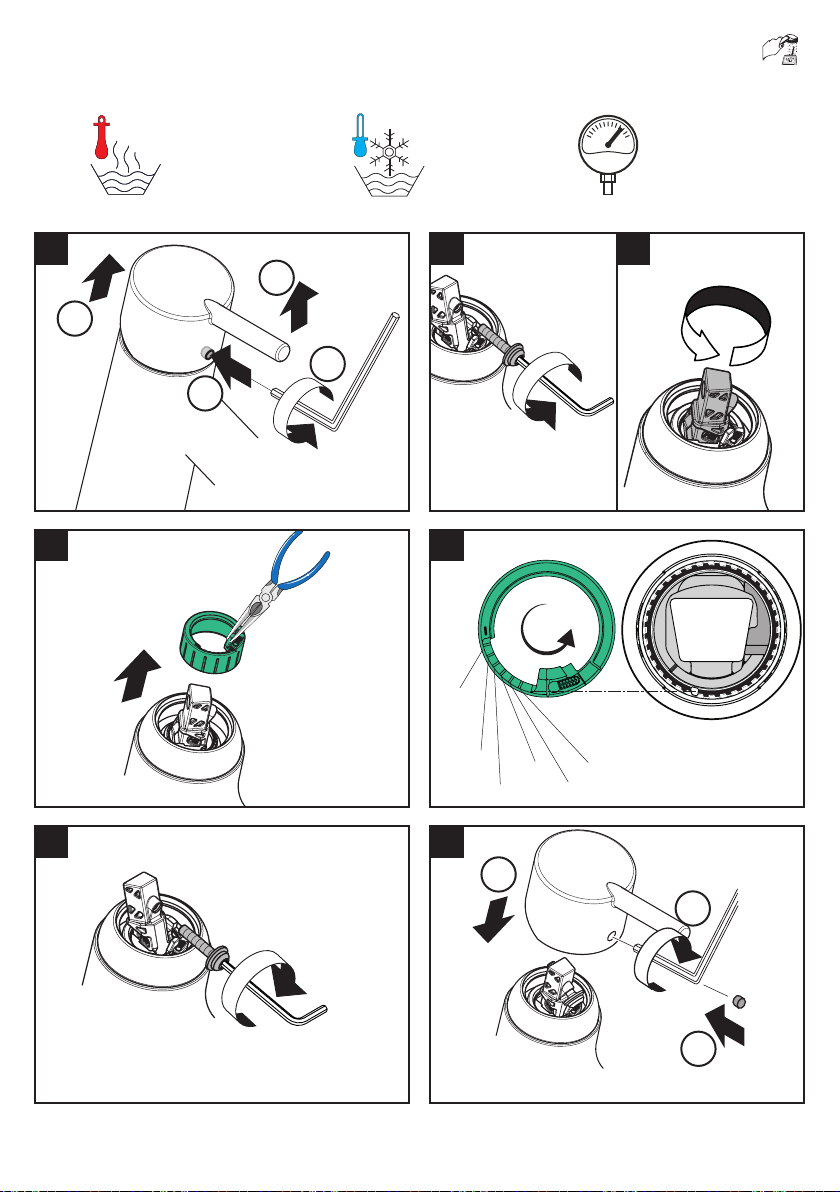

ADJUSTMENT (see page 05 )

To adjust the hot water limiter. Using a hot water

limiter in combination with a continuous ﬂow

water heater is not recommended.

Hot and cold supplies are reversed

(see page 03 )

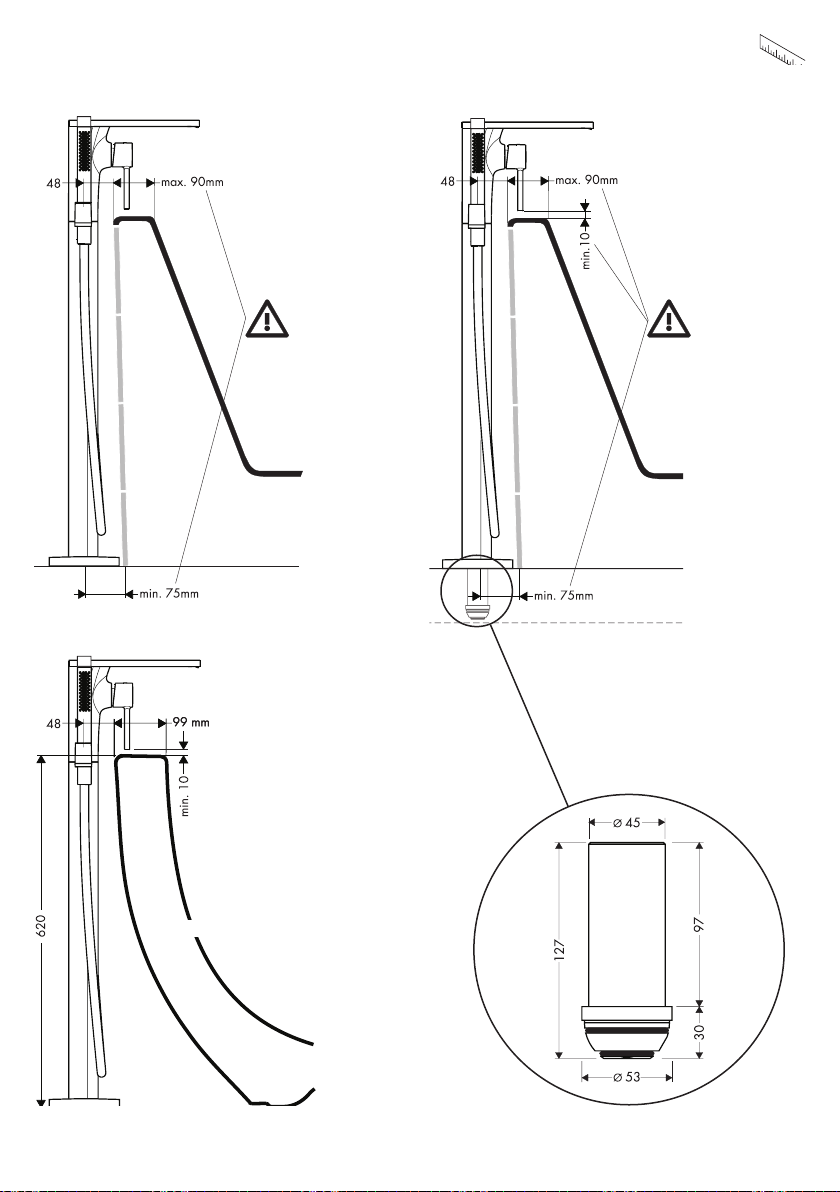

DIMENSIONS (see page 06)

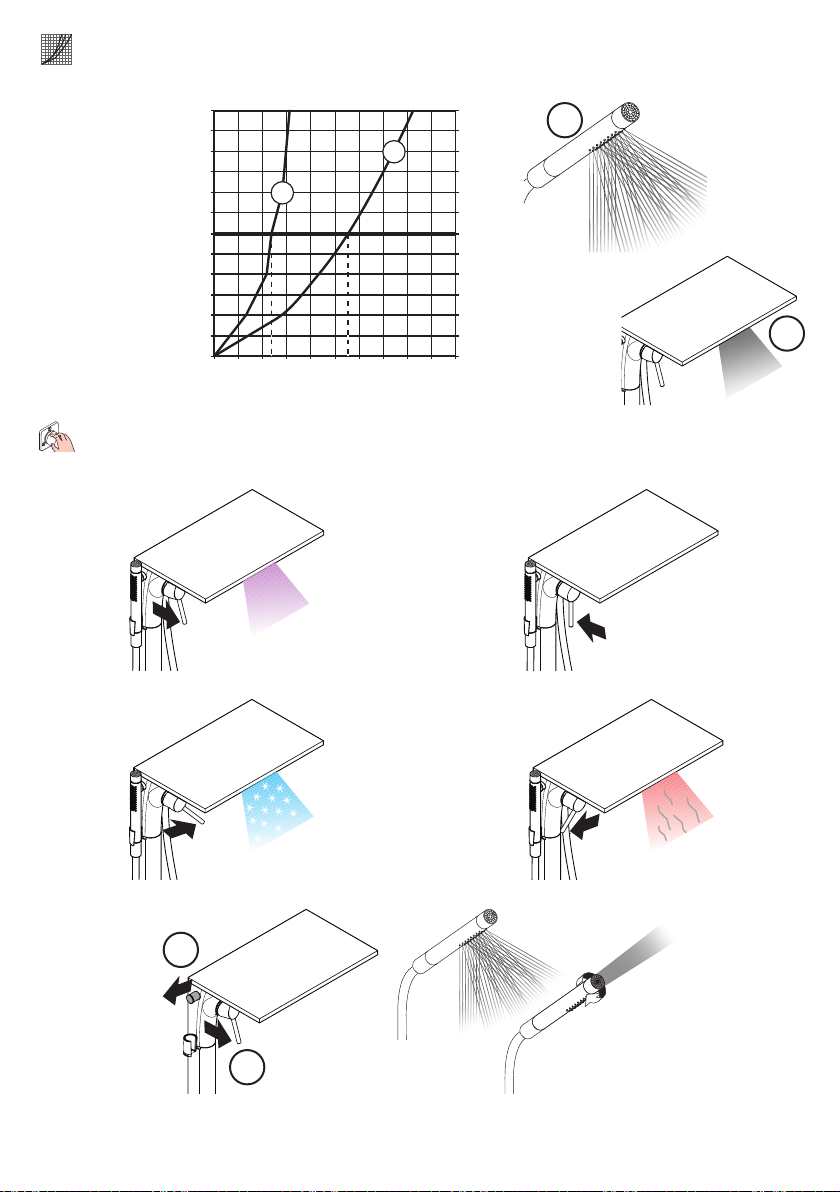

FLOW DIAGRAM (see page 08 )

SPARE PARTS (see page 12 )

SPECIAL ACCESSORIES

(order as an extra)

⁄ extension 60 mm #97686000 (see page 12 )

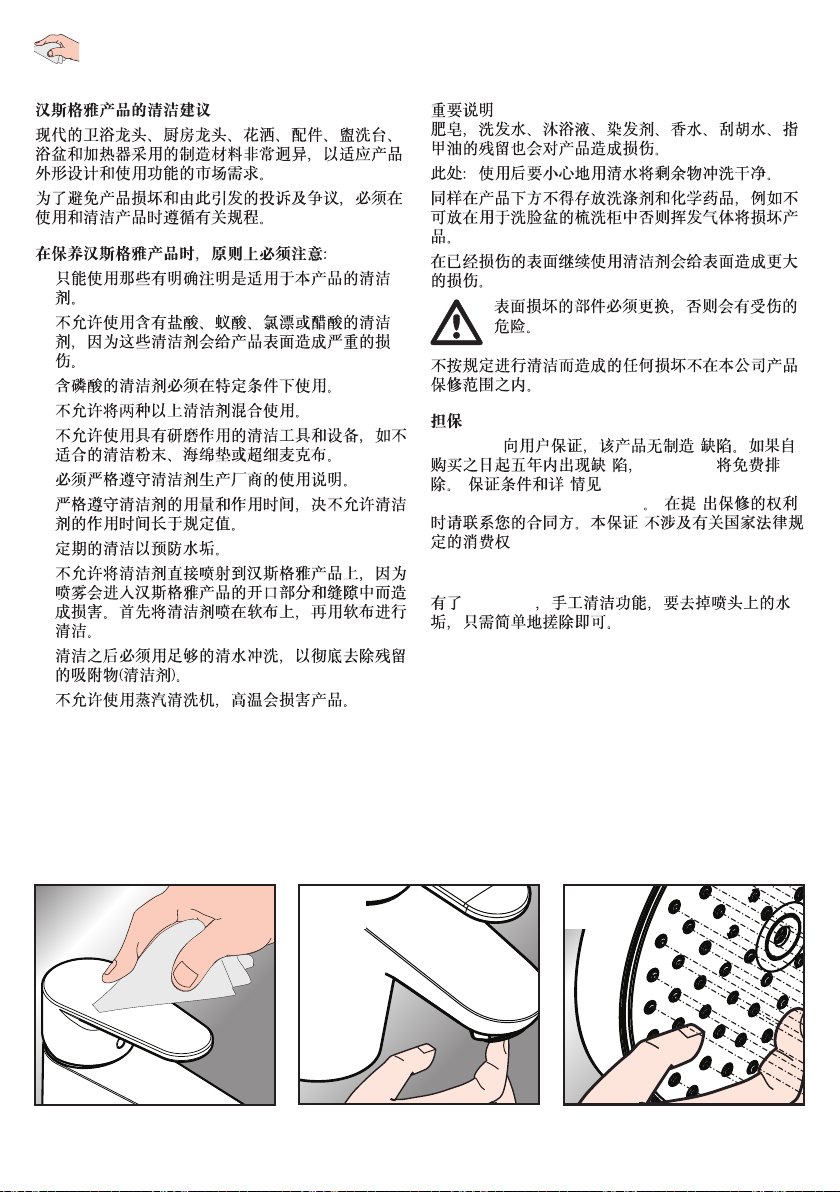

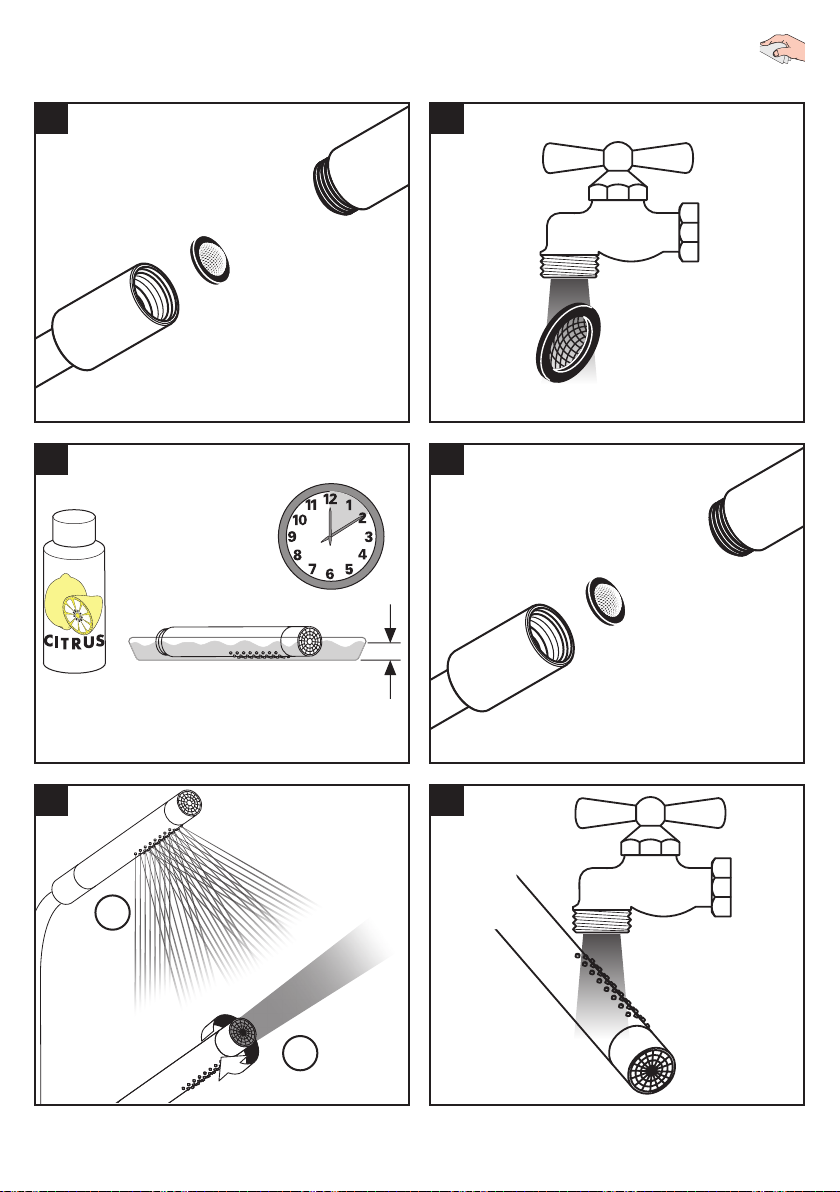

CLEANING (see page 09)

OPERATION (see page 08 )

FAULT CAUSE REMEDY

⁄ Insuﬃcient water ⁄ Shower ﬁlter seal dirty ⁄ Clean ﬁlter seal between shower and

hose

⁄ Mixer stiﬀ ⁄ Cartridge defective, calciﬁed ⁄ Exchange cartridge

⁄ Mixer dripping ⁄ Cartridge defective ⁄ Exchange cartridge

⁄ Water escaping in area of swivel

spout

⁄ O-ring defective ⁄ Exchange O-ring

⁄ Instantaneous heater didn’t work ⁄ Shower ﬁlter seal dirty ⁄ Clean ﬁlter seal between shower and

hose

⁄ Flow limiter in handshower isn’t re-

moved

⁄ Remove ﬂow limiter

⁄ Hot water temperature too low ⁄ Hot water limiter incorrectly set ⁄ Set hot water limiter

10 mm

SW 8 mm

104 52187

M10 x35

(SW 8 mm)

silicone

1 2

Montage

0,3 MPa

60 °C 10 °C

Justierung

21 3

4 5

6 7

6 x

36°C

38°C

43°C

50°C

55°C

60°C

17 x

SW 4 mm

(5 Nm)

SW 4 mm

612 - 692

757 - 837

767 - 847

Rp1/2

116

Maße

AXOR Massaud

18450007

97686000

18950000

Maße

bar

4,5

0,0

0,5

1,0

1,5

2,0

2,5

3,0

3,5

4,0

5,0

0,45

0,00

0,05

0,10

0,15

0,20

0,25

0,30

0,35

0,40

0,50

5,50,55

6,00,60

036912151821242730

MPa

00,1 0,2 0,3 0,4 0,5

Q = l/min

Q = l/sec

关 ⁄ close开 ⁄ open

热 ⁄ hot冷 ⁄ cold

开 ⁄ open

Durchﬂussdiagramm BedienungDurchﬂussdiagrammBedienung

AXOR Massaud

18450007

> 1 min

max. 10 min

20 mm

1 2

3 4

5 6

ReinigungBedienung Reinigung

⁄

Hansgrohe

www.hansgrohe-int.com/guarantee

QUICKCLEAN

QuickClean

QUICK

CLEAN

QUICK

CLEAN
