Axis Q60-E Series Manual de usuario

AXISQ60-ESeries

AXISQ6074-EPTZNetworkCamera

AXISQ6075-EPTZNetworkCamera

RepaintingInstructions

AXISQ60-ESeries

Impactonwarranty

ThisproductisapprovedforrepaintbyAxis,providedthatyoufollowtheinstructionsinthisdocumentandat

www.axis.com/warranty-implication-when-repainting

Riskswithrepaintin

ThereareseveralriskswhendisassemblingorassemblinganAxisproduct.Thereisalwaysacertainyieldlossduringassembly.Training

ofoperatorsandtheuseofcorrecttoolsmediatessomeoftheproblemsbuttheycanneverbefullyavoided.Someoftherisksinclude:

ESDDamage-AlwayshandletheproductinanESDsafeenvironment.EvenifprecautionsaretakenthereisalwaysariskofESD

damage.Thedamagecanremainundetectedandcauseproblemsduringthelifetimeoftheeuipment.

Dustcontamination-Openingacameramayexposethelensandsensortodustorpaint.Dustwillaffecttheopticalperformance.

Lensesneedtobedisassembledinadust-freeenvironment,preferablyacleanroom.

Paintoverspray-Maskingthedifferentcomponentsoftheeuipmentiscritical.Failuretomasksensitiveareascancauseproblems

withassemblingtheeuipment.Anyareasthatarenotpaintedatfactoryorhaveadifferentsurfacetreatmentthantherestofthe

parts(threads,groundandelectricalcontactsurfaces)mustalsobemaskedtoensurefunction.

AXISQ60-ESeries

Repainttheproduct

Preparations

•Ifapplicable,disassemblethedeviceaccordingtotheinstructionsinthisdocument.

•Cleanallpartstoberepaintedthoroughlytoremovegrease,dust,oroil.

•Toensurereassemblyandfunctionalityoftheproduct,maskanyopenings(forexampleforscrews,LEDindicators,

ormicrophones)beforeyoupaint.

Pretreatmentofparts

Dependingonthepartmaterialandtypeofpaintappliedatfactory,differentpretreatmentshouldbedoneforthenewpaintto

adhereaswellaspossible.Cleanthepartsproperlytoremoveoil,greaseanddust.

Formoreinformationonthematerialsusedintheproduct,seeitsdatasheetatwww.axis.com

Powdercoatedparts-Useaprimer.Alternatively,removetheoriginalpowdercoatingdowntothebasematerial,usingne

sandpaper,andcleanthepartsbeforepainting.

Anodisedandchromatedparts-Useaprimer.

Uncoatedstainlesssteel-Nospecialpretreatmentisneeded,butmakesurethatthesurfaceiscleanbeforepainting.

Plastic-Useaprimer.

AXISQ60-ESeries

Repainttheproduct

Disassembly

PH2

T30

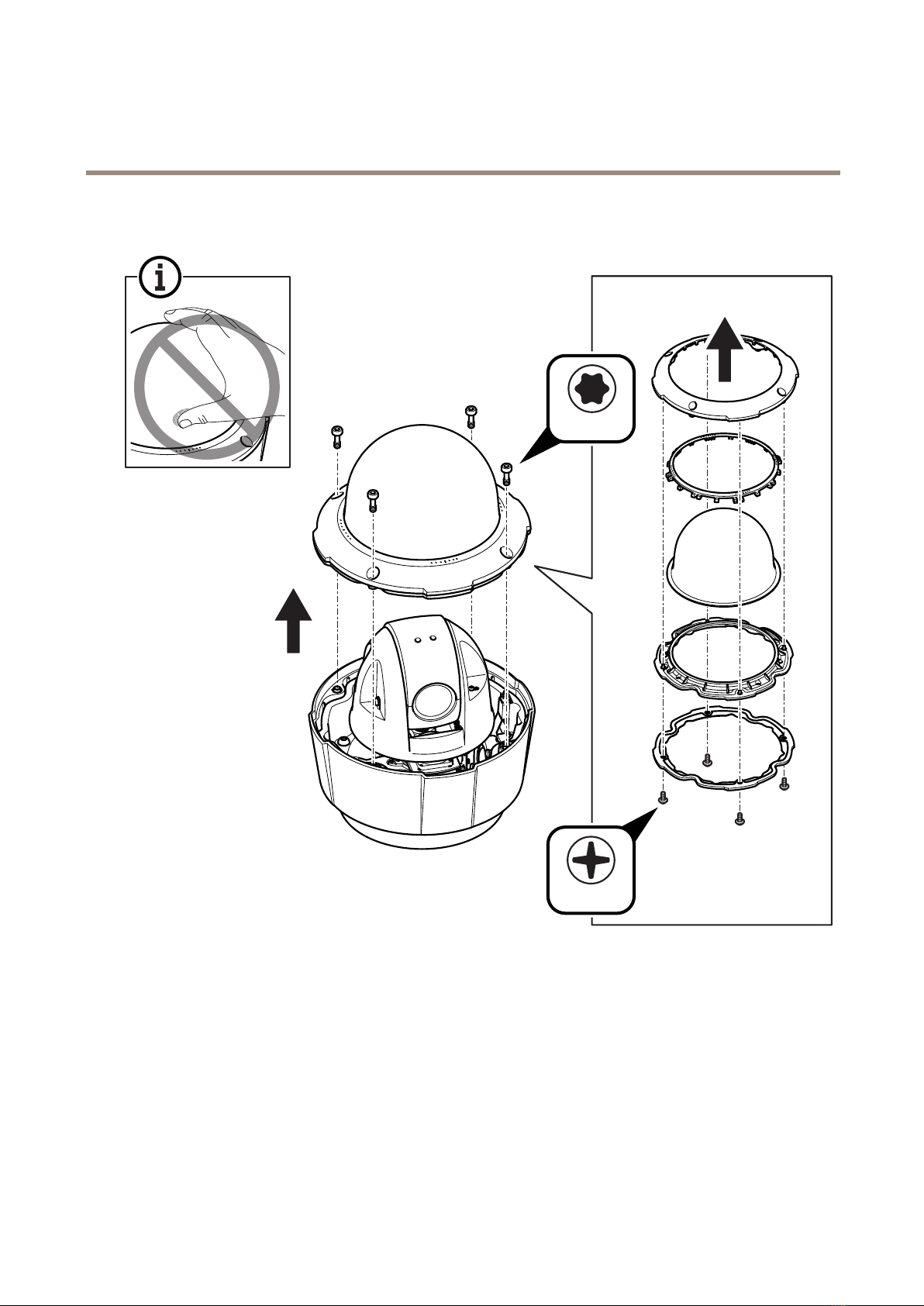

1.Removethedomemoduleassembly(4screws).

2.Removethefourscrewsandseparatethedomemodulebracket,domewithdomemodulesealinganddomecoverring

fromeachother.

AXISQ60-ESeries

Repainttheproduct

T30

3.Loosentheunitassembly(3screws).

4.LifttheunitassemblyupwardsandremovetheconnectorfromthePCBassemblypowerbypullingtheconnectorupwards.

Repaintin

AXISQ60-ESeries

Repainttheproduct

1.Maskthetopsurfaceofthechassis.Makesurethepush-pullconnectorhousing,chassishookandbayonetscrews

areproperlymasked.

2.Masktheentireopeninginthebottomofthechassis.Makesurethatthemaskinglineisclosetotheoriginalpaintborderso

thatnopaintparticlescanreachtheinsideofthecamera.Outlinedrawingoftheopeningcanbefoundonwww.axis.com.

3.Makesureallnecessarypreparationsofthechassisandthedomecoverringhavebeenmade.SeePreparationsonpage3.

4.Applyathinandevenlayerofspraypaintaccordingtotheinstructionsofthepaintmanufacturer.

5.Letthepaintdry.

6.Togetabettercoverageandclearercolor,applyasecondlayerofspraypaint.

7.Whenthepaintisdry,removethemasking.

AXISQ60-ESeries

Repainttheproduct

Reassembly

T30

1.AttachtheconnectortothePCBassemblypower.

2.Reassembletheunitassembly(3screws,4Nm).

AXISQ60-ESeries

Repainttheproduct

PH2

3.Assemblethedomemodulebracket,domewithdomemodulesealinganddomecoverring(4screws,1.2Nm).

AXISQ60-ESeries

Repainttheproduct

T30

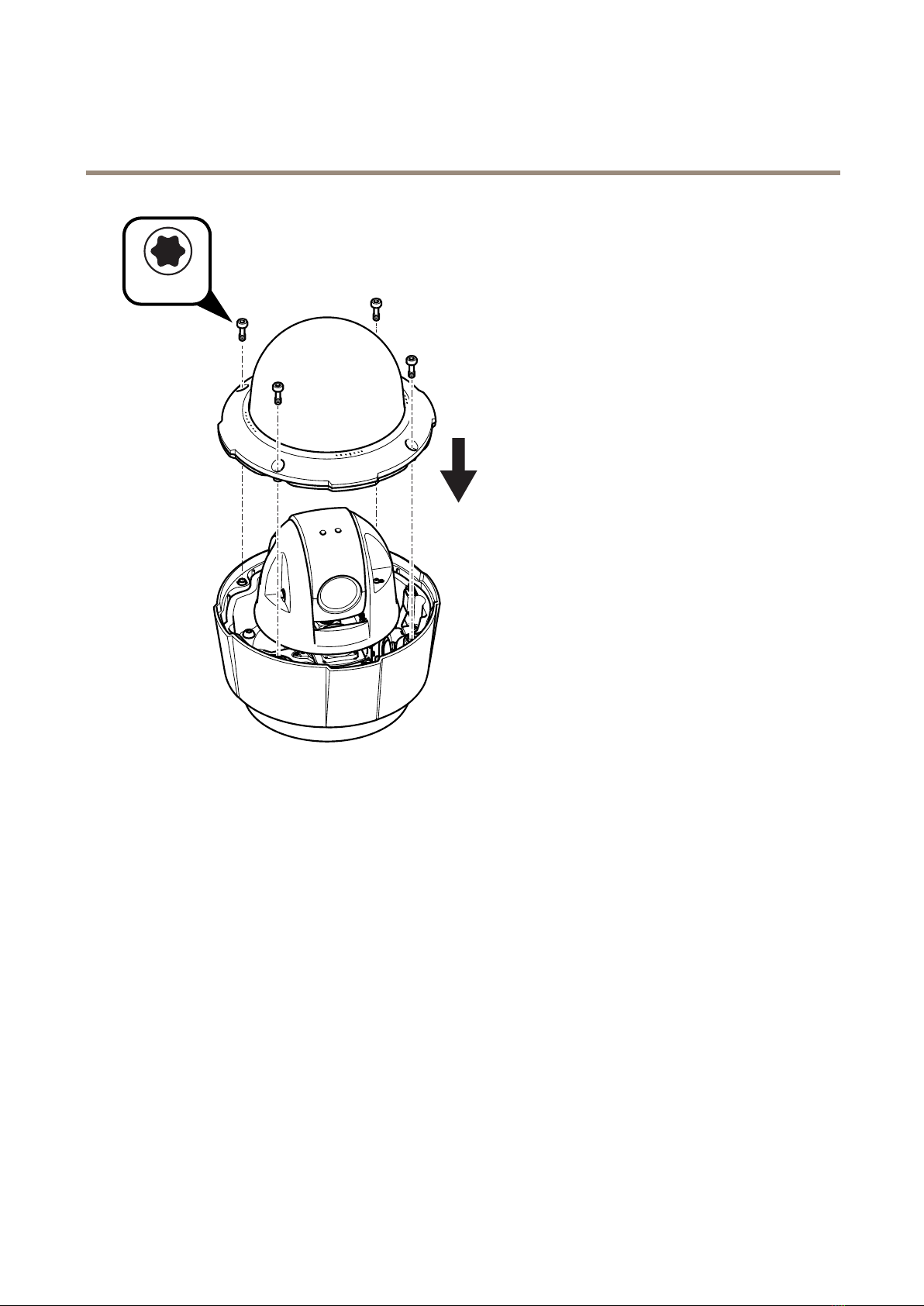

4.Reassemblethedomemoduleassembly(4screws,4Nm).

RepaintingInstructionsVer.M2.2

AXISQ60-ESeriesDate:December2019

©AxisCommunicationsAB,2019PartNo.T10146596
