AXIOMTEK ATX6022/6 Manual de usuario

ATX6022/6 User’s Manual

1 ISA / 4 PCI / 2 PICMG Backplane

Version A3 May 2010

Printed in Taiwan

94160221520E

III. Board Dimensions

ATX6022/6 User’s Manual

1 ISA / 4 PCI / 2 PICMG Backplane

Version A3 May 2010

Printed in Taiwan

94160221520E

I. Jumper Settings & Connectors List

Jumper Description

JP1

Short 1-2:

System power ON/OFF either by front panel power

button (PWRBT1) or via ACPI compliant Microsoft

Windows software

Short 2-3:

System power ON/OFF via front panel power button

(

PWRBT1

)

JP2 Open: System power ON/OFF via JP2

Short: System power ON/OFF via power supply

PWRBT1 Power ON/OFF push button connector to front panel

EXT-SMI1 External SMI connector to front panel

CN1;CN4 5 Pin K/B Connector

CN2 12 Pin AT Power Connector

CN3 8 Pin Power Output Connector

CN5

6 Pin ACPI Connector

6-pin cable to CPU card; used for Microsoft Windows

Soft-

ower ON/OFF

(

ACPI com

liant

)

CN6 20 Pin ATX Power Connector

ATX6022/6 User’s Manual

1 ISA / 4 PCI / 2 PICMG Backplane

Version A3 May 2010

Printed in Taiwan

94160221520E

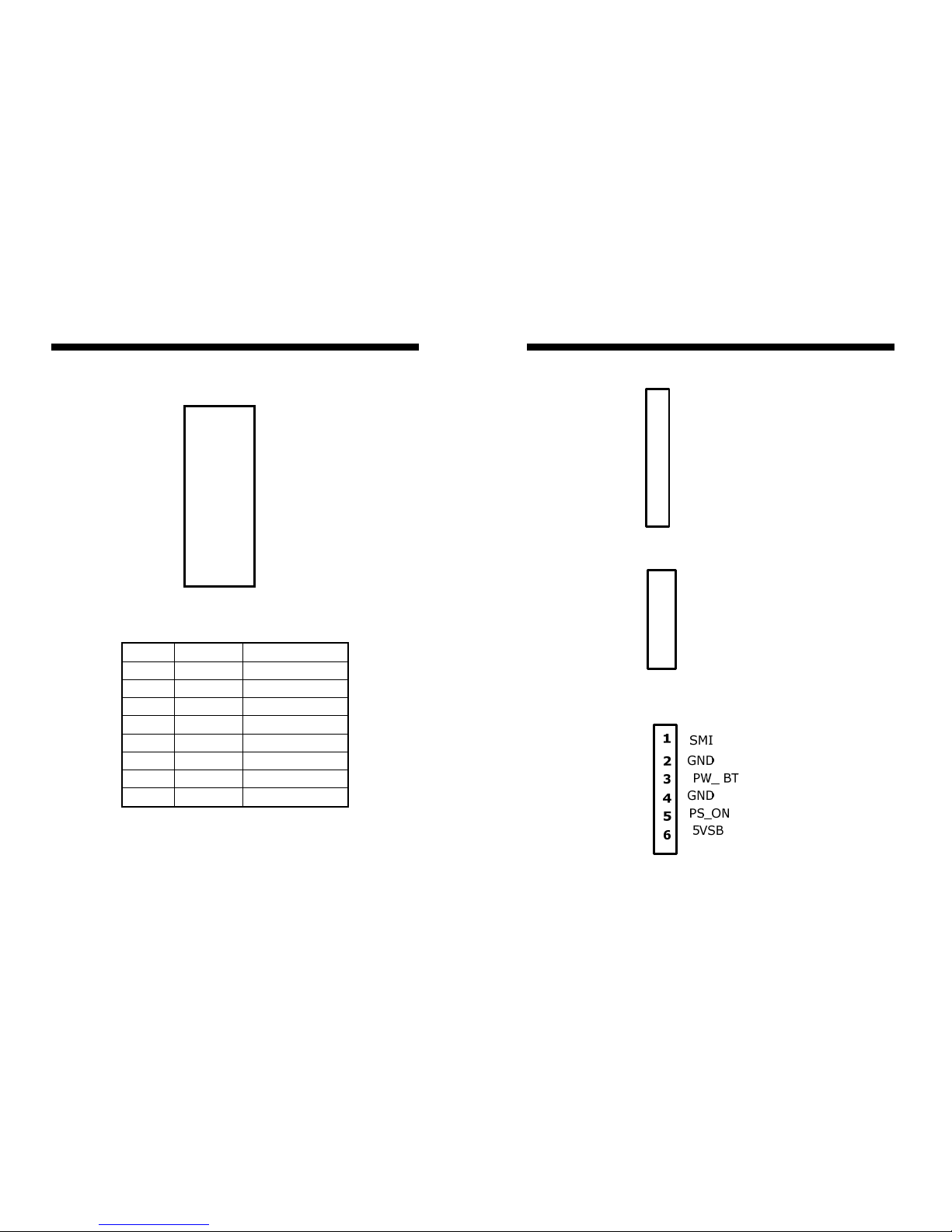

II. Pin Assignment

20-pin ATX Power Connector: CN6

Standard Power Connector: CN2

Pin Signal P8 & P9 Color

1 NC (P.G.) orange

2 +5VDC red

3 +12VDC yellow

4 -12VDC blue

5-8 GND black

9 -5VDC white

10 +5VDC red

11-12 +5VDC red

Brown 3.3V 11 1 3.3V Brown

Blue -12V 12 2 3.3V Brown

Black GND 13 3 GND Black

Green PS-ON 14 4 5V Red

Black GND 15 5 GND Black

Black GND 16 6 5V Red

Black GND 17 7 GND Black

White -5V 18 8 PW-OK Orange

Red 5V 19 9 5VSB Purple

Red 5V 20 10 12V Yellow

ATX6022/6 User’s Manual

1 ISA / 4 PCI / 2 PICMG Backplane

Version A3 May 2010

Printed in Taiwan

94160221520E 3

Output Power Connector: CN3

GND

5VSB

3.3V

-5V

+5V

-12V

+12V

Keyboard Connectors: CN1 & CN4

1 KBCLK

2 KBDATA

3 No Connector

4 GND

5 Vcc

6 PIN ACPI Connector: CN5
