Avocent AutoView 1000R Instrucciones de instalación y mantenimiento
Installer/User Guide
AutoView® 1000R
AutoView® 2000R
INSTRUCTIONS
This symbol is intended to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying the appliance.
DANGEROUS VOLTAGE
This symbol is intended to alert the user to the presence of uninsulated
dangerous voltage within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
POWER OFF
This symbol indicates the principal on/off switch is in the off position.
POWER ON
This symbol indicates the principal on/off switch is in the on position.
PROTECTIVE GROUNDING TERMINAL
This symbol indicates a terminal which must be connected to earth ground
prior to making any other connections to the equipment.
AutoView® 1000R
AutoView® 2000R
Installer/User Guide
Avocent, the Avocent logo, The Power of Being There and
AVWorks are trademarks or registered trademarks of Avocent
Corporation. AutoView is a registered trademark of Cybex
Computer Products Corporation. OutLook and OSCAR are
registered trademarks of Apex Inc. Energy Star is a registered
trademark of the Environmental Protection Agency. All other
marks are the property of their respective owners.
© 2002 Avocent Corporation. All rights reserved.
Table of Contents
USA Notification
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
Canadian Notification
This digital apparatus does not exceed the Class A limits for radio noise emissions from
digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de la classe A prescrites dans le Règlement
sur le brouillage radioélectrique édicté par le Ministère des Communications du Canada.
Japanese Approvals
Taiwanese Approvals
Agency Approvals
UL 1950, CSA C22. 2 No. 950, EN60950, IEC 950
FCC part 15A, EN55022, EN50082
Republic of Korea EMI Standard Certificate Number: E-F900-01-2012 (A)
Table of Contents
Chapter 1: Product Overview
Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Chapter 2: Installation
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Rack Mounting Your AutoView . . . . . . . . . . . . . . . 9
Installing the AutoView 1000R/2000R . . . . . . . . . . 11
Setting Up Your AutoView/AVWorks System . . . . 15
Chapter 3: Analog Port Operation
Controlling Your System at the Analog Port . . . . . 19
Viewing and Selecting Ports and Servers . . . . . . . . 19
Navigating OSCAR . . . . . . . . . . . . . . . . . . . . . . . . . 21
Configuring OSCAR . . . . . . . . . . . . . . . . . . . . . . . . 22
Viewing and Disconnecting User Connections . . . 30
Resetting Your Keyboard and Mouse . . . . . . . . . . . 31
Displaying Version Information . . . . . . . . . . . . . . . 31
Scanning Your System . . . . . . . . . . . . . . . . . . . . . . 33
Broadcasting to Servers . . . . . . . . . . . . . . . . . . . . . . 35
Chapter 4: Terminal Operations
Configuring the Terminal Menu . . . . . . . . . . . . . . 39
Appendices
Appendix A: FLASH Upgrades . . . . . . . . . . . . . . . . 43
Appendix B: Technical Specifications . . . . . . . . . . 47
Appendix C: Technical Support . . . . . . . . . . . . . . . 48
Contents
Contents
Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1
Product Overview
Chapter 1: Product Overview 3
Chapter 1: Product Overview 3
Chapter 1: Product Overview
Features and Benefits
The Avocent AutoView 1000R and 2000R model switches combine analog and
digital technology to provide flexible, centralized control of data center
servers. This solution delivers secure digital access and flexible server
management from anywhere at any time.
NOTE: Throughout the documentation you will see the word “appliance” used generically to
describe the AutoView 1000R/2000R switch.
The AutoView 1000R/2000R consists of a rack mountable keyboard, video and
mouse (KVM) switch configurable for analog or digital connectivity. Each
AutoView 1000R/2000R has 16 Avocent Rack Interface (ARI) ports for
connecting devices and operates over standard LAN connections. Access
servers across a 100BaseT Ethernet connection or directly through an analog
port on the AutoView for analog KVM connectivity and administration. Video
resolutions through the analog port can be up to 1600 x 1280 with an end-to-
end cable length of up to 15 meters (50 feet). Digital users can achieve video
resolution of up to 1280 x 1024 with a cable length of up to 10 meters (32 feet)
between the AutoView 1000R/2000R and the server.
AV1000R
AV2000R
Number
of
servers Digital
users
Analog
user
1 3 5 7 9 11 13 15
2 4 6 8 10 12 14 16
LAN
100-240V
, 1.0A, 50-60 Hz
1 3 5 7 9 11 13 15
2 4 6 8 10 12 14 16
LAN
100-240V
, 1.0A, 50-60 Hz
384 1 1
384 2 1
Figure 1.1: AutoView 1000R/2000R Model Comparison
AVRIQ intelligent adaptor
The AVRIQ intelligent adaptors with CAT 5 design dramatically reduce cable
clutter, while providing optimal digital display resolution and video settings.
The built-in memory of the AVRIQ simplifies configuration by assigning and
retaining unique server names or Electronic ID (EID) numbers for each
attached server. This integrated intelligence enhances security and prevents
unauthorized access to a server through cable manipulation. The AVRIQ is
powered directly from the server and provides Keep Alive functionality even if
the AutoView is not powered.
4 AutoView 1000R/AutoView 2000R Installer/User Guide
Chapter 1: Product Overview 5
Access via network connection
No special software or drivers are required on the attached computers. Digital
users access the AutoView and all attached systems via Ethernet from a PC
running AVWorks. This software resides on the user’s PC only. User PCs can
be located anywhere a valid network connection exists. The AutoView can be
configured on a separate network from your data network, allowing access to
your servers even if your applications network is down.
Point and click control with AVWorks software
The AVWorks software is a cross-platform management application that
allows you to view and control the AutoView 1000R/2000R and all attached
servers. The AVWorks software provides secure authentication, data transfers
and username/password storage. By utilizing a browser interface for
navigation with an intuitive split-screen interface, this software provides you
with a single point of access for your entire system. From here, you can
manage the AutoView, install a new AutoView or launch a video session to a
system server. Multiple servers can be accessed by one user; each additional
computer’s video will appear in a separate program window.
NOTE: Throughout the documentation and AVWorks user interface, you will see the word
“appliance” used generically to describe the AutoView 1000R/2000R switch.
TCP/IP
TCP/IP
Critical Server
AVRIQ
Cable
AV2000R
Analog Connection
Switch
IP Connections
Rack of
Servers
Switch
Rack of
Servers
AVRIQ
Cable

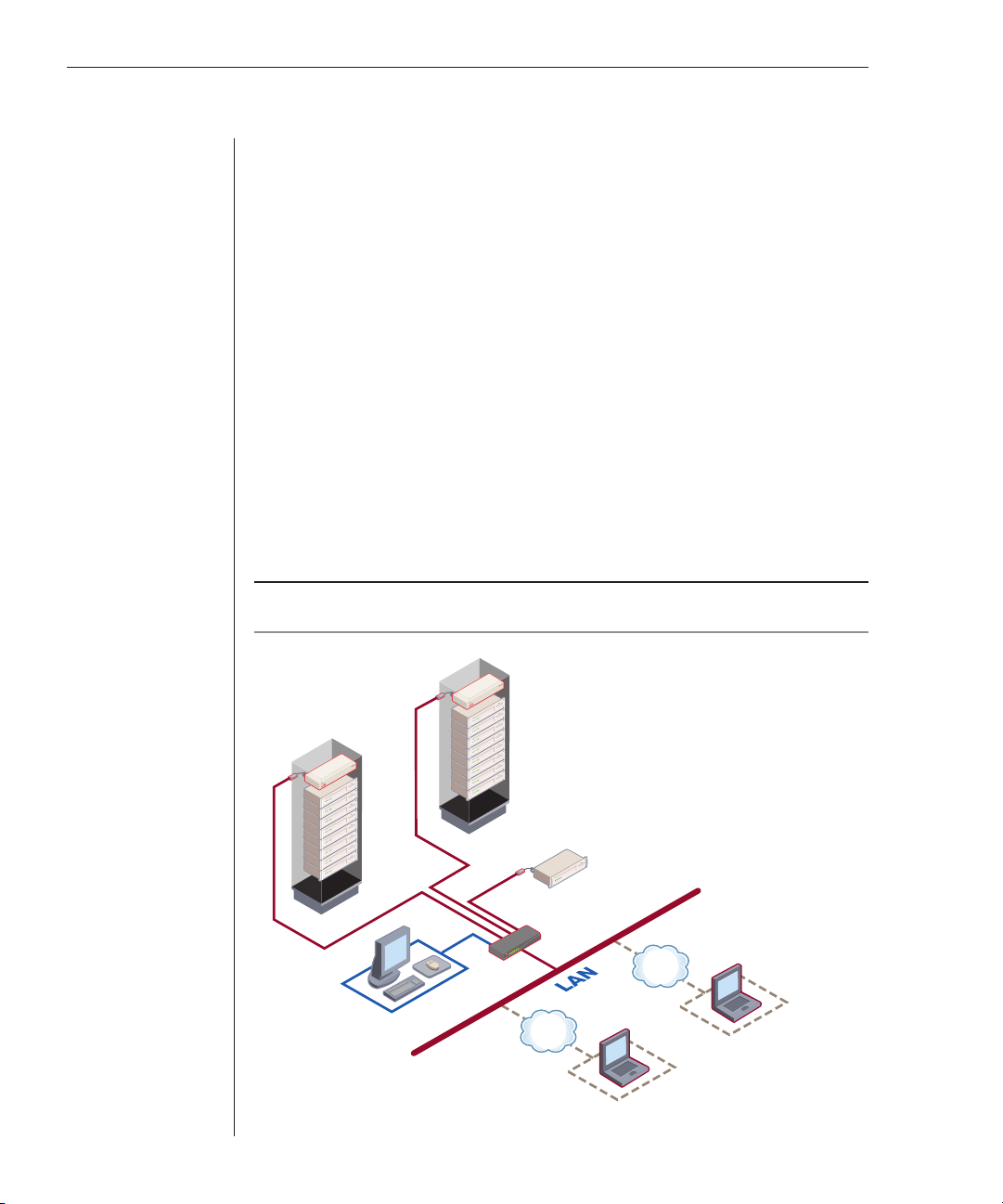

Figure 1.2: Example AutoView 2000R Configuration
