Avision AV620C Manual de usuario

AV620C

Color Image Scanner

User's Manual

(D/N 250-0131-E Rev. A)

 Avision Inc.

Trademarks

Microsoft is a U.S. registered trademark of Microsoft

Corporation.

Windows and MS-DOS are trademarks of Microsoft

Corporation.

IBM, PC, AT, XT are registered trademarks of

International Business Machines Corp.

Other brands and product names herein are trademarks

or registered trademarks of their respective holders.

reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language or computer

language, in any form or by any means, electronic,

mechanical, magnetic, optical, chemical, manual, or

otherwise, without the prior written permission of

Avision.

Material scanned by this product may be protected by

governmental laws and other regulations, such as

complying with all such laws and regulations.

iii

Warranty

The information contained in this document is subject to

change without notice.

Avision makes no warranty of any kind with regard to

this material, including, but not limited to, the implied

warranties of fitness for a particular purpose.

Avision shall not be liable for errors contained herein or

for incidental or consequential damages in connection

with the furnishing, performance, or use of this material.

FCC Radio Frequency Interference Statement

This equipment has been tested and found to comply

with the limits for a class B digital device, pursuant to

Part 15 of the FCC rules. These limits are designed to

provide reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in

accordance with the instruction manual, may cause

harmful interference to radio communication.

However, there is no guarantee that interference will

not occur in a particular installation. If this equipment

does cause harmful interference to radio or television

reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to

correct the interference by one or more of the

following measures:

* Reorient or relocate the receiving antenna.

* Increase the separation between the equipment and

receiver.

* Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

* Consult the dealer or an experienced radio/TV

technician for help.

CAUTION: Any changes or modifications not expressly

approved by the manufacture of this device could void

the user's authority to operate the equipment.

Table of Contents

1. INTRODUCTION............................................................................1-1

2. SCANNER INSTALLATION.........................................................2-1

2.1 PRECAUTIONS................................................................................2-1

2.2 UNLOCKING THE SCANNER ...........................................................2-2

2.3 CONNECTING THE CABLE ..............................................................2-3

2.4 DOCUMENT PLACEMENT...............................................................2-4

3. SCANNER DRIVER INSTALLATION........................................3-1

3.1 AUTO-INSTALLATION PROGRAM...................................................3-1

3.2 UNINSTALL THE SCANNER.............................................................3-3

4. SCANNER OPERATION & DOCUMENT PRINTING...............4-1

4.1 IMAGE TYPE...................................................................................4-3

4.2 SCANNING PARAMETERS & IMAGE CONTROL................................4-5

4.3 SCANNING.....................................................................................4-9

4.4 PRINTING..................................................................................... 4-10

5. MAINTENANCE.............................................................................5-1

6. TROUBLESHOOTING...................................................................6-1

6.1 QUESTIONS AND ANSWERS............................................................6-1

6.2 TECHNICAL SERVICE......................................................................6-5

7. SPECIFICATIONS...........................................................................7-1

7.1 MODEL: AV620C..........................................................................7-1

1-1

1. Introduction

Congratulations on your purchase of Avision AV620C

color image scanner. Avision is one of the leading

companies in the world to deliver high quality color

scanner.

You can scan both normal printing material including

photographs as well as the transparency and store them in

your computer. Then you can modify them for your keen

purpose on your computer and enjoy the wonderful

world of image.

The following sections introduce the unpacking,

hardware and software installation, the operation, and

maintenance information to you. Please do take a few

minutes to read through them to keep quality scanning

result possible.

Figure 1-1 shows how the scanner is packed. Please check

all the items against your checklist contained in the box or

against Figure 1-1. If there is any missing or damaged,

please contact your nearest dealer immediately for the

replacement.

1-2

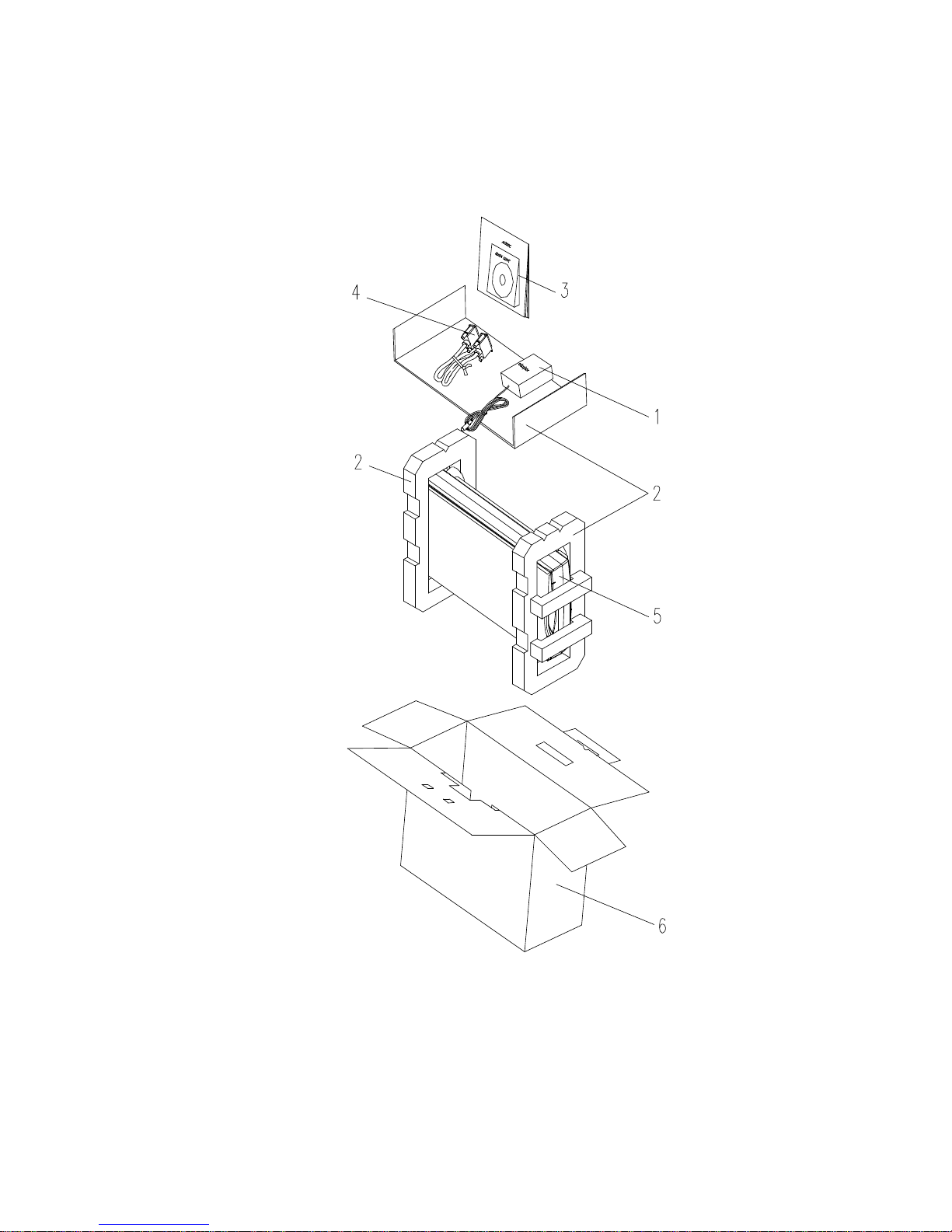

1. Power Adapter, 2. Cushion 3. Manual,Driver Kit CD.

4. D25P Cable, etc 5. Scanner 6. Carton

Figure 1-1 Scanner packing

1-3

Package Contents

1. Software CD

2. Power Adapter

3. Scanner Cable

4. Quick Installation Guide

5. AV620C Scanner
