Introduction

Avigilon provides an optional AINVR Performance Upgrade Kit for the AINVR Standard. This kit increases

the analytic capacity of the AINVR allowing it to run more concurrent analytics. See the Analytics Sizing

Guide for more details.

Important: An AINVR Standard with the:

lPerformance Upgrade Kit installed is supported on Release ACC7.12.4 or later.

lPerformance Upgrade Kit and the 10GbE Kit installed is supported on Release ACC7.14.2 or

later.

Your organization must upgrade to a release of the ACCsoftware that supports the upgraded

AINVR Standard if it is using an earlier release of the software.

Part Number Description

AINVR-STD-PRK AINVR Standard Performance Upgrade Kit

Note: If the AINVR is an operating part of your security system, be aware that it must be shut down

to complete this procedure.

Important: If you are installing both the AINVR Standard 10GbE Kit (AINVR-STD-10GBE) and the

AINVR Performance Upgrade Kit (AINVR-STD-PRK) in the AINVR, it is recommended that you install

the components from both kits as follows:

1. Install CPU and RAM from the AINVR Performance Kit using the instructions up to the section

“2. Removing the Original GPU Card” in the AINVR Standard Performance Kit Installation

Guide.

2. Install the second GPU card using the instructions in the section “Installing the 10GbECard in

Slot 3 of Expansion Riser 1” of the AINVR Standard 10GbE Kit Installation Guide, which

includes instructions to install the GPU card provided in AINVR Performance Upgrade Kit.

Introduction 4

Confirm Package Contents

Confirm that the kit you are installing contains the following components:

o1 × Intel Xeon CPU

o1 × processor bracket

o1 × heat sink

o2 × 8GB RDIMM

o1 × P2200 GPU

Required Tools

The following tools are not included in the kit package, but are needed to complete the installation:

lPhillips #2 screwdriver

Important: It is recommended that you always use an antistatic mat and antistatic strap while

working on components inside the system.

Confirm Package Contents 5

Installing the AINVR Standard Performance Kit

Before starting to install the kit:

1. Log in to the ACC Client on a workstation on the same network as the AINVR you are going to

upgrade.

a. In the System Explorer, select the AINVR you are going to upgrade.

b. In the New Task menu, click Server Analytics . Note down the number of cameras

analytics enabled connected to the AINVR and the current resource loads. For more

information, see the Enabling Analytics topic in the ACC Client Help.

2. Turn off the AINVR, including all attached peripherals.

WARNING — Opening or removing the system cover while the system is powered on may

expose you to a risk of electric shock.

3. Disconnect the AINVR from the electrical outlet and disconnect the peripherals.

Important: It is recommended that you always use an antistatic mat and antistatic strap while

working on components inside the system.

4. If applicable, remove the system from the rack.

Important: Whenever you need to lift the system, get others to assist you. To avoid injury, do

not attempt to lift the system by yourself.

Install the kit components in the following order:

1. Opening the AINVR 7

2. Installing the CPU 9

3. Installing Additional RAM 12

4. Removing the Pre-installed GPU Card 13

5. Installing the New GPUcard 14

6. Reattach the NVR5 Cover 15

7. Confirming the Installation 16

Installing the AINVR Standard Performance Kit 6

1. Opening the AINVR

1. At the top of the AINVR, unlock the latch release then lift and rotate the latch towards the back of the

unit. The cover slides back and is released from the body.

Tip: Use a Phillips #2 screwdriver to remove the shipping screws before unlatching the cover

if you are removing the cover of an AINVR for the first time.

2. Remove the black plastic protective cover over the socket. Press the 2 blue clips and lift off the cover.

The protective cover is no longer needed and can be recycled.

3. View the interior of the AINVR and identify the locations where the components of the kit will be

installed.

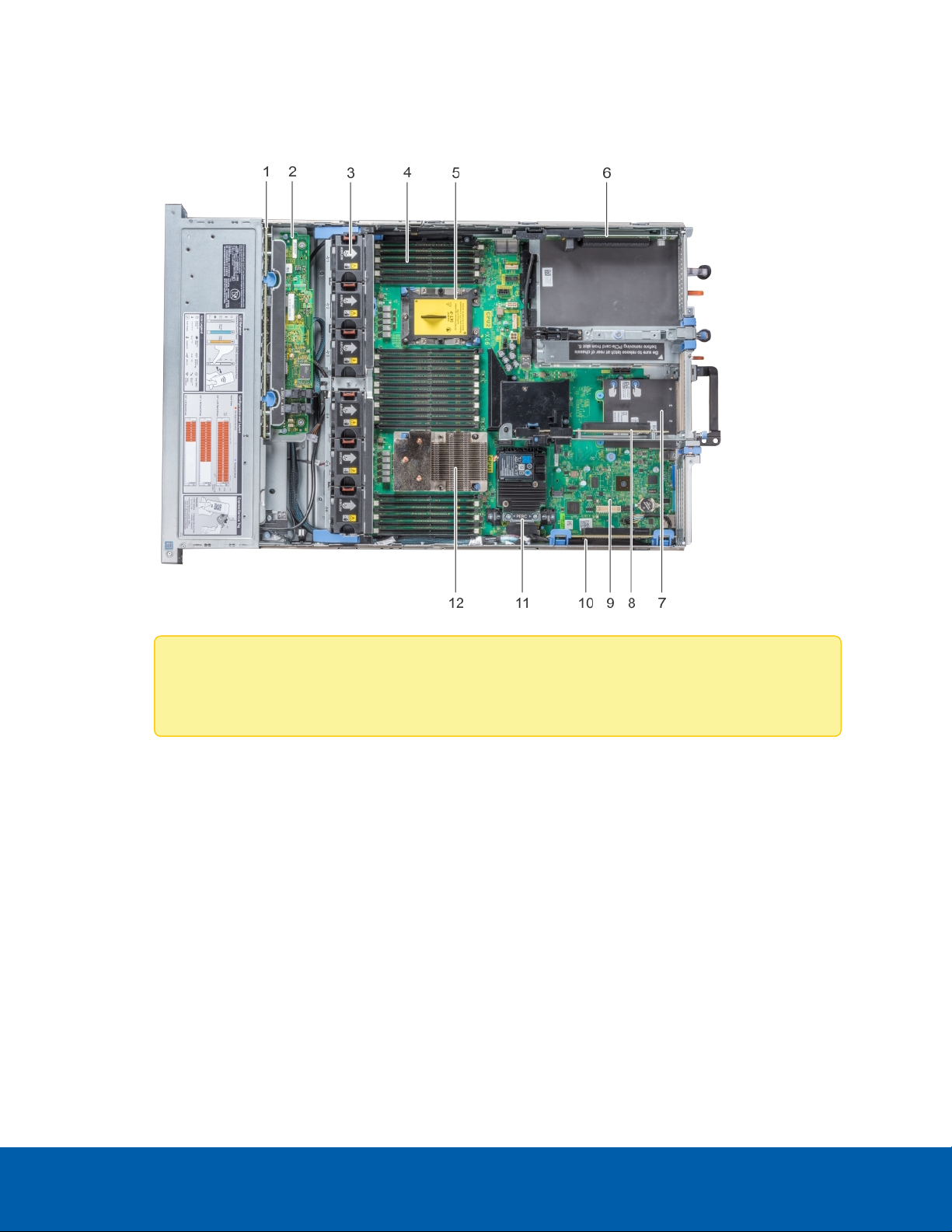

The view below shows the details of an AINVR with all of the covers and cards removed, and

important components labeled with numbers.

Important: The view below does not show the GPUcard that is pre-installed in slot 1 of

Expansion Card Riser 1 Slot 1 (labeled 10 in the diagram). Do not remove this card as part of

this upgrade.

The components affected by the AINVR Standard Performance Upgrade Kit are:

l4— Memory module

The 2 DIMMs in the upgrade kit are installed here.

l5—CPU2 processor and heat sink module socket (with dust cover)

The second CPU in the performance kit is installed here.

1. Opening the AINVR 7

l10—Expansion Card Riser 1

The second P2200 GPU card is installed on the middle slot (Slot 2) of this riser, below the

original GPUcard in the top slot (slot 1).

Note: The other components pointed out in the diagram are not affected by installing the

AINVR Standard Performance Kit.

1. Opening the AINVR 8

2. Installing the CPU

You need the processor bracket, processor (CPU), and heatsink provided in the kit to complete this

procedure.

With the AINVR open and the protective cover removed:

1. Locate the 2nd processor socket and pull off the CPUdust cover with the yellow label over the socket.

2. Unpack the CPU.

3. Place the processor in the processor tray.

Note: Ensure that the pin 1 indicator on the processor tray is aligned with the pin 1 indicator on

the processor.

4. Flex the outer edges of the processor bracket and ensure that the processor is locked into the clips on

the bracket.

Note: Ensure that the pin 1 indicator on the bracket is aligned with the pin 1 indicator on the

processor before placing the bracket.

5. Unpack the heatsink. Be careful not to touch the thermal paste that is pre-applied to the bottom of the

heatsink.

6. Place the heat sink on the processor and push down on the base of the heat sink until the bracket

locks onto the heat sink.

Important: To avoid damaging the fins on the heat sink, do not press down on the heat sink

fins.

2. Installing the CPU 9

lEnsure that the 2 guide pin holes on the bracket match the guide holes on the heat sink.

lEnsure that the pin 1 indicator on the heat sink (circled red in the image below) is aligned with

the pin 1 indicator on the bracket before placing the heat sink onto the processor and bracket.

7. Align the pin 1 indicator on the heat sink to the system board and then place the processor and heat

sink module on the processor socket.

Important: Ensure that the processor and heat sink module is held parallel to the system

board to prevent damaging the components.

8. Push the blue retention clips inward to allow the heat sink to drop into place.

2. Installing the CPU 10
