Quick Start for Hardware

Installation:

Avaya G450 Media Gateway

03-602053

Issue 2

December 2008

Notice

While reasonable efforts were made to ensure that the information in this

document was complete and accurate at the time of printing, Avaya Inc. can

assume no liability for any errors. Changes and corrections to the information

in this document may be incorporated in future releases.

For full support information, please see the complete document,

Avaya Support Notices for Hardware Documentation, document number

03-600759.

To locate this document on our Web site, simply go to

http://www.avaya.com/support and search for the document number in

the search box.

Documentation disclaimer

Avaya Inc. is not responsible for any modifications, additions, or deletions to

the original published version of this documentation unless such modifications,

additions, or deletions were performed by Avaya. Customer and/or End User

agree to indemnify and hold harmless Avaya, Avaya's agents, servants and

employees against all claims, lawsuits, demands and judgments arising out of,

or in connection with, subsequent modifications, additions or deletions to this

documentation to the extent made by the Customer or End User.

Link disclaimer

Avaya Inc. is not responsible for the contents or reliability of any linked Web

sites referenced elsewhere within this documentation, and Avaya does not

necessarily endorse the products, services, or information described or offered

within them. We cannot guarantee that these links will work all of the time and

we have no control over the availability of the linked pages.

Warranty

Avaya Inc. provides a limited warranty on this product. Refer to your sales

agreement to establish the terms of the limited warranty. In addition, Avaya’s

standard warranty language, as well as information regarding support for this

product, while under warranty, is available through the following Web site:

http://www.avaya.com/support.

Except where expressly stated otherwise, the Product is protected by copyright

and other laws respecting proprietary rights. Unauthorized reproduction,

transfer, and or use can be a criminal, as well as a civil, offense under the

applicable law.

Avaya support

Avaya provides a telephone number for you to use to report problems or to ask

questions about your product. The support telephone number

is 1-800-242-2121 in the United States. For additional support telephone

numbers, see the Avaya Web site: http://www.avaya.com/support.

Issue 2 December 2008 3

Chapter 1: Before you Start

Before you install your Avaya G450 Media Gateway, prepare all the information, resources, and tools that

you need during the installation process.

Preparing the Pre-Installation Worksheet

The Electronic Pre-installation Worksheet (EPW) is a customized Excel spreadsheet that you can use to

collect configuration information. The EPW verifies that you have a complete set of installation information.

Once filled out by the customer and project manager, the EPW can be loaded directly into the Avaya

Installation Wizard (IW) or Gateway Installation Wizard (GIW) for configuration. The EPW should be

completed before the installation. Download the latest version of the EPW spreadsheet from the Avaya Web

site at http://support.avaya.com/avayaiw.

Preparing Contacts you might need

Ensure that you have the names and phone numbers of any people you might need to contact at the

installation site. This list might include the people responsible for network architecture, system

administration, site security, site deliveries, etc.

Preparing Installation Files

Ensure that you load the latest versions of all firmware files for the G450, S8300, and Media Modules onto

your laptop before configuration. If you install a G450 without an S8300 Server, the configuration process

prompts you for the filenames of all firmware files needed. You can download the firmware files needed for

your installation from the Avaya Support Web site, at http://support.avaya.com.

Preparing the G450 Serial Number

In order to create the license file, you need the serial number of the G450. The serial number is printed on a

sticker on the back of the G450 chassis.

Obtaining RFA access

You need to obtain a personal Single Sign-On (SSO) for Remote Feature Activation (RFA) web site

authentication login before going to the site for installation. You must complete the authentication process

before you can be assigned an SSO authentication login.

Before you Start

4 Quick Start for Hardware Installation: Avaya G450 Media Gateway

As a first-time user:

●Business Partners should point their browsers to the Business Partner portal option sales_market,

services-voice, training tools and procedures to select RFA.

●Associates should point their browsers to the Avaya Associate portal.

●Contractors should point their browsers to Avaya.com.

●Alternatively go directly to http://rfa.avaya.com.

From that point, log into SSO and complete the process to obtain your personal login.

Downloading a G450 license file to your laptop

If you are installing VPN, obtain a VPN license file from the Remote Feature Activation (RFA).

1. Create a directory on your laptop for storing license files (for example, C:\licenses).

2. Access the Internet from your laptop and go to rfa.avaya.com.

3. Login using your SSO login and password. The AFS and RFA information home page appears.

4. Start the RFA application from the RFA information page. To create and download the license file,

follow the instructions outlined in the Avaya Remote Feature Activation (RFA) User Guide, 03-300149.

Downloading CM license and authentication files to your laptop

If you are installing a G450 with an S8300 Server as a primary controller, you need license and

authentication files for the Communication Manager.

1. Create a directory on your laptop for storing license and authentication files.

2. Access the Internet from your laptop and go to rfa.avaya.com.

3. Login using your SSO login and password. The AFS and RFA information home page appears.

4. Start the RFA application from the RFA information page. To create and download the license file and

authentication file, follow the instructions outlined in the Avaya Remote Feature Activation (RFA) User

Guide, 03-300149.

5. Use the download or e-mail capabilities of the RFA web site to download the license and

authentication files to your laptop.

Preparing the INADS IP address

The INADS IP address is required in order to configure the S8300’s modem for alarming. If you are

preparing a G450 with an S8300 for a remote installation, you must first obtain an INADS IP address. Use

the Automatic Registration Tool (ART) to obtain an IP address for an INADS alarming modem.

1. Access the ART Web site on your laptop at http://art.dr.avaya.com.

Preparing Needed Hardware

Issue 2 December 2008 5

2. Select Administer S8x00 Server products for installation script, and then log in.

3. Enter the customer information, select Installation Script, and click Start Installation script & IP

Addr Admin. A script file is created and downloaded or e-mailed to you.

Preparing Needed Hardware

●Laptop – to configure the Avaya G450 Media Gateway, you need to prepare a laptop with a serial port.

The laptop must have Internet Explorer installed. If you install a G450 without an S8300, you must

prepare the laptop with a Windows 2000 or Windows XP operating system and a TFTP server.

●Modem – in order to set up a remote configuration of the G450, you must prepare a USB modem.

Currently, the G450 supports the MultiTech USB modem, model MT5634ZBA-USB-V92. If a USB

modem is not available, you can also use a serial modem, the Multitech MultiModem ZBA,

MT5634ZBA-V92.

Preparing Tools Needed for Mounting

To mount on a rack or wall, prepare a Phillips head screwdriver.

To mount on a wall prepare also:

●Plywood board ½ in (1.2 cm) thick and at least 2 x 2 ft (0.6 x 0.6 m) in size

●Minimum of four wood screws

●Minimum of four screws (pan head at least ½ in, # 10-12 screw) to fasten the G450 to the wall

You might also need wire cutters to attach the grounding conductors, if your site uses a ground block.

Choosing the Installation Site

Ensure that the location where you install your G450 fulfills the following requirements:

●Cables are away from sources of electrical noise such as radio transmitters, broadcast amplifiers,

power lines, fluorescent light fixtures

●Water or moisture cannot enter the case of the chassis.

●Air can flow freely around all sides of the chassis.

●The vents on the sides of the case are not blocked.

●The installation is no more than 25 feet (7.6 m) from an approved ground.

Note:

Note: If the G450 is more than 25 feet away from an approved ground, you must contact a licensed

electrician to install a supplementary ground conductor.

●The environmental conditions match the following requirements:

●Ambient temperature – 32oto 104oF (0oto 40oC)

Before you Start

6 Quick Start for Hardware Installation: Avaya G450 Media Gateway

●Relative humidity – 10-90% relative humidity

●Minimum clearance for ventilation – 18 in. (45 cm)

●Weight support – 22.5-35 lbs (10-16 kg)

Issue 2 December 2008 7

Chapter 2: Unpack the Device

!CAUTION:

CAUTION: Wear an anti-static wrist ground strap whenever you handle components of a G450 Media

Gateway. Connect the strap to an approved ground, such as an unpainted metal surface.

Equipment

Open the box that contains the Avaya G450 Media Gateway, and ensure that it contains the following

components and accessories:

●One Avaya G450 Media Gateway chassis. The required media modules may be installed.

●An Accessory Kit (see Table 1)

Removing the Power Supply Units

For ease of installation, it is recommended to remove the power supply unit(s) before unpacking the G450.

1. Open the package. Note that the G450 is lying flat. Turn it so that the rear panel is facing up.

2. Remove the power supply unit (PSU). If you ordered two power supplies, remove them both.

a. Loosen the two PSU captive screws, one on each side of the PSU.

b. Grasp the two side handles and pull the PSU up and out.

c. Place the PSU carefully on the table.

Other Components

The Avaya Partner Contact Closure adjunct box, if ordered, is packaged separately.

Unpack the Device

8 Quick Start for Hardware Installation: Avaya G450 Media Gateway

Table 1: G450 Accessory Kit

One 115V 3 Wire Power Cable

Note: Outside the US, the cord

must be VDE Certified or

Harmonized (HAR), rated 250V,

3-conductor (3rd wire ground),

1.0 mm2 minimum conductor

size

One Grounding Cable Assembly Four Rubber Standoffs

Two 19 in. Rack mount

brackets One Cable Management

Assembly Fifteen 3/8 in. Flat Head Screws

Two 5/16 in. Round Head Screw Two Serrated Lock Washers One Ground

Screw One Jumper for

Bridging

NVRAM init

Pins

Issue 2 December 2008 9

Chapter 3: Mount the Device

You can position the Avaya G450 Media Gateway on a suitable table, or mount it in a rack or on the wall.

Once the G450 is mounted, re-insert the Power Supply Units.

Positioning on a Table

To install the Avaya G450 Media Gateway as a tabletop unit:

1. Remove the four rubber standoffs from their package.

2. Turn the G450 upside down.

3. Position each standoff into one of the mounting sites, near each corner of the chassis.

Mounting in a Rack

You can fasten the G450 to a standard 19-inch rack either at the front of the G450 or at its middle. Before

you mount the G450, attach the mounting brackets to the device.

Front Mounting Bracket Placement

Attach a regular mounting bracket to one side of the G450, near the front, as shown in Figure 1: Front

mounting bracket placement on page 10. Attach a mounting bracket with cable guides to the other side of

the G450 (refer to Figure 3: Attaching a mounting bracket with cable guides on page 10).

Middle Mounting Bracket Placement

Attach regular mounting brackets to the sides of the G450, as shown in Figure 2: Middle mounting bracket

placement on page 10. Attach a mounting bracket with cable guides on one side of the G450, as shown in

Figure 3: Attaching a mounting bracket with cable guides on page 10.

Mount the Device

10 Quick Start for Hardware Installation: Avaya G450 Media Gateway

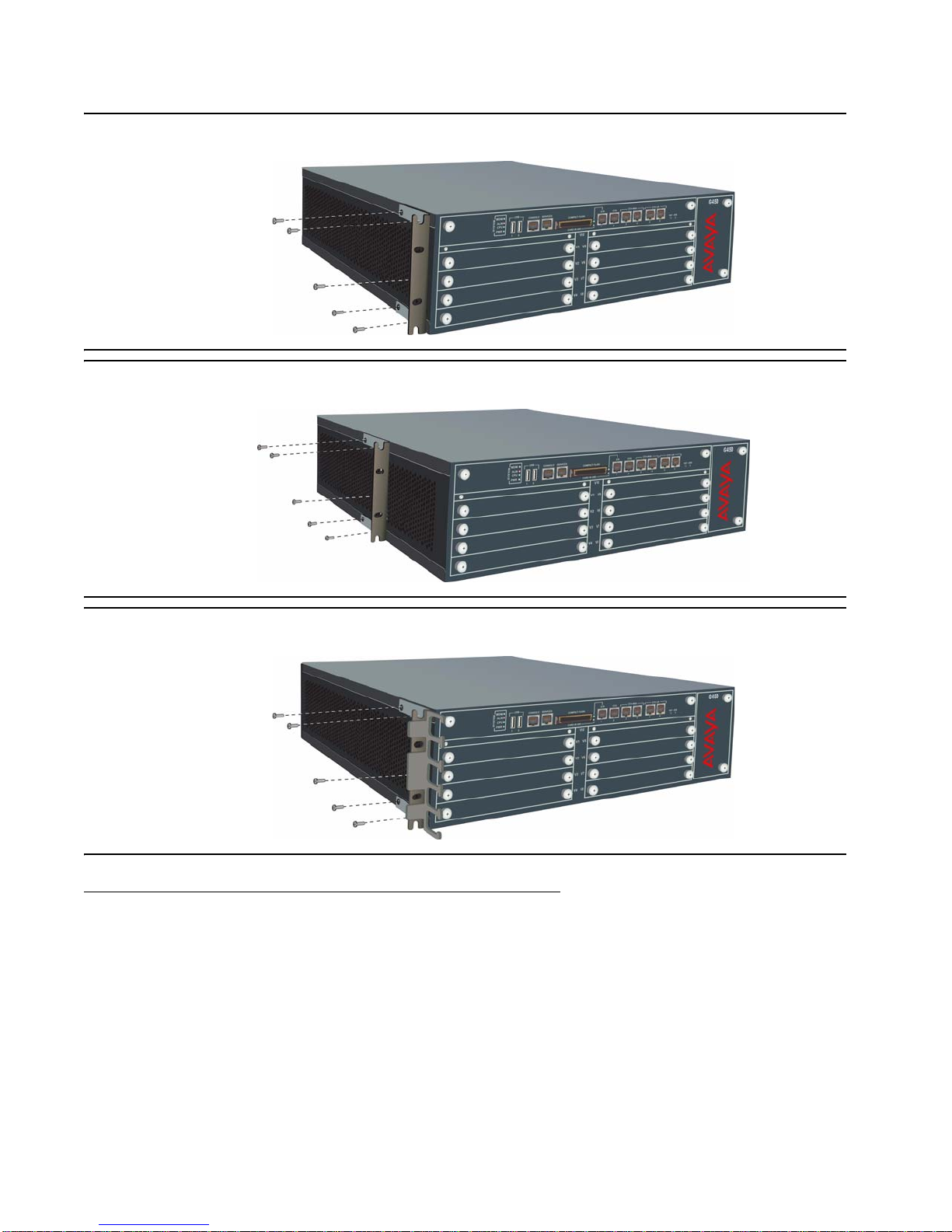

Figure 1: Front mounting bracket placement

Figure 2: Middle mounting bracket placement

Figure 3: Attaching a mounting bracket with cable guides

Attaching Mounting Brackets

Follow these steps to attach the mounting brackets:

1. Position a bracket over the desired mounting position.

2. Affix the bracket to the chassis with five flat head 3/8 in. screws.

3. Tighten the screws with the screwdriver.

Otros manuales para G450 Manager

Tabla de contenidos

Otros manuales de Puerta de Avaya

Avaya

Avaya INDeX Media Gateway Manual de usuario

Avaya

Avaya MCC1 Guía de inicio rápido

Avaya

Avaya 1000 Series Guía

Avaya

Avaya VSU 10000 Manual de servicio

Avaya

Avaya MCC1 Manual de usuario

Avaya

Avaya RAD IPmux-14 TDMoIP Suplemento

Avaya

Avaya G450 Manager Manual de usuario

Avaya

Avaya Media Gateway G250 Manual de instrucciones

Avaya

Avaya G430 Guía de inicio rápido

Avaya

Avaya VSU 7500 Manual de usuario

Avaya

Avaya Media Gateway G250 Guía

Avaya

Avaya MCC1 Manual

Avaya

Avaya P330 Manual de usuario

Avaya

Avaya G700 Manual de usuario

Avaya

Avaya G860 Manual

Avaya

Avaya G650 Manual de instrucciones

Avaya

Avaya Media Gateway G250 Guía de referencia rápida

Avaya

Avaya Media Gateway G250 Manual de instrucciones

Avaya

Avaya G450 Manager Manual de instrucciones

Avaya

Avaya VPN Gateway Manual de usuario

Avaya

Avaya ClearOne Converge Pro VH20 Suplemento

Avaya

Avaya G450 Manager Manual de instrucciones

Avaya

Avaya IG550 Manual de instrucciones

Avaya

Avaya S8300 Series Manual

Manuales populares de Puerta de otras marcas

LST

LST M500RFE-AS Manual de usuario

Kinnex

Kinnex Media Gateway Manual de usuario

2N Telekomunikace

2N Telekomunikace 2N StarGate Manual de usuario

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manual de usuario

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manual de usuario

Telsey

Telsey CPVA 500 - SIP Manual de usuario

RTA

RTA 460A-NNA4 Hoja de especificaciones

Shaw

Shaw Gateway HDPVR Manual de usuario

ABB

ABB VSN900 Guía de inicio rápido

Commander

Commander Pulse Manual de usuario

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manual de usuario

NETGEAR

NETGEAR C6300BD Manual de usuario

Amit

Amit CDW531AM Manual de usuario

HMS

HMS Netbiter EasyConnect EC150 Manual de usuario

Huawei

Huawei EchoLife HG620 Manual de usuario

AT&T

AT&T U-verse 3801 Manual de uso y cuidado

Logic IO

Logic IO RTCU MX2 turbo Manual de usuario

Suttle

Suttle MediaMAX MXM-521 Manual de usuario
