Installing the upgrade memory kit in the
G450 and G430 Media Gateway
Important:
Always check the Avaya Support Website for Product Support Notices at http://www.avaya.com/
support and select Communication Manager > Product Support Notices.
This Job Aid describes the steps required to install the upgrade memory kit components in the
Avaya G450 and Avaya G430 media gateways.
The upgrade memory kit enables increasing the number of announcement files on the gateway from
256 to 1024, by storing them on a removable compact flash. This also increases the total amount of
announcement time from 45 minutes to four hours. Since the announcements are played from RAM,
you must also increase RAM. The upgrade memory kit consists of:
• 1 GB compact flash memory card
• One RAM card. Use the RAM card applicable to your gateway, as detailed below
Related links
Equipment ordering on page 1
Equipment ordering
When ordering the upgrade memory kit, quote the relevant comcodes from the following:
Upgrade memory kit versions Comcode
1.x 700510107
2.x and 3.x 700476419
Related links
Installing the upgrade memory kit in the G450 / G430 Media Gateway on page 1
© 2014-2018, Avaya, Inc.
All Rights Reserved. 1
Inserting or replacing a RAM card
Inserting or replacing a RAM card in the G450
About this task
Note:
There are two hardware versions of the G450, referred to as G450 1.x and G450 2.x and
greater. The hardware version is the first number of the CS number that is printed on the label
on the front of main board.
In cases where the instructions differ depending on the G450 version, instructions are given for
both versions.
Warning:
Do not insert an additional RAM card into the second slot on the G450 2.x and greater.
The G450 has two RAM slots. The basic configuration includes one 256 MB RAM card.
The slots are located on the G450 main board. You must pull out the main board to remove or insert
a memory card. The G450 supports hot insertion and removal of the main board without power drop.
However, all services are suspended while the G450 main board is out, and all calls passing
through the gateway are disconnected. Any translation and other data that is in the running
configuration but has not been saved to the startup configuration is lost.
To increase RAM memory in the gateway:
• In the G450 1.x, replace the 256 MB card with the 512 MB RAM card provided in the kit.
• In the G450 2.x and greater, remove the RAM card from the main board and replace it with the
512 MB RAM card provided in the kit .
Procedure
1. Removing the G450 main board on page 2
2. Upgrade RAM memory:
• For G450 1.x, see Inserting a G450 1.x RAM card on page 3
• For G450 2.x and greater, see Replacing the RAM card for G450 2.x and greater on
page 4.
3. Reinserting the G450 main board on page 5
Removing the G450 main board
About this task
Electrostatic alert:
Hold the module only by its edges to avoid damage from static electricity. Do not touch the top
or bottom of the circuit board. If possible, wear a wrist-strap and use an anti-static bag.
January 2018Installing the upgrade memory kit in the G450 and G430 Media Gateway 2
Caution:
The connector pins can be bent or damaged if the module is handled roughly, or if misaligned
and then forced into position.
Procedure
1. Unscrew the two captive screws, one at each side of the main board front panel, as shown in
the figure.
2. Open the latches on both sides of the main board.
3. Grasp the latches and pull out the main board from its slot.
4. Place the main board carefully on a flat surface.
Inserting the G450 1.x RAM card
About this task
Electrostatic alert:
Hold the module only by its edges to avoid damage from static electricity. Do not touch the top
or bottom of the circuit board. If possible, wear a wrist-strap and use an anti-static bag.
Caution:
The connector pins can be bent or damaged if the module is handled roughly, or if misaligned
and then forced into position.
Procedure

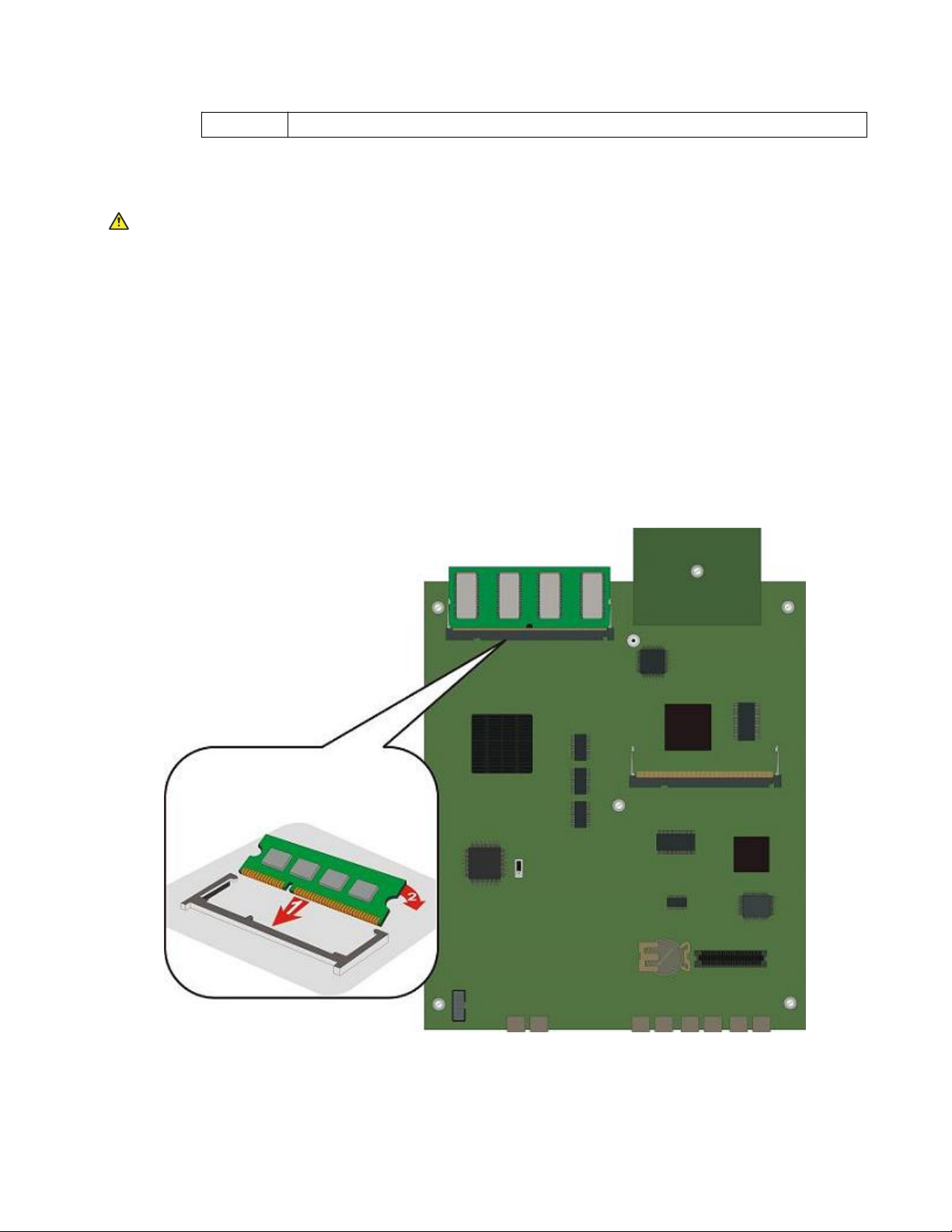

1. Locate the RAM slots, as show in the figure.
2. Remove the 256 MB RAM card: Open the latches on both sides of the RAM slot housing.
The RAM card lifts up. Pull out the RAM card.
3. Make sure the white latches on the empty RAM slot nearest the faceplate are open. Insert the
512 MB RAM card from the kit into this slot and push down, until the two latches on either
side of the card lock into place.
January 2018Installing the upgrade memory kit in the G450 and G430 Media Gateway 3
Replacing the RAM card for G450 2.x and greater
About this task
Electrostatic alert:
Hold the module only by its edges to avoid damage from static electricity. Do not touch the top
or bottom of the circuit board. If possible, wear a wrist-strap and use an anti-static bag.
Warning:
Insert the RAM card into the first RAM slot (SODIMM A) only.
Procedure
1. Locate the RAM slot holding the RAM card, as shown in the figure.
2. Open the latches on both sides of the RAM slot. The RAM card lifts up.
3. Pull out the 256 RAM card.
January 2018Installing the upgrade memory kit in the G450 and G430 Media Gateway 4
Important:
Remove the RAM card in SODIMM slot A.You can only replace the RAM card in
SODIMM slot A, you cannot add an extra card in SODIMM slot B.
4. Insert the 512 RAM card provided in the kit, or a replacement 256 RAM card, into the RAM
slot, and push in all the way. Do not use too much force.
5. Flatten the RAM card so it is flush with the main board.
Reinserting the G450 main board
Procedure
1. Verify that the latches on both sides of the main board are open.
2. Insert the main board into the slot.
3. Push the main board in until the latches begin to close.
4. Close the latches.
5. Close and tighten the two captive screws on the front panel.
January 2018Installing the upgrade memory kit in the G450 and G430 Media Gateway 5
6. Use the show platform mainboard CLI command to check the memory modules status.
In the command output, the lower RAM slot is referred to as Memory socket #1, and the
upper RAM slot is Memory socket #2.
• A G450 1.x with increased memory displays, for example:
MEMORY SOCKET #1
------------------
Type : 512MB DDR SDRAM memory module with ECC
Serial Number : 749f5c9f
Manufacture Part Num : D1DI64M724G-A48ID
Faults : No Fault Messages
MEMORY SOCKET #2
------------------
Type : UNKNOWN
Serial Number : UNKNOWN
Manufacture Part Num : UNKNOWN
Faults : UNKNOWN
• A G450 2.x and greater with increased memory displays, for example:
MEMORY SOCKET #1
------------------
Type : 512MB DDR SDRAM memory module
Serial Number : 0550749f
Manufacture Part Num : 9VDDT3272AY-335G4
Faults : No Fault Messages
MEMORY SOCKET #2
------------------
Type : UNKNOWN
Serial Number : UNKNOWN
Manufacture Part Num : UNKNOWN
Faults : UNKNOWN
Replacing a RAM card in the G430
About this task
The G430 has a single RAM slot housing a 256 MB RAM card. If you wish to support an increased
number of announcement files, you must upgrade the G430 memory by replacing the 256 MB RAM
card with a 512 MB RAM card.
The RAM slot is located on the G430 main board. You must remove the G430 cover to replace a
RAM card.
Procedure
1. Removing the G430 cover.
2. Replacing the G430 RAM card.
3. Replacing the G430 cover.
Removing the G430 cover
About this task
Voltage:
Disconnect the G430 from the external power source before proceeding.
January 2018Installing the upgrade memory kit in the G450 and G430 Media Gateway 6
Electrostatic alert:
Do not touch any components on the printed circuit board.
Procedure
1. Disconnect the G430 power cable from the mains power supply.
2. Disconnect all cables (data and power) connected to the G430 and its media modules, both
front and rear.
3. Remove the G430 from the rack or wall, if it is wall or rack mounted.
Note to which connector each cable is connected, so that you can reconnect them correctly.
4. If mounting brackets are attached to the G430, remove them.

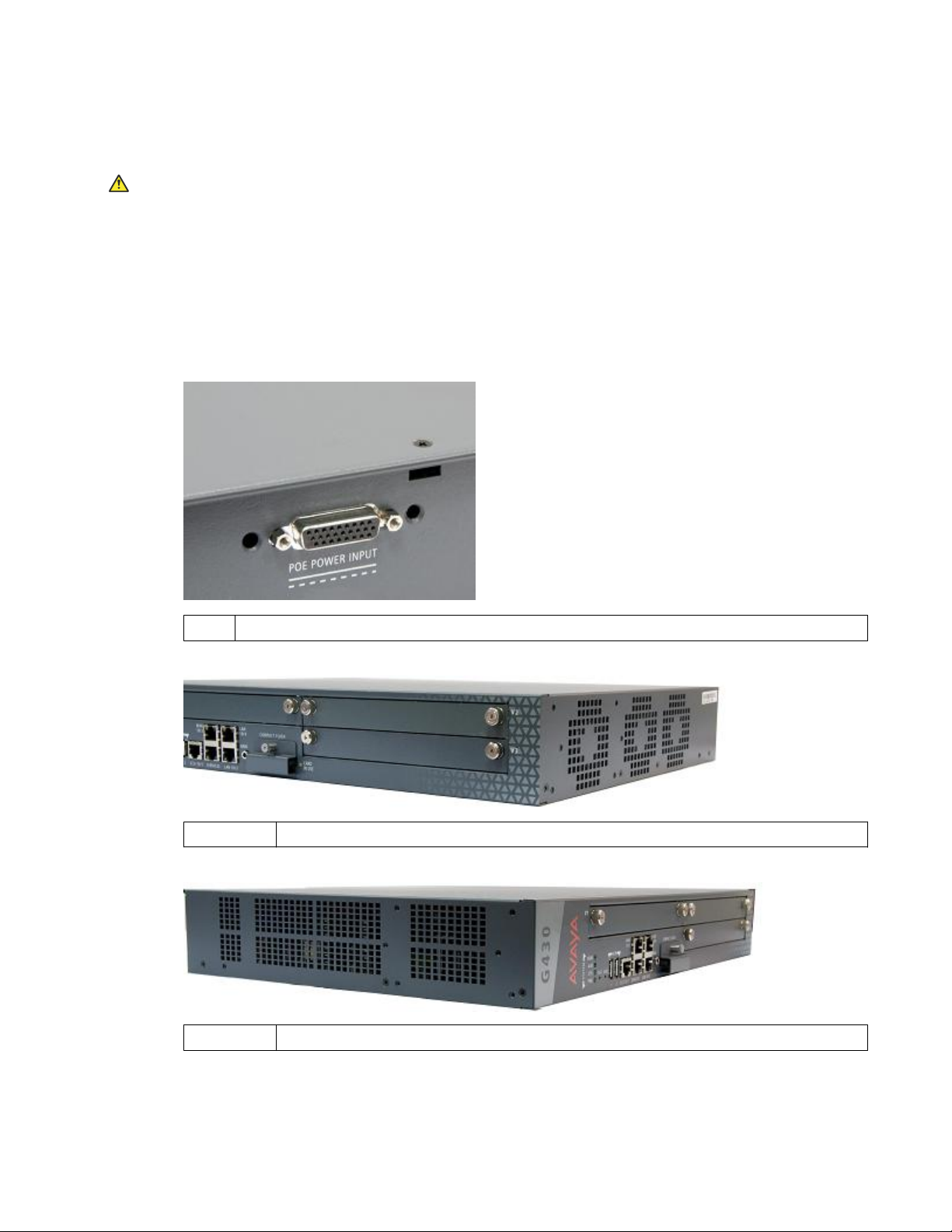

5. Unscrew the eight cover screws, indicated by small arrows etched into the cover:
a. Remove one screw from the top. See first figure below.
1. G430 top cover screw.
b. Remove four screws from the right side.
1 — 4 Four G430 right-side cover screws.
c. Remove three screws from the left side. See third figure below.
January 2018Installing the upgrade memory kit in the G450 and G430 Media Gateway 7
1 — 3 Three G430 left-side cover screws.
Replacing the G430 RAM card
About this task
Electrostatic alert:
Hold the module only by its edges to avoid damage from static electricity. Do not touch the top
or bottom of the circuit board. If possible, wear a wrist-strap and use an anti-static bag.
Procedure
1. Locate the RAM slot holding the RAM card, as shown in the figure.
2. Open the latches on both sides of the RAM slot. The RAM card lifts up.
3. Pull out the 256 RAM card.
4. Insert the 512 RAM card provided in the kit, or a replacement 256 RAM card, into the RAM
slot, and push in all the way. Do not use too much force.
5. Flatten the RAM card so it is flush with the main board.
The latches at both sides click shut.
January 2018Installing the upgrade memory kit in the G450 and G430 Media Gateway 8
Replacing the G430 cover
About this task
Electrostatic alert:
Do not touch any components on the printed circuit board.
Procedure
1. Place the G430 cover back on the unit.
2. Screw in the eight cover screws you previously removed. Their locations are indicated by
small arrows etched into the cover:
• One screw on the top as shown in the following figure.
1. G430 top cover screw.
• Four screws on the right side as shown in the following figure.
1 — 4 Four G430 right-side cover screws.
• Three screws on the left side as shown in the following figure.
1 — 3 Three G430 left-side cover screws.
3. Attach the mounting brackets to the G430, if applicable.
January 2018Installing the upgrade memory kit in the G450 and G430 Media Gateway 9
4. Replace the G430 in the rack or mount on the wall, if applicable.
5. Reconnect all cables (data and power) that you disconnected from the G430 and its media
modules, both front and rear
6. Connect the G430 power cable into a mains socket.
7. Use the show platform mainboard CLI command to check the status of the G430 and
its memory module. For example, when the G430 is working properly, sample output
includes:
MAINBOARD BOARD
---------------
Type : G430 mainboard
Description : Avaya Inc., G430 Media Gateway
Serial Number : 08IS26191011
HW Vintage : 1
HW Suffix : C
FW Version : 29.22.50
Faults : No Fault Messages
RAM MEMORY SOCKET #1
--------------------
Type : 512MB DDR SDRAM memory module
Serial Number : 0b2c7605
Manufacture Part Num : 64A6M64M8L-A06EWQU
Faults : No Fault Messages
Inserting or removing a compact flash memory card
The G450 and G430 support hot insertion and removal of a compact flash memory card without
power drop, provided the compact flash is not in use when you remove it.
Inserting a compact flash memory card
About this task
Procedure
1. Remove the blank plate covering the compact flash memory card slot, located in the center
of the main board.
2. Position the compact flash memory card so that the vendor name is facing up and the
connector is pointing toward the gateway, and gently insert it into the compact flash slot.
3. After installing the compact flash memory card and the additional 256 MB RAM card, the
announcement files are not automatically moved from the internal flash to the compact flash.
To move them:
a. Make sure the gateway is registered to CM.
b. At the CM, set enable CF to y in the change media-gateway screen.
c. In the SAT interface of the CM, enter enable announcement-board.
The announcement files are copied from internal flash to the compact flash, and the
yellow CARD IN USE LED associated with the compact flash lights up.
January 2018Installing the upgrade memory kit in the G450 and G430 Media Gateway 10
Otros manuales para G450 Manager
14
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Puerta de Avaya
Avaya
Avaya G450 Manager Hoja de instrucciones
Avaya
Avaya S8500 Series Manual de usuario
Avaya
Avaya P330 Manual de usuario
Avaya
Avaya one-X G10 PSTN Manual de usuario
Avaya
Avaya G700 Guía de inicio rápido
Avaya
Avaya W310 Manual de funcionamiento
Avaya
Avaya G700 Manual de instrucciones
Avaya
Avaya G450 Manager Manual de usuario
Avaya
Avaya G700 Guía de inicio rápido
Avaya
Avaya G650 Manual de usuario
Avaya
Avaya G700 Manual de usuario
Avaya
Avaya VSU 7500 Manual de usuario
Avaya
Avaya G450 Manager Manual de usuario
Avaya
Avaya Aura Guía de referencia rápida
Avaya
Avaya MCC1 Manual de usuario
Avaya
Avaya G250 Series Manual de usuario
Avaya
Avaya G450 Manager Manual de usuario
Avaya
Avaya Media Gateway G250 Guía de instalación
Avaya
Avaya G700 Manual de usuario
Avaya
Avaya G700 Guía de instalación
Manuales populares de Puerta de otras marcas
LST
LST M500RFE-AS Manual de usuario
Kinnex
Kinnex Media Gateway Manual de usuario
2N Telekomunikace
2N Telekomunikace 2N StarGate Manual de usuario
Mitsubishi Heavy Industries
Mitsubishi Heavy Industries Superlink SC-WBGW256 Manual de usuario
ZyXEL Communications
ZyXEL Communications ZYWALL2 ET 2WE Manual de usuario
Telsey
Telsey CPVA 500 - SIP Manual de usuario
