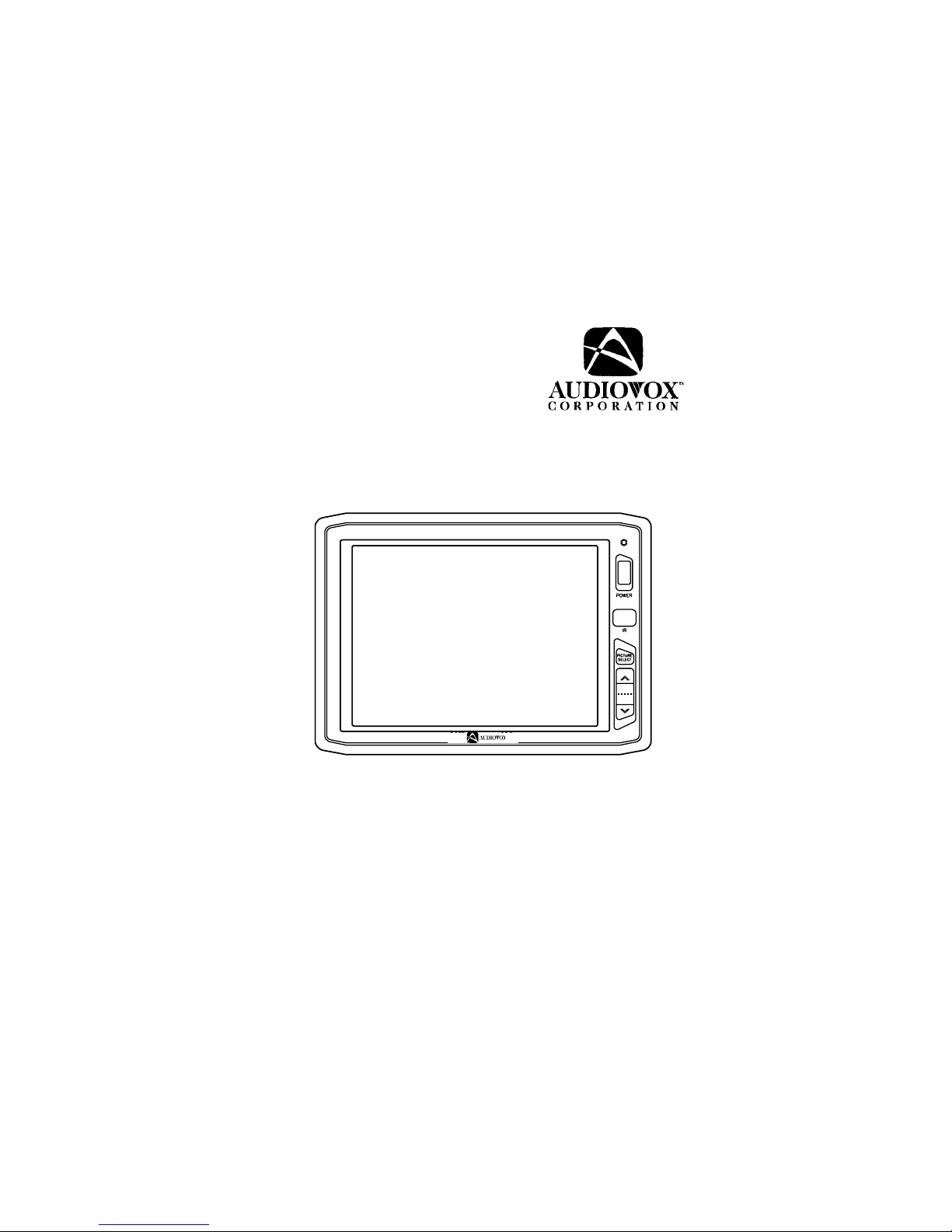

Audiovox LCM-0505 Manual de usuario
LCM-0505
5" Active Matrix LCD Monitor
Owners Manual
AUDIO OX
EXPLANATION OF GRAPHIC SYMBOLS
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE.
Thelightningflashwiththearrowheadwithin
a triangle is intended to alert tell the user
that parts inside the product are capable of
producing an electric shock .
The exclamation point within a triangle
is intended to alert the user that important
operating and servicing instructions are
being provided.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
1. Type: Color Liquid Crystal Display (LCD)
Monitor
2. Display Screen Size: 5 inches
( 102.7 x 74.9mm) ( W x H )
Element : TFT LCD
Format : 960 (W) x 234 (H) dot
Total 224,640 dot
3. Back Light: Cold Cathode Fluorescent Lamp
4. Power Source: +12 VDC
5. Power Consumption: 11W
6. Connection Terminals: Video Input Jack (RCA)
External Power Jack (DC IN 12V)
IR Jack
7. Operating Temperature: 32°F - 104°F
(0°C - 40°C)
8. Storage Temperature: -4°F - 176°F
(-20°C - +80°C)
9. Cabinet Dimensions: 6.29 in x 4.52 in X 1.57 in (WxHxD)
(160 x 115 x 40 mm)
10. Weight: 1.33 lbs (500g)
11. Video Format: NTSC
SPECIFICATIONS
3
CONTROLS AND INDICATORS
FRONT PANEL
1. Power On LED Indicator
2. Power On/Off Switch
3. Remote Control Sensor
4. Picture Select
5. On Screen Adjustment Up Button
6. On Screen Adjustment Down Button
AUDIO OX
1
2
3
4
5
6
4
REAR PANEL
7. Power InputConnector: Red = +12 VDC
Black = ground
8. Video Signal Input Connector
9. IR Repeater Connector
10. IR Repeater Transmitter
7
9
8
10
NOTE: This cable(10) is utilized to connect to Video Cassette Players
that do not accept the IR Repeater 1/8" (3.5mm) style
plug (9). The IR Repeater Transmitter is provided with an
adhesivethat allows it to adhere to Video Cassette Player
remote sensor. Remove the backing covering the adhesive
and place the IR Repeater Transmitter directly over the
Video Cassette Player remote sensor.
5
OPERATION
1. Connect the monitor power input plug (7) to a DC power
source (Red plug +12 VDC, Black plug (-) to ground).
2. Connectthe external video source output signal (fromVCP/
DVD, TV Etc.) to the VIDEO IN jack (8).
3. Press power On/Off button (2) to the On position. The LED
power indicator will light red.
4. Press the Picture Select button (4) to adjust the picture dis-
play characteristics. The adjustments will be shown on the
On Screen Display in the following sequence: Contrast,
Brightness, Color, and TINT.
5. Whilein the video adjustment mode, press the up button(5)
to increase the selected adjustment level or press the
down button (6) to decrease the level.
GENERAL INSTALLATION INFORMATION
1. Installation will vary from vehicle to vehicle, as headrests in
vehicles are not standard.
2. This unit is intended for installation by professional installers.
3. The kit consists of the screen assembly, a mounting
housing, key to remove screen from housing, wiring
harness and remote control unit.
4. To release screen from housing, slide the key on either the
right or left side of the screen between the housing and
screen assembly to release the two clips which hold the
screen assembly in the housing.
5. To install the screen assembly into the housing simply
insertthe screen assembly until youhearthe clips click into
the locking position. 6
6. Headrests will have to be cut to install the screen assembly
housing.
Caution - Do not over-cut the headrest beyond the height and
width of the housing.
7. To fasten the housing to the headrest, use either screws or
tie wraps. Find a suitable mounting surface in the headrest
to secure the housing.
Caution - Use the proper length screws, which will vary with
each headrest. If a suitable mounting surface cannot be
found, use tie wraps to secure the housing.
8.Attach the wiring to the screen, throughthehousinginto and
down the headrest and seat before permanently mounting
the housing and screen assembly.
9. Follow the wiring diagram in the owner’s manual for proper
wiring connections.
NOTE: A Remote Control Unit is included which will perform
the Functions and adjustments of Operation items 3,
4, and 5 as well as additional features as noted below.
REMOTE CONTROL FUNCTIONS:
LCD/VCP:........Power button for LCD/VCP
REPLAY: ..........Press to rewind tape and automatically go to
play mode.
PICTURE SEL: .OnScreenDisplay(OSD)forcolor,tint,brightness,
contrast. Use ± to adjust
REW: ...............Rewinds tape
FWD: ...............Fast Forward tape
PLAY: ...............Playstape
STOP:..............Stops tape 7
© 2000 Audiovox Corp., Hauppauge, NY 128-5747
CAUTION
1. Do not operate the monitor at temperatures below 32°F
(0°C) or above 104°F (40°C).
2. Keep the monitor clean and dry.
3. Alwaysseekqualifiedpersonnel toperform repairs.Never
attempt your own repairs.
4. Do not drop the monitor or expose to strong impacts.
5. Do not expose to direct sunlight for extended periods of
time.
