Audiovox CarStream Manual de usuario

CarStream

"T""()(~)"~fH

SATELLITE

RADIO

INTEGRATION

KIT

for selected Honda/Acura vehicles

Installation Guide/User manual

Copyrights and Trademarks

All Trademarks and Logos are the property

their respective owners.

Table

Contents

Warning and safety

...

.......................................................4 Operation ..............................................................

.......... 19

Product registration .........................................................5 Managing Multiple calls ....................................................

Kit contents ......................................................................6 Music Control ...................................................................

DIP switch overview .........................................................7 Audio Streaming ...............................................................

DIP switch settings ..........................................................8 Auxiliary audio source ......................................................23

Note to Installer ...............................................................9 Optional remote controller ...............................................

Connection diagram -Bluetooth and AUX ....................10 Troubleshooting .........................................................25-26

Connection diagram -Bluetooth and Satellite ...............

Firmware update .........................................................27-28

Installation .................................................................

12-13 Auxiliary audio source .......................................................28

Controls and Indicators ................................................14 Warranty ..........................................................................

Bluetooth I AUX operation

CDC mode ....................15 FCC Compliance ..............................................................

Bluetooth I AUX operation

SAT mode .....................16

SiriusXM operation

SAT mode ................................17

Pairing Your Phone .......................................................18

Warning

and

safety!

Please read these instructions carefully before proceeding. Failure to follow instructions may result

improper operation

injury. VOXX Electronics Corporation, its regional offices, distribuotrs or resellers

won't take any responsibility for any damage

injury as a result

using the integration kit.

-Do not open, disassemble

alter the interface

any way.

-Do not insert anything into the casing.

-Do not cut

try to alter cables

any way and always use the correct connections.

-Only

operate unit when stationary

ask passengers to operate it for you.

-Do not allow the Mobile Phone to distract you from driving.

-Exercise

good judgement and keep your eyes on the road at all times.

-Do not expose unit to extreme temperatures, humidity

shock.

-Keep away from children! -Interface components may contain small parts, can be broken or disassembled

and components may become loose from vibration and heat. Small components and packaging materials

may be a choking hazard when handled by children.

AUD

o,~ox

ti'li~

l'.®l~(

um'il·-~llltll

ll15

1~fl

t~il~1~ala

-it

~fJ1~

~~~~~~

rl~

Congratulations

your

purchase!

Thank you for purchasing this integration kit. Please review this booklet before operating the unit. This

interface was designed and manufactured to seamlessly integrate with your vehicle's factory audio system.

Product

registration

We recommend registering yourAudiovox product so you can receive news about important firmware updates

and have unlimited access to our online support system.

Visit http://www.audiovoxoei.com

Look up and save the serial number

the product.

Complete the product registration form.

4. Submit the form.

Save the registration sheet

a safe place for future reference.

If you are unable to complete the registration via internet, please call VOXX Electronics at 1-800-645-4994.

Prior to installation make sure the module's firmware is up to date to ensure compatibility

with the latest features and enhancements. Please refer to page 28 to update firmware.

CarStream

kit

contents

CarStream module Vehicle Interface

Harness

Optional accessories (sold separately):

AUX connector

(AACC106AUX) IR Receiver &

Remote controller

(AACC613RCK)

BCS1M Bluetooth

module

Adapter cable for

SXV200/300 tuner

(AACCSATCBL)

Clip and 2-sided mount

For more accessories, visit

www

.audiovoxoei.com

DIP

switch

overview

The configuration switches located on the CarStream module are used to set various operation modes

the interface. Incorrect DIP switch settings may cause the interface not to operate properly or at all.

Disconnect the vehicle harness from the module and set the ignition to the off position for

60 seconds after changing the switches then reconnect the module!

CarStream module

~~-~oFF

~l-IoN

1 2

ON/OFF

Switch

Positions

DIP

switch

settings

The following DIP switch settings are used to configure the CarStream module to interface with

the various radio systems. Before installation, set the DIP switch to the position shown for the

corresponding radios and desired features.

Car configuration switches

changer

(CDC)

Satellite (SAT)

IOFF

~ON

Use for radios that have Use on radios with SAT

integrated satellite radio or or XM button for best

do not support SAT mode. experience. Must be

External CDC (trunk or glove selected to support SiriusXM

box) must be disconnected. Vehicle tuner. Available

Text display

not

available

on North American radios.

this

emulation. SiriusXM

option is NOT supported in

this mode.

Attention

installer!

Please

read

the

following!

Audiovox

strongly

recommends that the

unit

be installed in an easily accessible location!

DO NOT

PLACE

IT BEHIND THE RADIO

AND

DO NOT HIDE UNDER CARPET!

Whether the unit is professionally or self installed, put the module where you, the end user can get to it easily

the future. (Have the installer show you where the interface module is installed.)

Installing the module behind the radio will make it difficult to:

-Add possible future upgrades, changing software, adding new features, improving operation;

-Access the AUX input on the module to attach any audio device;

-Access the DIP switches located on the module;

-Remove the unit in case

failure.

MAKE

SURE THAT THE MODULE IS IN

ACCESSIBLE

LOCATIONI

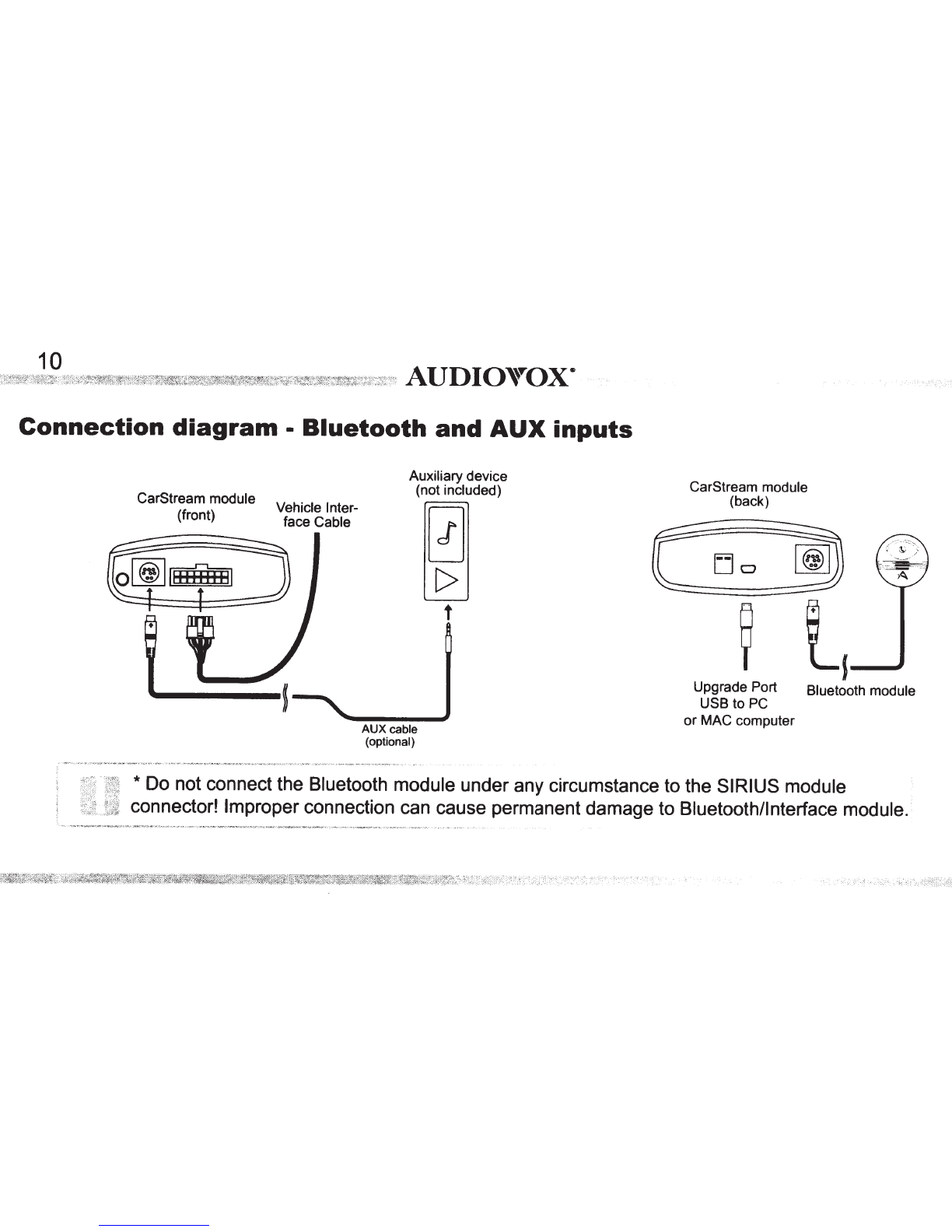

Connection

diagram

Bluetooth

and

AUX

inputs

CarStream module

(front) Vehicle Inter-

face Cable

Auxiliary device

(not included)

AUX cable

(optional)

CarStream module

(back)

EJo

l,____,

Upgrade Port Bluetooth module

USB to

or MAC computer

Do not connect the Bluetooth module under any circumstance to the SIRIUS module

connectorllmproper connection can cause permanent damage to Bluetooth/lnterface module.
