Configuration Note

Restoring Factory Defaults

Configuration Note Contents

Version 6.4 3 May 2012

Table of Contents

1Introduction .........................................................................................................7

2Restoring Defaults using CLI.............................................................................9

2.1 Establishing CLI Communication............................................................................9

2.2 CLI Command Procedure.....................................................................................10

2.2.1 MSBG Series, GW & E-SBC Series, and Mediant 4000.........................................10

2.2.2 MP-11x, Mediant 600, Mediant 1000, Mediant 2000, and Mediant 3000................11

3Restoring Defaults using ini File......................................................................13

4Restoring Defaults using Hardware Reset Button .........................................15

4.1 MP-11x Series......................................................................................................15

4.2 Mediant 600 and Mediant 1000 ............................................................................16

4.3 Mediant 800 MSBG and Mediant 800 GW & E-SBC.............................................16

4.4 Mediant 1000 MSBG and Mediant 1000B GW & E-SBC ......................................17

4.5 Mediant 4000........................................................................................................18

Configuration Note 4 Document #: LTRT-30302

Restoring Factory Defaults

List of Figures

Figure 2-1: CLI for Resetting Device to Default (MSBG Devices)..........................................................10

Figure 2-2: CLI for Resetting Device to Default (Non-MSBG Devices)..................................................11

Figure 3-1: Configuration File Page (MSBG Devices) ...........................................................................13

Figure 3-2: Configuration File Page (Non-MSBG Devices)....................................................................13

Figure 4-1: Reset Pinhole Button Location on MP-11x Rear Panel.......................................................15

Figure 4-2: Reset Pinhole Button Location on MP-124 Front Panel......................................................15

Figure 4-3: Reset Pinhole Button Location on Mediant 600 / 1000 Front Panel (CPU Module)............16

Figure 4-4: Reset Pinhole Button Location on Mediant 800 MSBG Front Panel...................................16

Figure 4-5: Reset Pinhole Button on Mediant 1000 MSBG Front Panel (CRMX Module).....................17

Figure 4-6: Reset Pinhole Button on Mediant 1000B Gateway & E-SBC Front Panel ..........................17

Figure 4-7: Reset Pinhole Button on Mediant 4000 ...............................................................................18

Configuration Note Notices

Version 6.4 5 May 2012

Notice

This document describes how to restore the device to factory default settings.

Information contained in this document is believed to be accurate and reliable at the time of

printing. However, due to ongoing product improvements and revisions, AudioCodes cannot

guarantee accuracy of printed material after the Date Published nor can it accept

responsibility for errors or omissions. Before consulting this document, check the

corresponding Release Notes regarding feature preconditions and/or specific support in this

release. In cases where there are discrepancies between this document and the Release

Notes, the information in the Release Notes supersedes that in this document. Updates to this

document and other documents as well as software files can be downloaded by registered

customers at http://www.audiocodes.com/downloads.

This document is subject to change without notice.

Date Published: May-14-2012

Trademarks

AudioCodes, AC, AudioCoded, Ardito, CTI2, CTI², CTI Squared, HD VoIP, HD VoIP

Sounds Better, InTouch, IPmedia, Mediant, MediaPack, NetCoder, Netrake, Nuera, Open

Solutions Network, OSN, Stretto, TrunkPack, VMAS, VoicePacketizer, VoIPerfect,

VoIPerfectHD, What’s Inside Matters, Your Gateway To VoIP and 3GX are trademarks or

registered trademarks of AudioCodes Limited. All other products or trademarks are

property of their respective owners. Product specifications are subject to change without

notice.

WEEE EU Directive

Pursuant to the WEEE EU Directive, electronic and electrical waste must not be disposed

of with unsorted waste. Please contact your local recycling authority for disposal of this

product.

Customer Support

Customer technical support and service are generally provided by AudioCodes’

Distributors, Partners, and Resellers from whom the product was purchased. For technical

support for products purchased directly from AudioCodes, or for customers subscribed to

AudioCodes Customer Technical Support (ACTS), contact support@audiocodes.com.

Abbreviations and Terminology

Each abbreviation, unless widely used, is spelled out in full when first used.

Configuration Note 6 Document #: LTRT-30302

Restoring Factory Defaults

Reader's Notes

Configuration Note 1. Introduction

Version 6.4 7 May 2012

1 Introduction

This document describes the main methods for restoring the device to factory default

settings. When reset to factory defaults, the device's current configuration settings are lost

and any auxiliary files loaded on the device are erased. In addition, the device resets to

default values according to the software version file (i.e., cmp file) running on the device.

You can restore the device's configuration to factory defaults, using one of the following

main methods:



Command-line interface (CLI) - see Section 2on page 9



ini configuration file - see Section 3on page 13



Hardware reset button - see Section 4on page 15

Note: This document applies to the following devices:

•MP-1xx (MP-11x and MP-124)

•Mediant 600

•Mediant 800 MSBG

•Mediant 800 Gateway & E-SBC

•Mediant 1000

•Mediant 1000 MSBG

•Mediant 1000B Gateway & E-SBC

•Mediant 2000

•Mediant 3000

•Mediant 4000 E-SBC

Configuration Note 8 Document #: LTRT-30302

Restoring Factory Defaults

Reader's Notes

Configuration Note 2. Restoring Defaults using CLI

Version 6.4 9 May 2012

2 Restoring Defaults using CLI

The device can be restored to factory defaults using the CLI, as described in the procedure

below.

2.1 Establishing CLI Communication

Before you can restore defaults, you need to establish CLI communication with the device.

To restore factory defaults using CLI:

1. Cable the device's RS-232 serial port to the COM1 or COM2 communication port on

your PC. For a detailed description on serial cabling, refer to the device's Installation

Manual.

2. Establish a serial communication with the device, using a serial communication

program such as HyperTerminal. The table below lists the COM port settings.

Table 2-1: COM Port Settings

Parameter Devices Value

Baud Rate •Mediant 600

•Mediant 800 MSBG

•Mediant 800 Gateway & E-SBC

•Mediant 1000 MSBG

•Mediant 1000

•Mediant 1000B Gateway & E-SBC

•Mediant 2000

•Mediant 3000

•Mediant 4000 E-SBC

115,200 bps

MP-11x 9,600 bps

MP-124 115,200 bps

Data bits All 8

Parity All None

Stop bits All 1

Flow control All None

Configuration Note 10 Document #: LTRT-30302

Restoring Factory Defaults

2.2 CLI Command Procedure

Once you have established CLI communication, as described in Section 2.1, you need to

run specific CLI commands for restoring defaults. The CLI command procedure depends

on the type of device you are using.

2.2.1 MSBG Series, GW & E-SBC Series, and Mediant 4000

For the MSBG Series, Gateway & E-SBC Series, and Mediant 4000 E-SBC devices, follow

the procedure below.

To restore factory defaults:

1. At the CLI prompt, type the username (default is "Admin" - case sensitive), and then

press Enter:

# Username: Admin

2. At the prompt, type the password (default is "Admin" - case sensitive), and then press

Enter:

# Password: Admin

3. At the prompt, type the following, and then press Enter:

> enable

4. At the prompt, type the password again, and then press Enter:

# Password: Admin

5. At the prompt, type the following to reset the device to default settings, and then press

Enter:

# write factory

The CLI commands mentioned in the procedure are shown in the terminal emulation

program (HyperTerminal) below:

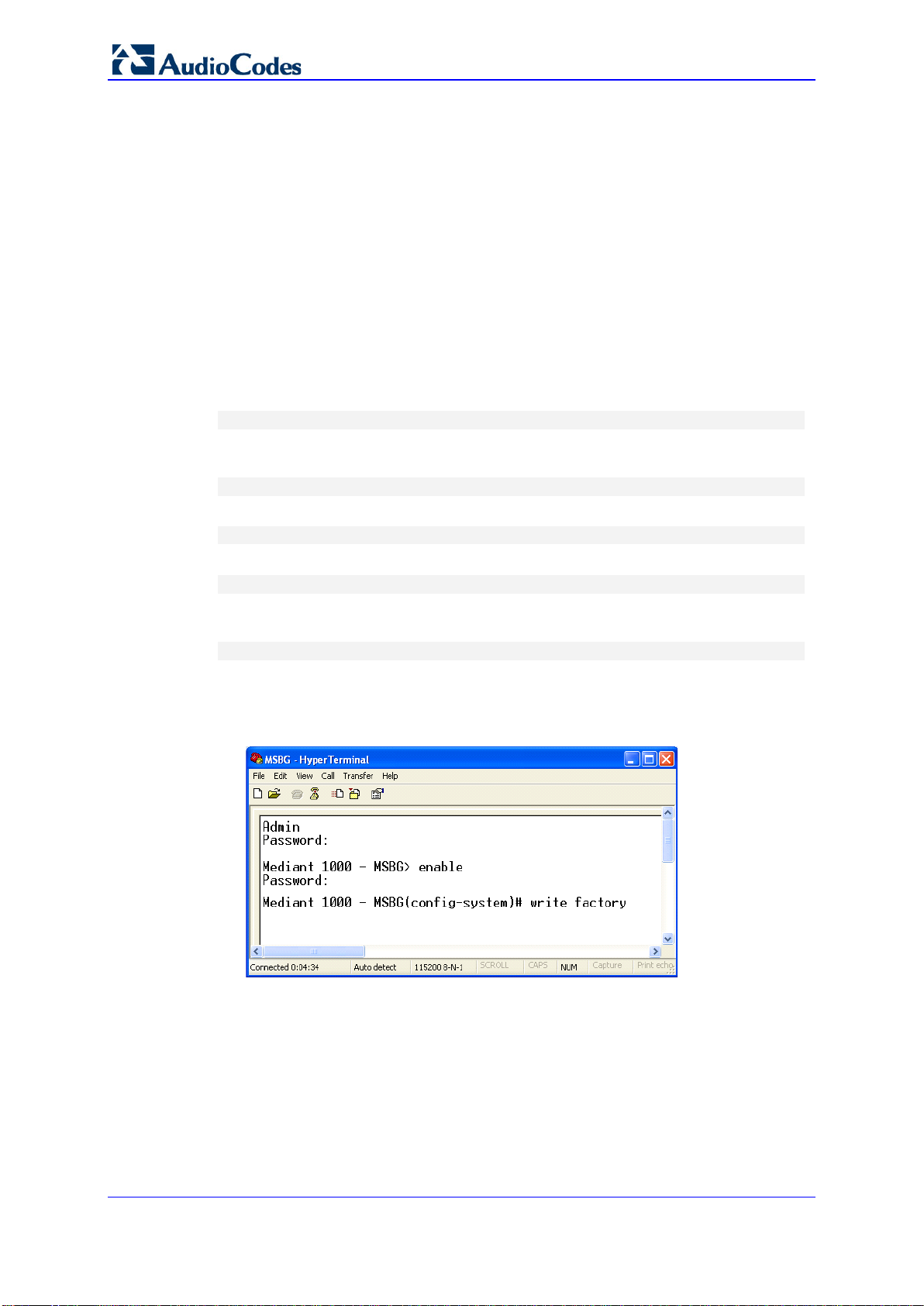

Figure 2-1: CLI for Resetting Device to Default (MSBG Devices)
