AudioCodes MP-204 Manual de usuario

SAVES BUSINESS

COMMANDER ATA

Quick Start Guide

SAVES BUSINESS

After you have completed

steps 1 through 5, your ATA will

automatically start talking to

our servers. It will retrieve your

conguration details and other

settings during this time, so please

leave it connected and allow up to

10 minutes for your ATA to set up

automatically. Your ATA may reboot

during this process.

Ensure that you have:

• AudioCodes’ MP-204 FXS ATA

• A 12V AC/DC power cord adaptor

(use only the supplied)

You’ll also need:

• Your broadband

Internet connection

• Analogue telephones or PABX

(up to 4 ports depending on

your solution)

• RJ-11 telephone cables

• RJ-45 Ethernet cable

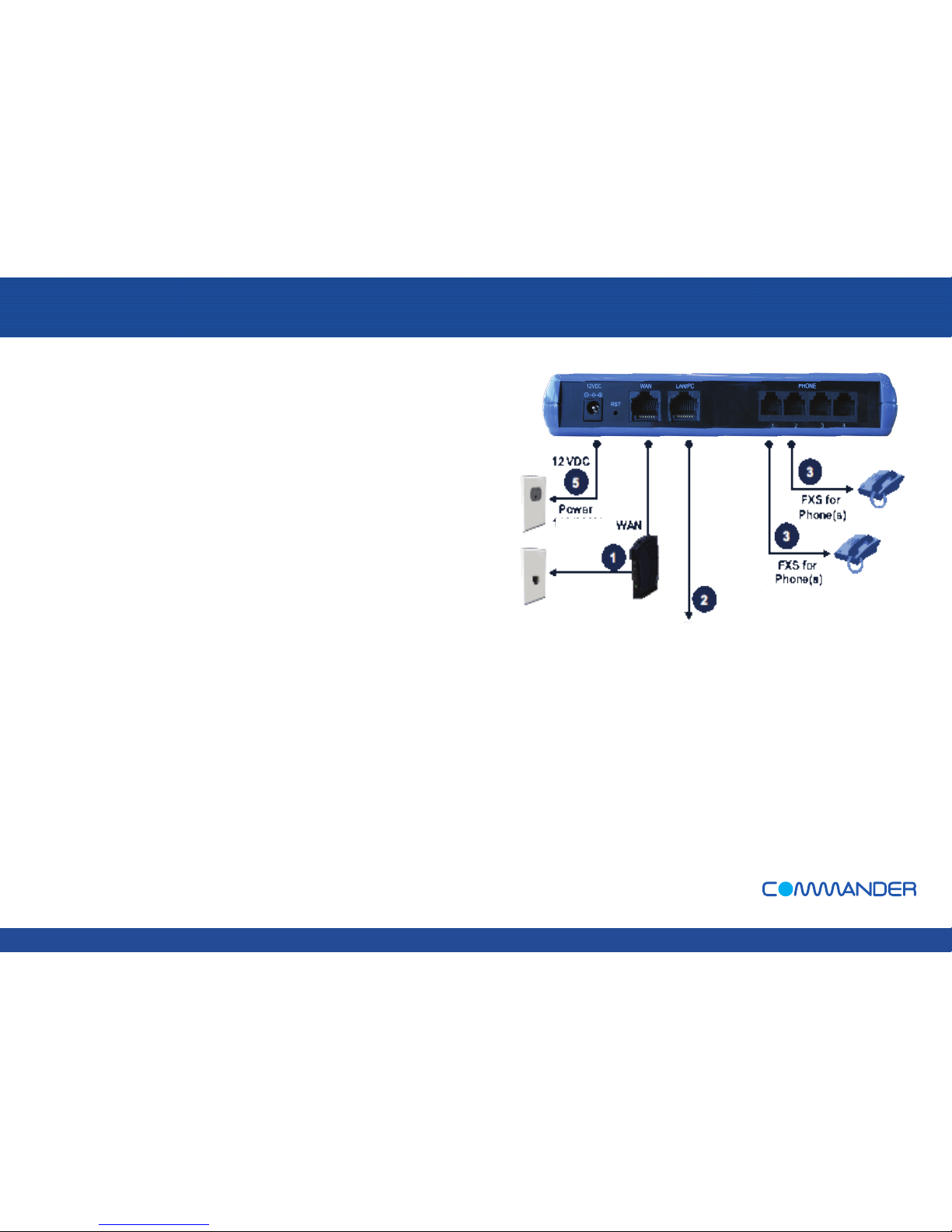

1. Connect the MP-204’s Ethernet

connector labelled WAN to one

of the LAN ports on your Internet

Gateway, using the Ethernet cable.

2. Do not connect.

3. Connect the MP-204’s telephone

ports labelled PHONE to analogue

telephones, using the RJ-11

telephone cables. (The number

of telephone ports depends on

your solution.)

5. Connect the MP-204 to a standard

220 VAC electrical wall outlet,

using the AC/DC power adapter;

the POWER LED is lit (green) and

when initialization completes (~1

minute), the STATUS LED changes

from red to green.

1. BEFORE INSTALLING

ANALOGUE TERMINAL

ADAPTOR (ATA)

2. CABLING AND

CONNECTIONS

220V

Internet

Gateway

SAVES BUSINESS
