AMP22 - User manual 05

Introduction

Mini stereo power amplier

The AMP22 is a mini stereo power amplier with a power rating of 2 x 15 Watt, which lends itself perfectly to small speaker

systems requiring compact and economical audio solutions. It offers the ideal solution for applications such as classrooms,

ofces and meeting rooms where a small amount of speakers are required.

The compact size and very high efciency makes it perfectly suited to be hidden in a closet, on a false ceiling or mounted

under a desk or table.

The combination of the stereo balanced line and microphone input make it perfectly suited for applications where it should be

used in combination with projection screens and video sources while a microphone is connected. Two gain potentiometers

make it possible to control the sensitivity and balance between music and speech, while a switch allows bridging of the

output channels to obtain one channel with merged output power.

A remote wall panel can be connected for applications where local mixing of the inputs is desirable, while large distances can

be covered between the source and amplier using simple CAT5E twisted pair cabling. The volume controller input allows

connection of an additional wall controller for overall volume control.

The Class-D Amplier technology, standby mode and included switching power supply makes this device compliant to Energy

Star 3.0 and other strict energy efciency and environmental requirements.

AMP22 - User manual06

Precautions

READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY

ALWAYS KEEP THESE INSTRUCTIONS. NEVER THROW THEM AWAY

ALWAYS HANDLE THIS UNIT WITH CARE

HEED ALL WARNINGS

FOLLOW ALL INSTRUCTIONS

NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR SPLASHING LIQUID. AND NEVER PLACE AN OBJECT FILLED WITH

LIQUID ON TOP OF THIS DEVICE

NO NAKED FLAME SOURCES, SUCH AS LIGHTED CANDLES, SHOULD BE PLACED ON THE APPARATUS

DO NOT PLACE THIS UNIT IN AN ENCLOSED ENVIRONMENT SUCH AS A BOOKSHELF OR CLOSET. ENSURE THERE IS ADEQUATE

VENTILATION TO COOL THE UNIT. DO NOT BLOCK THE VENTILATION OPENINGS.

DO NOT STICK ANY OBJECTS THROUGH THE VENTILATION OPENINGS.

DO NOT INSTALL THIS UNIT NEAR ANY HEAT SOURCES SUCH AS RADIATORS OR OTHER APPARATUS THAT PRODUCE HEAT

DO NOT PLACE THIS UNIT IN ENVIRONMENTS WHICH CONTAIN HIGH LEVELS OF DUST, HEAT, MOISTURE OR VIBRATION

THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY. DO NOT USE IT OUTDOORS

PLACE THE UNIT ON A STABLE BASE OR MOUNT IT IN A STABLE RACK

ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED BY THE MANUFACTURER

UNPLUG THIS APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME

ONLY CONNECT THIS UNIT TO A MAINS SOCKET OUTLET WITH PROTECTIVE EARTHING CONNECTION

THE MAINS PLUG OR APPLIANCE COUPLER IS USED AS THE DISCONNECT DEVICE, SO THE DISCONNECT DEVICE SHALL BE READILY

OPERABLE

USE THE APPARATUS ONLY IN MODERATE CLIMATES

CAUTION

The symbols shown are internationally recognized symbols that warn about potential hazards of electrical products.

The lightning ash with arrow point in an equilateral triangle means that the unit contains dangerous voltages. The

exclamation point in an equilateral triangle indicates that it is necessary for the user to refer to the users manual.

These symbols warn that there are no user serviceable parts inside the unit. Do not open the unit. Do not attempt to service

the unit yourself. Refer all servicing to qualied personnel. Opening the chassis for any reason will void the manufacturer’s

warranty. Do not get the unit wet. If liquid is spilled on the unit, shut it off immediately and take it to a dealer for service.

Disconnect the unit during storms to prevent damage.

AMP22 - User manual 07

CAUTION - SERVICING

This product contains no user serviceable parts. Refer all servicing to qualied service personnel. Do

not perform any servicing (unless you are qualied to)

EC DECLARATION OF CONFORMITY

This product conforms to all the essential requirements and further relevant specications described

in following directives: 2014/30/EU (EMC) & 2014/35/EU (LVD).

WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)

The WEEE marking indicates that this product should not be disposed with regular household waste

at the end of its life cycle. This regulation is created to prevent any possible harm to the environment

or human health.

This product is developed and manufactured with high quality materials and components which can be

recycled and/or reused. Please dispose this product at your local collection point or recycling centre for

electrical and electronic waste. This will make sure that it will be recycled in an environmentally friendly

manner, and will help to protect the environment in which we all live.

AMP22 - User manual08

Chapter 1

Connections and connectors

CONNECTION STANDARDS

The in- and output connections for AUDAC audio equipment are performed according to international wiring

standards for professional audio equipment

3-Pin Terminal block:

Left:

Center:

Right:

For balanced signal input connections

For mic input connections For unbalanced signal input connections

Signal -

Signal +

Ground

RCA:

Unbalanced line audio input connections

PIN 1:

PIN 2:

PIN 3:

Ground

Signal +

Signal -

XLR

For balanced line or mic input connections

Tip:

Sleeve:

Signal

Ground

AMP22 - User manual 09

ATTENTION

The twisted pair cabling must always be ‘straight’. In case of self made cabling, it must be wired as described

above, to make the system work properly.

Volume controller RJ45:

For connection to wall mounted volume controllers (overall or master volume control)

Pin 1 White-Orange N/C

Pin 2 Orange N/C

Pin 3 White-Green - 8 V DC

Pin 4 Blue 0 ~ - 8V Variable in

Pin 5 White-Blue GND

Pin 6 Green GND

Pin 7 White-Brown N/C

Pin 8 Brown N/C

Remote wall panel RJ45 (Audio, +24V DC)

For connection to wall input panels

Pin 1 White-Orange Audio left +

Pin 2 Orange Audio left -

Pin 3 White-Green +24V DC

Pin 4 Blue N/C

Pin 5 White-Blue N/C

Pin 6 Green GND

Pin 7 White-Brown Audio right +

Pin 8 Brown Audio right -

AMP22 - User manual010

Front panel

Chapter 2

Overview AMP22

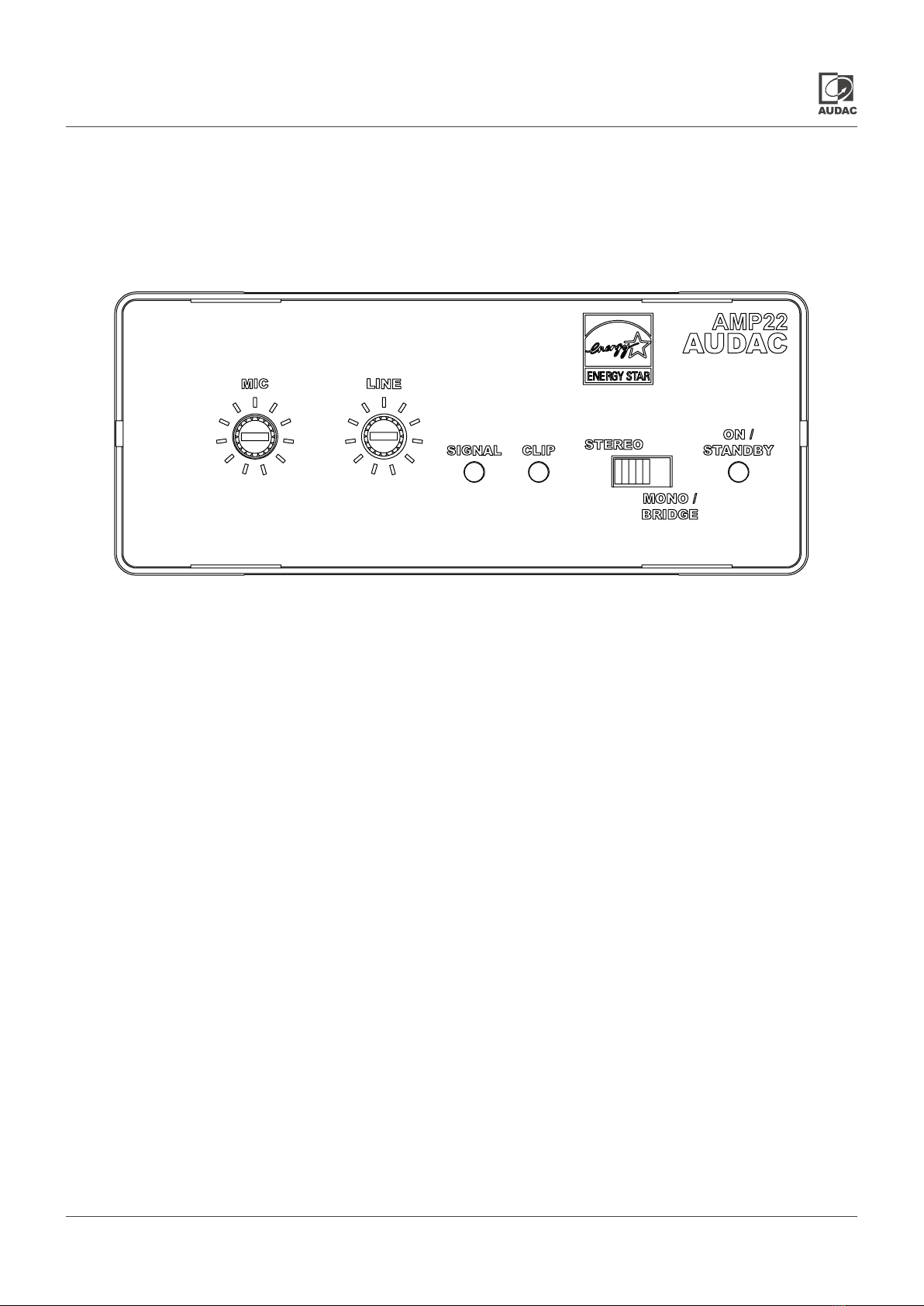

The front panel of the AMP22 contains all the control and indicator functions.

Two gain control potentiometers are provided with which the gain of the line and microphone inputs can be

regulated separately and the balance between the music and speech can be set.

A slide switch provides the possibility to switch the amplier between Stereo and Mono / Bridge mode. If this

switch is set to stereo, the output will be stereo. If its set to Mono / Bridge, the Left and Right channels will

be summed to a dual-mono output.

Three indication LED’s for ‘ON / STANDBY’, ‘SIGNAL’ and ‘CLIP’ indicate the operation mode of the amplier.

The ‘ON / STANDBY’ LED will turn green when the device is switched ON and running. When no signal with

a sufciently high level is detected for a certain period of time, it will switch to standby mode and this LED will

turn orange. The ‘SIGNAL’ LED will turn green when a signal with a sufciently high level is detected and the

‘CLIP’ LED will start blinking when the signal reached the clipping level and the internal limiter starts working.
