Quick Guide for Cube 5E

Version 1.0 (4/21/2022)

Specifications

Power Input

240VAC, 30A Max

Power Input Connector

L14-30P, Male Receptacle (L1, L2, N, G)

Power Output (to heater)

240VAC, 30A Max

Power Output Connector (to heater)

L6-30R, Female Receptacle (L1, L2, G)

Switch for 240V Socket

32A, 2-pole, Circuit Breaker

Switch for 120V AUX Socket

SW4 (10A Max)

Switch for Temperature Controller

SW9-UL (16 mm, Maintained, 120V LED, Blue)

Temperature Controller

EZBoil® (DSPR320A, or DSPR120)

Temperature Probe

PT100 RTD sensor

Probe Connector on Panel

XLRCON-M, black

Power-switching Device

40A AC solid-state relay (SRDA40)

Dimensions (W x H x D)

9.1 x 7.9 x 8.9 inches (230 x 200 x 225 mm)

Weight

7.9 lbs. (3.6 Kg)

Working Environment

0°C - 50°C, < 85% RH

Identify the Parts

Front panel

Back panel

Figure 1. The front and the back panel of Cube 5E.

(Connector wiring: G - ground, W - neutral, X –Line 1, Y –Line 2)

Auber Instruments, Inc. www.auberins.com

Page 2of 2

Basic Operations

1. Power Input. This Cube unit requires US 240V power with L1, L2, neutral, and ground. Please

ensure the wiring in the L14-30R power input connector (plug) is correct. After the Cube is

connected to the correct power source, the ON/OFF Switch for the Controller on the lower

front panel should light up.

2. Temperature Controller. Press the ON/OFF Switch for Controller to turn on the EZBoil®

temperature controller. Please consult the user manual of the EZBoil controller to get familiar

with how to program the controller.

3. Sensor Input. Connect a PT100 RTD sensor to the XLRCON-M port on the back panel of the

Cube unit. The controller should show current temperature reading from the sensor. Before a

PT100 RTD sensor is connected, the controller will show error code “ORAL” and “932”

alternatively.

4. Output Indicator. On the EZBoil controller, the green LED indicator “OUT” shows the power

output status.

5. AUX Output Sockets. The AUX1 socket and AUX2 socket will supply 120V power if the

corresponding AUX switch is turned to the ON position. Turn AUX switches to the OFF position

if these 120V sockets are not in use.

6. Main Switch. The Main Switch (32A 2-pole circuit breaker) controls the power to the HEATER

socket (L6-30R). Flip the Main Switch to the ON position will enable the 240V power to the

HEATER socket. In situations where you need to cutoff power to the 240V heater socket or

when the solid-state relay is shorted, flip this Main Switch to OFF position.

(End)

Auber Instruments

5755 North Point Parkway, Suite 99

Alpharetta, GA 30022, USA

www.auberins.com

E-mail: [email protected] Tel: 770-569-8420

No part of this manual shall be copied, reproduced, or transmitted in any way without the prior, written consent of Auber Instruments. Auber

Instruments retains the exclusive rights to all information included in this document.

Otros manuales de Controladores de Auber Instruments

Auber Instruments

Auber Instruments EZboil DSPR120 Manual de usuario

Auber Instruments

Auber Instruments SYL-3615 Manual de usuario

Auber Instruments

Auber Instruments SYL-3615 Manual de usuario

Auber Instruments

Auber Instruments KIT-RSPb Manual de usuario

Auber Instruments

Auber Instruments WS-1500A Guía del administrador

Auber Instruments

Auber Instruments SYL-2615 Manual de usuario

Auber Instruments

Auber Instruments EZboil DSPR310D Manual de usuario

Auber Instruments

Auber Instruments WS-1500EPM Guía del administrador

Auber Instruments

Auber Instruments Auberins KIT-GGP Manual de usuario

Auber Instruments

Auber Instruments KIT-Cube5E Manual de usuario

Auber Instruments

Auber Instruments RDK-300B Manual de usuario

Auber Instruments

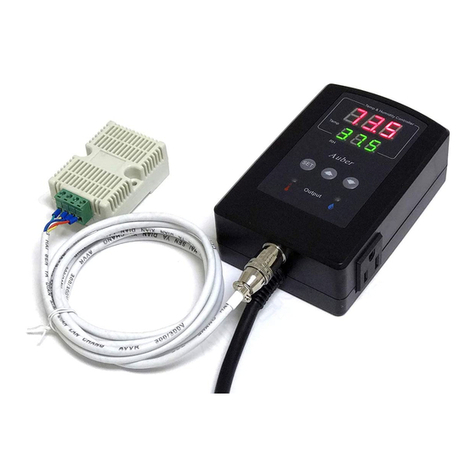

Auber Instruments TH220A Manual de usuario
