User Manual
CS-521/ CS-522
Read this guide thoroughly and follow the installation and operation
procedures carefully in order to prevent any damage to the unit and/or
any devices that connect to it.
This package contains:
M1 CS-521 or CS-522 Two Port Petite KVM Switch with Attached Cables
M1 User Manual
M1 Quick Start Guide
If anything is damaged or missing, contact your dealer.
© Copyright 2003 ATEN®International Co., Ltd.
Manual Part No. PAPE-1236-1AT
Printed in Taiwan 06/2003
All brand names and trademarks are the registered property of their respective owners.
2003-06-24
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy, and if not installed and
used in accordance with the instruction manual, may cause
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
MReorient or relocate the receiving antenna;
MIncrease the separation between the equipment and
receiver;
MConnect the equipment into an outlet on a circuit different
from that which the receiver is connected;
MConsult the dealer or an experienced radio/television
technician for help.
2003-06-24
Overview
The CS-521 or CS-522 KVM Switch is a control unit that allows
access to two computer systems from a single console
(keyboard, monitor, and mouse).
The CS-521 / CS-522 improves on previous models with a 50%
smaller desktop footprint plus built-in custom KVM cables for
trouble-free installation and a neat and tidy workspace.
For increased efficiency and cable compactness, each of the
CS-522’s cables use a USB connector (rather than two PS/2
connectors) to transfer keyboard and mouse input to the
computer.
For backward compatibility, only one of the CS-521’s cables
uses a USB connector. Its other cable uses the traditional two
PS/2 connectors to transmit keyboard and mouse input.
Recognizing the increased importance of sound, the CS-521 /
CS-522 is speaker enabled. You can listen to the audio output
of both computers (one at a time) on a single set of speakers
attached the the Switch.
Setup is fast and easy; plugging cables into their appropriate
ports is all that is entailed. There is no software to configure, no
installation routines, and no incompatibility problems. Since the
CS-521 / CS-522 intercepts keyboard input directly, it works on
any hardware platform and with all operating systems. The
KVM focus is switched among the computers by means of
simple Hot Key combinations entered from the keyboard.
There is no better way to save time and money than with a
CS-521 / CS-522 installation. By allowing a single console to
manage both computers, the CS-521 / CS-522 eliminates the
expense of purchasing a separate keyboard, monitor, and
mouse for each. Additionally, it saves the extra space they
would take up, and eliminates the inconvenience and wasted
effort involved in constantly having to move from one computer
to the other.
- 1 -
2003-06-24
Features
MOne console controls two computers
MCompact design features two attached KVM (keyboard,
video, mouse, and speaker) cables
MUSB connection transfers keyboard and mouse input to both
computers (CS-522)
MUSB connection transfers keyboard and mouse input to one
of the computers; PS/2 connection transfers keyboard and
mouse input to the other (CS-521)
MSpeaker enabled
MEasy to install - no software required - connecting cables to
the computers is all it takes
MEasy to operate - computer selection via Hotkeys - Auto
Scan function to monitor computer operation
MHot pluggable - add or remove computers for maintenance
without powering down the switch
MLED display for easy status monitoring
MCaps Lock, Num Lock, and Scroll Lock states are saved and
restored when switching
MKeyboard and mouse emulation for error free computer
booting
MSupports Microsoft IntelliMouse and the scrolling wheel on
most mice
MSuperior video quality - up to 2048 x 1536; DDC2B
MNon-powered
MCompatible with all operating platforms
- 2 -
2003-06-24
Hardware Requirements
Console
MA VGA, SVGA, or Multisync monitor capable of the highest
resolution that you will be using on any computer in the
installation
MA PS/2 Mouse
MA PS/2 Keyboard
Computers
The following equipment must be installed on each computer
that is to be connected to the system:
MA VGA, SVGA or Multisync card.
MA 6-pin mini-DIN (PS/2 style) mouse port.
MA 6-pin mini-DIN (PS/2 Style) keyboard port .
MUSB Type A port and Host Controller
Cables
For optimum signal integrity and to simplify the layout, two high-
quality integrated CS Custom KVM cables have been molded
into the CS-521 / CS-522 Switch. There is no need for a
separate cable purchase.
- 3 -
2003-06-24
CS-521 Front View
1. USB KVM Cable
This integrated cable connects to the the USB, video, and
audio ports of the computer you are installing.
2. PS/2 KVM Cable
This integrated cable connects to the the keyboard, video,
mouse, and audio ports of the computer you are installing.
3. Port LEDs
MA Port LED lights to indicate that its corresponding port
has the KVM focus.
MDepending on the port’s status, the LED may flash
according to a specific pattern (see the LED Display
Table, p. 10, for details).
4. Speaker Jack
The cable from your speakers plugs in here.
5. Console Ports
Your keyboard, monitor, and mouse plug in here. Each port
is marked with an appropriate icon to indicate itself.
- 4 -
3
2
1
5
4
2003-06-24

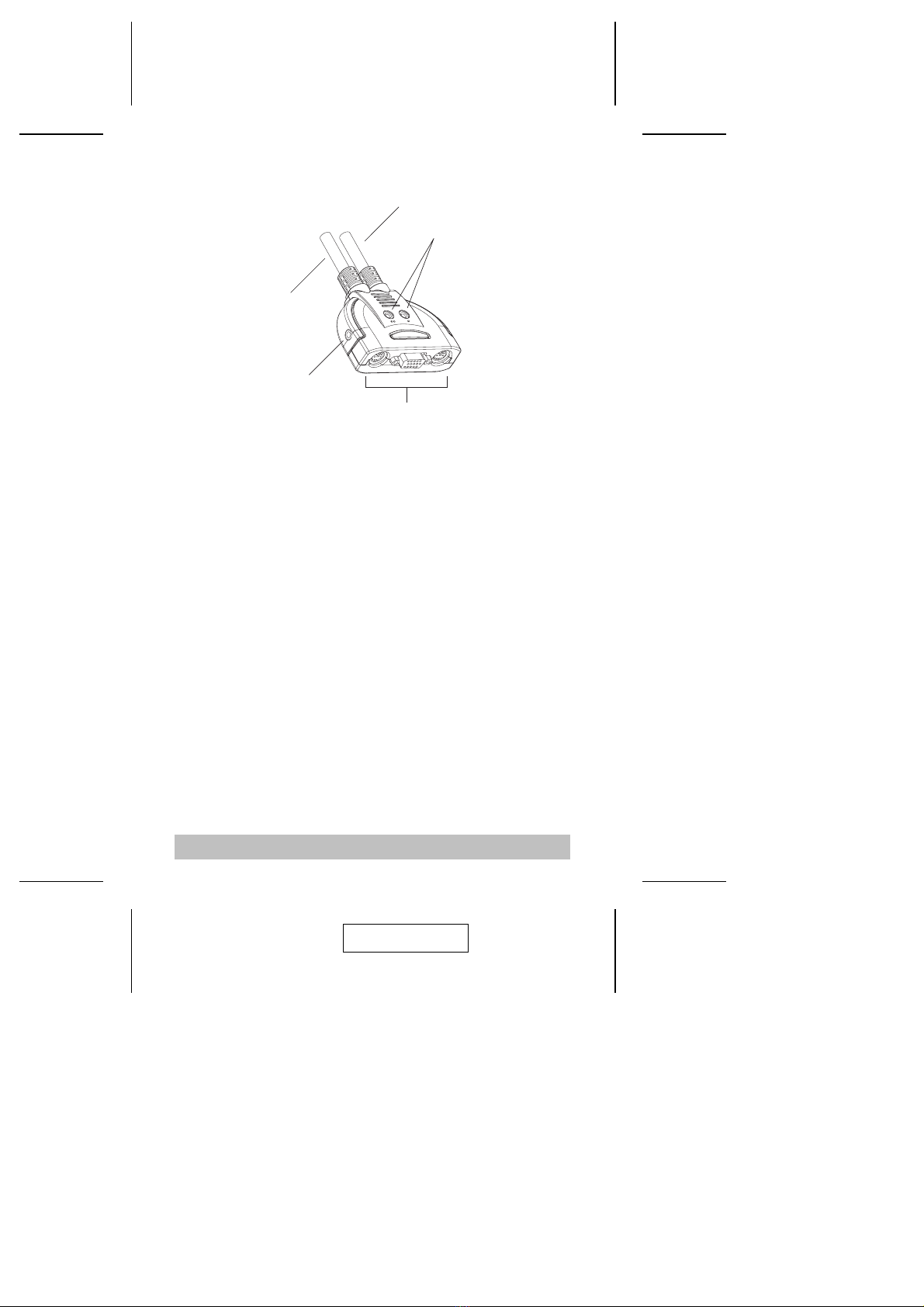

CS-522 Front View
1. KVM Cables
These integrated cables connect to the the USB, video, and
audio ports of the computers you are installing.
2. Port LEDs
MA Port LED lights to indicate that its corresponding port
has the KVM focus.
MDepending on the port’s status, the LED may flash
according to a specific pattern (see the LED Display
Table, p. 10, for details).
3. Speaker Jack
The cable from your speakers plugs in here.
4. Console Ports
Your keyboard, monitor, and mouse plug in here. Each port
is marked with an appropriate icon to indicate itself.
- 5 -
2
1
4
3
2003-06-24
Installation
Refer to the Installation diagrams on the next two pages as you
perform the following steps:
1. Plug your keyboard, monitor, and mouse into the appropriate
Console ports of the CS-521 / CS-522 Switch. Each port is
labeled with an appropriate icon to indicate itself.
2. (Optional) Plug your speakers into the CS-521 / CS-522’s
speaker jack.
3. Plug the attached KVM cables’ connectors into their
respective ports on the computers you are installing.
4. Turn on the power to the computers.
Note: The CS-521 / CS-522’s Power On default is to link to
the first computer you turn on.
- 6 -
1. Before you begin, make sure that power to all the
devices you will be connecting up have been
turned off. You must unplug the power cords of
any computers that have the Keyboard Power On
function. Otherwise, the switch will receive power
from the computer.
2. To prevent damage to your installation, make sure
that all devices on the installation are properly
grounded.
2003-06-24
CS-521 Installation Diagram
- 7 -
1
2
33
2003-06-24
CS-522 Installation Diagram
- 8 -
1
2
33
