Introduction

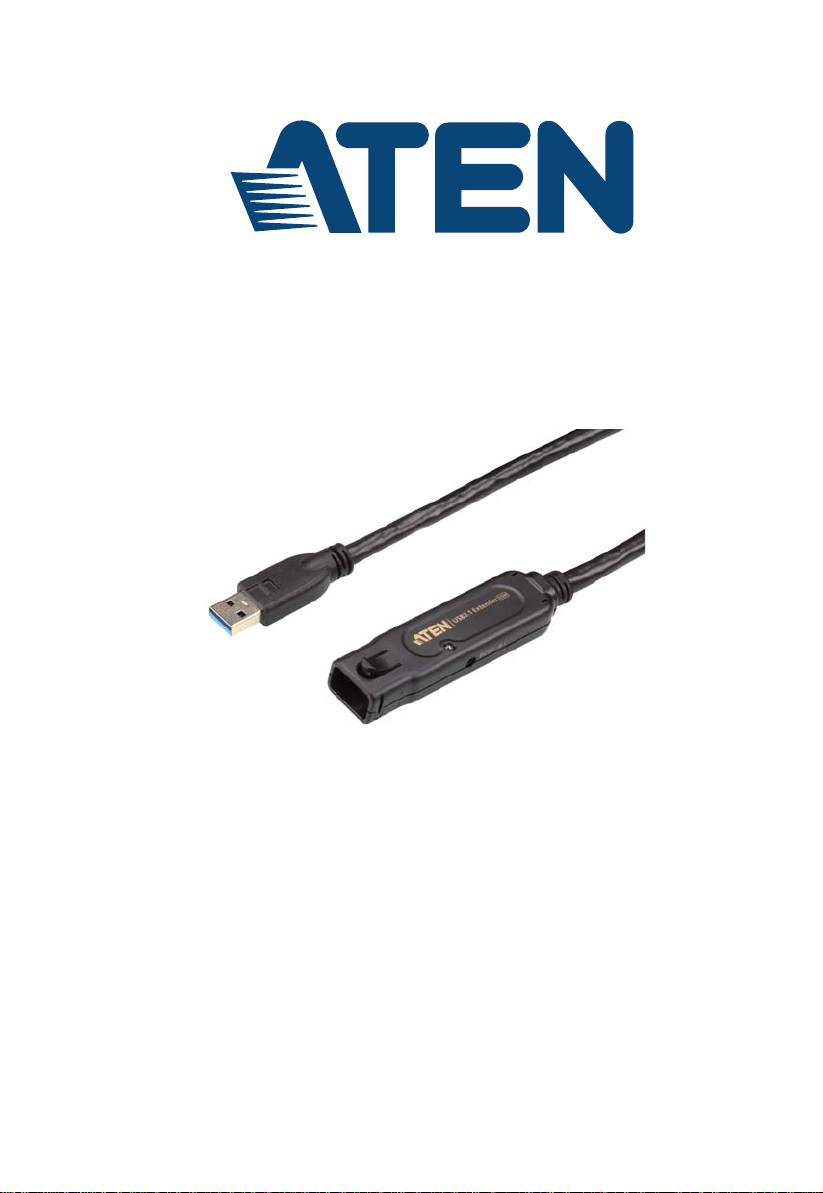

The UE3310 / UE3315 USB 3.1 Gen 1 Extender Cable allows you to extend the distance

betweenyour computer and your USB peripheralsby10/ 15meters. Unlike typical cables

the UE3310 / UE3315 is an active extension cable. All USB signals transmitted through it

areregeneratedtomaintainoptimalsignalintegritytomeettheUSB3.1specification.The

USB can be powered through the computer via the extender cable.

UE3310 / UE3315 Product Contents

Your UE3310 / UE3315 is packaged with:

1x UE3310 USB3.1 Gen1 Extender Cable / 1x UE3315 USB3.1 Gen1 Extender

Cable

1x AC Power Adapter

1x Extension Cable

Requirements

To complete the installation, you will also require the following items that are not included

with the product:

USB 1.1, 2.0 or 3.1 compatible computer (host computer) with a USB compliant

operating system

USB 1.1, 2.0 or 3.1 compatible device

Features

Supports USB 3.1 Gen1 Specification (5 Gbps)

Ultra slim lightweight design

Unique locker head design for long-distance extension usage – daisy-chain a further

four units for a maximum distance of up to 50 m

Multiplatform support – Windows and Mac

Additional power supply included

Manual Date: 2017-02-21

ATENandthe ATENlogoare registeredtrademarksofATEN InternationalCo., Ltd. Allrightsreserved.

All other brand names and trademarks are the registered property of their respective owners.

UE3310 / UE3315 User Manual

The UE3310 / UE3315 Top View

ITEM TYPE DESCRIPTION

1 USB Connector Connect the USB peripherals to the USB Connector.

2 Power LED LED lights green when power is on and the UE3310 /

UE3315 is connected.

3ACPower

Adapter Port Use this port to connect a power adapter.

4 USB lock Used to connect to the host device (computer).

UE3310 / UE3315 User Manual

The UE3310 / UE3315 Side View

ITEM TYPE DESCRIPTION

1 USB Connector Connect the USB peripherals to the USB Connector.

2 AC Power

Adapter Port Use this port to daisy chain other UE3310 / UE3315 extender

cables.

3 USB lock Used to connect to the host device (computer).

UE3310 / UE3315 User Manual

UE3310 / UE3315 Installation Guide

Before you can install the UE3310 / UE3315, you need to:

1. Connect your UE3310 / UE3315 the computer’s USB port.

2. Use the UE3310 / UE3315 extender cable to connect the computer to your USB

peripheral device.

3. Turn on your computer, and your USB device.

(Optional) To utilize the maximum extended distance follow these steps:

4. Attach additional USB.3.1 Gen 1 Extender Cables (up to 50 meters maximum) to the

installation using a daisy chain configuration.

5. Use a power adapter if used in a daisy chain configuration. If the USB devices have

high usage consumption you may need to add extra power adapters. The power

adapter should be attached to the last USB connector in the daisy chain set up.

UE3310 / UE3315 User Manual

Daisy Chaining

To extend the signal to a greater distance, up to 50 meters UE3310 / UE3315 Extender

cables can easily be daisy chained from the original UE3310 / UE3315 via a unique daisy

chain port.

Themaximumnumberofcablesthatcanbedaisychained together is dependent on cable

model number. The UE3310 can connect a total of 5 cables and the UE3315 can connect

a total of 3 cables. The UE3310 and the UE3315 can be combined together using a daisy

chain set up. Two UE3310 and two UE3315 cables will equal 50 meters.

Connecting a USB Device

If the USB device’s connector is too big to fit the connection on the USB lock, then use

the extension cable to connect your device.

Compatibility

Compatible with USB 3.1 specifications and backwards compatibility with USB 1.1/2.0

governing the design of USB devices. However, ATEN does not guarantee that all USB

devices are compatible with the UE3310 / UE3315, as there are a number of different

configurations that may impact the operation of USB devices over extended distances.
