AT-610 Quick Start Guide

ATCOM TECHNOLOGY CO., LIMITED

AT-610 Quick Start Guide

ISSUE 1.0

2009-9-11

AT-610 Quick Start Guide

ATCOM TECHNOLOGY CO., LIMITED

1、Installation and access.................................................................................................................3

2、Configure AT-610 to make VoIP calls.........................................................................................4

A、WAN Config ..............................................................................................................................4

B、SIP Config..................................................................................................................................5

AT-610 Quick Start Guide

ATCOM TECHNOLOGY CO., LIMITED

1、Installation and access

Installation:

Set up AT-610 as below:

If AT-610 is connect to your network. Press Info key to get the WAN IP address.

Modify your computer’s IP address to the same network as AT-610

Key in AT-610’s IP address in the web browser and press enter, then you can

access AT-610’s web manage interface. Remember the account is admin/admin

for administrator and guest/guest for user.

AT-610 Quick Start Guide

ATCOM TECHNOLOGY CO., LIMITED

2、Configure AT-610 to make VoIP calls

A、WAN Config

Enter Network

Æ

WAN Config to set the WAN setting:

AT-610 supports three different IP types: Static IP, Dynamic obtain IP (DHCP)

and PPPoE. You can use either of these IP types to connect the internet.

Use Static IP:

----Select “Static”;

----Enter the AT-610’s IP address in the “IP address” field.

----Set the “Net mask”, default 255.255.255.0

----Enter the AT-610’s upper gateway IP address (for example: Router) in the

“Gateway” field

----Key in the DNS information in the “Primary DNS” and “Alter DNS” fields.

Use DHCP:

----Select DHCP

If you have a DHCP server in your network, AT-610 will automatically obtain the

network information from your DHCP server.

Use PPPoE:

----Select PPPoE

----Type your PPPoE dialup information in the PPPoE setting fields: PPPoE server

(option), Username and password.

Then the AT-610 will connect to the internet through PPPoE, and automatically

obtain the IP address, Net mask, Gateway, Primary DNS and Alter DNS

information.

AT-610 Quick Start Guide

ATCOM TECHNOLOGY CO., LIMITED

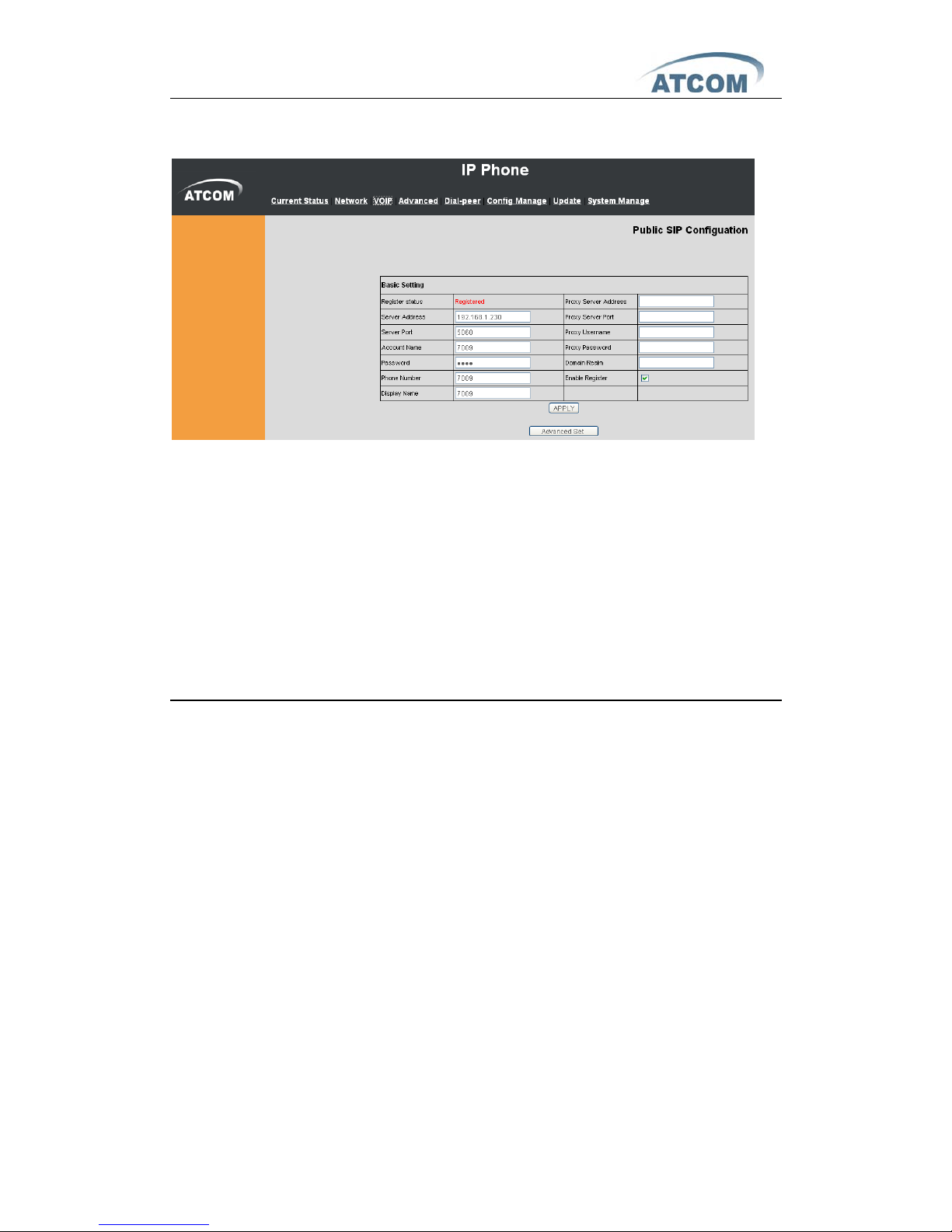

B、SIP Config

Enter VoIP setting page and set the sip information

----Register ServerAddr: sip server address;

----Register Server Port : sip server register port;

----Register Username : username of your sip account;

----Register Password : password of your sip account;

----Register Number : Phone number of your sip account; the same as username

if none

----check Enable Register；

Then you can make VoIP calls if the WAN and SIP config is correct.

Notice: Please go to the “Config Manage” and save the config, otherwise you will lose the setting

after device reboot.
