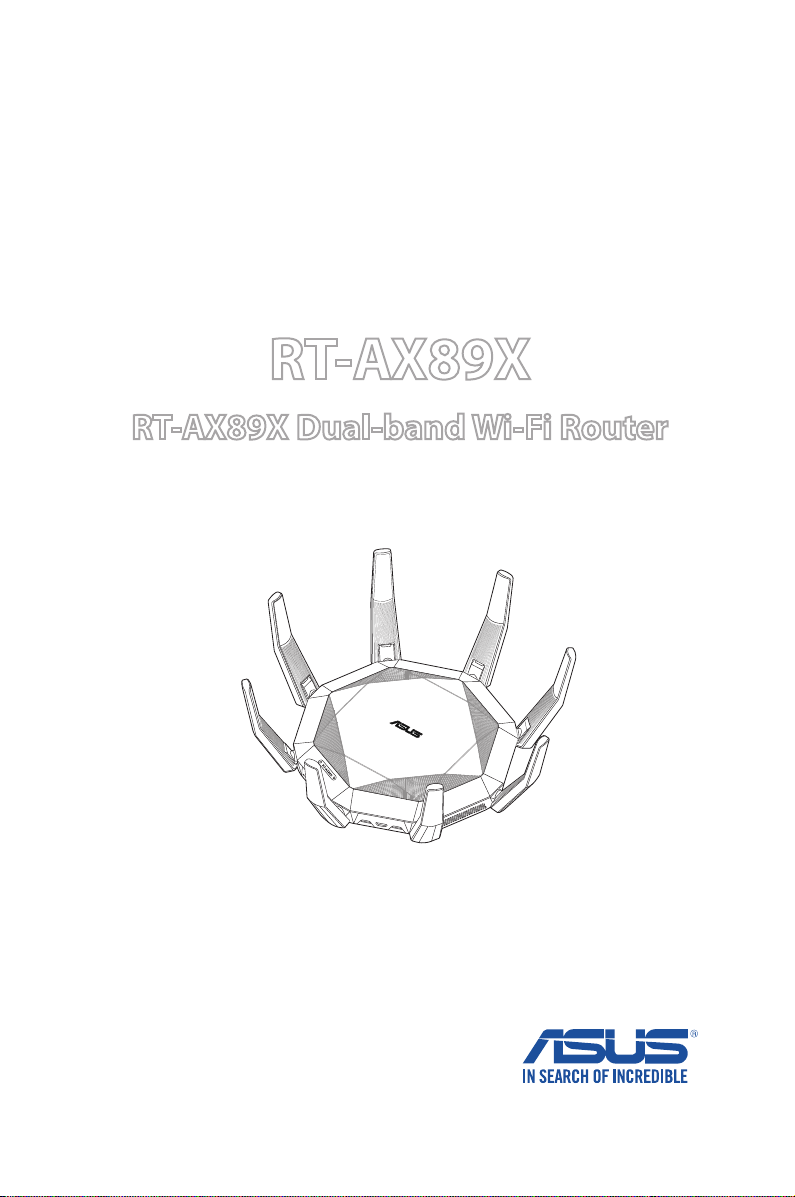

Asus RT-AX89X Manual de usuario
User Guide
RT-AX89X
RT-AX89X Dual-band Wi-Fi Router
2
Copyright © 2019 ASUSTeK Computer Inc. All Rights Reserved.
No part of this manual, including the products and software described
in it, may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language in any form or by any means, except
documentation kept by the purchaser for backup purposes, without the
express written permission of ASUSTeK Computer Inc. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired,
modied or altered, unless such repair, modication of alteration is authorized
in writing by ASUS; or (2) the serial number of the product is defaced or
missing.
ASUS PROVIDES THIS MANUAL“AS IS”WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,
EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS
AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR
PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE
FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE
AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A
COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY
FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be
registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’benet, without intent
to infringe.
E15929
First Edition
September 2019
3
Table of contents
1 Getting to know your wireless router
1.1 Welcome!...........................................................................................6
1.2 Package contents ...........................................................................6
1.3 Your wireless router.......................................................................7
1.4 Positioning your router............................................................. 10
1.5 Setup Requirements................................................................... 11
1.6 Router Setup ................................................................................. 12
1.6.1 Wired connection..................................................................12
1.6.2 Wireless connection.............................................................13
2 Getting started
2.1 Logging into the Web GUI........................................................ 15
2.2 Quick Internet Setup (QIS) with Auto-detection.............. 16
2.3 Connecting to your wireless network.................................. 20
3 Conguring the General settings
3.1 Using the Network Map ........................................................... 21
3.1.1 Setting up the wireless security settings......................22
3.1.2 Managing your network clients.......................................23
3.1.3 Monitoring your USB device.............................................24
3.2 Creating a Guest Network........................................................ 27
3.3 AiProtection................................................................................... 29
3.3.1 Network Protection..............................................................30
3.3.2 Setting up Parental Controls.............................................34
3.4 Using the Trac Manager ........................................................ 37
3.4.1 Managing QoS (Quality of Service) Bandwidth..........37
3.5 Trac Analyzer............................................................................. 40
3.6 Using the USB Application....................................................... 41
3.6.1 Using AiDisk............................................................................41
3.6.2 Using Servers Center............................................................43
4
Table of contents
3.6.3 3G/4G ........................................................................................48
3.7 Using AiCloud 2.0........................................................................ 50
3.7.1 Cloud Disk................................................................................51
3.7.2 Smart Access...........................................................................52
3.7.3 AiCloud Sync...........................................................................53
4 Conguring the Advanced Settings
4.1 Wireless........................................................................................... 54
4.1.1 General......................................................................................54
4.1.2 WPS ............................................................................................57
4.1.3 Bridge........................................................................................59
4.1.4 Wireless MAC Filter ...............................................................61
4.1.5 RADIUS Setting ......................................................................62
4.1.6 Professional.............................................................................63
4.2 LAN................................................................................................... 66
4.2.1 LAN IP........................................................................................66
4.2.2 DHCP Server............................................................................67
4.2.3 Route .........................................................................................69
4.2.4 IPTV ............................................................................................70
4.3 WAN.................................................................................................. 71
4.3.1 Internet Connection.............................................................71
4.3.2 Port Trigger..............................................................................74
4.3.3 Virtual Server/Port Forwarding........................................76
4.3.4 DMZ............................................................................................79
4.3.5 DDNS .........................................................................................80
4.3.6 NAT Passthrough...................................................................81
4.4 IPv6................................................................................................... 82
4.5 Firewall............................................................................................ 83
4.5.1 General......................................................................................83
4.5.2 URL Filter ..................................................................................83
4.5.3 Keyword lter .........................................................................84
5
Table of contents
4.5.4 Network Services Filter .......................................................85
4.6 Administration.............................................................................. 87
4.6.1 Operation Mode....................................................................87
4.6.2 System.......................................................................................88
4.6.3 Firmware Upgrade................................................................89
4.6.4 Restore/Save/Upload Setting ...........................................89
4.7 System Log .................................................................................... 90
5 Utilities
5.1 Device Discovery ......................................................................... 91
5.2 Firmware Restoration................................................................. 92
5.3 Setting up your printer server ................................................ 93
5.3.1 ASUS EZ Printer Sharing .....................................................93
5.3.2 Using LPR to Share Printer.................................................97
5.4 Download Master......................................................................102
5.4.1 Conguring Bit Torrent download settings.............. 103
5.4.2 NZB settings......................................................................... 104
6 Troubleshooting
6.1 Basic Troubleshooting .............................................................105
6.2 Frequently Asked Questions (FAQs) ..................................108
Appendices
Notices .......................................................................................................118
ASUS Contact information..................................................................138
6
1 Getting to know your wireless
router
NOTES:
• Ifanyoftheitemsaredamagedormissing,contactASUSfor
technical inquiries and support. Refer to the ASUS Support Hotline
list at the back of this user manual.
• Keeptheoriginalpackagingmaterialincaseyouwouldneedfuture
warranty services such as repair or replacement.
RT-AX89X Wireless Router Network cable (RJ-45)
Power adapter Quick Start Guide
1.1 Welcome!
Thank you for purchasing an ASUS RT-AX89X Wireless Router!
The ultra-thin and stylish RT-AX89X features a 2.4GHz and 5GHz
dual bands for an unmatched concurrent wireless HD streaming;
SMB server, UPnP AV server, and FTP server for 24/7 le sharing;
a capability to handle 300,000 sessions; and the ASUS Green
Network Technology, which provides up to 70% power-saving
solution.
1.2 Package contents
7
1.3 Your wireless router
8
SPF+ LED
O: No SPF+ signal.
On:Wireless system is ready.
Flashing:Transmitting or receiving data via wireless connection.
10GE LED
O: No 10GE signal.
On:Wireless system is ready.
Flashing:Transmitting or receiving data via wireless connection.
LAN LED
O: No power or no physical connection.
On: Has physical connection to a local area network (LAN).
WAN (Internet) LED
Red: No IP or no physical connection.
On: Has physical connection to a wide area network (WAN).
5GHz LED
O: No 5GHz signal.
On:Wireless system is ready.
Flashing:Transmitting or receiving data via wireless connection.
2.4GHz LED
O: No 2.4GHz signal.
On:Wireless system is ready.
Flashing:Transmitting or receiving data via wireless connection.
Power LED
O: No power.
On: Device is ready.
Flashing slow: Rescue mode
WPS button
This button launches the WPS Wizard.
LED On/O button
This button turns on/off the LED indicators.
Wi-Fi On/O button
This button enables or disables Wi-Fi.
LAN ports 1 ~ 8
Connect network cables into these ports to establish LAN connection.
WAN (Internet) port
Connect a network cable into this port to establish WAN connection.
10G base T port
This port is for 10G base T connection.
9
NOTES:
• Useonlytheadapterthatcamewithyourpackage.Usingother
adapters may damage the device.
• Specications:
DC Power adapter DC Output: +19V with max 3.42A current;
Operating
Temperature 0~40oCStorage 0~70oC
Operating Humidity 50~90% Storage 20~90%
10G SFP+ port
This port is for SPF+ connection with data transmission speed up to 10Gbit/s.
USB 3.1 Gen 1 ports
Insert a USB 3.1 Gen 1 device such as a USB hard disk or a USB flash drive into this port.
Insert your iPad’s USB cable into this port to charge your iPad.
Power button
Press this button to power on or off the stystem.
Power (DC-IN) port
Insert the bundled AC adapter into this port and connect your router to a power source.
10
1.4 Positioning your router
For the best wireless signal transmission between the wireless
router and the network devices connected to it, ensure that you:
• Placethewirelessrouterinacentralizedareaforamaximum
wireless coverage for the network devices.
• Keepthedeviceawayfrommetalobstructionsandawayfrom
direct sunlight.
• Keepthedeviceawayfrom802.11gor20MHzonlyWi-Fi
devices, 2.4GHz computer peripherals, Bluetooth devices,
cordless phones, transformers, heavy-duty motors, fluorescent
lights, microwave ovens, refrigerators, and other industrial
equipment to prevent signal interference or loss.
• Alwaysupdatetothelatestrmware.VisittheASUSwebsiteat
http://www.asus.comtogetthelatestrmwareupdates.
• Toensurethebestwirelesssignal,orienttheeightnon-
detachable antennas as shown in the drawing below.
Otros manuales para RT-AX89X
2
Tabla de contenidos
Otros manuales de Enrutador inalámbrico de Asus
Asus
Asus DSL-N66U Manual de usuario
Asus
Asus DSL-AC52U Manual de usuario
Asus
Asus ZenWiFi AC Mini CD6 Series Manual de usuario
Asus
Asus RT-N65R Manual de usuario
Asus
Asus 4G-AC68U Manual de usuario
Asus
Asus ROG Rapture GT-AC2900 Manual de usuario
Asus
Asus 4G-N12 B1 Manual de usuario
Asus
Asus RT-AC1200G Manual de usuario
Asus
Asus ZenWiFi XD6 Manual de usuario
Asus
Asus RT-N12 C1 Manual de usuario
Asus
Asus Lyra MAP-AC2200 Manual de usuario
Asus
Asus DSL-N66U Manual de usuario
Asus
Asus TM-AC1900 Manual
Asus
Asus ZenWiFi Pro ET12 Manual de usuario
Asus
Asus RT-N10 - Wireless Router - 802.11b/g/n Manual de usuario
Asus
Asus ZenWiFi Pro XT12 Manual de usuario
Asus
Asus RT-G32 - Wireless Router Manual de usuario
Asus
Asus CM-32 Manual de usuario
Asus
Asus RT-N56U Manual de usuario
Asus
Asus RT-N16 Manual de usuario
