AI Suite 3
AI Suite 3 is an all-in-one interface that integrates several ASUS utilities and allows you to
launch and operate these utilities simultaneously.
Installing AI Suite 3
• Ensure that you have an Administrator account before installing AI Suite 3 in
Windows®7 or Windows®8 OS.
• To install the Wi-Fi-enabled features of AI Suite 3, ensure that you install the Wi-Fi
module driver from the bundled support DVD. To do this, go to Drivers tab >ASUS
Bluetooth 4.0 Wi-Fi Driver and follow the succeeding onscreen instructions.
To install AI Suite 3 on your computer:
Windows®7 OS
1. Place the Support DVD into the optical drive.
2. In the AutoPlay dialog box, click Run ASSETUP.exe then select the Utilities tab.
3. From the Utilities tab, click AI Suite 3 then follow the succeeding onscreen
instructions.
Back to Quick Menu
ASUS Z87 Series AI Suite 3 3
Launching AI Suite 3
Windows®7 OS
From the Desktop, click Start > All Programs > ASUS > AI Suite 3 > AI Suite 3.
You can also launch AI Suite 3 in Windows®7 by clicking on the Notication area.
Windows®8 OS
To launch AI Suite 3 in Windows®8, tap the AI Suite 3 app on the Start
screen (or if you’re using a mouse, click the AI Suite 3 app on the Start
screen).
Windows®8 OS
1. Place the Support DVD into the optical drive then follow the onscreen instructions.
2. From the ASUS motherboard support DVD main menu, select the Utilities tab and
click or tap AI Suite 3.
3. Follow the succeeding onscreen instructions.
If the ASUS motherboard support DVD main menu does not appear, try the following
steps:
a. Go to the Start screen then click or tap the Desktop app.
b. From the taskbar, click or tap File Explorer then select your DVD drive and
double-click or tap the Setup application.
Back to Quick Menu
4ASUS Z87 Series AI Suite 3
AI Suite 3 Main menu
The AI Suite 3 main menu gives you easy-access controls and insight to what’s going on
with your computer - allowing you to optimize performance settings while at the same time
ensuring system stability.
The AI Suite main menu includes is a quick-access menu bar that allows you to swiftly launch
any of the integrated ASUS utilities. Click or tap on the top-right corner of the menu to
launch the menu bar.
You can access the ASUS utilities from any of these two AI Suite 3 main menu bars: Dual
Intelligent Processors 4 with 4-Way Optimization and Dual Intelligent Processors 2 with
Performance and Power Saving Utilities.
The AI Suite 3 screenshots in this section are for reference only and can vary depending on
motherboard model.
Dual Intelligent Processors 4
Click or tap to launch AI Suite 3 menu bar
Network
iControl
USB BIOS
Flashback
Ai Charger+ EZ Update
Wi-Fi GO!
System Information USB Charger+
Dual Intelligent
Processors 4
USB 3.0 Boost
Dual Intelligent Processors 4 main menu bar
Wi-Fi Engine
Back to Quick Menu
ASUS Z87 Series AI Suite 3 5
Dual Intelligent Processors 2
EZ Update System Information
TPU USB 3.0 Boost Network iControl Remote GO!
DIGI+VRM
Fan Xpert 2
• The AI Suite 3 features may vary depending on the motherboard model.
• Visit the ASUS website at www.asus.com for more information.
EPU
Click or tap to launch AI Suite 3 menu bar
Dual Intelligent Processors 2 main menu bar
Back to Quick Menu
6ASUS Z87 Series AI Suite 3
AI Suite 3 Utilities
Dual Intelligent Processors 4 with 4-Way Optimization
Dual Intelligent Processors 4 with 4-Way Optimization comes with these ve utilities in one
interface: 4-Way Optimization, TurboV Processing Unit (TPU), Energy Processing Unit (EPU),
DIGI+ Power Control, and Fan Xpert 2.
4-Way Optimization
The 4-Way Optimization utility allows you to automatically tweak the TPU, EPU, DIGI +
Power Control and Fan Xpert 2 to their optimal settings.
Select an
advanced
power saving
mode
Click or tap this 4-Way Optimization
button to auto-detect and tune the best
settings for your system
DO NOT remove your fan during the tuning process.

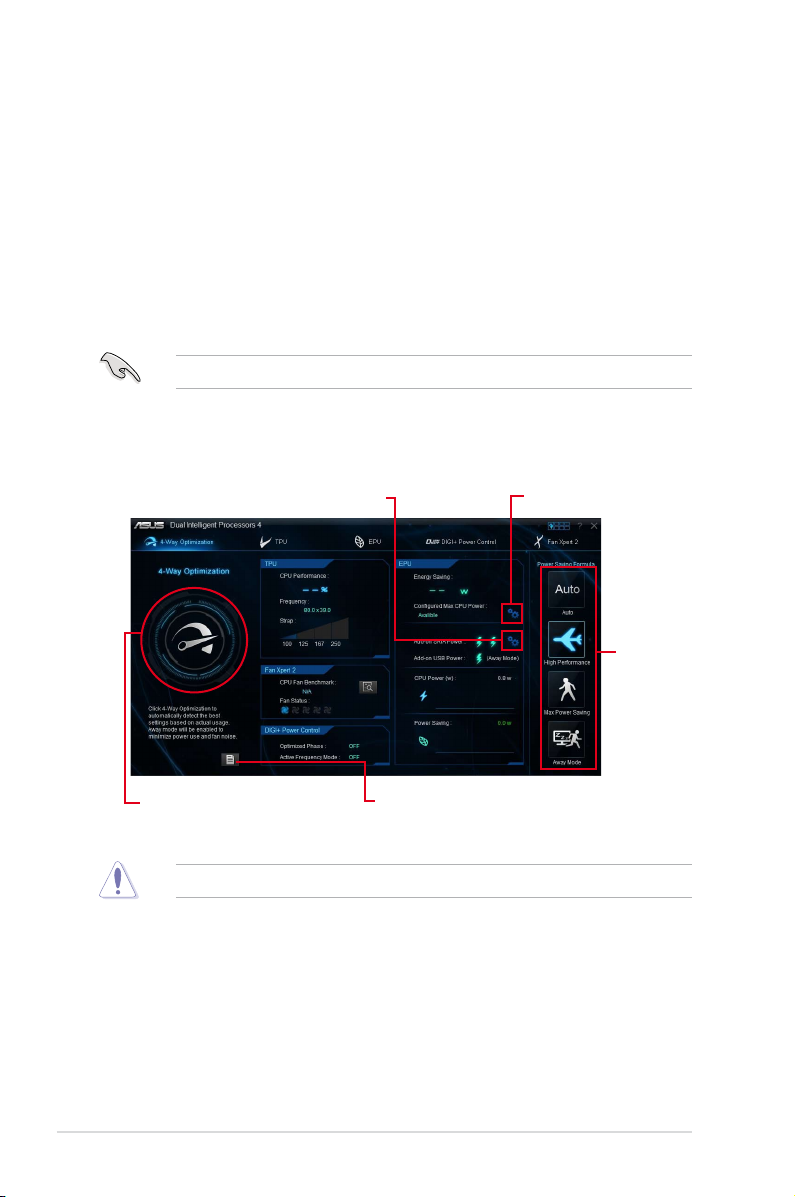

4-Way Optimization screen
The Dual Intelligent Processors 4 is only available in selected Z87 motherboard models.
Click or tap to enable or disable
the Congured Max CPU Power
Click or tap to enable or disable
the SATA ports’ power
Click or tap to view the 4-Way
Optimization report
Back to Quick Menu
ASUS Z87 Series AI Suite 3 7
Using 4-Way Optimization
Click or tap the 4-Way Optimization button then click or tap Start to auto-detect the best
settings based on actual usage.
Click or tap to start
auto-tuning
Click or tap to go back to
the 4-Way Optimization
main screen
Click or tap to view
more settings
• The system may reboot two or three times during the auto-tuning process.
• For Windows®8 OS, click or tap Desktop app to monitor the auto-tuning process after
every system reboot.
Back to Quick Menu
8ASUS Z87 Series AI Suite 3
Using TPU
Tick to enable
Group Tuning
Click or tap or
to adjust the Base
Clock Frequency,
CPU Ratio, and
CPU Cache Ratio
Click or tap
or to select
the number of
cores to adjust
Click or tap to save
the adjustment into
a prole
Click or tap to
load the saved
prole
Click or tap
to apply the
adjustments
Click or tap to undo the
adjustments
• Set the CPU Core Ratio item in BIOS to [Auto] before using the CPU Frequency in
TPU. Refer to section Ai Tweaker menu in the BIOS chapter of your motherboard
user manual for details.
• The CPU Frequency bars show the status of the CPU cores, which vary with your
CPU model.
TurboV Processing Unit (TPU)
TPU allows you to manually adjust the CPU frequency, CPU cache, core frequencies, DRAM
frequency, and related voltages for an enhanced system stability and a performance boost.
Refer to the CPU documentation before adjusting CPU voltage settings. Setting a high
voltage may damage the CPU permanently and setting a low voltage may lead to an
unstable system.
For system stability, the TPU settings are not saved in the BIOS and are not loaded during
system bootup. Save your overclocking settings as a TPU prole and manually load this
prole after system bootup.
CPU Frequency
Scroll down
then adjust the
CPU voltages
and DRAM
voltages
Back to Quick Menu
ASUS Z87 Series AI Suite 3 9
GPU Boost
Use the to
adjust the iGPU
Max Voltage
Click or tap
or to
adjust the CPU
VCCSA voltage
Click or tap to save the
adjustment into a prole
Click or tap to load
the saved prole
Click or tap
to apply the
adjustments
Click or tap
to undo the
adjustments
Click or tap to enable
the default settings
Back to Quick Menu
10 ASUS Z87 Series AI Suite 3
Energy Processing Unit (EPU)
EPU is an energy-processing utility that allows you to adjust the CPU, GPU, and Fan Control
settings to their power-saving conditions.
Using EPU
Auto
Tick to enable
Away Mode
and move
the sliders to
adjust monitor
and system
sleep time
Click or tap to
select a fan
prole
Click or tap
to apply the
adjustments
Click or tap to undo the
adjustments
Click or tap to apply the
default settings
High Performance
Click or tap
to apply the
adjustments
Click or tap to undo the
adjustments
Click or tap to apply the
default settings
Tick to enable
Away Mode
and move
the sliders to
adjust monitor
and system
sleep time
Tick to select Voltage
Decrement setting
Back to Quick Menu
