Asus XD4R Manual de usuario

User Guide

ASUS ZenWiFi AX MiniASUS ZenWiFi AX Mini

AX1800 Dual Band WiFi RouterAX1800 Dual Band WiFi Router

Model: XD4R/XD4NModel: XD4R/XD4N

No part of this manual, including the products and software described

in it, may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language in any form or by any means, except

documentation kept by the purchaser for backup purposes, without the

express written permission of ASUSTeK Computer Inc. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired,

modied or altered, unless such repair, modication of alteration is authorized

in writing by ASUS; or (2) the serial number of the product is defaced or

missing.

ASUS PROVIDES THIS MANUAL“AS IS”WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED

WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,

EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,

OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS

AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR

PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE

FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE

AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A

COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY

FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,

INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be

registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’benet, without intent

to infringe.

E17369

First Edition

September 2020

Table of contents

1 Getting to know your wireless router

1.1 Welcome!...........................................................................................6

1.2 Package contents ...........................................................................6

1.3 Your wireless router.......................................................................7

1.4 Positioning your router................................................................8

1.5 Setup Requirements......................................................................9

1.6 Router Setup ................................................................................. 10

1.6.1 Wired connection..................................................................11

1.6.2 Wireless connection.............................................................12

2 Getting started

2.1 Logging into the Web GUI........................................................ 13

2.2 Quick Internet Setup (QIS) with Auto-detection.............. 14

2.3 Connecting to your wireless network.................................. 18

3 Conguring the General settings

3.1 Using the Network Map ........................................................... 19

3.1.1 Setting up the wireless security settings......................20

3.1.2 Managing your network clients.......................................21

3.2 Creating a Guest Network........................................................ 22

3.3 AiProtection................................................................................... 24

3.3.1 Network Protection..............................................................25

3.3.2 Setting up Parental Controls.............................................28

3.4 Using the Trac Manager ........................................................ 30

3.4.1 Managing QoS (Quality of Service) Bandwidth..........30

4 Conguring the Advanced Settings

4.1 Wireless........................................................................................... 33

4.1.1 General......................................................................................33

4.1.2 WPS ............................................................................................36

Table of contents

4.1.3 Bridge........................................................................................38

4.1.4 Wireless MAC Filter ...............................................................40

4.1.5 RADIUS Setting ......................................................................41

4.1.6 Professional.............................................................................42

4.2 LAN................................................................................................... 45

4.2.1 LAN IP........................................................................................45

4.2.2 DHCP Server............................................................................46

4.2.3 Route .........................................................................................48

4.2.4 IPTV ............................................................................................49

4.3 WAN.................................................................................................. 50

4.3.1 Internet Connection.............................................................50

4.3.2 Port Trigger..............................................................................53

4.3.3 Virtual Server/Port Forwarding........................................55

4.3.4 DMZ............................................................................................58

4.3.5 DDNS .........................................................................................59

4.3.6 NAT Passthrough...................................................................60

4.4 IPv6................................................................................................... 61

4.5 Firewall............................................................................................ 62

4.5.1 General......................................................................................62

4.5.2 URL Filter ..................................................................................62

4.5.3 Keyword lter .........................................................................63

4.5.4 Network Services Filter .......................................................64

4.6 Administration.............................................................................. 66

4.6.1 Operation Mode....................................................................66

4.6.2 System.......................................................................................67

4.6.3 Firmware Upgrade................................................................69

4.6.4 Restore/Save/Upload Setting ...........................................69

Table of contents

4.7 System Log .................................................................................... 70

5 Utilities

5.1 Device Discovery ......................................................................... 71

5.2 Firmware Restoration................................................................. 72

6 Troubleshooting

6.1 Basic Troubleshooting ............................................................... 74

6.2 Frequently Asked Questions (FAQs) .................................... 77

Appendices

Notices ......................................................................................................... 86

ASUS Contact information..................................................................123

1 Getting to know your wireless1 Getting to know your wireless

routerrouter

NOTES:

• If any of the items are damaged or missing, contact ASUS for

technical inquiries and support. Refer to the ASUS Support Hotline

list at the back of this user manual.

• Keep the original packaging material in case you would need future

warranty services such as repair or replacement.

ZenWiFi AX Mini Wireless Router Network cable (RJ-45)

Power adapter Quick Start Guide

1.1 Welcome!

Thank you for purchasing an ASUS ZenWiFi AX Mini Wireless

Router!

The ultra-thin and stylish ZenWiFi AX Mini features a 2.4GHz

and 5GHz dual bands for an unmatched concurrent wireless HD

streaming; SMB server, UPnP AV server, and FTP server for 24/7

le sharing; a capability to handle 300,000 sessions; and the ASUS

Green Network Technology, which provides up to 70% power-

saving solution.

1.2 Package contents

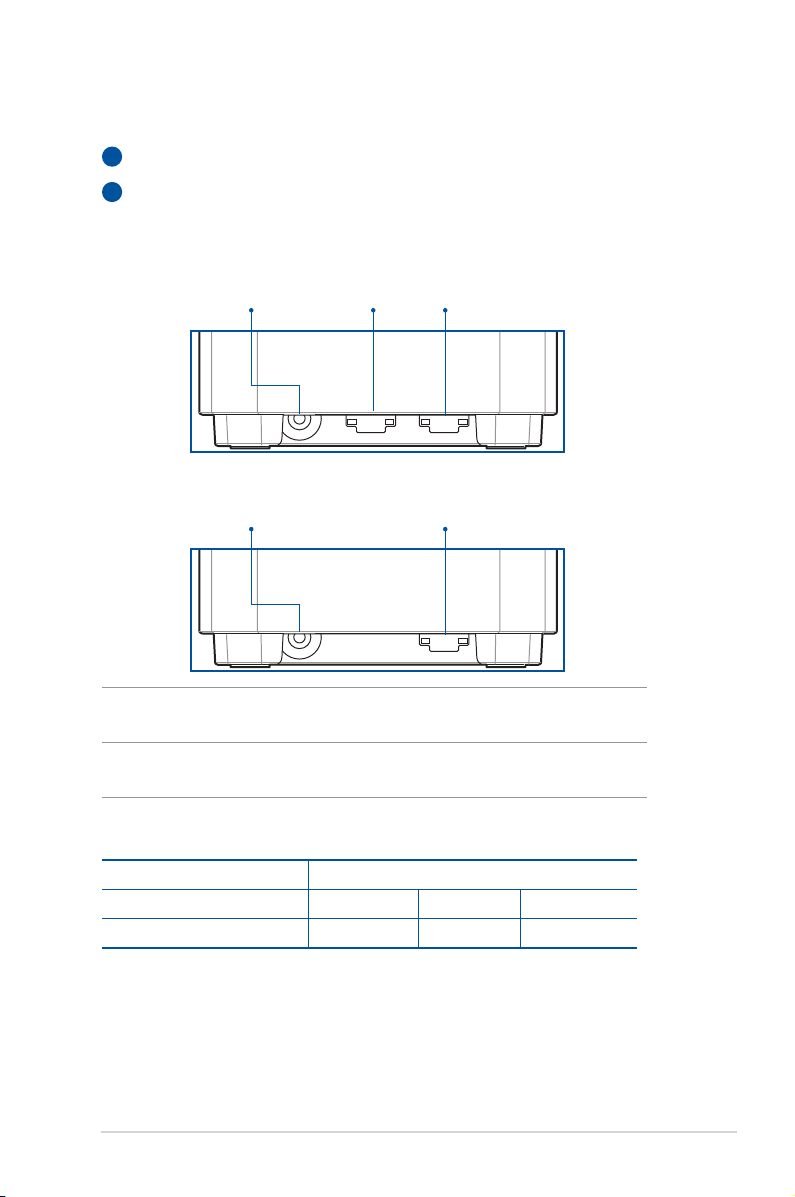

1.3 Your wireless router

Plug the adapter into the DCIN port.

The power LED will light up when your hardware is ready.

Port Explanations

WAN/LAN port

Connect your optical modem to this port with a network cable.

LAN port

Connect your PC to this LAN port with a network cable.

DCIN port LAN port WAN/LAN port

DC Power adapter DC Output: +12V with max 1.5A current

Operating Temperature 0~40oCStorage 0~70oC

Operating Humidity 50~90% Storage 20~90%

Speiccations

XD4R Overview

DCIN port WAN/LAN port

XD4N Overview

1.4 Positioning your router

For the best wireless signal transmission between the wireless

router and the network devices connected to it, ensure that you:

• Place the wireless router in a centralized area for a maximum

wireless coverage for the network devices.

• Keep the device away from metal obstructions and away from

direct sunlight.

• Keep the device away from 802.11g or 20MHz only Wi-Fi

devices, 2.4GHz computer peripherals, Bluetooth devices,

cordless phones, transformers, heavy-duty motors, ﬂuorescent

lights, microwave ovens, refrigerators, and other industrial

equipment to prevent signal interference or loss.

• Always update to the latest ﬁrmware.Visit the ASUS website at

http://www.asus.com to get the latest ﬁrmware updates.

1.5 Setup Requirements

To set up your wireless network, you need a computer that meets

the following system requirements:

• Ethernet RJ-45 (LAN) port (10Base-T/100Base-TX/

1000BaseTX)

• IEEE 802.11a/b/g/n/ac wireless capability

• An installed TCP/IP service

• Web browser such as Internet Explorer, Firefox, Safari, or

Google Chrome

NOTES:

• If your computer does not have built-in wireless capabilities, you may

install an IEEE 802.11a/b/g/n/ac WLAN adapter to your computer to

connect to the network.

• With its dual band technology, your wireless router supports 2.4GHz

and 5GHz wireless signals simultaneously. This allows you to do

Internet-related activities such as Internet surng or reading/writing

e-mail messages using the 2.4GHz band while simultaneously

streaming high-denition audio/video les such as movies or music

using the 5GHz band.

• Some IEEE 802.11n devices that you want to connect to your network

may or may not support 5GHz band. Refer to the device's manual for

specications.

• The Ethernet RJ-45 cables that will be used to connect the network

devices should not exceed 100 meters.

1.6 Router Setup

IMPORTANT!

• Use a wired connection when setting up your wireless router to

avoid possible setup problems.

• Before setting up your ASUS wireless router, do the following:

• If you are replacing an existing router, disconnect it from your

network.

• Disconnect the cables/wires from your existing modem setup. If

your modem has a backup battery, remove it as well.

• Reboot your cable modem and computer (recommended).
