Asus Eee PC 4G Surf Manual de funcionamiento

Quick Use Guide

Eee PC 4G (701)

Eee PC 4G Surf

Eee PC 8G

E3510

15G06Q007001

Quick Use Guide - 2

Powering on your Eee PC

These are only quick instructions for using your Eee PC. Read the full

manual for detailed information.

1. Install the battery pack 2. Connect the AC power

adapter

3. Turn ON the Eee PC

Remember to fully charge

the battery before ﬁrst

use and whenever it

is depleted to prolong

battery life.

Status Indicators

Status indicators represent various hardware/software conditions.

Power Indicator

Battery Charge Indicator

Solid State disk (SSD) Indicator

Wireless Indicator

When you open the

display panel, do not

force it down to the table

or else the hinges may

break! Never lift the Eee

PC by the display panel!

Quick Use Guide - 3

Powering off your Eee PC

Do the following instructions to turn down your Eee PC.

1. Click the red power switch on the taskbar.

Or, click Instant Shutdown from the Settings tab and select

Shutdown.

2. Select Shut Down from the dialogue box.

3. Select OK to proceed.

Or, press the power switch of the Eee PC directly, and follow the

previous instructions to shut down your Eee PC.

Quick Use Guide - 4

Launching First Run Wizard

For the ﬁrst time you start your Eee PC, the First Run Wizard will

auto-launch and lead you through setting up your preferences and

some basic information. Follow the wizard instructions to ﬁnish the

initiation.

1. Toggle I agree with

this license and click

Next to continue.

ASUS Eee PC also supports Windows® XP operating system. Refer

to user guide for detailed instructions and notices on installing

the WinXP SP2 32 bit operating system.

3. Follow the on-screen instructions to complete the ﬁrst run

wizard.

2. Select your keyboard

type and click Next

to continue.

Quick Use Guide - 5

Conguring a network connection

Wireless network

connection

1. Press + (<Fn> +

<F2>) to activate the wireless

LAN function.

4. When connecting, you may

have to enter a password.

5. After a connection has been

established, the connection

is shown on the list.

3. Select the wireless access

point you want to connect

to from the list and click

Connect to build the

connection. Ensure that the

box before Enable wireless

is checked.

6. And you can see the wireless

signal strength bars on the OS

taskbar.

2. Click Wireless Networks

from Internet tab.

Quick Use Guide - 6

Using a dynamic IP:

1. From the Internet tab,

select Network to start the

conﬁguration.

Local Area Network

3. Select the type of connection

you are using and click Next.

4. Toggle the ﬁrst option

Dynamic IP address (DHCP)

and click Next.

2. Click Create to create a

network connection.

5. Enter a name for this

connection and click Next.

6. Click Finish to apply the

settings or click Back to make

changes. Click the box before

Connect automatically at

system startup or before the

box Start this connection

when ﬁnished based on your

needs.

Quick Use Guide - 7

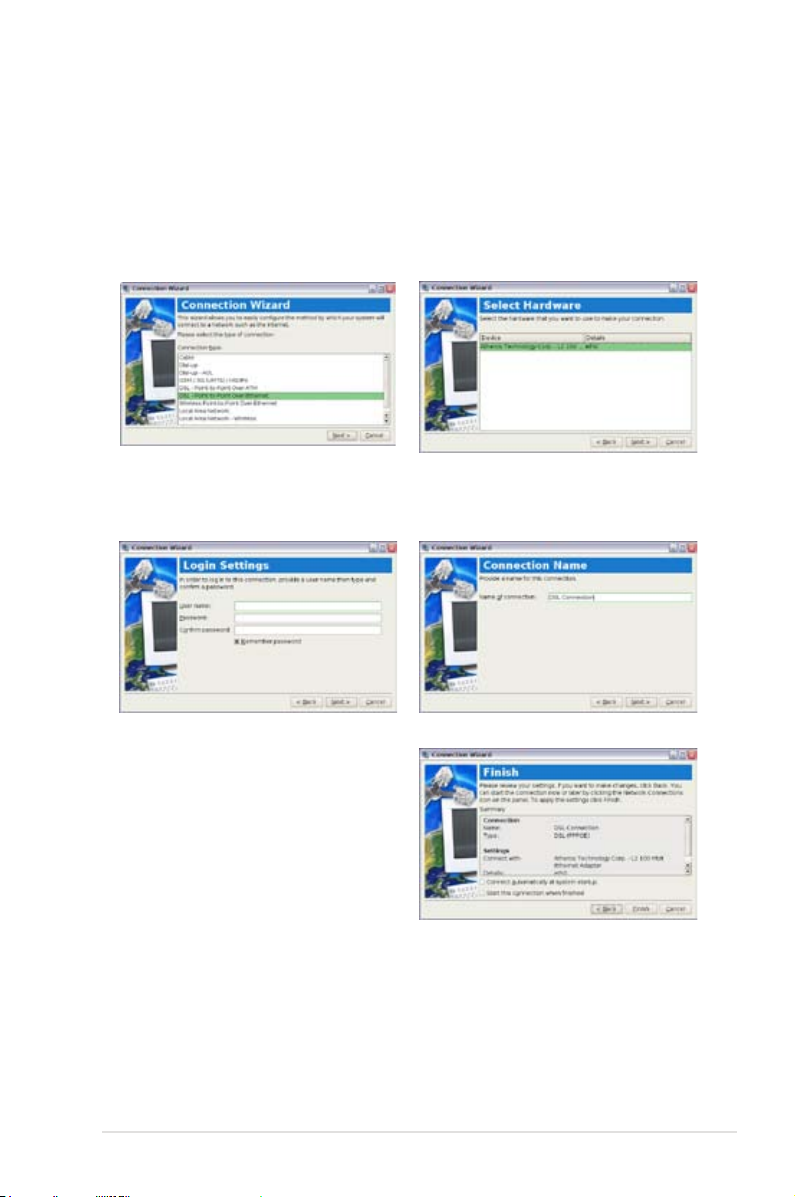

Point-to-Point Protocol over Ethernet (PPPoE)

1. Repeat the step 1~2 of Using a static IP to start the PPPoE

network conﬁguraton.

3. Select the hardware that you

want to use to make your

connection and click Next.

5. Enter a name for this

connection and click Next.

6. Click Finish to apply the

settings or click Back to

make changes.

4. Enter your user and password

and click Next..

2. Select the type of connection

you are using and click Next.

Quick Use Guide - 8

Connecting removable devices

You can connect removable devices based on your needs.

1 2

Memory Card Slot

SD (Secure Digital)

MiniSD (with SD adapter)

MMC (Multimedia Card)

MMC Plus

RS-MMC (Reduced Size) (with MMC adapter)

2.0

USB Port (2.0/1.1)

USB Flash Memory Disk

USB External Hard Disk DriveUSB External Optical Disk Drive

microSD

SD Adapter

Quick Use Guide - 9

Accessing your les

With external connection of USB devices, you can easily move ﬁles

into and out of your Eee PC. Refer to the sub-sections below for more

information.

File Manager

1. Connect your USB ﬂash memory disk or USB portable hard disk

drive to your Eee PC.

2. Highlight and select Open in

File Manager at the prompt.

3. (A) Click Removable Disk

(may be labeled as your disk

drive brand name) in the left

directory tree pane, and (B)

double-click the folder shown

in the right pane.

4. All the ﬁles and folders in your USB external storage device are

shown in the right pane. Locate the desired ﬁle and double-click

it to open.

Quick Use Guide - 10

Music Manager

1. Connect your USB ﬂash memory disk or USB portable hard disk

drive to your Eee PC with your music.

2. Highlight and select Open

in Music Manager at the

prompt.

3. The Music Manager screen displays the album folders in your

USB ﬂash/hard disk drive. Select a folder and drag tracks to the

right pane to create your own playlist.
