Assa Abloy Sargent 52-4424 Guía

Copyright © 2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

12/14/10

1 A8094A

S1/S2 Replacement Controller Instructions

52-4424, 52-4425, 52-4426

FOR INSTALLATION ASSISTANCE CONTACT SARGENT • 1-800-810-WIRE (9473) • www.sargentlock.com

Through-bolt Screws

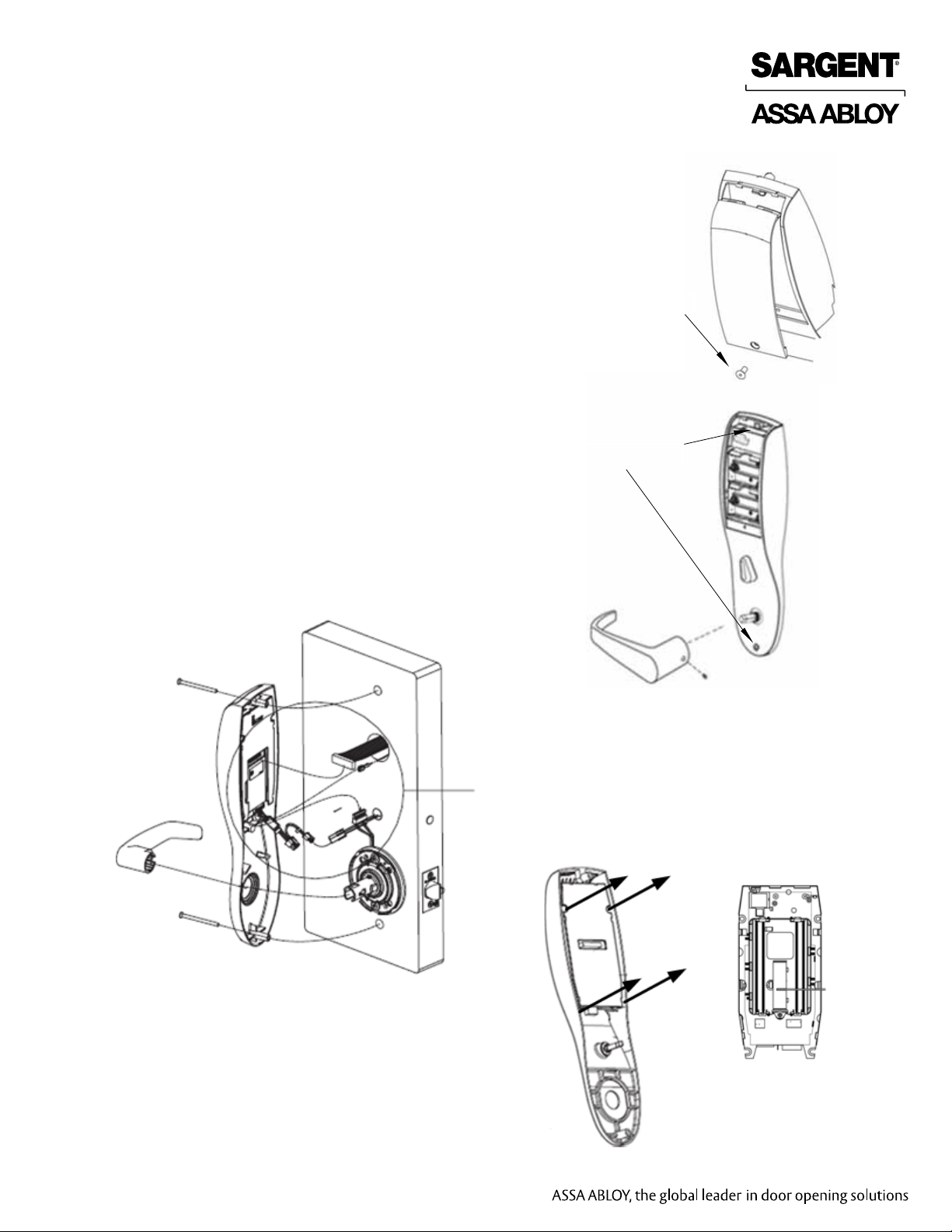

1. On the inside of the door, remove the battery cover’s security screw.

2. Lift and remove the battery cover.

5. Disconnect gray ribbon cables, green grounding wire,

motor harness, DPS harness, and hard-wired harness/PoE

(if present). Remove inside assembly from the door.

6. Remove the four (4) Philips screws holding the original

controller in place. Remove controller.

This controller has been conﬁgured as a generic replacement.

The serial number MUST be changed before it can be used!

(For serial conﬁguration see Step #12.)

Security Screw

3. Remove inside lever (if present).

4. Remove through-bolt screws on top and bottom of

escutcheon.

7. Seat the controller into inside escutcheon. Attach with

the four (4) original Philips screws.

A8094A 2

12/14/10 Copyright © 2009 Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

FOR INSTALLATION ASSISTANCE CONTACT SARGENT • 1-800-810-WIRE (9473) • www.sargentlock.com

S1/S2 Replacement Controller Instructions

52-4424, 52-4425, 52-4426

8. Reconnect the keypad harness, ground wire, DPS

harness, motor harness, and hard-wired/PoE harness

(if present).

9. Mount the inside escutcheon back on the door using the

two through-bolt screws. Reattach lever (if applicable).

10. Install batteries and battery keeper (if applicable).

11. Using Lock Conﬁguration Tool (LCT), connect to the

new controller.

12. From the main drop down, select “Conﬁgure Serial

Number”.

13. Select “Conﬁgure Serial Number in LCT” and click Go.

14. Select the correct reader/human interface.

15. Select the correct lock body.

16. Click Apply Serial Number (S/N).

17. Conﬁgure lock as usual.

Note: The serial number should match the serial

number on the previous controller which can either

be found on the controller or through the connected

EAC system.

18. Replace battery cover and install security screw.
