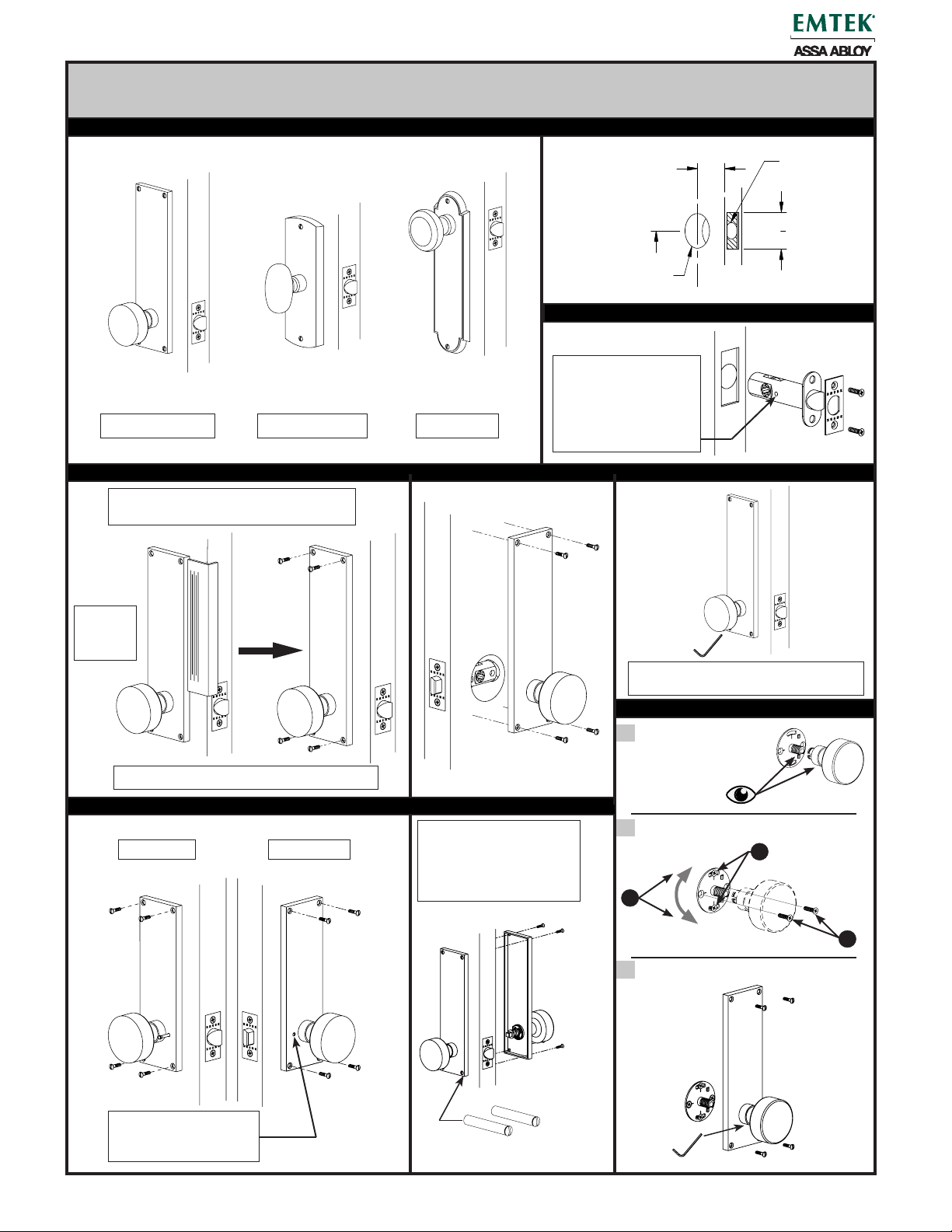

Installation Guide - Non-Keyed plates: Knob

IMPORTANT!: Knob location on the sideplate (Top, middle, bottom) varies depending on style.

Determine proper orientation BEFORE drilling holes.

IN4-NKEYPLTSKNB REV. 19A 11-22-19

2. Door Prep1. Determine knob location & plate orientation

4. Mount Inside Trim Plate

Edge

Guide

Provided

Plates and knobs vary depending on style

6. Tighten Knob

Optional Thru Bolts

3. Install latch

BOTTOM MIDDLE TOP

2-3/8"

2-3/4"

1" Dia.

Edge Bores

2-1/8" Dia.

Bores

5. Mount Outside Trim Plate

Dummy plate

For Privacy function:

Threaded hole for the

privacy pin must face

the interior side of the

door.

Prior to drilling holes, align side plate

using Edge Guide (provided).

OutsideInside

Privacy Function

Make sure the release

hole lines up with the

privacy pin.

Thru bolts (provided)

may be used on hollow

doors instead of wood

screws (also provided).

After lock has been installed tighten

set screw with Allen Wrench.

Align Mounting

plate (sideplate not

shown for clarity)

Install Mounting Plate & Adjust for level

3Install Sideplate

Installation Guide - Non-Keyed plates: Lever

IMPORTANT!: Lever location on the sideplate (Top, middle, bottom) varies depending on style.

Determine proper orientation BEFORE drilling holes.

IN4-NKEYPLTSLVR REV. 19A 11-22-19

2. Door Prep1. Determine lever location & plate orientation

4. Mount Inside Trim Plate

Edge

Guide

Provided

Plates and lever vary depending on style

6. Tighten Lever

Optional Thru BoltsPrivacy Function

3. Install latch

BOTTOM

OutsideInside

MIDDLE TOP

Prior to drilling holes, align side plate

using Edge Guide (provided).

For Privacy function:

Threaded hole for the

privacy pin must face

the interior side of the

door.

2-3/8"

2-3/4"

1" Dia.

Edge Bores

2-1/8" Dia.

Bores

5. Mount Outside Trim Plate

Thru bolts (provided)

may be used on hollow

doors instead of wood

screws (also provided).

Make sure the release

hole lines up with the

privacy pin.

After lock has been installed tighten

set screw with Allen Wrench.

Align Mounting

plate (sideplate not

shown for clarity)

Install Mounting Plate & Adjust for level

Install Sideplate

Dummy plate
