Assa Abloy Corbin Russwin FE6600 Series Manual de usuario

FM470 03/20

Installation Instructions

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

FE6600 and

BL6600 Series

M19S/M19V Occupancy Indicators

with Emergency Release

Multi-Point Lock

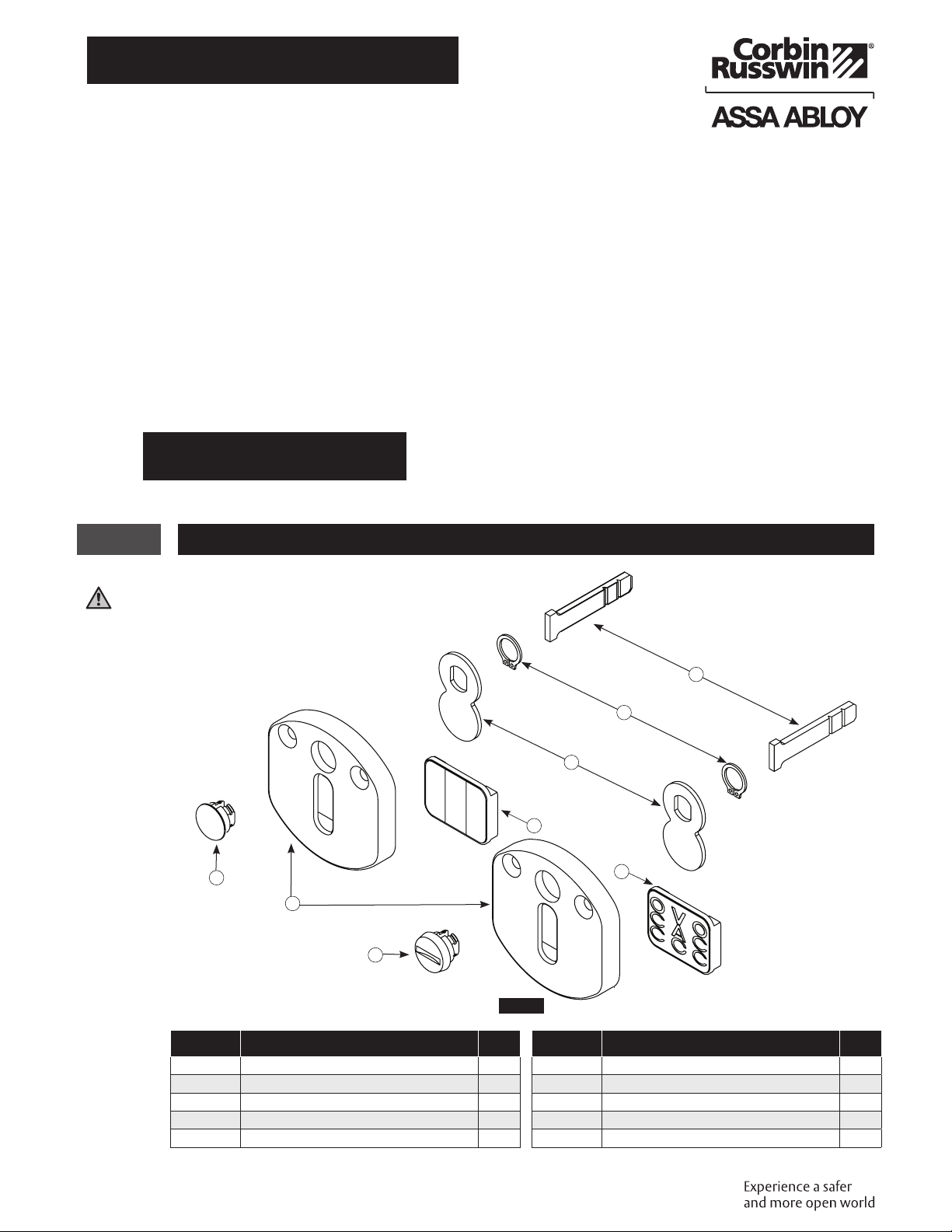

1 Package Contents

M19S

M19V

Figure1

Figure1 Description Qty. Figure1 Description Qty.

1 Indicator Button 1 6 Rotation Plate 1

2 Indicator Button Emergency Release 1 7 Snap Ring 1

3 Housing Plate 1 8 Spindle 1

4 Red/White Slide 1 9 #6 x 5/8" Wood Screw (not shown) 2

5 VAC/OCC Slide 1 10 #6-32 x 1/2" MS (not shown) 2

WARNING

This product can expose you to lead

which is known to the state of California

to cause cancer and birth defects or other

reproductive harm. For more information

go to www.P65warnings.ca.gov.

FE6600 and BL6600 Series

Installation Instructions

Multi-Point Lock

FM470 03/20

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

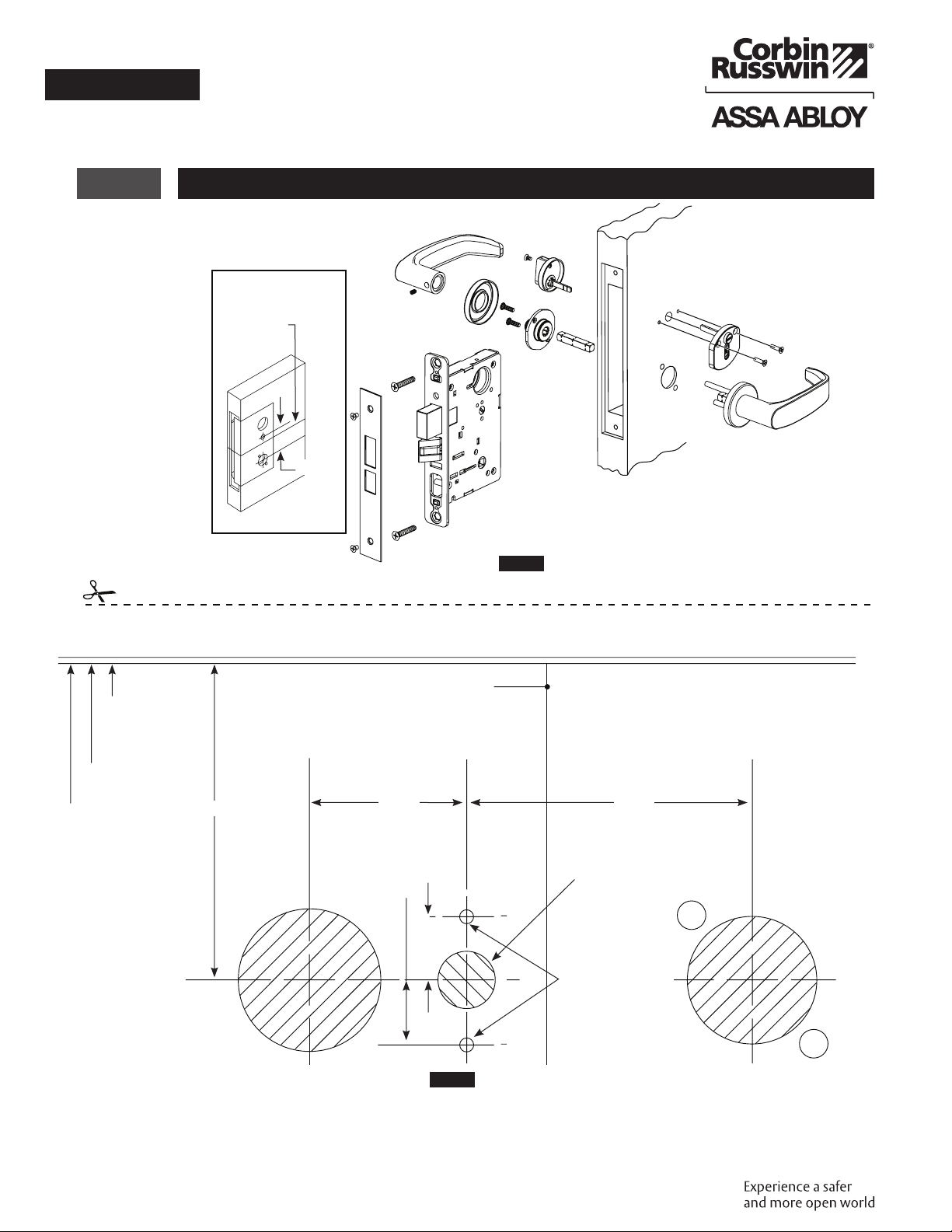

1 M19S/M19V Occupancy Indicator

Figure2

Inside of door

Centerline

of lockbody

2-1/2"

Template layout

on door edge.

Outside of door

Fold here according to door hand and bevel

Low side of door

Inside RHRB

Outside LH

No bevel door

High side of door

Inside RH

Outside LHRB

TOP

Figure3

2-3/4" 1-3/8"

9/16" 1/2" diameter hole

Lever or

knob

For metal doors:

drill two (2) pilot

holes

0.106 (#36 drill)

and tap

(#6-32 Unc)

9/16"

Cylinder

2-1/2"

Centerline of lockbody

FE6600 and BL6600 Series

Installation Instructions

Multi-Point Lock

FM470 03/20

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

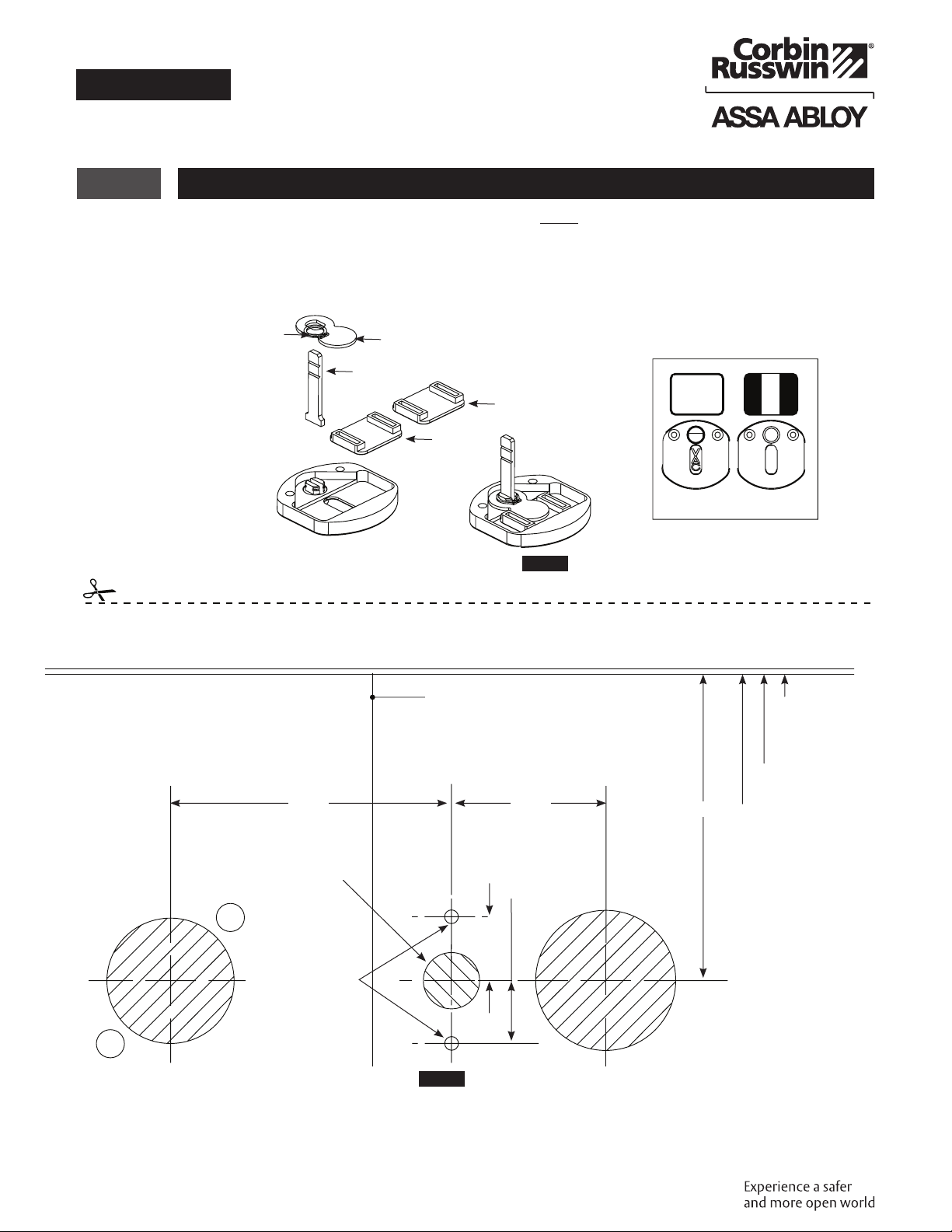

2 Changing Indicator Slides

1. Remove snap ring.

2. Remove rotation plate, spindle, and slide.

3. Replace with alternate slide.

4. Reassemble spindle and rotation plate.

Note:

Ensure proper orientation of VAC/OCC Slide.

5. Replace snap ring into groove in button.

Rotation Plate

Slide

Spindle

Snap Ring

M19V

O V O

C A C

C C C

M19S

Figure4

Fold here according to door hand and bevel

Figure5

Low side of door.

Inside LHRB

Outside RH

Centerline of lockbody

No bevel door

High side of door.

Inside LH

Outside RHRB

2-3/4"

1-3/8"

9/16"

1/2" diameter hole

Lever or

knob

For metal doors:

drill two (2) pilot

holes

0.106 (#36 drill)

and tap

(#6-32 Unc)

9/16"

Cylinder

2-1/2"

Corbin Russwin is a brand associated with ASSA ABLOY Access and Egress Hardware Group, Inc., an ASSA ABLOY Group company.

in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

Corbin Russwin, Inc.

225 Episcopal Road

Berlin, CT 06037 USA

Phone: 800-543-3658

Fax: 800-447-6714

www.corbinrusswin.com

FM470 03/20
