Installation Instructions

FM533 02/20

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

WARNING

This product can expose you to lead

which is known to the state of California

to cause cancer and birth defects or other

reproductive harm. For more information

go to www.P65warnings.ca.gov.

or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

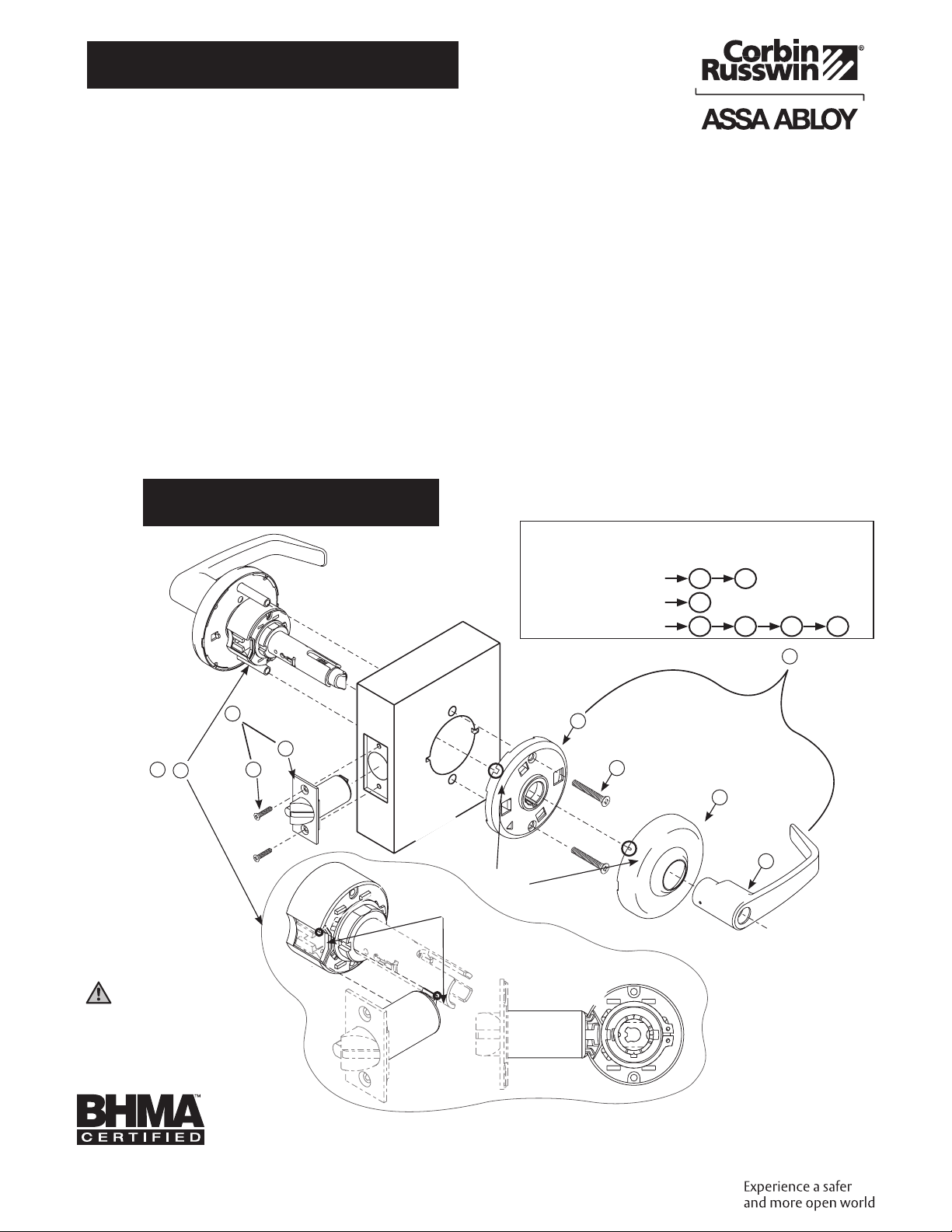

CL3300 Series

ANSI/BHMA Grade 1

Key-In-Lever

Cylindrical Lockset

Install latchbolt, lockbody and inside trim using steps

A through C (with corresponding figure numbers).

A. Install Latchbolt

B. Install Lockbody

C. Install Inside Trim

1 2

4 65 7

DOOR

EDGE

DOOR

EDGE

LOCK OR

LATCH

SINGLE

POINT

LOCK OR

LATCH

SINGLE POINT

Line-Up Notches

Inside

Latch Ears Must Slide Into Housing

CL3300 Series

Installation Instructions

Cylindrical Lockset

FM533 02/20

or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

ATTENTION INSTALLER

• Read these instructions carefully to prevent missing important steps.

• Improper installation may result in damage to lock and void factory warranty.

STOP - TEST OPERATION:

• Rotate levers to see that latchbolt moves freely. DO NOT FORCE.

• If lockset does not operate properly, remove lockset from door and check door preparation.

TOC Table of Contents

1 Door and Frame Preparation ....................................................3

a Mark Door.......................................................................3

b Drill Door and Install Strike ......................................................3

2 Adjust Lock for Door Thickness ..................................................3

3 Cylinder Installation .............................................................4

a CL3355 Classroom or CL3352 Intruder (Outside Cylinder) Function Timing .......4

b Interchangeable Core Installation................................................4

c Interchangeable Core Removal ..................................................5

d Install Standard Cylinder.........................................................5

e Conversion Kit for Schlage®Cylinders with CL3300 Lockset.......................5

4 Lever Removal and Installation ..................................................6

5 Optional Installations............................................................7

CL3300 Series

Installation Instructions

Cylindrical Lockset

FM533 02/20

or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

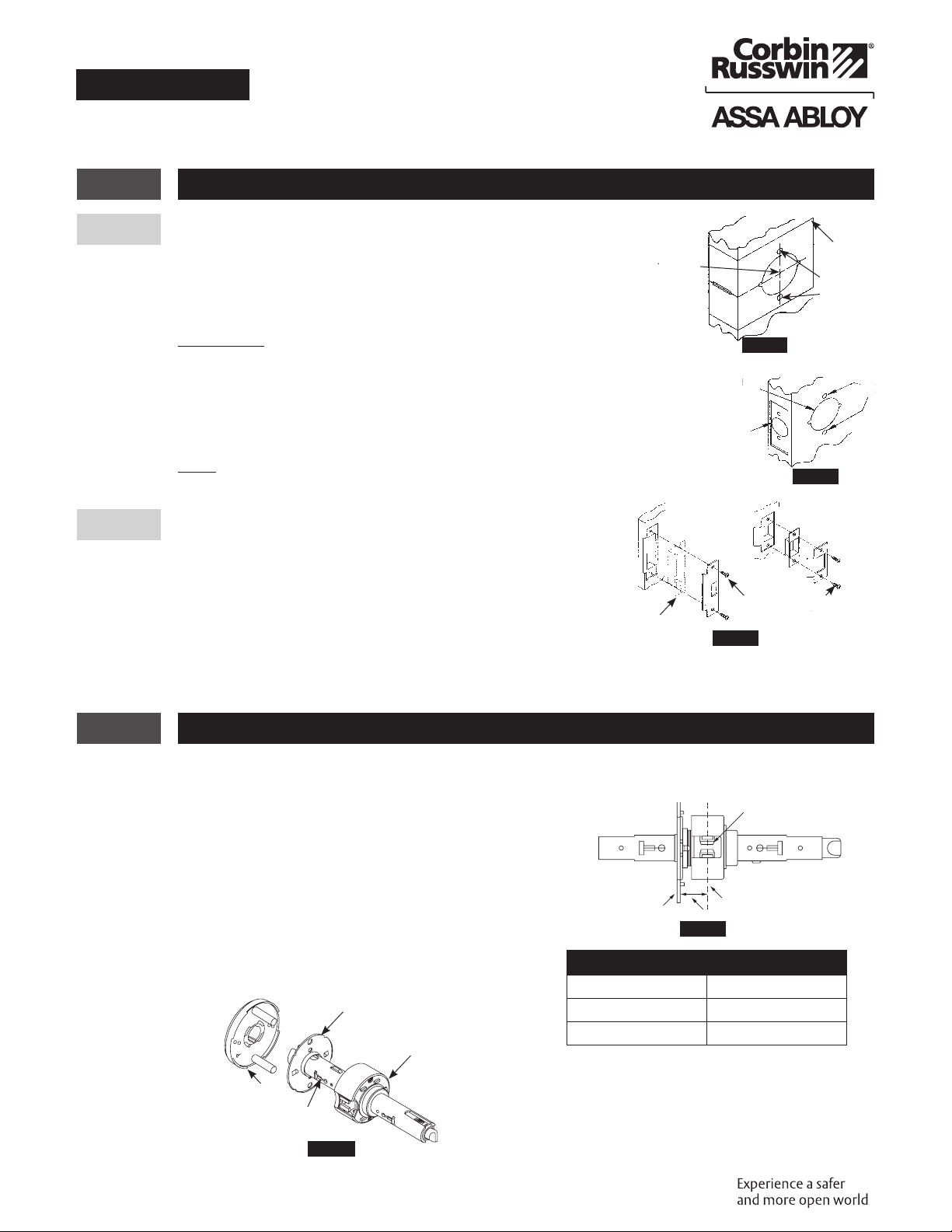

1 Door and Frame Preparation

a Mark Door

1. Locate and mark horizontal center line at desired height above floor.

2. Fold template over edge of door, centering on horizontal line.

3. Mark centers of holes at proper backset. Mark both sides of door. (Figure1)

IMPORTANT

• The accuracy of door preparation is critical for proper functioning and

security of this lever handle lock. Misalignment can cause premature wear

and a lessening of security.

• Standard installation is for 1-3/4" doors. (See “Adjust Lock for Door Thickness”

on page 3 for other door thicknesses).

Note:

Be sure to verify backset before marking and drilling door.

b Drill Door and Install Strike

4. Drill a 2-1/8"(54 mm) hole through door. Cut ANSI tab notches

as shown on template (except CL3350 and CL3370).

5. Drill 1"(25 mm) hole in edge of door. Cut out for latch

front 5/32"(4 mm) deep and 1-1/8"(29 mm) wide x

2-1/4"(57 mm) high. Check latch unit for proper width

front and square or round corners (except CL3350 and CL3370).

6. Drill two (2) 11/32"(8 mm) diameter holes through door for all functions.Install strike. (Figure2 and

Figure3)

2 Adjust Lock for Door Thickness

Lock will be factory preset for 1-3/4"(44 mm) doors unless specified.

To adjust lock to door thickness if other than 1-3/4"(44 mm) doors:

1. Remove outside lever. (see page 6)

2. Slide off outside spring housing assembly.

3. Rotate rose liner to adjust lock to fit thickness,

so distance (Dimension A) from inside liner to

centerline of retractor is half the thickness of

the door (see chart in step 4 on page 3).

4. Reassemble outside spring housing assembly

onto chassis assembly (not for CL3380 and

CL3381 functions).

Figure4

Outside Rose Liner

Chassis

Assembly

Outside

Spring

Housing

Assembly

Lever

Catch

Figure5

Outside Rose Liner

Chassis Assembly

Dimension A

Centerline of Retractor

Retractor

Door Thickness Dimension A

1-3/4" (44 mm) 7/8" (22 mm)

2" (50 mm) 1" (25 mm)

2-1/4" (57 mm) 1-1/8" (29 mm)

Figure1

Door

Template

Mark

center

of hole Mark

holes

Figure2

Strikes

Attaching Screws

Figure3

#12-24 x 1" #8-32 x 3/4"

Optional Strike Box

CL3300 Series

Installation Instructions

Cylindrical Lockset

FM533 02/20

or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

3 Cylinder Installation

a CL3355 Classroom or CL3352 Intruder (Outside Cylinder) Function Timing

Before installing cylinder:

• Turn cam so points are up and down,

6 o’clock and 12 o’clock. (Figure6)

After installing cylinder:

• Confirm key rotates 180° both ways.

• If cylinder rotates 360°, remove cylinder and

check cam orientation.

b Interchangeable Core Installation

1. Install tailpiece. (Figure7)

2. Insert key marked CONTROL and turn clockwise

approximately 15°. (Figure8)

3. Insert core into lever and return key to its original

horizontal position locking core in place. (Figure9)

4. Withdraw key.

5. Test lockset for correct function with operating key.

6. Control key has no further use in lockset installation and

must be safeguarded for return to security personnel

when installation is complete.

Control Key

Core

Figure8

Interchangeable Core

Lever Assembly

Control Key

Figure9

12 12

Correct

Cam

9 9

6 6

Wrong

Lever Catch

Figure6

** Verify that

security disc

is installed

for either

6-pin or

7-pin Corbin

Russwin or

small format

cores.

Tailpiece Tailpiec

Corbin

Russwin

Core

Security Disc**

Spacer

(Used with

6-pin Core only)

Small Format Core 6- or 7-pin

Schlage®Core

Tailpiece with

retaining ring

oriented for all

Schlage cores

except Primus

Tailpiece with

retaining ring

oriented for Primus

Figure7

CL3300 Series

Installation Instructions

Cylindrical Lockset

FM533 02/20

or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

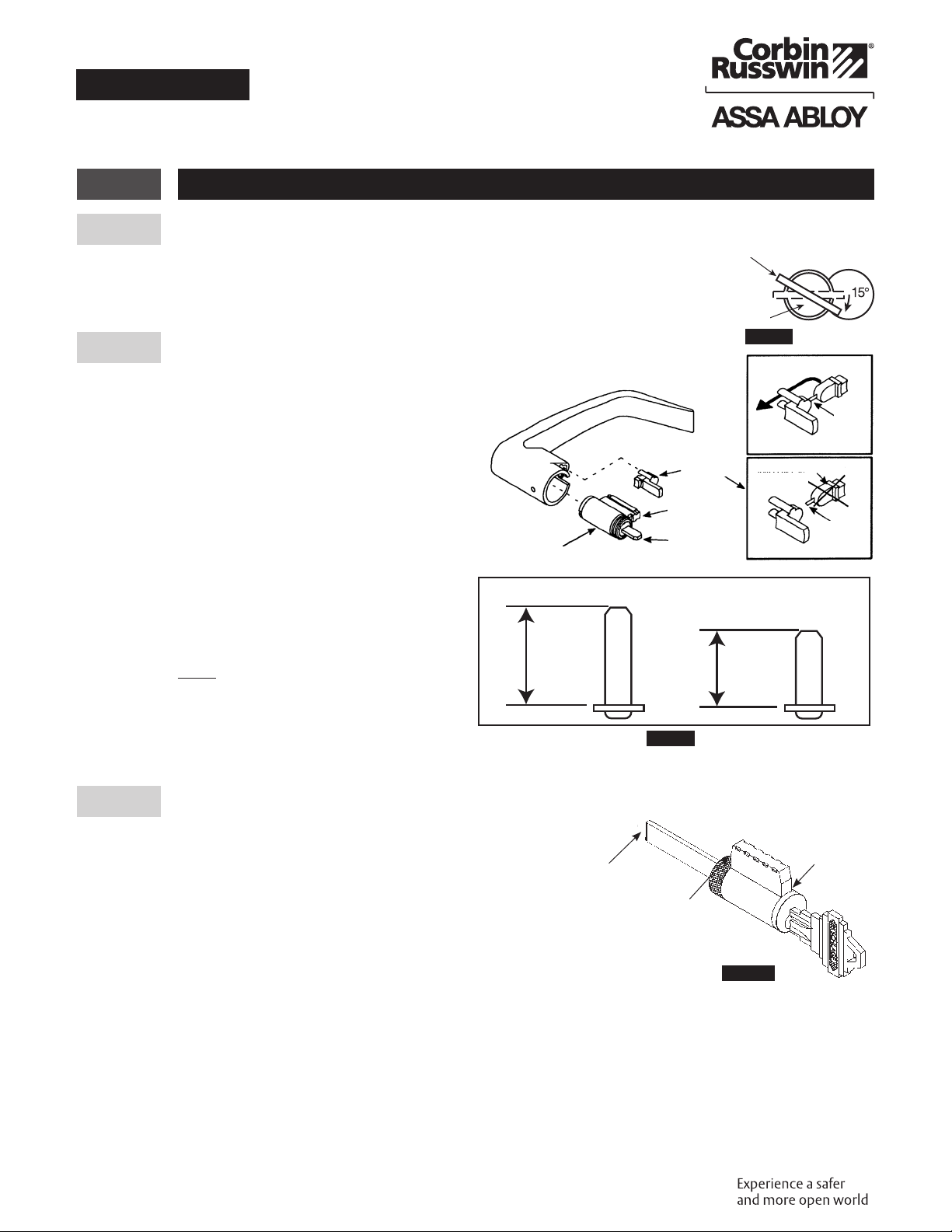

3 Cylinder Installation (continued)

c Interchangeable Core Removal

1. Insert key marked CONTROL and turn clockwise approximately

15˚. (Figure10)

2. Pull core and tailpiece completely out of lever.

d Install Standard Cylinder

1. Make sure lock is unlocked.

2. Make sure cylinder tailpiece is aligned

in same direction as cylinder bible.

3. Slide cylinder all the way into lever.

• For 6-pin cylinder: Fold retainer at

hinge and press fit retainer halves

together as shown.

• For 7-pin cylinder: Break retainer at

hinge and discard spacer section.

Also remove black cylinder spacer

from inside of chassis rollback

for clearance.

Standard Cylinder Tailpieces

Note:

Dimensions are given in inches (")

and millimeters (mm).

e Conversion Kit for Schlage®Cylinders with CL3300 Lockset

1. Remove threaded collar and Schlage®tailpiece.

2. Install CL3300 tailpiece with threaded collar.

3. Adjust collar for proper end play of plug.

Control Key

Core

Figure10

11/16"

(17 mm)

7/8"

(22 mm) 6 PIN 7 PIN

ACTUAL SIZE SHOWN

Lever

Retainer

Cylinder

Bible

Cylinder

Tailpiece

Fold Retainer Halves

Actual Size Shown

For 7-pin Cylinder

7-pin

6-pin

7/8"

(22 mm) 11/16"

(17 mm)

For 6-pin Cylinder

Hinge

Remove Spacer

and Discard

Figure11

Figure12

Schlage®

Cylinder

Threaded

Collar

Schlage®

Tailpiece

CL3300 Series

Installation Instructions

Cylindrical Lockset

FM533 02/20

or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

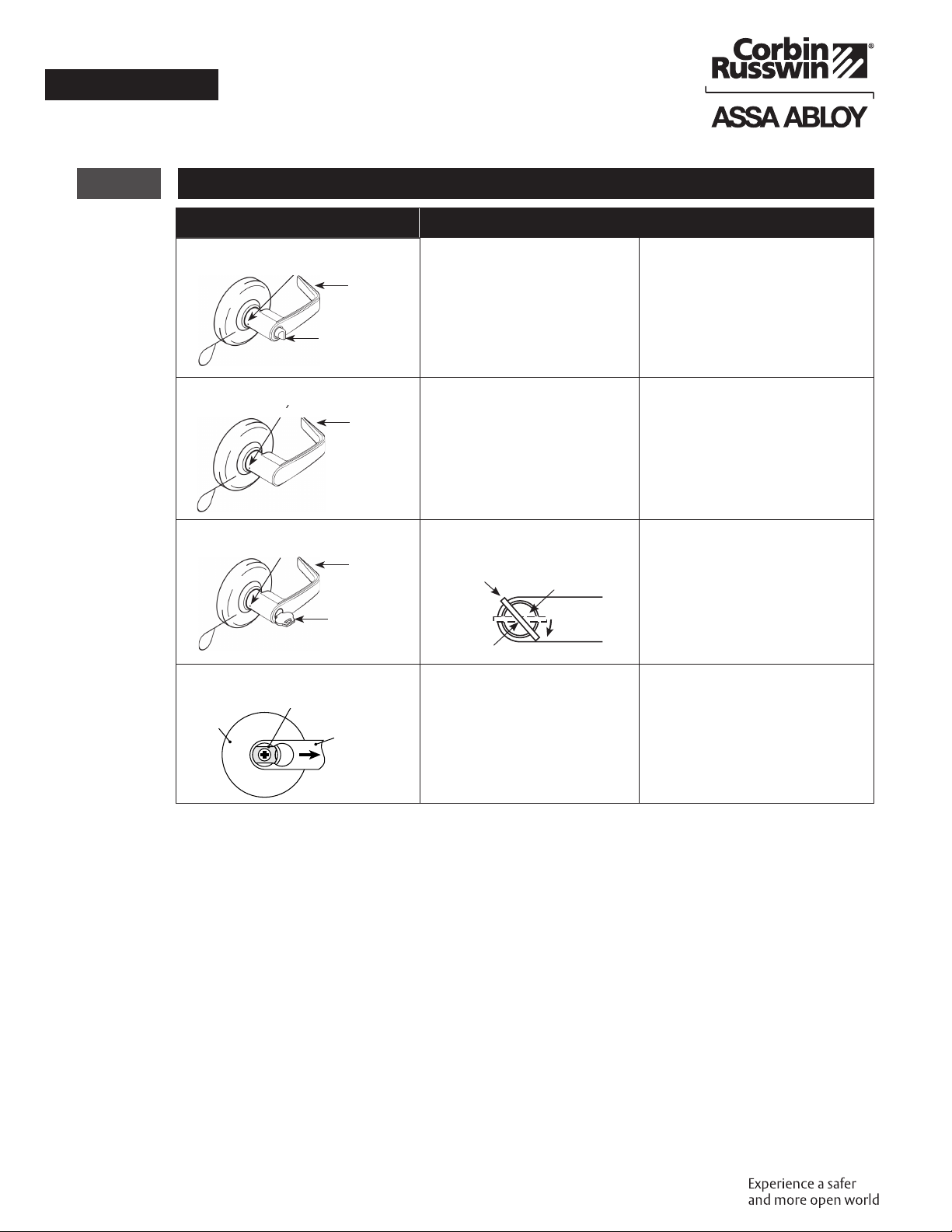

4 Lever Removal and Installation

Lever Style Removal Install

Push / Turn Button Release Hole

Lever

Assembly

Button

Hold in button, push release tool

into release hole, remove lever.

Push button in, slide lever on.

• Make sure lever will not pull off.

Plain Lever

Release Hole Lever

Assembly Push release tool into release hole,

remove lever.

Push button in, slide lever on.

• Make sure lever will not pull off.

Cylinder Lever

Key

Release Hole Lever

Assembly

Rotate Key 45˚ clockwise (from

shed position). Push release tool

into release hole, remove lever.

Key

45˚

Lever

Cylinder

Push button in, slide lever on.

• Make sure lever will not pull off.

Interchangeable Core Lever

Rose Lever

Lever Catch (Move in direction of arrow) Remove cylinder and tailpiece (see

page 4). Use flat-head screwdriver

to pull back lever catch, remove

lever.

Push button in, slide lever on.

• Make sure lever will not pull off.

CL3300 Series

Installation Instructions

Cylindrical Lockset

FM533 02/20

or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

5 Optional Installations

For CL3380 and CL3381 Functions Only:

Figure13

Two (2)

#12-24 x 1-1/4"

Machine Screws

Blank Plate

Inside Spring Housing

Assembly

For CL3390 and CL3391 Functions Only:

For CL3350 Functions Only:

Two (2)

#12-24 x 1-1/4"

Machine Screws with

Cup Washers

Spring

Housing

Assembly

Figure15

For CL3370 Functions Only:

Two (2)

#12-24 x 1-1/4"

Machine Screws

Inside Spring

Housing Assembly

Outside Spring

Housing Assembly

Figure16

Outside Spring

Housing

Assembly

Outside Spring

Housing

Assembly Rose Liner

#8-32 Self

Tapping Screws

45˚

Front View

of Turnpiece

#12-24

Machine

Screws

Figure14

Corbin Russwin is a brand associated with ASSA ABLOY Access and Egress Hardware Group, Inc., an ASSA ABLOY Group company.

without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

Corbin Russwin, Inc.

225 Episcopal Road

Berlin, CT 06037 USA

Phone: 800-543-3658

Fax: 800-447-6714

www.corbinrusswin.com

FM533 02/20

Corbin Russwin, Inc.

225 Episcopal Road

Berlin, CT 06037 USA

Phone: 800-543-3558

Fax: 800-447-6714

www.corbinrusswin.com

ASSA ABLOY is the global

leader in door opening solutions,

dedicated to satisfying

end-users needs for security, safety,

and convenience

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cerradura de puerta de Assa Abloy

Assa Abloy

Assa Abloy HES 9400 Instrucciones de funcionamiento

Assa Abloy

Assa Abloy Corbin Russwin CLX3361 Manual de usuario

Assa Abloy

Assa Abloy M32 Manual

Assa Abloy

Assa Abloy ML22HPH Manual de usuario

Assa Abloy

Assa Abloy Connect 50 Manual de usuario

Assa Abloy

Assa Abloy ADAMS RITE 4300 Series Manual de usuario

Assa Abloy

Assa Abloy 1584 Series Manual de usuario

Assa Abloy

Assa Abloy Sargent 11 Line Manual de usuario

Assa Abloy

Assa Abloy EMTEK LISCIO Guía de solución de problemas

Assa Abloy

Assa Abloy Sargent PE8400 Series Manual de usuario

Assa Abloy

Assa Abloy KESO KEK i-turn Manual del operador

Assa Abloy

Assa Abloy PE920 Manual de usuario

Assa Abloy

Assa Abloy effeff ANYKEY Manual de usuario

Assa Abloy

Assa Abloy Yale YDME 50 Pro Manual de usuario

Assa Abloy

Assa Abloy Corbin Russwin Access 600 CL33600 TCRNE1... Manual de usuario

Assa Abloy

Assa Abloy Corbin Russwin ED8400 Series Manual de usuario

Assa Abloy

Assa Abloy Yale PAS3621 Manual de usuario

Assa Abloy

Assa Abloy Sargent 6-Line Manual de usuario

Assa Abloy

Assa Abloy CLIQ eCLIQ Connect key Manual de usuario

Assa Abloy

Assa Abloy IKON eCLIQ SPARK N112 Manual de usuario

Assa Abloy

Assa Abloy ESA500 Manual de instalación

Assa Abloy

Assa Abloy Sargent AD-PE8600 Manual de usuario

Assa Abloy

Assa Abloy Yale Assure Lock YRD620 Especificaciones técnicas

Assa Abloy

Assa Abloy PEMKO 3495 Manual de usuario

Manuales populares de Cerradura de puerta de otras marcas

We.lock

We.lock SECBNEBL51 Manual de usuario

Iseo

Iseo MA1A Manual de usuario

ID Lock

ID Lock 150 Manual de usuario

Lockly

Lockly ACCESS TOUCH PRO Manual de usuario

iLoq

iLoq G50S Manual de usuario

SDC

SDC Z7835 Manual de usuario

ilco

ilco 452 Manual de usuario

Samsung

Samsung shs-h705 Manual de usuario

TRU-BOLT

TRU-BOLT 08102017 Manual de usuario

CDVI

CDVI 500-LADJ Manual de usuario

Igloohome

Igloohome Deadbolt 2S Metal Grey Instrucciones de instalación y mantenimiento

eSSL

eSSL FL-300 Manual de usuario

JAKO

JAKO JKBTNX4 Manual de usuario

Dorma

Dorma MUNDUS PREMIUM GK 50 Guía del usuario

SCOOP

SCOOP Pullbloc 4.1 FS Panik Manual de usuario

Yale

Yale MORTISE 8800 SERIES Manual de usuario

Siegenia

Siegenia KFV AS3500 Manual de usuario

Saflok

Saflok Quantum ädesē RFID Manual de usuario
