ASROCK CONROE1333-D667 Manual de usuario

ASRock ConRoe1333-D667 Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

PublishedApril 2007

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

2ASRock ConRoe1333-D667 Motherboard

EnglishEnglish

English

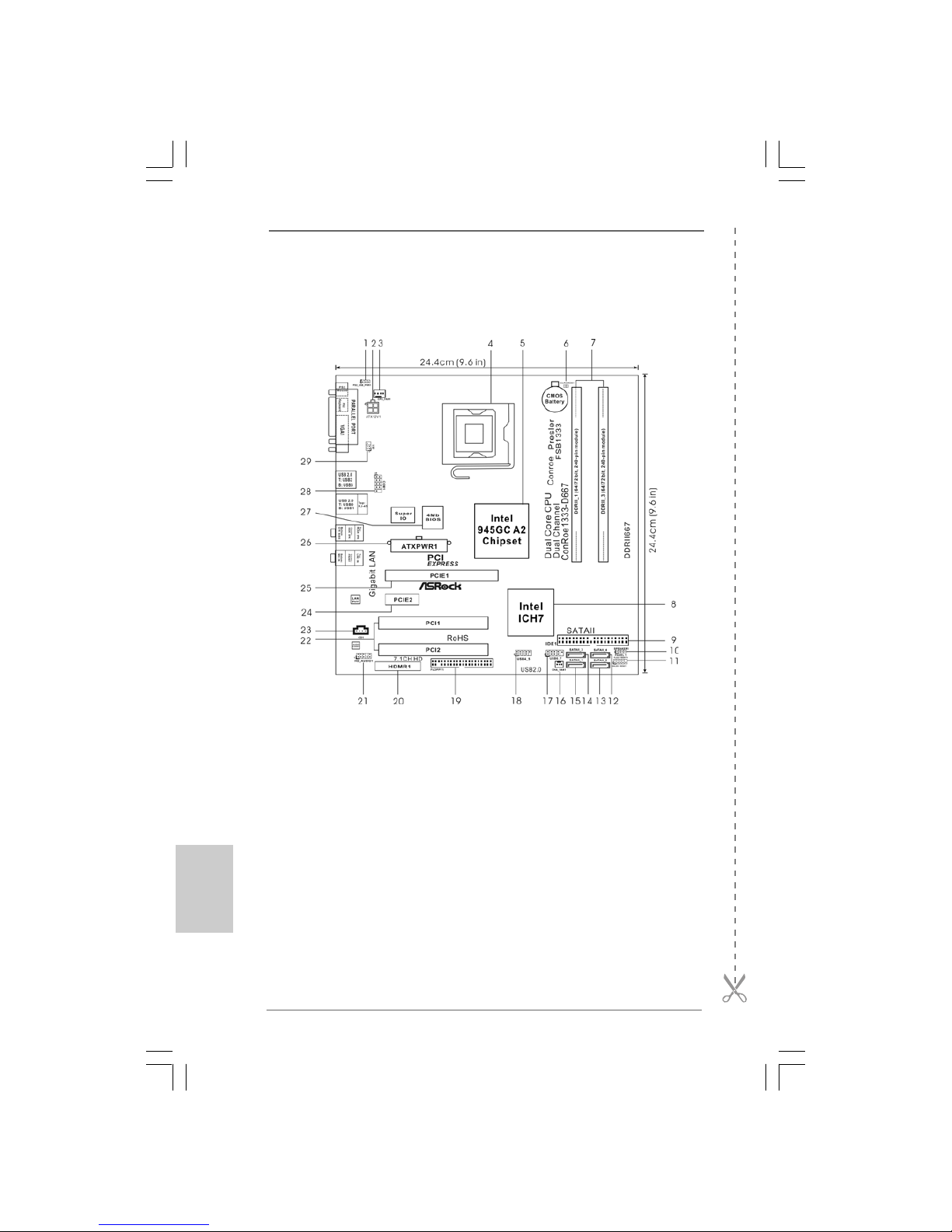

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

1 PS2_USB_PWR1 Jumper 15 Primary SATAII Connector (SATAII_1; Red)

2 ATX 12V Connector (ATX12V1) 16 Chassis Fan Connector (CHA_FAN1)

3 CPU Fan Connector (CPU_FAN1) 17 USB 2.0 Header (USB6_7, Blue)

4 775-Pin CPU Socket 18 USB 2.0 Header (USB4_5, Blue)

5 North Bridge Controller 19 Floppy Connector (FLOPPY1)

6 Clear CMOS Jumper (CLRCMOS1) 20 HDMR Slot (HDMR1)

7 2 x 240-pin DDRII DIMM Slots 21 Front Panel Audio Header (HD_AUDIO1)

(Dual Channel: DDRII_1, DDRII_3; Yellow) 22 PCI Slots (PCI1- 2)

8 South Bridge Controller 23 Internal Audio Connector: CD1 (Black)

9 IDE1 Connector (IDE1, Blue) 24 PCI Express x1 Slot (PCIE2)

10 Chassis Speaker Header (SPEAKER1) 25 PCI Express x16 Slot (PCIE1)

11 System Panel Header (PANEL1) 26 ATX Power Connector (ATXPWR1)

12 Fourth SATAII Connector (SATAII_4; Orange) 27 BIOS FWH Chip

13 Secondary SATAII Connector (SATAII_2; Red) 28 Serial Port Connector (COM1)

14 Third SATAII Connector (SATAII_3; Orange) 29 Infrared Module Header (IR1)

ASRock ConRoe1333-D667 Motherboard

EnglishEnglish

English

HD 8CH I/OHD 8CH I/O

HD 8CH I/O

1 Parallel Port 8 Microphone (Pink)

2 RJ-45 Port 9 USB 2.0 Ports (USB01)

3 Side Speaker (Gray) 10 USB 2.0 Ports (USB23)

4 Rear Speaker (Black) 11 VGAPort

5 Central / Bass (Orange) 12 PS/2 Keyboard Port (Purple)

6 Line In (Light Blue) 13 PS/2 Mouse Port (Green)

*7 Front Speaker (Lime)

* If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See

the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 7) (No. 4) (No. 5) (No. 3)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA

Audio 2nd output” to use front panel audio.

4ASRock ConRoe1333-D667 Motherboard

EnglishEnglish

English

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock ConRoe1333-D667 motherboard, a reliable moth-

erboard produced under ASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRock’s commitment to

quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change

without notice. In case any modifications of this manual occur, the

updated version will be available on ASRock website without further

notice. You may find the latest VGA cards and CPU support lists on

ASRock website as well.

ASRock website http://www.asrock.com

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

ASRock ConRoe1333-D667 Motherboard

(Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm)

ASRock ConRoe1333-D667 Quick Installation Guide

ASRock ConRoe1333-D667 Support CD

One 80-conductor Ultra ATA66/100 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

One SerialATA (SATA) Data Cable (Optional)

One SerialATA (SATA) HDD Power Cable (Optional)

One HD 8CH I/O Shield

One COM Port Bracket

ASRock ConRoe1333-D667 Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

CPU - LGA775 for Intel®Dual Core CoreTM 2 Extreme / CoreTM 2Duo

/ Pentium®D/ Pentium®Dual Core / Pentium®4 / Celeron®/

Celeron®D

- Compatible with all FSB1333/1066/800/533MHz CPUs

except Quad Core (see CAUTION 1)

- Supports Hyper-Threading Technology (see CAUTION 2)

- Supports Untied Overclocking Technology (see CAUTION 3)

- Supports EM64T CPU

Chipset -Northbridge: Intel®945GC A2

- Southbridge: Intel®ICH7

Memory -Dual ChannelDDRII Memory Technology (see CAUTION 4)

- 2 xDDRIIDIMM slots

- SupportDDRII667/533 (see CAUTION 5)

- Max. capacity: 4GB (see CAUTION 6)

Hybrid Booster - CPU Frequency Stepless Control (see CAUTION 7)

- ASRock U-COP (see CAUTION 8)

- Boot Failure Guard (B.F.G.)

Expansion Slot - 1 x PCI Express x16 slot

- 1 x PCI Express x1 slot

- 2 x PCI slots

- 1 x HDMR slot

Graphics - Intel®Graphics Media Accelerator 950

- Pixel Shader 2.0,DirectX 9.0

- Max. shared memory 224MB (see CAUTION 9)

Audio - 7.1 CH Windows® VistaTM Premium Level HDAudio

(ALC888 Audio Codec)

LAN - PCIE x1Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111B

- Supports Wake-On-LAN

Rear Panel I/O HD8CHI/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA Port

- 1 x Parallel Port (ECP/EPP Support)

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port

- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/

Line in/Front Speaker/Microphone (see CAUTION 10)

6ASRock ConRoe1333-D667 Motherboard

EnglishEnglish

English

Connector - 4 x SATAII 3.0 Gb/s connectors (No Support for RAID and

“Hot Plug” functions) (see CAUTION 11)

- 1 x ATA100 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x COM port header

- CPU/Chassis FAN connector

- 20 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

(see CAUTION 12)

BIOS Feature - 4MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- AMBIOS 2.3.1 Support

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 2000/XP/XP 64-bit/VistaTM/

VistaTM 64-bit compliant (see CAUTION 13)

Certifications - FCC, CE, WHQL

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

ASRock ConRoe1333-D667 Motherboard

EnglishEnglish

English

CAUTION!

1. FSB1333-CPU will operate in overclocking mode. Under this situation,

PCIE frequency will also be overclocked to 115MHz.

2. About the setting of “Hyper ThreadingTechnology”, please check page 28

of “User Manual” in the support CD.

3. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 20 for details.

4. This motherboard supports Dual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 12 for proper installation.

5. Please check the table below for the CPU FSB frequency and its corre-

sponding memory support frequency.

CPU FSB Frequency Memory Support Frequency

1333 DDRII533*, DDRII667

1066 DDRII533, DDRII667

800 DDRII400, DDRII533, DDRII667

533 DDRII400, DDRII533

* When you use a FSB1333-CPU on this motherboard, it will run at

DDRII500 if you adopt a DDRII533 memory module.

6. Due to the chipset limitation, the actual memory size may be less than

4GB for the reservation for system usage under Windows®XP, Windows®

XP 64-bit, Windows®VistaTM and Windows®VistaTM 64-bit.

7. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

8. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

9. The maximum shared memory size is defined by the chipset vendor and

is subject to change. Please check Intel®website for the latest information.

10. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-channel,

6-channel, and 8-channel modes. Please check the table on page 3 for

proper connection.

11. Before installing SATAII hard disk to SATAII connector, please read the “SATAII

Hard Disk Setup Guide” on page 19 to adjust your SATAII hard disk drive to

SATAII mode. You can also connect SATA hard disk to SATAII connector

directly.

12. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4.

13. Microsoft®Windows®VistaTM / VistaTM 64-bit driver keeps on updating now. As

long as we have the latest driver, we will update it to our website in the future.

Please visit our website for Microsoft®Windows®VistaTM / VistaTM 64-bit driver

and related information.

ASRock website http://www.asrock.com

8ASRock ConRoe1333-D667 Motherboard

EnglishEnglish

English

1.31.3

1.3 Minimum Hardware RMinimum Hardware R

Minimum Hardware RMinimum Hardware R

Minimum Hardware Requirement Tequirement T

equirement Tequirement T

equirement Table for Wable for W

able for Wable for W

able for Windowsindows

indowsindows

indows®®

®®

VistaVista

VistaTMTM

TMTM

TM Premium 2007 and Basic LogoPremium 2007 and Basic Logo

Premium 2007 and Basic LogoPremium 2007 and Basic Logo

Premium 2007 and Basic Logo

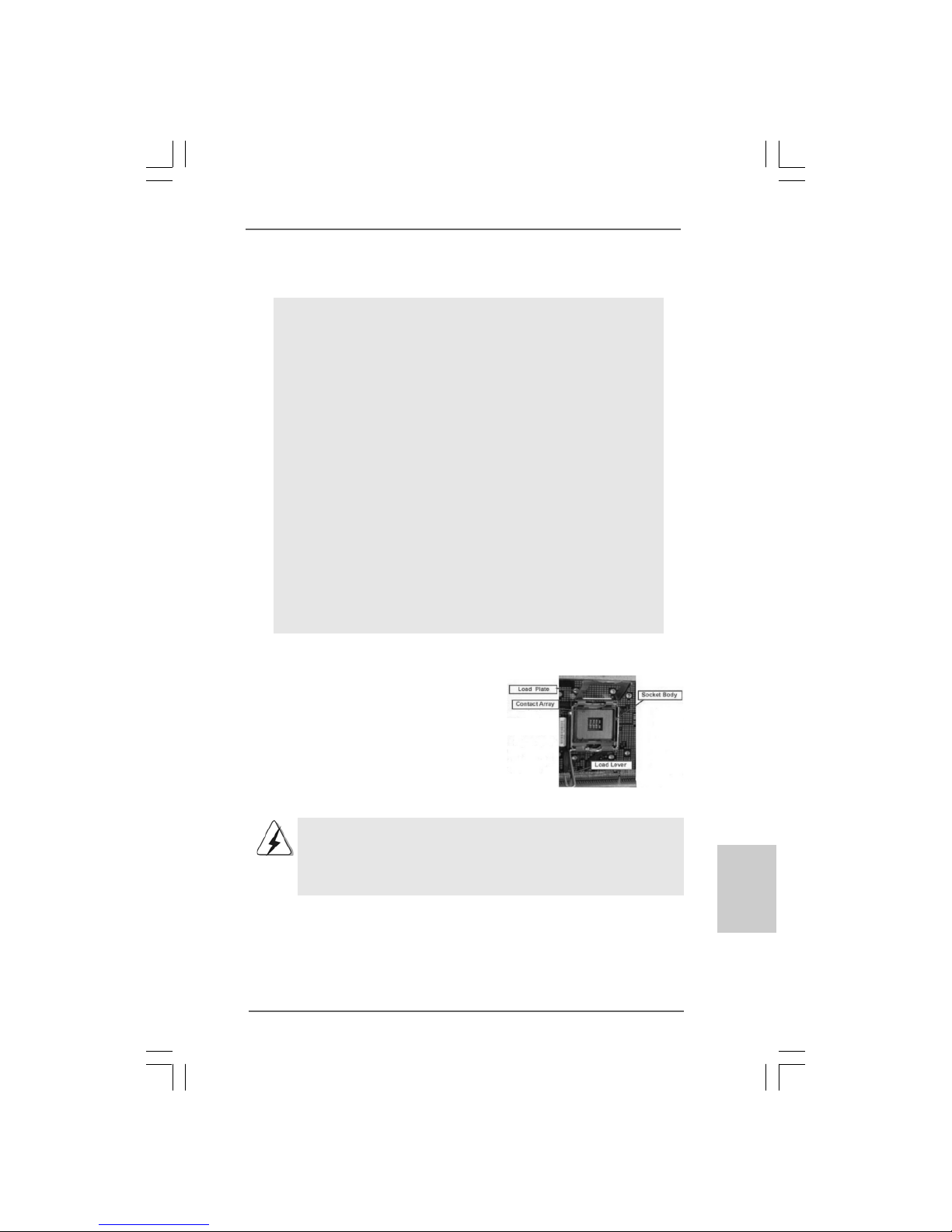

For system integrators and users who purchase this motherboard and

plan to submit Windows®VistaTM Premium 2007 and Basic logo, please

follow below table for minimum hardware requirements.

CPU Celeron D 326

Memory 512MB x 2 Dual Channel (Premium)

512MB Single Channel (Basic)

256MB x 2 Dual Channel (Basic)

VGA DX9.0 with WDDM Driver

* If you plan to use onboard VGA to submit Windows®VistaTM logo, please keep the

default setting of “DVMT Mode Select” option under BIOS.

* If you plan to use external graphics card on this motherboard, please refer to

Premium Discrete requirement at http://www.asrock.com

* After June 1, 2007, all Windows®VistaTM systems are required to meet above

minimum hardware requirements in order to qualify for Windows®VistaTM Premium

2007 logo.

ASRock ConRoe1333-D667 Motherboard

2.2.

2.InstallationInstallation

InstallationInstallation

Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet

or the like. Also remember to use a grounded wrist strap or touch

a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the

motherboard to the chassis, please do not over-tighten the

screws! Doing so may damage the motherboard.

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

For the installation of Intel 775-LAND CPU,

please follow the steps below.

Before you insert the 775-LAND CPU into the socket, please check if

the CPU surface is unclean or if there is any bent pin on the socket.

Do not force to insert the CPU into the socket if above situation is

found. Otherwise, the CPU will be seriously damaged.

775-Pin Socket Overview

EnglishEnglish

English

1010

10 ASRock ConRoe1333-D667 Motherboard

EnglishEnglish

English

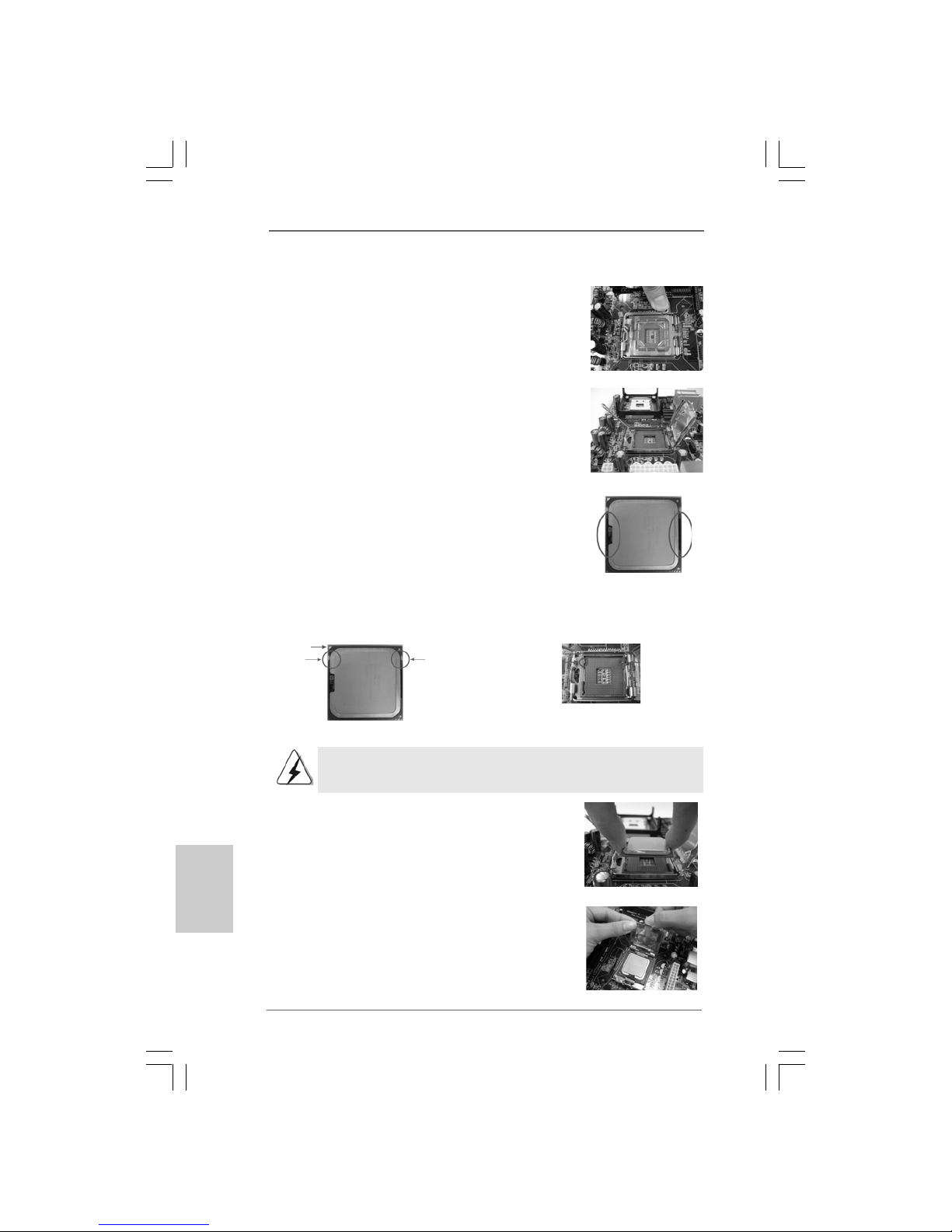

Step 1. Open the socket:

Step 1-1. Disengaging the lever by depressing

down and out on the hook to clear

retention tab.

Step 1-2. Rotate the load lever to fully open po-

sition at approximately 135 degrees.

Step 1-3. Rotate the load plate to fully open po-

sition at approximately 100 degrees.

Step 2. Insert the 775-LAND CPU:

Step 2-1. Hold the CPU by the edges where are

marked with black lines.

Step 2-2. Orient the CPU with IHS (Integrated

Heat Sink) up. Locate Pin1 and the two

orientation key notches.

For proper inserting, please ensure to match the two orientation key

notches of the CPU with the two alignment keys of the socket.

Step 2-3. Carefully place the CPU into the socket

by using a purely vertical motion.

Step 2-4. Verify that the CPU is within the socket

and properly mated to the orient keys.

Step 3. Remove PnP Cap (Pick and Place Cap):

Use your left hand index finger and thumb to

support the load plate edge, engage PnP cap

with right hand thumb and peel the cap from the

socket while pressing on center of PnP cap to

assist in removal.

black line

775-PinSocket

Pin1

alignment key alignment key

Pin1

orientation

key notch orientation

key notch

775-LAND CPU

Otros manuales para CONROE1333-D667

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de ASROCK

ASROCK

ASROCK 2Core1333-2.66G Manual de usuario

ASROCK

ASROCK SuperAlloy Z170 Pro4S Manual de usuario

ASROCK

ASROCK FATAL1TY P67 PERFORMANCE - ANNEXE 955 Manual de usuario

ASROCK

ASROCK H310M-HDV Manual de usuario

ASROCK

ASROCK PRO BTC Series Manual de usuario

ASROCK

ASROCK AM2V890-VSTA Manual de usuario

ASROCK

ASROCK 775i65G R3.0 Manual de usuario

ASROCK

ASROCK OC FORMULA X299 Manual de usuario

ASROCK

ASROCK M3N78D - V1.0 Manual de usuario

ASROCK

ASROCK K7VT4A PRO Manual de usuario

ASROCK

ASROCK N68-GS3 UCC - Manual de usuario

ASROCK

ASROCK M3A790GXH/128M Manual de usuario

ASROCK

ASROCK Z690 PG Velocita Manual de usuario

ASROCK

ASROCK ALIVENF6G-VSTA Manual de usuario

ASROCK

ASROCK A790GXH128M - Manual de usuario

ASROCK

ASROCK IMB-171-D Instrucciones de uso

ASROCK

ASROCK R-4130 Manual de usuario

ASROCK

ASROCK N68-GS4/USB3 FX R2.0 Manual de usuario

ASROCK

ASROCK J3160TM-ITX Manual de usuario

ASROCK

ASROCK Z87 Extreme6/ac Manual de usuario

ASROCK

ASROCK X38TURBOTWINS Manual de usuario

ASROCK

ASROCK T48EM1 Manual de usuario

ASROCK

ASROCK 4COREDX90-VSTA - V1.0 Manual de usuario

ASROCK

ASROCK H61M-DPS Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
