Asoni CAM6681F Manual de usuario

25M-IR 1080P Full-HD

H.264 CMOS Network Camera

CAM6681F / CAM6681F-W / CAM6681F-PoE

User’s Manual

Date: 10/30/2012

Firmware Version: VC1.0.06

Content

Content .......................................................................................................................................1

1. Preface.................................................................................................................................3

2. Product Specifications.......................................................................................................3

3. Product Installation ............................................................................................................6

A. Hardware Installation......................................................................................................6

Cable Connections................................................................................................................6

I/O Connections....................................................................................................................8

B. Monitor Setting..............................................................................................................10

C. IP Assignment................................................................................................................11

4. Live Video..........................................................................................................................13

5. Configuration ....................................................................................................................18

A. System ...........................................................................................................................18

System Information.............................................................................................................18

User Management..............................................................................................................22

System Upgrade.................................................................................................................24

System Logs.......................................................................................................................25

B. Video/Audio Setting ......................................................................................................26

Video Format ......................................................................................................................26

Image Setting......................................................................................................................32

Audio Setting ......................................................................................................................35

C. Network Setting.............................................................................................................37

Network Setting ..................................................................................................................37

Wireless Setting..................................................................................................................42

Mail / FTP / Samba Setting.................................................................................................45

PPPoE / DDNS Setting.......................................................................................................49

D. Network (Advance) Setting...........................................................................................52

HTTPS Setting....................................................................................................................52

SNMP Setting .....................................................................................................................54

IP Filter Setting ...................................................................................................................56

QoS/ DSCP Setting.............................................................................................................58

IEEE 802.1x Setting............................................................................................................59

E. Event Handling..............................................................................................................60

Event Setting ......................................................................................................................60

I/O Setting...........................................................................................................................66

Schedule.............................................................................................................................68

Micro-SD Card....................................................................................................................70

6. Network Configuration.....................................................................................................73

A. Intranet Only..................................................................................................................73

Connects to PC Directly......................................................................................................73

Connects to an Exist LAN...................................................................................................74

B. Internet Only..................................................................................................................75

Connects toADSL with Fixed Public IPAddress.................................................................75

Connects toADSL with Floating Public IPAddress (PPPoE)..............................................76

C. Intranet + Internet..........................................................................................................78

Connects to Internet with Fixed Public IPAddress..............................................................78

Connects to Internet with Floating Public IPAddress..........................................................80

7. Factory Default..................................................................................................................81

1. Preface

This camera is a 1080P Full-HD 2 Mega-Pixel CMOS network camera which builds in web

server. User views real-time video via IE browser. It supports H.264, MJPEG and MPEG4

video compression which provides smooth and high quality video.

The IR model equips infrared illuminator to provide good image quality, even in darkness.

The PoE model built-in support for Power over Ethernet allows the camera to receive both

data and power over a single Ethernet cable.

This camera is an easy-to-use IP camera which is designed for security application.

2. Product Specifications

Onvif compliance

2 Mega-Pixel CMOS Sensor

H.264 / MJPEG / MPEG4 compression formats and triple streaming

Supports resolution up to 1920x1080, 1080P@30FPS real time

Self-Contained HTTP Web Server providing Internet capability for remote access

Day & Night functionality for 24-hours surveillance, auto activate IR illuminator in low

illumination

Infrared radiant distance up to 25 meters

Vari-focal lens external adjustment

Outdoor housing with IP66 waterproof standard

Digital Wide Dynamic Range

Shutter Speed adjustment

Sense Up adjustment

3D+2D Digital Noise Reduction

Day&Night Switch time control manually

Wireless network connection (Wireless model)

Built-in PoE splitter, support for Power over Ethernet (PoE model)

Supports Micro-SD card for local event recording

2-way audio

Online firmware upgrade

Hardware

CPU / RAM / ROM ARM Cortex A9 / 256MB / 16MB

Image Sensor 1/2.7” CMOS, 2 Mega-Pixel

Lens Adjustable Vari-focal 3.6 ~ 16 mm, F1.2, Mega-Pixel lens

IR Distance 25 Meters

IR LED Built-in 35 IR LEDs

Illumination Color: 0.1 lux (AGC On)

Mono: 0.05 lux (AGC On)

IR On: 0 lux

Day / Night Built-in Mechanism IR Cut Filter (ICR)

Shutter Time Auto: Indoor, Outdoor

Manual: 1/30 ~ 1/1000 sec

Audio In 1 Microphone in (3.5mm phone jack for connecting external passive-type of

microphone)

Audio Out 1 Line out (3.5mm phone jack for connecting external amplified speaker)

Digital I/O 1 Digital in / 1 Digital out

Video Out 1 Analog video out (BNC connector)

Power Supply Normal & Wireless model: DC 12V, 1A

PoE model (built-in PoE Splitter):

Use PoE: PoE Injector (IEEE 802.3af)

Or, use Power Adaptor: DC 12V, 1A

Power Consumption Max. 9 Watt

Dimensions W83 x H79.5 x L182.5 mm (without stand)

Network

Ethernet 10/ 100 Base-T

Wireless (Wireless model) 802.11b/g/n, supports WPA-PSK, WPA2-PSK, WEP 64/ 128 bit

Network Protocol IPv4/IPv6, HTTP, HTTPS, TCP/IP, RTP/RTSP, UDP, 3GPP, SMTP, FTP,

Samba, PPPoE, DHCP, DDNS, NTP, UPnP, SNMP, QoS/DSCP, IP Filter,

IEEE 802.1x, Bonjour

Onvif Compliance Yes, compliant with Onvif V2.10, 1.02, 1.01 and Profile S

System

Triple Streaming Yes (2 for live view, 1 for 3GPP)

3G Mobile View Yes, Live view with 3G mobile device

Video/ Audio Format Stream 1 / Stream 2

Resolution: 1920x1080, 1280x720, 640x480, 320x240, 176x144

Bitrate: 32Kbps ~ 8Mbps

Frame Rate: up to 30FPS

Video Format: H.264, MJPEG

Audio Format: G.711 (64Kbps), G.726 (24Kbps), G.726 (32Kbps)

3GPP Stream

Resolution: 640x480, 320x240, 176x144

Bitrate: 32Kbps ~ 2Mbps

Frame Rate: up to 15FPS

Video Format: H.264, MPEG4

Audio Format: AMR

Video Bitrate Adjustment CBR, VBR

Image Adjustment Brightness, Contrast, Hue, Saturation, Sharpness, Gain control, Shutter time,

Sense Up, Digital WDR, White Balance, 3D/2D Digital Noise Reduction,

Day/Night color mode, Video orientation

Image Snapshot Yes

Privacy Mask Yes, 3 different areas

Motion Detection Yes, 3 different areas

Event Trigger Motion Detection, Digital In

Triggered Action Send Email, Send to FTP, Save to SD Card, Save to Samba HDD, Digital Out

Pre/ Post Alarm Yes, configurable

Security Password protection, IP address filtering, HTTPS encrypted data

transmission, IEEE 802.1x port-based authentication, QoS/DSCP

Firmware Upgrade HTTP mode, can be upgraded remotely

Connection Up to 10 clients simultaneously

Audio Yes, 2-way

Micro-SD card management

Recording Trigger Motion Detection, Digital In, IP Check, Network Disconnect

Schedule Snapshot with schedule

Video Format Video (AVI), Snapshot (JPEG)

Video Playback Yes

Web browsing requirement

OS Windows 2000, XP, Vista, Windows 7

Web Browser Microsoft IE V7.0 (32-bit) or above, Mozilla Firefox V6.0 or above, Opera

V11.5 or above, Safari V5.1 or above, Google Chrome V13.0 or above

Suggested Hardware Intel Core 2 Duo 2.53GHz, RAM: 1GB

Graphic card: 128MB onboard RAM

* Specifications are subject to change without notice

3. Product Installation

A. Hardware Installation

Cable Connections

Power Jack:

To connect the DC 12V power adapter.

Digital I/O:

Digital In and Digital Out.

Video Output: The BNC connector allows connect to the analog display to

output analog video for locally monitoring.



Microphone Input (Pink): The 3.5mm phone jack allows connect to a passive-type of

microphone, the audio will be heard at the remote site.



Audio Output (Green): The 3.5mm phone jack allows connect to an amplified

speaker, you can hear the voice of the remote site from the

speaker.

Network Connector:

The RJ-45 connector allows connect the Ethernet cable.

Zoom Adjustment:

This screw is for zooming in and zooming out.

Focus Adjustment:

This screw is for adjusting the focus.



Micro-SD Card Slot: Insert a Micro-SD card if you want to do the event recording

(video only) in the camera.





















Antenna Connector: Available for Wireless model. To connect the included

wireless antenna.

1. Connect the cable of Digital I/O, Video output,Audio output and Microphone input if

you want to use these functionalities.

2. Connect Ethernet cable for network connection.

3. Connect power adapter to turn on the camera.

4. If the camera is PoE model, the power adapter is not necessary. The camera will get

the power from the PoE injector or PoE switch.

PoE (Power over Ethernet) is a technology that integrates power into a standard LAN

infrastructure. It enables power to be provided to the network device, such as an IP

phone or a network camera, using the same cable as that used for network connection.

It eliminates the need for power outlets at the camera locations. Please follow the

below figure for the connection.

5. Set up the network configurations according to the network environment. For further

explanation, please refer to Network Configuration chapter.

6. After finish the configuration for the very first time, if you want to use wireless network,

connect the wireless antenna, and then configure the wireless settings, then, plug out

the Ethernet cable to use the wireless connection.

PoE Switch or PoE Injector

Ethernet Cable

Data only

Ethernet Cable

Mixed data and power

PoE Network Camera

To Network

I/O Connections

I/O connector – used in application, for e.g., motion detection, event triggering, alarm

notifications. It provides the interface to:

1 set of Digital Input (DI + GND) – The digital inputs for connecting devices that

can toggle between an open and closed circuit, such as PIRs, door/window

contacts, glass break detectors, etc. When a signal is received the status changes

and the input becomes active.

1 set of Digital Output (DO + GND) – The output to Relay Box or Relay Board, and

switch on the alarm device such as LEDs, Sirens, etc.

Digital Input (Alarm Input)

GND (Ground): Initial status is LOW.

Alarm: Max. 50mA, 12VDC.

Door/Window

Contacts

Default

GND

Default

GND

Digital Output

Digital Input

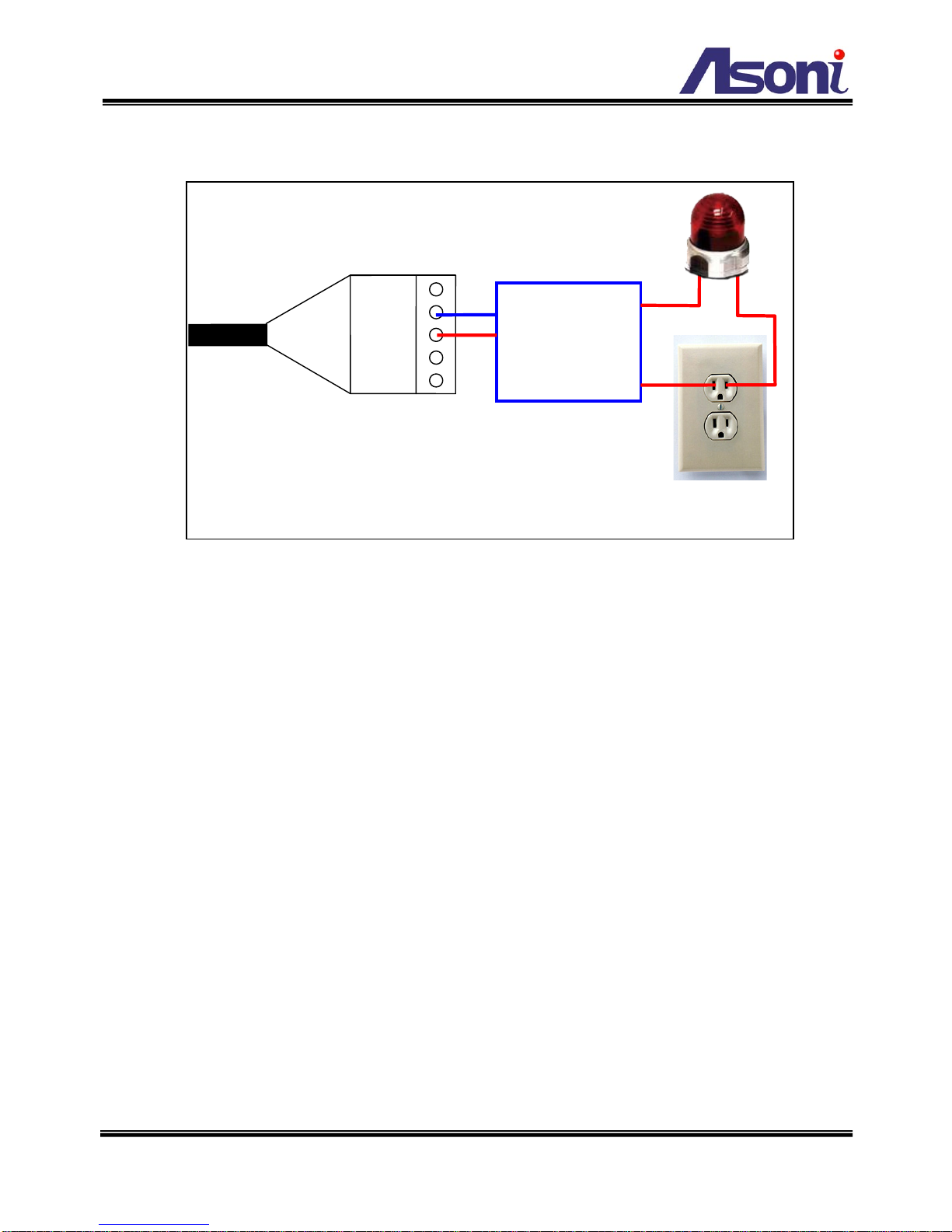

Digital Output (Alarm Output)

Default

GND

Relay Board

Relay Box

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de Asoni

Asoni

Asoni CAM737MIR Manual de usuario

Asoni

Asoni CAM6802T Manual de usuario

Asoni

Asoni CAM679F Manual de usuario

Asoni

Asoni CAM647 Manual de usuario

Asoni

Asoni CAM634M Manual de usuario

Asoni

Asoni CAM636M Manual de usuario

Asoni

Asoni CAM646M-PoE Manual de usuario

Asoni

Asoni CAM662H Manual de usuario

Asoni

Asoni CAM674G Manual de usuario

Asoni

Asoni CAM677G Manual de usuario

Asoni

Asoni CAM742F Manual de usuario

Asoni

Asoni CAM661H Manual de usuario

Asoni

Asoni CAM422M Manual de usuario

Asoni

Asoni CAM624M Manual de usuario

Asoni

Asoni CAM641 Manual de usuario

Asoni

Asoni CAM741H-W-P Manual de usuario

Asoni

Asoni CAM434 Manual de usuario

Asoni

Asoni CAM6691F Manual de usuario

Asoni

Asoni CAM633 Manual de usuario

Asoni

Asoni CAM642M Manual de usuario

Asoni

Asoni CAM613M Manual de usuario

Asoni

Asoni CAM627M Manual de usuario

Asoni

Asoni CAM412 Manual de usuario

Asoni

Asoni JNC-2613M Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
