Asoni CAM434 Manual de usuario

30M / 50M

IR Network Camera

CAM434 / CAM434W

User’s Manual

Date: 7/02/2010

Firmware Version: V3.2.70

Content

Content ........................................................................................................................................1

1. Preface .................................................................................................................................2

2. Product Specifications...........................................................................................................2

3. Product Installation ...............................................................................................................4

A. Hardware Installation.........................................................................................................4

B. Monitor Setting..................................................................................................................7

C. IP Assignment ...................................................................................................................8

4. Live Video...........................................................................................................................10

5. Configuration ......................................................................................................................14

A. System............................................................................................................................14

B. Video/Audio Setting.........................................................................................................21

C. Network Setting...............................................................................................................27

D. Event Handling................................................................................................................36

6. Network Configuration ........................................................................................................47

A. Intranet Only....................................................................................................................47

B. Internet Only....................................................................................................................49

C. Intranet + Internet............................................................................................................52

1. Preface

This camera is a professional CCD network camera which builds in web server. User

views real-time video via IE browser. It supports MPEG-4 & M-JPEG video compression

which provides smooth and high quality video.

This camera combines the features of a network camera with an infrared illuminator to

provide good image quality, even in darkness.

This camera is an easy-to-use IP camera which is designed for security application.

2. Product Specifications

MPEG-4 / MJPEG compression formats. Supports resolution up to 30/25 fps @ Full

D1 (720x480 / 720x576)

MPEG-4 / MJPEG dual streaming.

Self-Contained HTTP Web Server providing Internet capability for remote access

Day & Night functionality for 24-hours surveillance, auto activate IR illuminator in low

illumination

Infrared radiant distance up to 30 meters (30M model) / 40 meters (40M model) / 50

meters (50M model)

Outdoor housing with IP66 waterproof standard

Wireless network connection (Wireless model)

Online firmware upgrade

Recorded files compatible with Microsoft Windows Media Player

Hardware

CPU / RAM / ROM ARM 9, 32 bit RISC / 64MB RAM / 8MB ROM

Image Sensor 1/3" CCD, 520 TV lines

Lens 30M model: Vari-focal Auto Iris 3.7 ~ 12 mm

50M model: Vari-focal Auto Iris 9 ~ 22 mm

Illumination IR On: 0 lux

IR LED & Distance 30M model: 42 LED, up to 30 Meters

50M model: 21 LED, up to 50 Meters

ICR Mechanism IR Cut Filter

Video Out 1 Analog video out (BNC connector)

Digital I/O 1 In / 1 Relay out

Water Proof IP-66 standard

Power Supply Normal & Wireless model: AC 90V ~ 260V

PoE model (built-in PoE Splitter):

Use PoE Injector (IEEE 802.3af)

Power Consumption 30M model: Max. 14 Watt

50M model: Max. 15 Watt

Dimensions Φ104 x L258 mm

Network

Ethernet 10/ 100 Base-T

Wireless (Wireless model) 802.11b/g, supports WPA-PSK, WPA2-PSK, WEP 64/ 128 bit

Network Protocol HTTP, TCP/IP, RTP/RTSP, 3GPP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP

System

Video Resolution NTSC: 720x480, 704x480, 352x240, 176x120

PAL: 720x576, 704x576, 352x288, 176x144

Compression Format MPEG-4, MJPEG

Frame Rate Up to 30 FPS

Dual Streaming Yes

3GPP Yes, Live view with 3G mobile phone

Video Bitrate Adjustment CBR, VBR

Video Adjustment Brightness, Contrast, Saturation, Hue, 8 Steps manual shutter speed control

Image Snapshot Yes

Motion Detection Yes, 3 different areas

Event Trigger Motion Detection, Digital In

Triggered Action Send Email, Send to FTP, Relay Out

Pre/ Post Alarm Yes, configurable

Security Password protection

Firmware Upgrade HTTP mode, can be upgraded remotely

Connection Up to 10 clients simultaneously

Web browsing requirement

OS Windows 2000, XP, Vista, Windows 7

Web Browser Microsoft IE V7.0 or above, Mozilla Firefox V5.0 or above, Opera V10 or

above, Safari V4.0.5 or above, Google Chrome V5.0 or above

Suggested Hardware Intel-C 2.0G, RAM: 512MB

Graphic card: 64MB onboard RAM

* Specifications are subject to change without notice

3. Product Installation

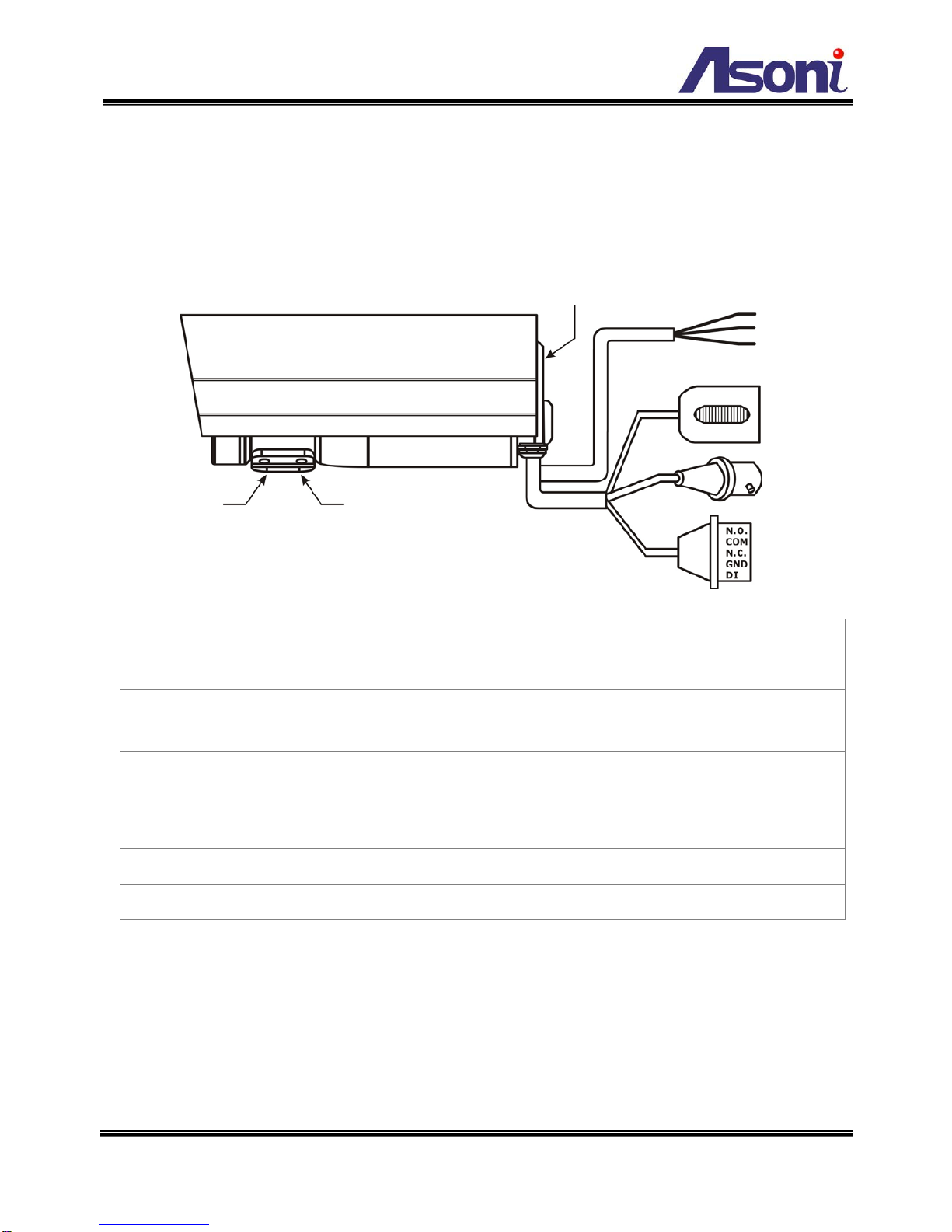

A. Hardware Installation

Power Wires: To connect the external AC power.



Network Connector:

The RJ-45 connector allows connect the Ethernet cable.

Video Out: The BNC connector allows connect to the analog display to

output analog video for locally monitoring.

Digital I/O: Digital In and Relay Out.

Antenna Connector: Available for Wireless model. Release the screw and then

connect the included wireless antenna.

Focus Adjustment: This screw is for adjusting the focus.



Zoom Adjustment:

This screw is for zooming in and zooming out.

1. Connect the cable of Digital I/O if you want to use these functionalities.

2. Connect the wireless antenna for the Wireless camera.

3. Connect Ethernet cable for network connection.

4. Connect the AC power to the Power Wires and turn on the camera.

5. If the camera is PoE model, the AC power is not necessary. The camera will get the

power from the Ethernet cable. Please follow the below figure for the connection.















6. Set up the network configurations according to the network environment. For further

explanation, please refer to Network Configuration chapter.

7. After finish the configuration for the very first time, if you want to use wireless network,

plug out the Ethernet cable.

I/O Connections

I/O connector – used in application, for e.g., motion detection, event triggering, alarm

notifications. It provides the interface to:

1 set of Digital Input (Alarm + GND) – The digital inputs for connecting devices

that can toggle between an open and closed circuit, such as PIRs, door/window

contacts, glass break detectors, etc. When a signal is received the status changes

and the input becomes active.

1 set of Relay Output (“N.O. + COM” or “N.C. + COM”) – The output to Relay

switch of the alarm device such as LEDs, Sirens, etc.

PoE Switch or PoE Injector

Ethernet Cable

Data only

Ethernet Cable

Mixed data and power

PoE Network Camera

To Network

Digital In

Relay Out

Digital Input (Alarm Input)

GND (Ground): Initial status is LOW.

Alarm: Max. 50mA, 12VDC.

Relay Output

COM: Common pin.

N.O. (Normally Open): Max. 1A/ 24VDC or 0.5A/ 125VAC.

Door/Window

Contacts

B. Monitor Setting

1. Right-Click on the desktop. Select “Properties”

2. Change color quality to “Highest (32bit)”.

C. IP Assignment

Always consult your network administrator before assigning an IP address to your

camera in order to avoid using a previously assigned IP address.

MAC Address: Each network camera has a unique Ethernet address (MAC address)

shown on the sticker of the camera.

One final note, although the IP Search is able to find and configure any network

camera on the LAN except those that are behind a router, it is a good idea to set the

host PC to the same subnet. In order to connect to the Web-based user interface of

the network camera, the host PC must be in the same subnet. For more information

about subnets, please consult your network administrator.

There are 3 kinds of IP configuration:

Fixed IP (Public IP or Virtual IP)

DHCP (Dynamic IP)

Dial-up (PPPoE)

IP Search is a utility that provides an easier, more efficient way to configure the IP

address and network settings of the network camera in Local Network (LAN). It even

provides a convenient way to set the network settings for multiple devices simultaneously.

Moreover, IP Search can save the network settings for all devices as a backup and

restore them when necessary.

The software can be installed from the attached software CD.

1. Once IP Search has been successfully installed on the computer, double click the

“IP Search” icon on the desktop.















2. IP Search searches all the network devices which connect to the intranet and lists

on the window. Click [Search] button to search again.

3. From the list, select the device with the MACAddress that corresponds to the

device that is to be configured.

4. Click and select one of the network devices, the network configuration of this device

will show on the bottom, filling in the IPAddress, Subnet Mask, Gateway and the

others.

5. Click [Set] button to complete the configuration settings and save into the device.

6. Wait for 1 minute to let the device update the settings, and then click [Search]

button again to re-search the network devices.

7. Click and select the network device listed on the window and click [Open Web]

button. It will open an IE browser and connect to this device directly.

8. You can assign a name to identify the device. Type the name in “Device Name” field,

click [Save] and then click [Search] button, the name will be displayed in the list.
