ARGON18 RADON 237A Manual de usuario

RADON 237A: ASSEMBLY GUIDE

Revision 3.0 - 05-29-2017 - Valid for MY2017 Radon

1. Tools Needed and First Aid Kit ........................................ 3

2. Sizing Chart.......................................................... 4

3. Seat Post Collar Assembly ............................................ 5

4. Seat Post Assembly .................................................. 6

5. Frameset Inspection ................................................. 8

6. Rear Derailleur Hanger Adjustment ................................... 9

7. Front Derailleur Hanger Installation..................................10

8. Cables Housing Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

9. Rear Brake Cable Housing ...........................................12

10. Derailleurs Cables Housings .......................................13

11. Parts’ SKUs and Descriptions .......................................15

12. Trouble-shooting / Tips ............................................16

RADON 237A: Table of Contents

For the warranty to be valid, the bicycle must be fully assembled by an authorized Argon 18 dealer. High-end components, particularly carbon

parts, need extra care when assembled. These components must be installed using a calibered torque wrench to make sure every bolt is at the right

torque setting to prevent damage.

My Radon

Date of purchase:

Retailler:

Size:

Serial Number:

Tools needed for assembly

1: Bearing Cup Press (Park Tool HHP-2)

2: Allen Key Set

3: Grease

4: Utility Pick Set (Park Tool Item #UP-SET)

5: Clean Rags

6: Derailleur Hanger Alignment Gauge (Park Tool Item #DAG-2)

7: Cables and Housing Cutter

8: Carbon Paste

9: Loctite #242

10: Torque Wrench

First Aid Kit: Essential parts to always have on hand

IN CASE OF EMERGENCY…THIS MIGHT SAVE YOUR RIDE!

1: Spare rear derailleur hanger (SKU: 38883)

2: Seat clamp (SKU: 80411)

RADON 237A: 1. Tools Needed & First Aid Kit

This chart indicates recommended values. Max and min drop values are calculated according to Canadian specications.

Please consult one of our authorized dealers for further informations on your bike t.

Sizing Chart: Radon

Saddle

Height

Saddle

Height

Suggested

Size

XXS

XXS / XS

XS / S

S / M

M / L

L / XL

Seat Tube

Angle

75.5

75.5 / 74.5

74.5

74.5 / 74

74 / 73.5

73.5

73.5 / 73

73 / 72.5

72.5

Top Tube

Length

500

500 / 518

518

518 / 533

533

533 / 549

549

549 / 568

568

568 / 590

590

Stack

499

499 / 517

517

517 / 539

539

539 / 563

563

563 / 591

591

591 / 626

626

Reach

368

368 / 373

373

373 / 377

377

377 / 381

381

381 / 387

387

387 / 392

392

3D Spacer = 0

Stack

523

523 / 541

541

541 / 563

563

563 / 587

587

587 / 615

615

615 / 650

650

Reach

359

359 / 365

365

365 / 369

369

369 / 374

374

374 / 379

379

379 / 385

385

3D Spacer = 25

Minimum

Drop

-4

-13 / 9

-23 / -1

-11

-20

-30 / -5

-39 / -14

-24

-34

-43

-53 / -25

-63 / -35

-44

-54

-64

-73 / -41

-83 / -50

-60

-69 / -31

-79 / -41

-50

-60

-69

Maximum

Drop

-30

-39

-49

-59 / -37

-68 / -46

-56

-66

-75 / -50

-85 / -60

-70

-79

-89

-99 / -71

-108 / -80

-90

-100

-109

-119 / -86

-128 / -96

-105

-115 / -77

-125 / -86

-96

-105

-115

RADON 237A: 2. Sizing Chart

RADON 237A: 3. Seat Post Collar Assembly

Assemble the seat post collar with the seat post.

Apply carbon paste on the seat post where it

inserts inside the frame. Tighten the bolt at 4 Nm.

CARBON

PASTE

4 Nm

RADON 237A: 4. Seat Post Assembly

1. Install the saddle on the rocker (3f)

and tighten the rail clamp (3g) using

the screw (3d)

2. Adjust the angle, the oset of the

saddle and tighten the bolt (3b).

3. The rocker and the rail clamp (3f-3g)

can be ipped to change the saddle

oset.

GREASE

6Nm

RADON 237A: 4. Seat Post Assembly

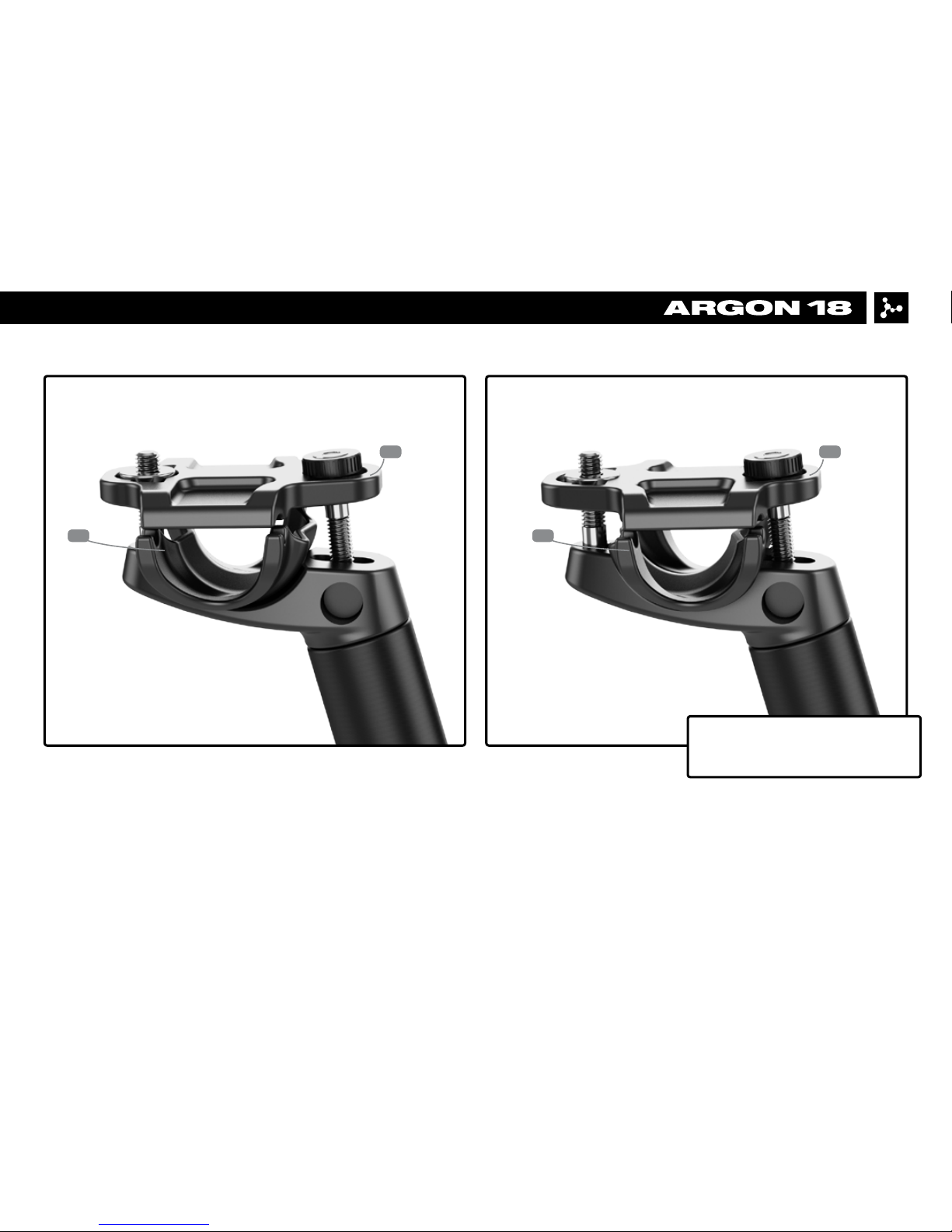

Seat clamp oset (5mm) by ipping

the rail clamp (3g) and rocker (3f).

3f3f

3g 3g

RADON 237A: 5. Frameset Inspection

Parts installed on the frame Description Screw Torque Detail

type Nm

1 Rear derailleur hanger Screw (2) 3mm 4Nm Loctite

2 Bottle cage Screw (4) 5mm 3Nm Grease

3 Bottom bracket cable guide Screw (1) 5mm 1.5Nm Grease

BEFORE ASSEMBLING YOUR NEW RADON, MAKE SURE THAT YOU HAVE ALL THE FOLLOWING:

1: Frameset parts checklist (see p.15)

2: Inspect the frame for cosmetic aspect (scratches, bumps, cracks, paint defect, etc.)

3: For reference, check serial number and write it on p.2

4: All the necessary bolts (refer to Frameset Parts, p.15)

5: For optimal shifting performance, use a dropout alignment gauge to make sure that the drive-side dropout is straight (p.9)

IMPORTANT:

The following parts are assembled on the frame. When assembling the bike, you will need to adjust these parts

according to their torque specications.

RADON 237A: 6. Rear Derailleur Hanger Adjustment

4 Nm

1. Use Loctite #242 on the screws.

2. Ensure that the dropout is aligned.

3. Use Derailleur Hanger Alignment Gauge like

Park Tool Item #DAG-2.

For any assistance, visit Park Tool’s website:

parktool.com/product/derailleur-hanger-align-

ment-gauge-dag-2

LOCTITE

#242

LOCTITE

#242

RADON 237A: 7. Front Derailleur Hanger Installation

For installation of “braze-on” type front derailleur,

use a clamp suitable for a seat tube of a 31.8mm

diameter, such as Shimano part SM-AD67-M.
