Arai Helmet RAM-X Manual de usuario

RAM-X

OPERATION INSTRUCTIONS

For your safety, it is important that you completely read the instructions and warnings.

RAM-X

CONTENTS

To open/close shield ................................................................................ 3

To operate browvents .............................................................................. 3

To operate shade ..................................................................................... 3

To operate top vents ................................................................................ 5

To remove/replace shield ......................................................................... 5

To remove/replace shade......................................................................... 7

To remove/replace shield holding arms .................................................... 7

To remove/replace earcups ..................................................................... 8

To remove/replace chinstrap covers....................................................... 10

To remove/replace comfort lining........................................................... 12

TO OPEN/CLOSE SHIELD

Pull outward on lower left side of shield to release latch system and then raise

the shield. To close the shield, push down the shield until the shield is fully

latched.

WARNING:

If your shield becomes too scratched or uncleanable, replace it with a

new one. Impaired visibility causes accidents. Use a solution of mild

soap or detergent and lukewarm water to clean your shield. Rinse well

with clean water, and wipe off with a soft cloth. Never use petrol, thinner,

benzene or any other solvents. There are many “aggressive” cleaners

on the market, including some supposed to be speciﬁcally for use on

shield. Arai strongly recommends that you do not use any such products

to clean your shield as some of their ingredients may have damaging

effects on the shield and other plastic parts installed on your helmet. Do

not apply stickers or adhesive tape to the shield, as this will weaken the

hard coating. If tinted, the shield is for daylight use only.

TO OPERATE BROWVENTS

The Browvents are operated from fully closed through intermediate, to fully

open positions by simply pulling the vent control up to open, pushing down

to close.

TO OPERATE SHADE

To raise shade, lift at the center of the shade with your thumb.

WARNING:

When fully raised, the shade is held in place with a detent to resist it

from falling from wind pressure, vibration and normal head movement.

However, some reasonably foreseeable force can cause the shield to

drop unexpectedly.

RAM-X

To lower shade, ﬁrst, unlock the shade by pulling both ends forward, and push

the shade down.

WARNING:

Before lowering the shade, be sure to unlock the shade. The shade can only be

lowered when the lock system is released.

There is a stop midway in the travel to allow for use to help reduce the glare of lights

that cannot be shaded when the shade is in the fully up position (i.e. morning or

evening sun).

WARNING:

The shade is not fully locked when it is in the midway position. Therefore, it may

drop or may be raised unexpectedly from wind pressure, vibration or even normal

head movement. Be aware of this and ride carefully.

WARNING:

Raise the shade of the Pro Shade System for riding at night, through a tunnel, or

any conditions that might cause poor visibility.

Do not use sunglasses with the shade of the Pro Shade System in the lower

position, as this will dangerously darken your view.

Use only warm water and a micro-ﬁber cloth to clean the shield and shade. Never

use petrol, thinner, benzene or any other solvents.

Scratched or damaged shades/shields of the Pro Shade System should be

replaced with new ones.

TO OPERATE TOP VENTS

Simply push the switches/levers on each vent to open/close the vents.

TO REMOVE/REPLACE SHIELD

It is recommended to do one side at a time until you become familiar with

the removal/installation process.

To remove, place shield in the fully open position. Once fully open, black

levers appear from under the shield pivot/holder arms. Slide the levers

forward in the direction of the arrow until the pivot/holder releases from the

base. Once released, lift the pivot/holder off the base.

NOTE:

The shield cannot be removed from any other position as the locking

system will be engaged.

OPEN CLOSE OPEN CLOSE

OPEN OPEN CLOSE CLOSE

RAM-X

To install, with the shield in its fully open position as it was when removed,

position the pivot/holder over base plate with the bottom and rear edges of

the holder lined up with the base plate edges as shown.

NOTE:

The shield can only be installed from the fully open position.

With the holder in place, push down ﬁrmly on the holders in the area

indicated by the circles, until you hear and feel them click into position.

Lower the shield to test for proper operation. If the shield does operate

properly, remove and re-install again.

TO REMOVE/REPLACE SHADE

To remove shade for cleaning or replacement, ﬁrst lower the shade.

Push the release lever on the pivot cover down against the sheild ①and

slide the pivot cover up to remove it ②. Repeat for the other side, and

remove the shade ③.

To replace shade, place it on the pivot in the lower position ①. Put the pivot

cover into 3 bosses ②, and slide it down until it is locked in place ③. Repeat

for the other side.

TO REMOVE/REPLACE SHIELD HOLDING ARMS

To remove holding arms, remove shield as per the previous instructions.

Hold the shield/holder as illustrated

①. Lift the curled end of the lower

bracket out of the pocket as illustrated ②.

Hold shield and slide the arm/holder up ③. Rotate the top of the arm away

from the shield and slide the lower bracket out of the track in the shield as

illustrated

④

①

②

③

②

③ ④

RAM-X

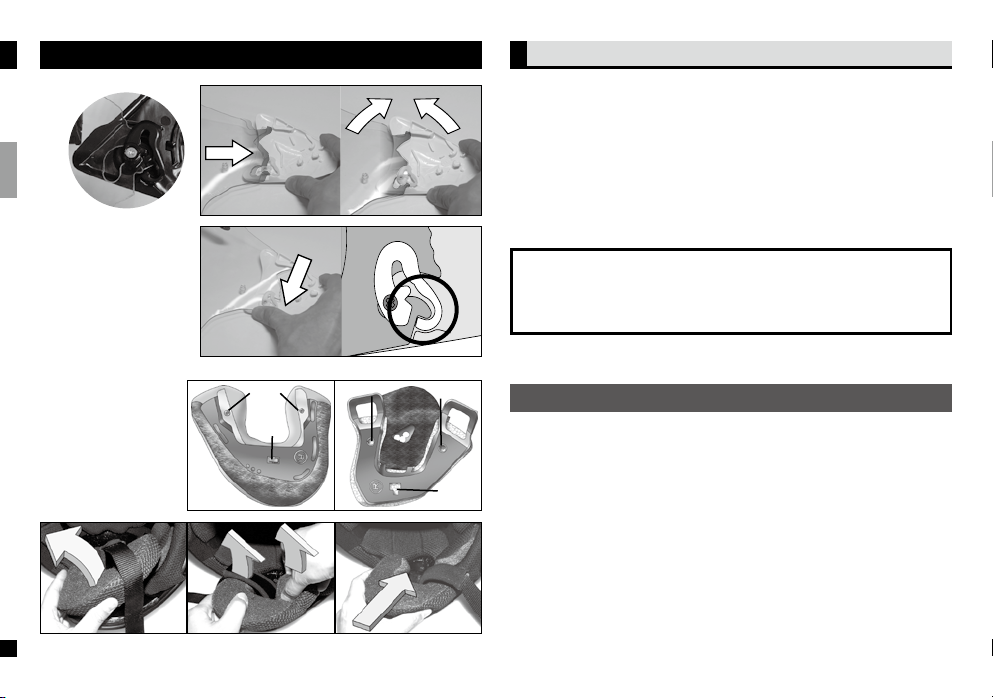

To install holding arms, ﬁrst center the screw of the lower bracket on slot

in the shield, being careful to follow the correct angle as illustrated

①.

Pressing the arm and shield together ﬁrmly at the lower bracket ②, rotate

both inward to bring the upper shield hook into place as illustrated ③. With

the upper hook and lower bracket in place, slide the arm down until the

upper hook is in place

④

and the curled end of the lower bracket locks into

place as illustrated

⑤

WARNING:

Conﬁrm that the curled end of the bracket is fully seated between the

shield and arm to prevent the shield and arm from becoming separated

unintentionally.

TO REMOVE/REPLACE EARCUPS

The earcups are secured to their base plates by bosses A , B and C.

To remove earcup, ﬁrst undo chinstraps, then remove bosses A & B from its

base plate by grasping upper part of earcup on one side and pulling toward

you until a snap is heard, then do the other side of the same earcup.

When both sides are free, push lower part of earcup into the helmet and pull

upward to release tab C.

BA”

C”

B”

① ② ③

④ ⑤
