APS IBoard IB-R062 Manual de usuario

iBoard

Customer Support: info@iboardauto.com

Rev. 20220801

iBoard® by APS PART#: IB-R062

Passenger Front

Mounting Bracket

(PFM)

Driver Front Mount-

ing Bracket (DFM)

Driver Rear Mounting

Bracket (DRM) Passenger Rear Mounting

Bracket (PRM)

PART LIST

*ROCKER PANEL MOUNT

*NO DRILLING REQUIRED

Front

READ INSTRUCTIONS CAREFULLY BEFORE

START ING INSTALLATION. REMOVE CONTENTS

FROM BOX AND VERIFY ALL PARTS ARE PRE-

SENT. ASSISTANCE IS RECOMMENDED.

Fastener Size Tightening Torque (ft-lbs) Required

6mm 6-7 √

8mm 16-18 √

10mm 31-32 X

12mm 56-58 X

14mm 92-94 X

iBoard

Customer Support: info@iboardauto.com

Rev. 20220801

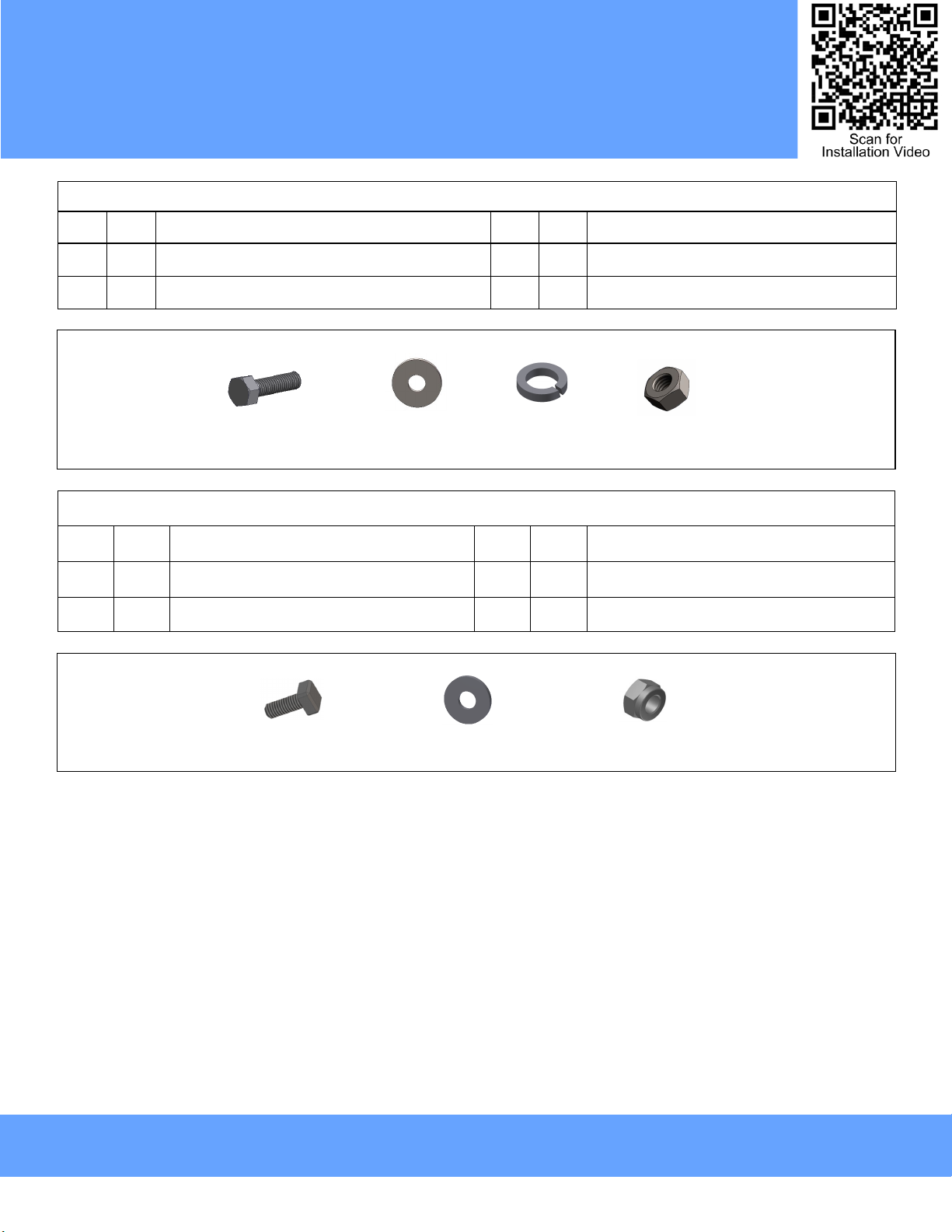

Hardware Package A (For Bracket Installation)

Item QTY Description Item QTY Description

1# 24 M8X1.25-35 Hex Bolts 3# 24 M8 Lock Washers

2# 24 M8 Flat Washers 4# 24 M8X1.25 Hex Nut

3 #2 #1 #

1# 3#

Hardware Package B (For Step Bar Installation)

Item QTY Description Item QTY Description

1# 8M6X1-20mm Square Head Bolts 3# 8 M6 Nylon Lock Nuts

2# 8M6 Large Flat Washers

4 #

iBoard

Customer Support: info@iboardauto.com

Rev. 20220801

STEP 1

Start installation from the driver side front of the vehicle. From

underneath vehicle, place driver side front bracket in position as

shown in (Fig 1).

(Fig 1) Driver Side Front Mounting Location

STEP 2

Attach Driver Front Mounting Bracket (DFM) to location with (6)

M8x1.25-35mm Hex Bolts, (6) M8 Flat Washers, (6) M8 Lock

Washers, (6) M8 Hex Nuts, (Fig 2). Do not fully tighten at this

time.

Repeat for Driver Rear Mounting Bracket (DRM) installation.

(6) M8x1.25-35mm Hex Bolts

(6) M8 Flat Washers

(6) M8 Lock Washers

(6) M8 Hex Nuts

(Fig 2) Driver Front Mounting Bracket Installation

Front

STEP 3

Once all (2) Mounting Brackets are installed. Select a Running

Board. Slip (2) M6X1-20mm Square Head Bolts into each bot-

tom channel (Fig 3). Carefully position the Running Board onto

the (2) Mounting Brackets. Attach the Running Board to each

Mounting Bracket with (2) M6X1-20mm Square Head Bolts, (2)

M6 Large Flat Washers and (2) M6 Nylon Lock Nuts (Fig 4). Do

not fully tighten at this time.

IMPORTANT: Do not slide the Running Board on the Brackets

or the bottom surface of the board will be damaged.

(Fig 3) Slip M6X1-20mm Square Head Bolts Into The Bottom

Channels

M6X1-20mm Square Head Bolts

iBoard

Customer Support: info@iboardauto.com

Rev. 20220801

STEP 5

Repeat Steps 1-4 for the other side Running Board installation.

The installation is completed.

Attention

Do periodic inspections to the installation to make sure

that all hardware is secure and tight.

In order to protect your bars/boards, please use mild

soap/non-abrasive products for cleaning only.

STEP 4

Level and adjust the Running Board and fully tighten all hard-

ware.

Important: Please follow the recommended Tightening Tor-

ques shown in the table on page 1. Don’t over tighten, or

the nuts/bolts will be damaged.

(Fig 4) Running Board Installed Onto Mounting Bracket

(2) M6X1-20mm Square Head Bolts

(2) M6 Large Flat Washers

(2) M6 Nylon Lock Nuts
