Apricorn PCI-X Drive Array Manual de usuario

Quick Start Guide

PCI-X Drive Array

www.apricorn.com

INTRODUCTION

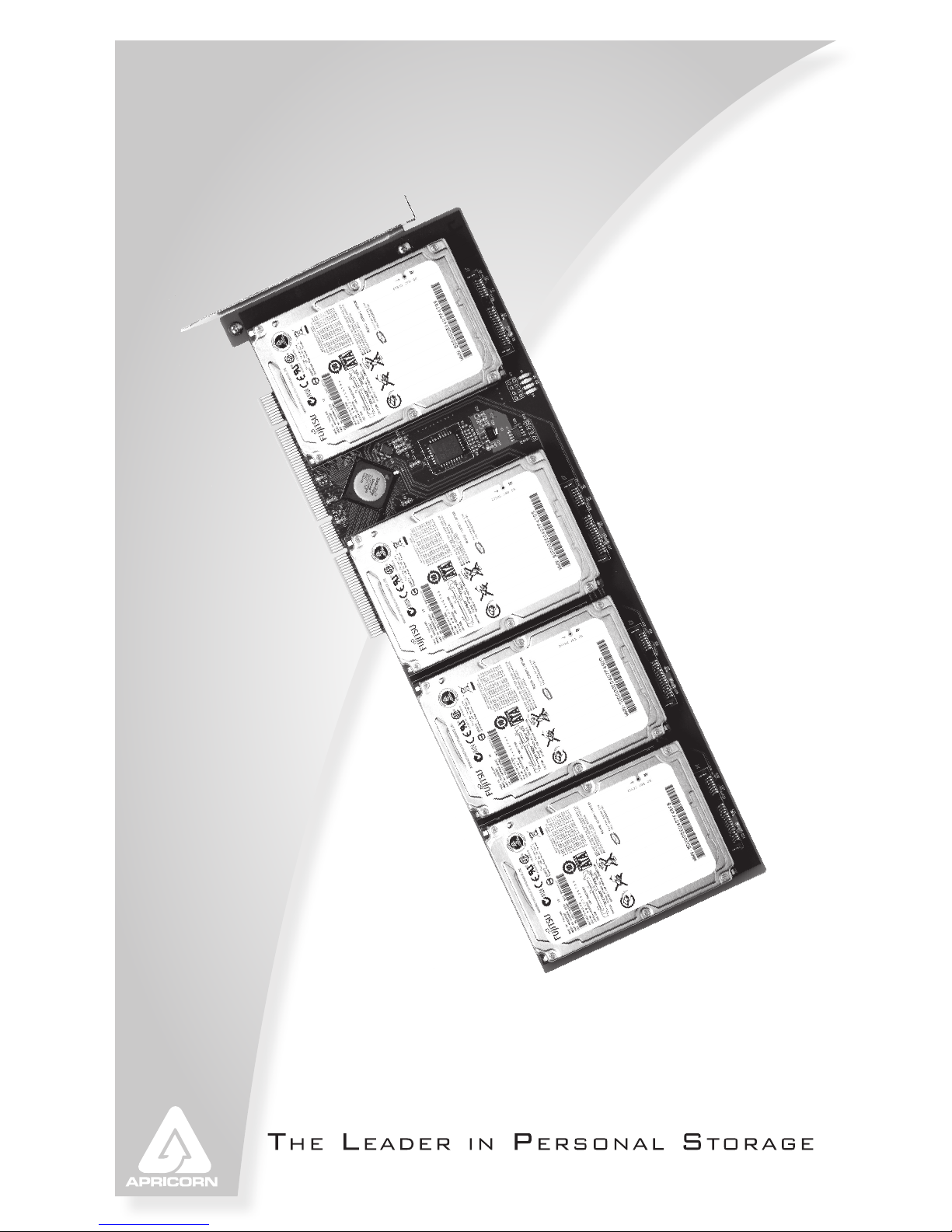

The Apricorn PCI-X Drive Array is a 64-bit/133 MHz PCI-X Adapter Card

which provides high-speed access to internal expansion disks. The card

supports up to four 2.5” Serial ATA devices and utilizes a single PCI-X

interface. For optimal performance, it is recommended that you install

Serial ATA drives of the same model and capacity.

PACKAGE CONTENTS

Apricorn PCI-X Drive Array Card



16 drive mounting screws

Quick Start Guide and software drivers for Windows, Linux and Mac OS X

If any of the contents are missing or damaged, contact your dealer/

distributor immediately.

SYSTEM REQUIREMENTS

Processor Type: Intel Pentium, Celeron, or Xeon system (or equivalent

AMD Opteron or Athlon system) for Windows systems, G5 for Macintosh

systems

Operating System: Windows 2000 with Service Pack 4 (or later)

Windows XP with Service Pack 2 (or later) Windows 2003 with Service

Pack 1 (or later) Mac OS 10.4.x (or later)

An available full length PCI-X compliant slot.

CD-ROM or DVD-ROM drive

ATTACHING THE SATA DRIVES

*if your card came with drives installed then proceed to ‘installing the card’

Place the PCI-X Drive Array on a static free mat with the drive connectors1.

visible.

Carefully remove 2.5” SATA drives from packaging materials.2.

Gently slide each drive onto an available SATA connector.3.

4.

and install mounting screws to the corners of each drive.

Apricorn PCI-X Drive Array

Quick Start Guide

www.apricorn.com

INSTALLING THE PCI-X DRIVE ARRAY



Server mainboard. Be sure to use the following procedure to install the PCI-X Drive

Array:

Turn-off your computer and unplug its power cord from the AC power1.

receptacle.

Remove the cover of your computer.2.

Remove the inside slot cover of an available PCI-X slot on the motherboard.3.

Install the Apricorn PCI-X Drive Array Card into an available PCI-X slot and4.

secure the bracket of the controller card to the frame of the system.

Replace the cover of your computer and plug the power cord back into an AC5.

power receptacle.

SATA DEVICE INSTALLATION

The Apricorn PCI-X Drive Array Card supports up to 4 attached SATA drive(s)/

device(s). Drivers for Windows, Linux and Mac OS X are included on the CD-

ROM. Please refer to the product manual for driver installation procedures for

your operating system.

CONFIGURING THE APRICORN PCI-X DRIVE ARRAY

The Apricorn PCI-X Drive Array Card supports Raid levels 0, 1, 5, 10. To



F4 or “Ctrl S” when prompted. Follow the prompts in the utility to create

/ manage your array.





          

for use in Windows operation systems please refer to the readme_

SATARAID5_3124_1.4.3.0.txt on the included CD.

APRICORN TECHNICAL SUPPORT

Apricorn provides the following helpful resources for you:

1. Apricorn’s Website (http://www.apricorn.com)

This gives you the ability to check for up-to-date information.

2. E-mail us at [email protected].

3. Or call the Technical Support Department at 1-800-458-5448.

Apricorn’s Technical Support Specialists are available from 8:00 a.m. to



www.apricorn.com

12191 Kirkham Road



1-858-513-2000

WARRANTY

One Year Warranty:

Apricorn offers a 1-year warranty on the PCI-X Drive Array against defects in

materials and workmanship under normal use. The warranty period is effective

from the date of purchase either directly from Apricorn or an authorized reseller.

Disclaimer and terms of the warranties:







APRICORN WILL, AT NO ADDITIONAL CHARGE, REPAIR OR REPLACE DEFECTIVE







         

         

           



        



             

ALTERNATION OR REPAIR BY ANYONE OTHER THAN APRICORN AND SHALL BE

VOID. THIS WARRANTY DOES NOT COVER NORMAL WEAR AND TEAR.





WILL BE MADE BY OR ON BEHALF OF APRICORN OR BY OPERATION OF LAW

         

REPLACEMENT OR REPAIR.





           

          

DAMAGES.

TRADEMARKS AND COPYRIGHT

may be reproduced, transmitted, transcribed, or translated into any language or

computer format, in any form or by any means without prior written permission of:
