AOpen MX4LR TV Hoja de datos

MIDI/Game Port

SPP/EPP/ECP Parallel Port

RJ45 LAN

Jack

PS/2 Mouse

Connecto

CPU FAN connector

TX Power Connecto

Intel 845GL Chipset

2nd USB2.0 Connector

WOM(Wake on Modem)Connecto

184-pin DIMMx2 supports DDR266

maximum up to 2 GB

(845GL chipset does not support DDR333)

478-pin CPU socket (Willamette/

Northwood) with Voltage and Frequency

uto-detection that supports Intel®

Pentium®4 1.4~2.4GHz+ CPU

3rd USB2.0 Connector

FDD Connecto

IrDA Connecto

WOL (Wake on LAN) Connecto

Front Panel Connecto

Intrusion Detecto

JP14 CMOS Clear Jumpe

Flash ROM

FAN3 Connector

CD-IN Connecto

Front Audio Connecto

AUX-IN Connecto

Resettable Fuse

DD Slot

(

for ADD card onl

Low ESR Capacitors

4-pin ATX-12V Power Connector

AC’97 CODEC

FAN2 Connecto

PCI LAN Controller

MIC-In

Line-In

Speaker Out

COM2

JP28 Mouse/Keyboard Wake-up Select Jumper

CNR Connecto

support Intel PRO/100 VE (TP)

VGA Connector

COM 1 Port USB2.0 Port

PS/2 Keyboard

Connecto

32-bit PCI V2.2 Expansion Slot

ATA/33/66/100 IDE Connector x2

1. JP14 Clear CMOS

You can clear CMOS to restore system default setting. To

clear the CMOS, follow the procedure below.

1. Turn off the system and unplug the AC power.

2. Remove ATX power cable from connector PWR2.

3. Locate JP14 and short pins 2-3 for a few seconds.

4. Return JP14 to its normal setting by shorting pin 1 & pin 2.

5. Connect ATX power cable back to connector PWR2.

Tip: When should I Clear CMOS?

1. Boot fail because of overclocking…

2. Forget password…

3. Troubleshooting…

Pin 1

Everything you need to boot this

motherboard is included in this

Easy Installation Guide. For more

information, a complete Online

User's Manual can be found in the

Bonus Pack CD. Thanks for the

help of saving our earth.

Normal

(

default

)

Clear CMOS

Motherboard x1

This Easy Installation Guide x1

80-wire IDE Cable x1

Floppy Disk Drive Cable x1

Bonus Pack CD x1

IO Shield x1

2. S/PDIF (Sony/Philips Digital Interface) Connector

Connecting to

Optical Cable

Connecting to

RCA Cable

udio

cable

Pin 1

S/PDIF (Sony/Philips Digital Interface) is a newest audio transfer file format, which provides impressive

quality through optical fiber and allows you to enjoy digital audio instead of analog audio. Normally there are

two S/PDIF outputs as shown, one for RCA connector, the most common one used for consumer audio

products, and the other for optical connector with better audio quality. Through a specific audio cable, you

can connect the S/PDIF connector to other end of the S/PDIF audio module, which bears S/PDIF digital

output. However, you must have a S/PDIF supported speaker with S/PDIF digital input to connect to the

S/PDIF digital output to make the most out of this function.

+5VSB

S/PDIFOUT

GND

S/PDIFIN

PART NO: 49.89Y11.E01 DOC. NO: MX4LR-EG-E0204A

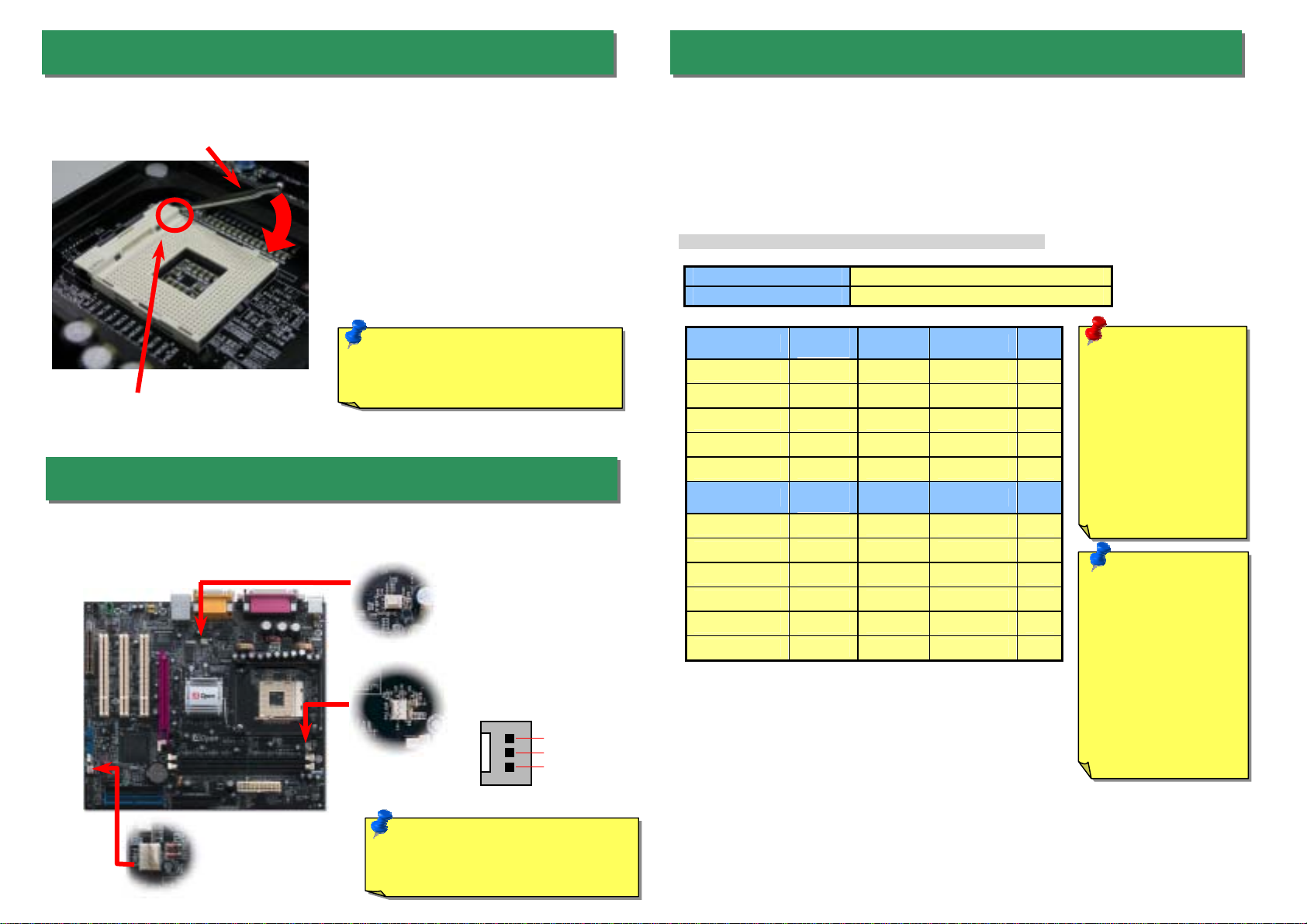

1. Pull up the CPU socket lever and up to

90-degree angle.

2. Locate Pin 1 in the socket and look fo

a (golden) cut edge on the CPU uppe

interface. Match Pin 1 and cut edge.

Then insert the CPU into the socket.

3. Press down the CPU socket lever and

finish CPU installation.

Plug in the CPU fan cable to the 3-pin CPU FAN connector. If you have chassis fan, you

can also plug it on System FAN (FAN2) or AUX FAN (FAN3) connector.

3. Installing Processor 5. Setting CPU Voltage & Frequency

This socket supports FC-PGA2 package CPU, which is the latest CPU package developed

by Intel. Other forms of CPU package are impossible to be fitted in. Setting CPU Core Voltage

This motherboard supports CPU VID function. The CPU core voltage will be automaticall

detected.

Setting CPU Frequency

This motherboard is CPU jumper-less design, you can set CPU frequency through the

BIOS setup, and no jumpers or switches are needed. The default setting is "table selec

mode". You can adjust the FSB from "CPU Host/SDRAM/PCI Clock" for overclocking.

BIOS Setup > Frequency / Voltage Control > CPU Speed Setup

FAN3 Connector

(Without Hardware Monitor)

Note: If you do not match the CPU

socket Pin 1 and CPU cut edge well, it

may damage the CPU.

CPU Pin 1 and cut edge

Note: Some CPU fans do not have

sensor pin so they cannot support fan

monitoring.

CPU Fan Connector

4. Installing CPU & System Fan

GND

+12V

SENSOR

FAN2 Connector

CPU socket lever

CPU Ratio 10x… 21x, 22x, 23x, 24x

CPU FSB (By BIOS table) 100~248MHz

Note: Since the

latest processor,

Northwood, would

detect the clock

ratio automatically,

you may not be

able to adjust the

clock ratio in BIOS

manually.

Warning: Intel

845 GL chipset

supports maximum

400MHz

(100MHz*4) system

bus and 66MHz

GP clock; higher

clock setting may

cause serious

syste

age

Northwood CPU CPU Core

Frequenc FSB Clock System Bus Ratio

Pentium 4 1.6G 1600MHz 100MHz 400MHz 16x

Pentium 4 1.8G 1800MHz 100MHz 400MHz 18x

Pentium 4 2.0G 2000MHz 100MHz 400MHz 20x

Pentium 4 2.2G 2200MHz 100MHz 400MHz 22x

Pentium 4 2.4G 2400MHz 100MHz 400MHz 24x

Willamette CPU CPU Core

Frequenc FSB Clock System Bus Ratio

Pentium 4 1.5G 1500MHz 100MHz 400MHz 15x

Pentium 4 1.6G 1600MHz 100MHz 400MHz 16x

Pentium 4 1.7G 1700MHz 100MHz 400MHz 17x

Pentium 4 1.8G 1800MHz 100MHz 400MHz 18x

Pentium 4 1.9G 1900MHz 100MHz 400MHz 19x

Pentium 4 2.0G 2000MHz 100MHz 400MHz 20x

6. Support Six USB2.0 Connectors

Pin 1

Connect 34-pin floppy cable and 40-pin, 80-wire IDE cable to floppy connector FDC and

IDE connector. Be careful of the pin1 orientation. Wrong orientation may cause system

damage.

9. Connecting Front Panel Cable

Pin 1

ATA 33/66/100

IDE Connector

FDD Connector

Speaker

IDE LED

SPWR

CPI & PWR

LED

Pin 1

Primary

Slave

(

2nd

)

IDE 1 (Primary)

IDE 2 (Secondary)

Secondary

Master (3rd) Secondary

Slave (4th)

Primary

Master (1st)

Reset

8. Connecting IDE and Floppy Cables

USB2 Connector

This motherboard provides six USB connectors to connect USB devices, such as mouse,

keyboard, modem, printer, etc. There are two connectors on the PC99 back panel. You

can use proper cable to connect other USB connectors to the back panel or front panel of

chassis.

USB3 Connector

USBPWR0

USB_FP_P0-

USB_FP_P0+

GND

1 2

USBPWR1

USB_FP_P1-

USB_FP_P1+

GND

USB_FP_OC0

7. ADD (AGP Digital Display) Slot

GP Digital Display card is designed by Intel to multiplexe the AGP signal interface with

two DVO ports, and is designed to plug into the special-designed purple slot as you can

see, which we call ADD slot here. The function of these two DVO ports is to support a

variety of digital display devices, such as LCDs and Digital-input CRT, and is possible

to use in dual-channel mode to support higher resolution and refresh rate, while delive

digital signal from source to display to preserve signal integrity and the viewable image

quality.

IDE LED

GND

SPEAKE

SPWR

GND

ACPI LED-

GND

ACPILED

GND

RESET

GND

ttach the power LED, speaker, and reset switch connectors to

the corresponding pins. If you enable “Suspend Mode” item in

BIOS Setup, the ACPI & Power LED will keep flashing while the

system is in suspend mode.

Locate the power switch cable from your ATX housing. It is

2-pin female connector from the housing front panel. Plug this

connector to the soft-power switch connector marked SPWR.

12. Connecting CD-IN /AUX-IN Connector

10. Front Audio Connector

You can install LAN Driver under WindowsME/98, Windows NT, Windows 2000 and Windows

XP for RealTek RTL8100 PCI Fast Ethernet adapter by following steps.

Installing driver for Win98/Win98 SE/Windows2000/Windows ME/Windows XP:

----------------------------------------------------------------------------------------------------------

1. Ask you to select which driver you want to install, select "Driver” from disk provided by

hardware manufacturer".

2. Specify the setup file pathname

[CD-ROM]: Driver\LAN\RTL8100\Windows\WIN98 (for Windows 98/98 SE) or

[CD-ROM]: Driver\LAN\RTL8100\Windows\WIN2000 (for Windows 2000) or

[CD-ROM]: Driver\LAN\RTL8100\Windows\WINME (for Windows ME) or

[CD-ROM]: Driver\LAN\RTL8100\Windows\WinXP (for Windows XP)

3. Win98/Win98 SE/Windows2000/Windows ME will appear some messages to insert

Win98/Win98 SE/Windows2000/Windows ME system disk to complete setup step.

4. Win98/Win98 SE/Windows2000/Windows ME will finish the other installation procedure

automatically, then you restart the system.

If the housing has been designed with an audio port on the front panel, you’ll be able to

connect onboard audio to front panel through this connector. By the way, please remove

5-6 and 9-10 jumper caps from the Front Audio Connector before connecting the cable.

Please do not remove these 5-6 and 9-10 yellow jumper caps if there’s no audio port on

the front panel.

Pin 1

UD_FPOUT_L

UD_FPOUT_R

UD_MIC_BIAS

UD_MIC

AUD_RET_L

AUD_RET_R

AUD_VCC

AUD_GND

UX-IN (Green)

CD-IN (Black) The AUX-IN connector is used to connect MPEG

udio cable from MPEG card to onboard sound.

The CD-IN connector is used to connect CD Audio

cable from CDROM or DVD drive to onboard sound.

Connector Pin1 Pin2 Pin3 Pin4

AUX-IN Left GND GND Right

GND Right

CD-IN

13. Installing LAN Driver

11. Support 10/100 Mbps LAN onboard

Orange/Speed

Green/ACT

On the strength of Realtek RTL8100 LAN controller on board, which is a highly-integrated

Platform LAN Connect device, it provides 10/100M bps Ethernet for office and home use,

the Ethernet RJ45 connector is located on top of USB connectors. The green LED

indicates the link mode, it lights when linking to network and blinking when transferring

data. The orange LED indicates the transfer mode, and it lights when data is transferring

in 100Mbps mode. To enable or disable this function, you may simply adjust it through

BIOS.

Left GND

fter you finish the setting of jumpers and connect correct cables. Power on

and enter the BIOS Setup, press <Del> during POST (Power On Self Test).

Choose "Load Setup Defaults" for recommended optimal performance.

14. Power-on and Load BIOS Setup

Del

15. AOpen Bonus Pack CD 17. BIOS Upgrade under Windows Environment

This motherboard comes with an AD1981 AC97 CODEC, you can find the audio drive

from the Bonus Pack CD disc auto-run menu.

You can use the autorun menu of Bonus CD disc. Choose the utility and driver and select

model name.

You may accomplish BIOS upgrade procedure with EZWinFlash by the following steps,

and it’s STRONGLY RECOMMMANDED to close all the applications before you start the

upgrading.

1. Download the new version of BIOS package zip file from AOpen official web site. (ex:

http://www.aopen.com)

2. Unzip the download BIOS package (ex: WMX4LR102.ZIP) with WinZip

(http://www.winzip.com) in Windows environment.

3. Save the unzipped files into a folder, for example, WMX4LR102.EXE &

WMX4LR102.BIN.

4. Double click on the WMX4LR102.EXE, EZWinFlash will detect the model name and

BIOS version of your motherboard. If you had got the wrong BIOS, you will not be

allowed to proceed with the flash steps.

5. You may select preferred language in the main menu, then click [Start Flash] to start

the BIOS upgrade procedure.

6. EZWinFlash will complete all the process automatically, and a dialogue box will pop

up to ask you to restart Windows. You may click [YES] to reboot Windows.

7. Press <Del> at POST to enter BIOS setup, choose "Load Setup Defaults", then

“Save & Exit Setup”. Done!

Warning: The upgrade of new BIOS will permanently replace your original BIOS

content after flashing. The original BIOS setting and Win95/Win98 PnP

information will be refreshed and you probably need to re-configure your system.

Warning: Please avoid of using "Load

Turbo Defaults", unless you are sure

your system components (CPU, DRAM,

HDD, etc.) are good enough for turbo

settin

16. Installing Onboard Sound Driver

Part Number and Serial Number

If you encounter any trouble to boot you system, follow the procedures

accordingly to resolve the problem. The Part Number and Serial number are printed on bar code label. You can find this

bar code label on the outside packing, on PCI slot or on component side of PCB. Fo

example:

Serial No.

Part No.

Make sure if the jumper settings for CPU and DRAMs are correct.

Clear CMOS.

Install the VGA card. Then connect your monitor and keyboard.

The problem was probably caused

by power supply or motherboard

failure. Please contact your reselle

or local distributor for repairing.

Perhaps your VGA card or monito

is defective.

Yes

It is very possible that your keyboard

is defective.

During system rebooting, press Del to enter BIOS Setup. Choose

“Load Setup Default".

The problem should be caused by the

IDE cables or HDD itself.

Re-install Windows 95, Windows 98 or Windows NT.

Yes

Turn off the power and unplug the AC power cable, then remove all

of the addon cards and cables, including VGA, IDE, FDD, COM1,

COM2 and Printer.

Turn on the power, and check if

the power supply and CPU fan

work properly.

Start

Check if there is display.

Press Ctrl, and Alt key at the

same time, hold them and then

press Del to see if the

stem reboots.

Turn off the system and

re-connect the IDE cable.

Check if the system can

reboot successfully.

End

Part No. Serial No.

P/N: 91.88110.201 is part number, S/N: 91949378KN73 is serial number.

Model name and BIOS version

Model name and BIOS version can be found on upper left corner of first boot screen

(POST screen). For example:

MX4LR R1.00 Mar. 15. 2002 AOpen Inc.

ward Plug and Play BIOS Extension v1.0A

MX4LR is the model name of the motherboard; R1.00 is BIOS version

Dear Customer,

Thanks for choosing AOpen products. To provide the best and fastest service to

our customer is our first priority. However, we receive numerous emails and

hone-calls worldwide everyday, it is very hard for us to serve everyone on time.

We recommend you follow the procedures below and seek help before contact

us. With your help, we can then continue to provide the best quality service to

more customers.

Thanks very much for your understanding!

Open Technical Supporting Team

merica

Open America Inc.

Tel: 1-408-922-2100

Fax: 1-408-922-2935

Japan

Open Japan Inc.

Tel: 81-048-290-1800

Fax: 81-048-290-1820

China

艾尔鹏国际上海(股)

有限公司

Tel: 86-21-6225-8622

Fax: 86-21-6225-7926

Germany

Open Computer GmbH.

Tel: 49-2102-157700

Fax: 49-2102-157799

Europe

Open Computer b.v.

Tel: 31-73-645-9516

Fax: 31-73-645-9604

Pacific Rim

Open Inc.

Tel: 886-2-3789-5888

Fax: 886-2-3789-5899

Web Site: www.aopen.com

E-mail: Send us email by going through the contact form below.

English http://www.aopen.com/tech/contact/techusa.htm

Japanese http://www.aopen.co.jp/tech/contact/techjp.htm

Chinese http://www.aopen.com.tw/tech/contact/techtw.htm

German http://www.aopencom.de/tech/contact/techde.htm

French http://france.aopen.com/tech/contact/techfr.htm

Simplified Chinese http://www.aopen.com.cn/tech/contact/techcn.htm

Online Manual: Please check the manual carefully and make sure the

jumper settings and installation procedure are correct.

http://www.aopen.com/tech/download/manual/default.htm

Test Report: We recommend choosing board/card/device from the

compatibility test reports for assembling your PC.

http://www.aopen.com/tech/report/default.htm

FAQ: The latest FAQ (Frequently Asked Questions) may contain a

solution to your problem.

http://www.aopen.com/tech/faq/default.htm

Download Software: Check out this table to get the latest updated

BIOS/utility and drivers.

http://www.aopen.com/tech/download/default.htm

News Group: Our support engineer or professional users on the news

group probably had answered your problem.

http://www.aopen.com/tech/newsgrp/default.htm

Contact Distributors/Resellers: We sell our products through resellers

and integrators. They should know your system configuration very well and

should be able to solve your problem efficiently and provide important

reference for you if next time you want to buy something else from them.

before contacting us. The part number, serial number and BIOS version

are also very helpful.

Otros manuales para MX4LR TV

Tabla de contenidos

Otros manuales de Placa madre de AOpen

AOpen

AOpen MX46-800N Guía de configuración

AOpen

AOpen AX34II Hoja de datos

AOpen

AOpen AX4G Hoja de datos

AOpen

AOpen AX34-U Hoja de datos

AOpen

AOpen AP53 Manual de usuario

AOpen

AOpen AX45-533 PLUS Guía de configuración

AOpen

AOpen MK33 Manual de usuario

AOpen

AOpen MK33 Guía de configuración

AOpen

AOpen i945Ga-PHS Manual de usuario

AOpen

AOpen AX3S Pro Guía de configuración

AOpen

AOpen MX4GE Guía de configuración

AOpen

AOpen AX4PE Tube-G Manual de usuario

AOpen

AOpen AX4SGnWLAN Manual de usuario

AOpen

AOpen AX4S-U Manual de usuario

AOpen

AOpen H300 Series Manual de usuario

AOpen

AOpen AK73 Series Guía de configuración

AOpen

AOpen AX4GE Tube Guía de configuración

AOpen

AOpen AP53 Manual de usuario

AOpen

AOpen AX4SPE Max II Hoja de datos

AOpen

AOpen Fortress 9000 Guía de configuración

AOpen

AOpen AX4GE Tube-G Guía de configuración

AOpen

AOpen AP5T Manual de usuario

AOpen

AOpen DX37PU-OL-E0112B Manual de usuario

AOpen

AOpen MX3S-T Guía de configuración

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
