1.1 A Thank-you Note Before You Get Start

First of all, we would like to express our gratitude for purchasing AOpen products.

Once again, this motherboard is designed uniquely to meet all your personal

needs with our great industry-designing ability and our everlasting perseverance

to the quality of all our products.

This manual will introduce you how this motherboard is installed. Please keep it

well for your future reference. If you lost your printed manual, you may also go to

our website at http://www.aopen.com to download the updated file.

Now, we would like to invite you to personally experience this user-friendly

manual and all of the powerful functions this AOpen product offers.

The logos of Adobe and Acrobat are the registered trademarks of Adobe Systems

Incorporated.

The logos of AMD, Athlon, and Duron are the registered trademarks of Advanced Micro

Devices, Inc.

The logos of Intel, Intel Celeron, Pentium II, III and Pentium 4 are the registered

trademarks of Intel Corporation.

The logos of nVidia are the registered trademarks of nVidia Corporation.

The logos of Microsoft, Windows are the registered trademarks of Microsoft Corporation in

America and other countries.

All the titles of the products and the trademarks mentioned in this manual are for the

purpose of illustrative conveniences and are possessed by their respective firms.

We regret not informing about any changes in usage standards and other related

information. AOpen reserves the right of altering or modifying the content of this manual. In

case of any mistakes or incorrect descriptions, which include those on the products, AOpen

makes no guarantee or commitments.

This document is based on the copyright laws in order to protect our company and reserve

all rights.

Under no circumstances are any types of duplicating and loading this brochure in any

databases and media permitted except the permission signed on formal document by

AOpen Company.

1.2 Features of This Manual

To help you grab the useful information of this motherboard and aware of certain

conditions that you might need to know, you will see the icons below frequently:

1.3 Safety Information

This contains knowledge you should know in process

of assembling, or some helpful tips.

This tip tells you some useful information that will

make your installation smoothly.

Please be careful when you see this mark. It

highlights mistakes that occur often during

assembling, or something you need to pay attention

to.

Please wear a wrist strap and attach it to a metal part of the system unit

before handling a component. Alternatively, you can also touch an object

that is of ground connection or with metal surface.

Always unplug the power before you make any jumper setting.

Before you install or remove any components on the motherboard, please

make sure to disconnect the power first in case of damaging motherboard

or other components.

Note

Warning

Warning / Caution

Warning

Tip

Chapter 2 Introduction to This Motherboard

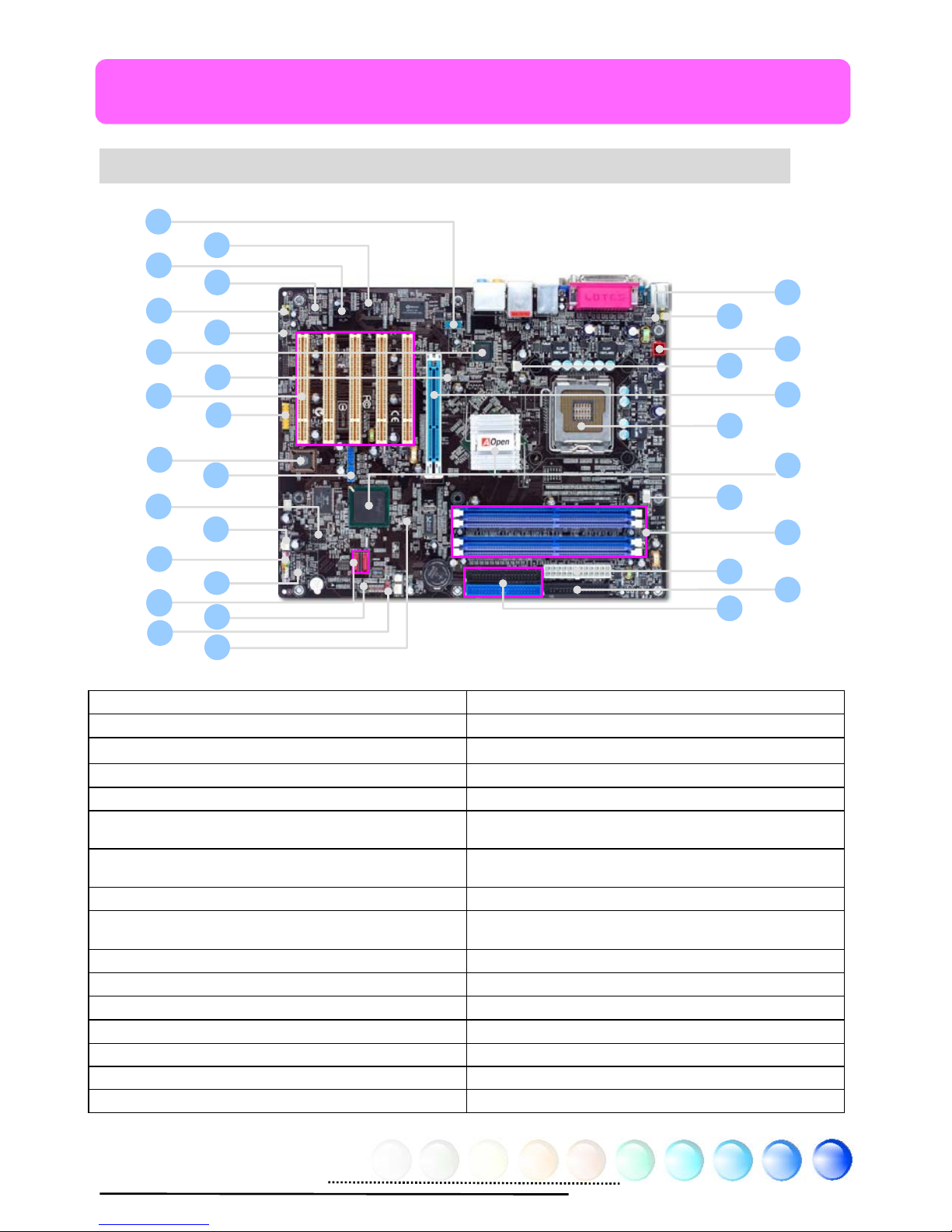

2.1 How does your motherboard look like?

1. Resetable Fuse 17. Front Audio Connector

2. JP28 PS2 KB/Mouse Wakeup Jumper 18. S/PDIF Connector

3. 4-pin 12V ATX Power Connector 19. Intel Gigabit LAN Chip (for ILFR & IL series)

4. SYSFAN1 Connector 20. AGP Protection LED

5. AGP 8X Expansion Slot 21. 32-bit PCI Expansion Slots X 5

6. LGA775 CPU socket supporting Intel FC-LGA4

CPU

22. Game Port Connector

7. Intel 865PE/865G/848P/ICH5R/ICH5

Chipsets

23. Die-hard BIOS

8. CPUFAN Connector 24. USB 2.0 Connectors X 2

9. 184-pin DIMMs X 4 (for ILFR/IL/IF series)

184-pin DIMMs X 2 (for i800Pa-7I)

25. IEEE1394 Connectors X 2

(for ILFR & IF series)

10. ATX Power Connector 26. SYSFAN2 Connector

11. FDD Connector 27. Front Panel Connector

12. IDE Connectors x 2 28. STBY LED

13. COM2 Connector (for i865Ga series) 29. Serial ATA Ports X 2

14. IRDA Connector 30. Case Open Connector

15. CD_IN Connector 31. JP14 CMOS Data Clear Jumper

16. AC’97 CODEC 32. BOOT LED

Chapter 2 Introduction to This Motherboard

2.2 Specification

Here is the main function of your motherboard.

Models I865PEa-7 ILFR/IF I865Ga-7 IL/IF I800Pa-7I

CPU

Intel LGA775 CPU

Socket T

533/800MHz

Intel LGA775 CPU

Socket T

533/800MHz

Intel LGA775 CPU

Socket T

533/800MHz

Chipset Intel 865PE/ICH5R (ILFR)

Intel 865PE/ICH5 (IF)

Intel 865G/ICH5 Intel 848P/ICH5

Main Memory

Dual Channel Mode DDR

266/333/400MHz

DDR DIMM x 4

DIMM Type:

128/256/512MB & 1GB

Max Memory : 4GB

Dual Channel Mode DDR

266/333/400MHz

DDR DIMM x 4

DIMM Type:

128/256/512MB & 1GB

Max Memory : 4GB

Single Channel Mode DDR

266/333/400MHz

DDR DIMM x 2

DIMM Type:

128/256/512MB & 1GB

Max Memory : 2GB

Graphics

8X AGP slot Integrated VGA Engine in

chipset

8X AGP slot

support ADD card

8x AGP slot

IDE & SATA

Integrated ATA100 and

Serial ATA Controller

[ICH5R supports RAID 0,1]

Max Disk: 144,000,000GB

[by 48 bits LBA Spec.]

Integrated ATA100 and

Serial ATA Controller

Max Disk: 144,000,000GB

[by 48 bits LBA Spec.]

Integrated ATA100 and

Serial ATA Controller

Max Disk: 144,000,000GB

[by 48 bits LBA Spec.]

LAN

Intel Gigabit

LAN Controller (7ILFR)

Intel PHY 82562EZ (7IF)

Intel Gigabit

LAN Controller (7IL)

Intel PHY 82562EZ (7IF)

Intel PHY 82562EZ

Sound

Realtek AC'97 CODEC

onboard, support Dolby

Digital system and 7.1

Channel

Realtek AC'97 CODEC

onboard, support Dolby

Digital system and 7.1

Channel

Realtek AC'97 CODEC

onboard, support Dolby

Digital system and 7.1

Channel

USB Integrated in chipset

USB2.0 x 8

Integrated in chipset

USB2.0 x 8

Integrated in chipset

USB2.0 x 8

IEEE1394 Integrated Agere 1394

Control Chip

Integrated Agere 1394

Control Chip (7IF)

Slots AGP x 1

PCI x 5

AGP x 1

PCI x 5

AGP x 1

PCI x 5

Back Panel

I/O

PS/2 Keyboard x 1

PS/2 Mouse x 1

USB Port x 4, LAN Port x 1

COM Port x 2

1394 Port x 1

Printer Port x 1

Speaker_Out x 1

Line_In x 1, MIC_In x 1

Rear SUR x 1, Side, SUR

Center / Subwoofer x 1

PS/2 Keyboard x 1

PS/2 Mouse x 1

USB Port x 4, LAN Port x 1

VGA Port x 1, COM Port x 1

1394 Port x 1 (7IF)

Printer Port x 1

Speaker_Out x 1

Line_In x 1, MIC_In x 1

Rear SUR x 1, Side, SUR

Center / Subwoofer x 1

PS/2 Keyboard x 1

PS/2 Mouse x 1

USB Port x 4, LAN Port x 1

COM Port x 2

Printer Port x 1

Speaker_Out x 1

Line_In x 1, MIC_In x 1

Rear SUR x 1, Side, SUR

Center / Subwoofer x 1

On Board

Connector

Front Panel x 1 / Front Audio x 1 / CPU FAN x 1 / System FAN x 1 / Chassis FAN x 1

Power FAN x 1 / Power Temperature Connector x 1 / Case Open Connector x 1

CD_IN x 1 / IrDA x 1 / Game Connector x 1 / USB Ports x 4 / S/PDIF Connector

COM2 x 1 (for i865Ga-7IL/IF)

IEEE 1394 x 2 (for i865PEa-7ILFR/IF & i865Ga-7IF)

BIOS Award PnP 4Mb Flash ROM

BIOS

Award PnP 4Mb Flash ROM

BIOS

Award PnP 4Mb Flash ROM

BIOS

Board Size 305 mm x 244 mm 305 mm x 244 mm 305 mm x 244 mm

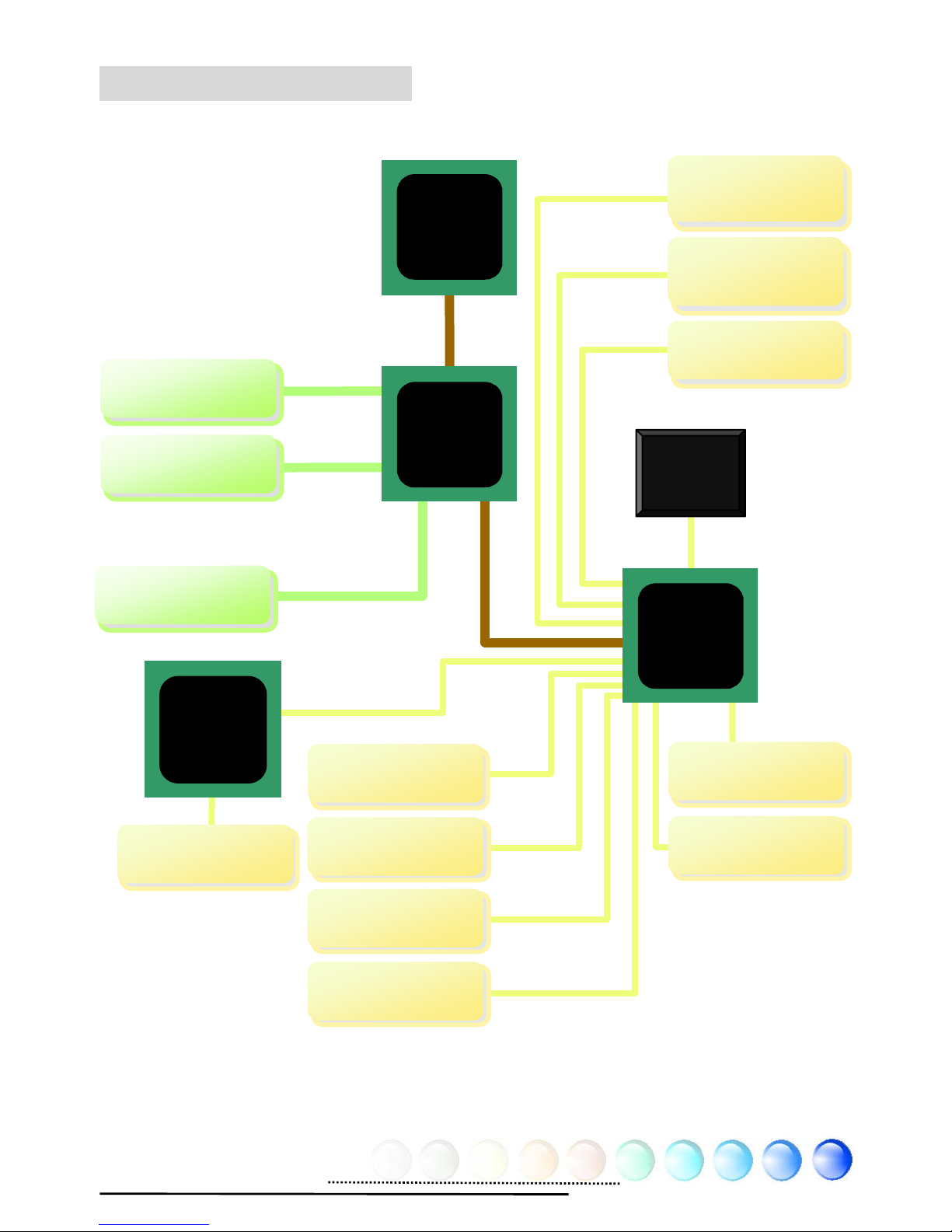

2.3 Block Diagram

Intel

865PE/

865G/848P

chipset

DIMM Sockets x4

DDR400/333/266 Dual

Channel RAM Up to 4GB

(for i800Pa-7I, it only

has two DIMM slots and

support 2GB maximum

in single channel)

Intel

LGA775

CPU

533/800MHz

System Bus

AGP bus

AGP 8X Slot

(i865Ga series support ADD card)

(Gigabit LAN is for

i865PEa-7ILFR & i865Ga-7IL)

VGA Onboard

ICH5R

/ICH5

32-bit PCI Slots

PCI Bus

Serial ATA Ports

100MB/s

IDE Drives x 4

RealTek

AC97

CODEC

ATA

33/66/100

4Mbits Flash

EEPROM

Parallel Port

Serial Ports x2

USB Ports x8

Floppy Disk

Drive

AGP 8X

Intel

Gigabit/

10/100

LAN Chi

LAN connect

Com

onent

IEEE 1394 ports

x 3 (IEEE 1394 control chip is for i865PEa

series & i865Ga-7IF only)

Chapter 3 Hardware Installation

3.1 Quick Installation Procedure

1. Installing CPU

2. Installing CPU

Fan & System Fan

3. Installing

Memory Module

4. Installing HD,

CD-ROM and

SATA Disk, etc

6. Connecting ATX

Power Cable

5. Connecting Front

Panel Cable

7. Installing AGP & PCI

Cards

8. Installing Other

Devices (USB, Front

Audio, etc)

9. Connecting

Back Panel Ports

(Keyboard,

Mouse, etc)

10. Loading

Default BIOS,

Setting CPU

Fre

uenc

11. Installing

Operating System

(such as, Windows

XP)

12. Installing Drivers &

Utilities

3.2 Installation You Have to Know

Installing CPU

This socket supports FC-LGA4 package CPU, which is the latest CPU package

developed by Intel. Other forms of CPU package are impossible to be fitted in.

Pull CPU socket lever and plate up.

1. Remove plastic cap from CPU socket plate.

2. Locate Pin 1 in the socket and look for a golden arrow on the CPU upper

interface. Match Pin 1 and golden arrow. Then insert the CPU into the

socket.

3. Press down the CPU socket plate and lever to finish CPU installation.

Note: It’s strongly recommended by

Intel to use thermal paste properly to avoid

over-heat generated from Prescott CPU.

CPU socket plate

Socket Pin 1

Golden

arrow

CPU socket

lever

Plastic cap

Warning: If you do not match the CPU

socket Pin 1 and CPU golden arrow well,

you may damage the CPU. And please don’t

touch CPU socket pins when installing CPU.

Otros manuales para i865PEa-7ILFR

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de AOpen

AOpen

AOpen AX4SG WLAN Hoja de datos

AOpen

AOpen AX6BP Manual de usuario

AOpen

AOpen AK77 PRO Hoja de datos

AOpen

AOpen MX4SGI-L Hoja de datos

AOpen

AOpen vK8T800a-LF Manual de usuario

AOpen

AOpen MX4LS Manual de usuario

AOpen

AOpen MX3S-T Guía de configuración

AOpen

AOpen AX4S-U Manual de usuario

AOpen

AOpen MX4GR Guía de configuración

AOpen

AOpen AX47 Hoja de datos

AOpen

AOpen MX4GVR Hoja de datos

AOpen

AOpen MX4SG-4DL Guía de configuración

AOpen

AOpen AX34-U Guía de configuración

AOpen

AOpen AK79G-V Hoja de datos

AOpen

AOpen AP53 Manual de usuario

AOpen

AOpen AX33 Guía de configuración

AOpen

AOpen AX4GER Hoja de datos

AOpen

AOpen MX4B Hoja de datos

AOpen

AOpen MX36CE Guía de configuración

AOpen

AOpen AX4SP Guía de configuración

AOpen

AOpen AK79D-400VN Guía de configuración

AOpen

AOpen AP5T Manual de usuario

AOpen

AOpen i915GMm-HF Hoja de datos

AOpen

AOpen AK75PRO Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

AOpen i865PEa-7ILFR Manual de usuario

Manuales populares de Placa madre de otras marcas
