AOpen Digital Engine DE965 Manual de usuario

Assembly Guide for DE965

V2.0

2009/01/09

Index

1. Outlook …………..……………………………………………2

2. Open Housing ……………………………………...………...4

3. Install Key components………………………………………7

4. Assemble the Supporter & Upper Case…………………..16

5. Appendix 1 Packing List…………………………………….25

6. Appendix 2 Table of Screw and Torque..………………….26

7. Appendix 3 Watch Dog Timer Configuration…….………..27

8. Appendix 4 Outline and Holder Drawing .…………………32

1

1. Outlook

Power Button

Front USB Power Button

Front USB

Front IO

2

Rear IO

COM port

VGA2

DC 19V HDMI VGA1 LAN

USB 2.0

Mic in

Line out

Antenna

hole

Kensington

lock hole

3

2. Open Housing

2-1.

Detach 2 pcs of the rear side screw ( FPH M3

screw ) by the electric screw driver .

(Screwdriver torque : 5.0±0.2 kgf. cm )

2-2.

Push the Upper case to remove it .

Front Side

Rea

r

Side

Unscrew

4

2-3. Detach 4 pcs of the supporter screw ( FPH

M3 screw )by the electric screw driver

(Screwdriver torque : 5.0 ±0.2 kgf. cm )

2-4.Remove Supporter

5

2-5.You will see the kernel of Digital Engine

6

3. Install Key components

3-1Install Memory

3-1-1.

Insert the memory on the socket as this

angle.

MB

30°

Insert DIMM as this angle

7

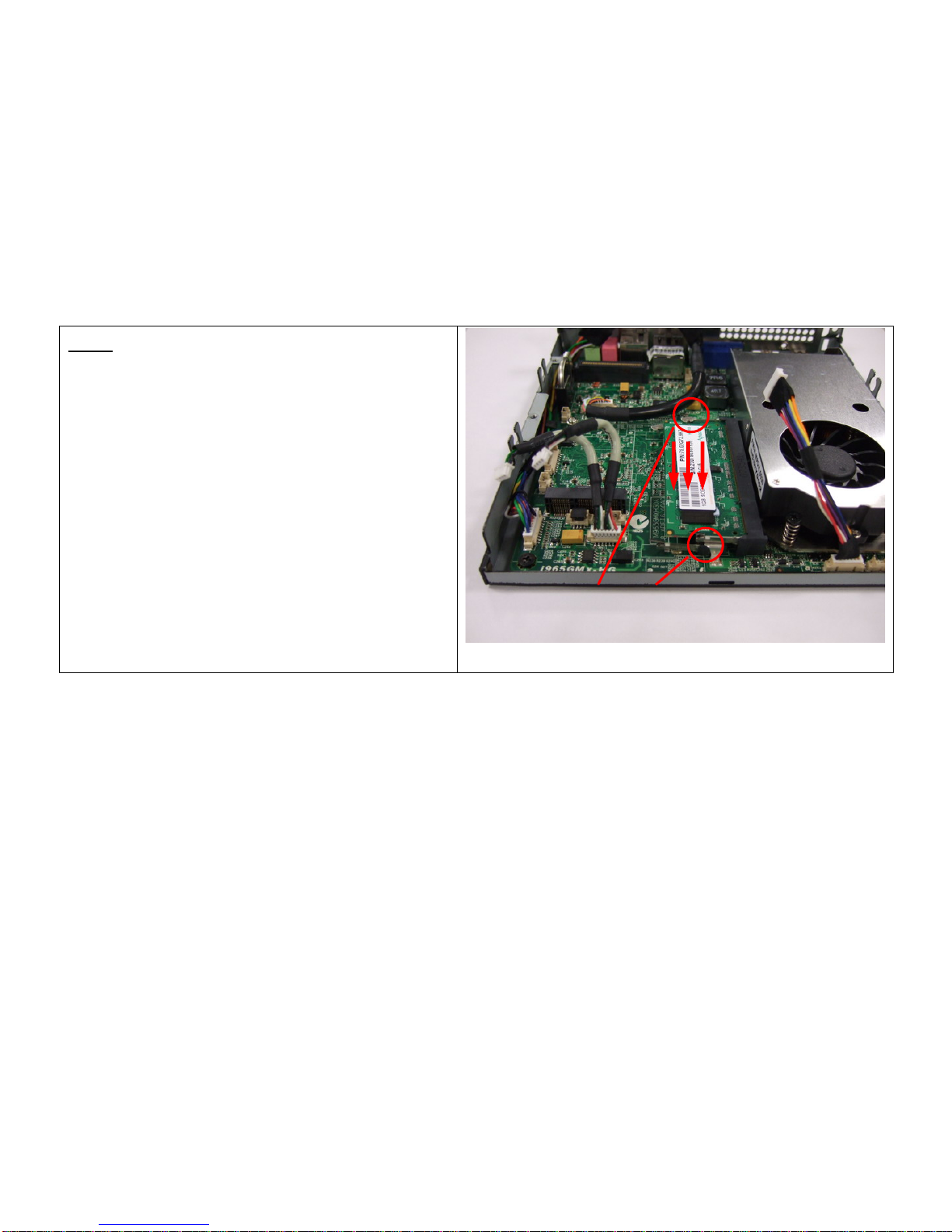

3-1-2.

Then press the DIMM as flat on the

Motherboard, and you will hear the click

voice.

Make sure it clicks

8

3-1-3.Unscrew the CPU cooler 3-1-5. Unscrew CPU socket

Counterclockwise direction

Unscrew

3-1-4. Remove the cooler

9
